Magic Square

Name: Magic Square
Brand: Fireball Tool Europe
SKU: F6-MAS300-AL-BDK
Price: 114.0 EUR
Availability: InStock

Save 5%

Fireball Tool EuropeSKU: F6-MAS300-AL-BDK

No reviews

Material: Aluminium (AL)

Variant

Price (excluding tax):

€114.00 €120.00

Quantity:

Share this product

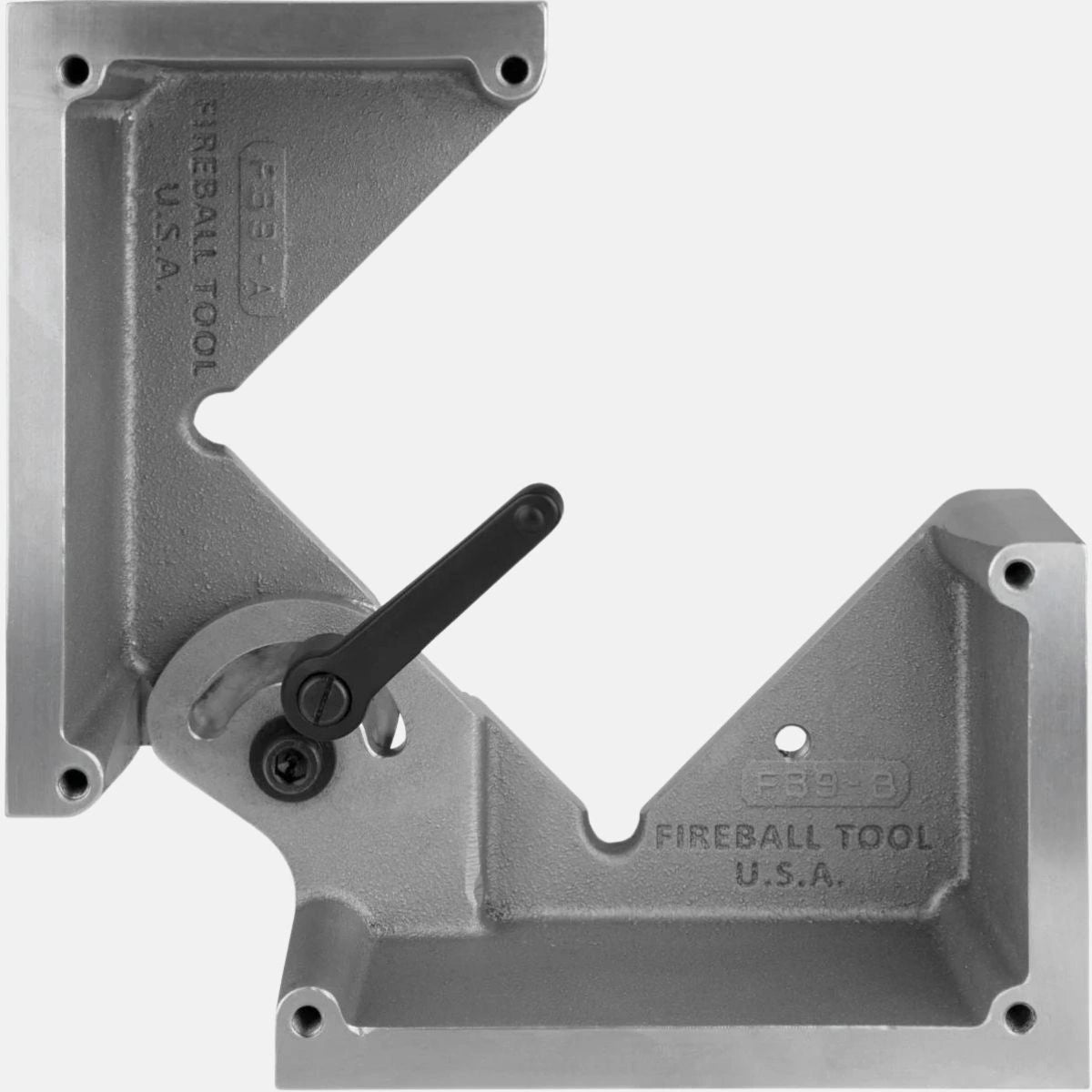

There are so many ways to use this square it seems like Magic. It’s two squares in one- when you purchase one Magic Square you get two individual squares that also link together to form 5 different combo squares. A zinc adjustable handle provides tool-less angle adjustments.

Patented Design

300 mm

200 mm

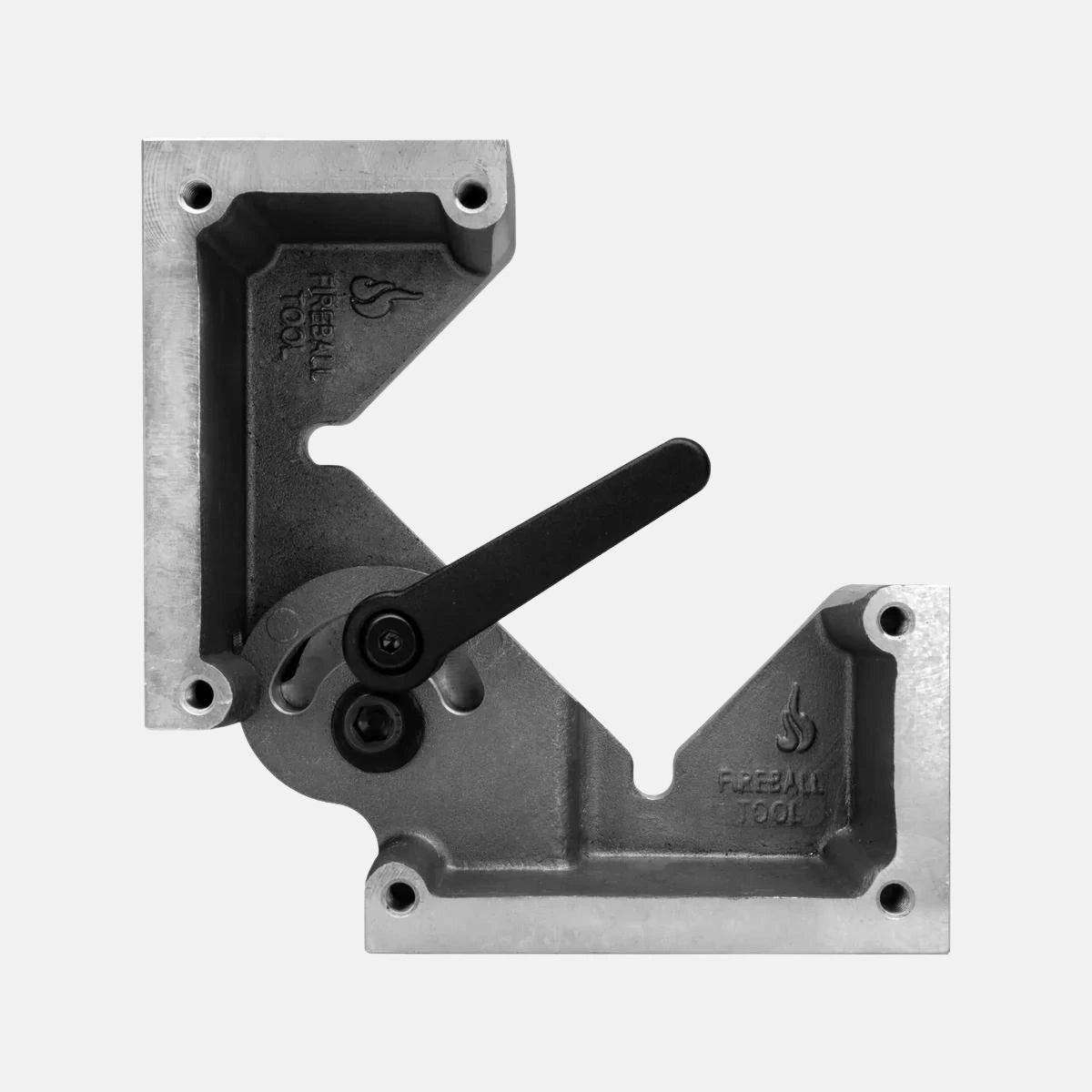

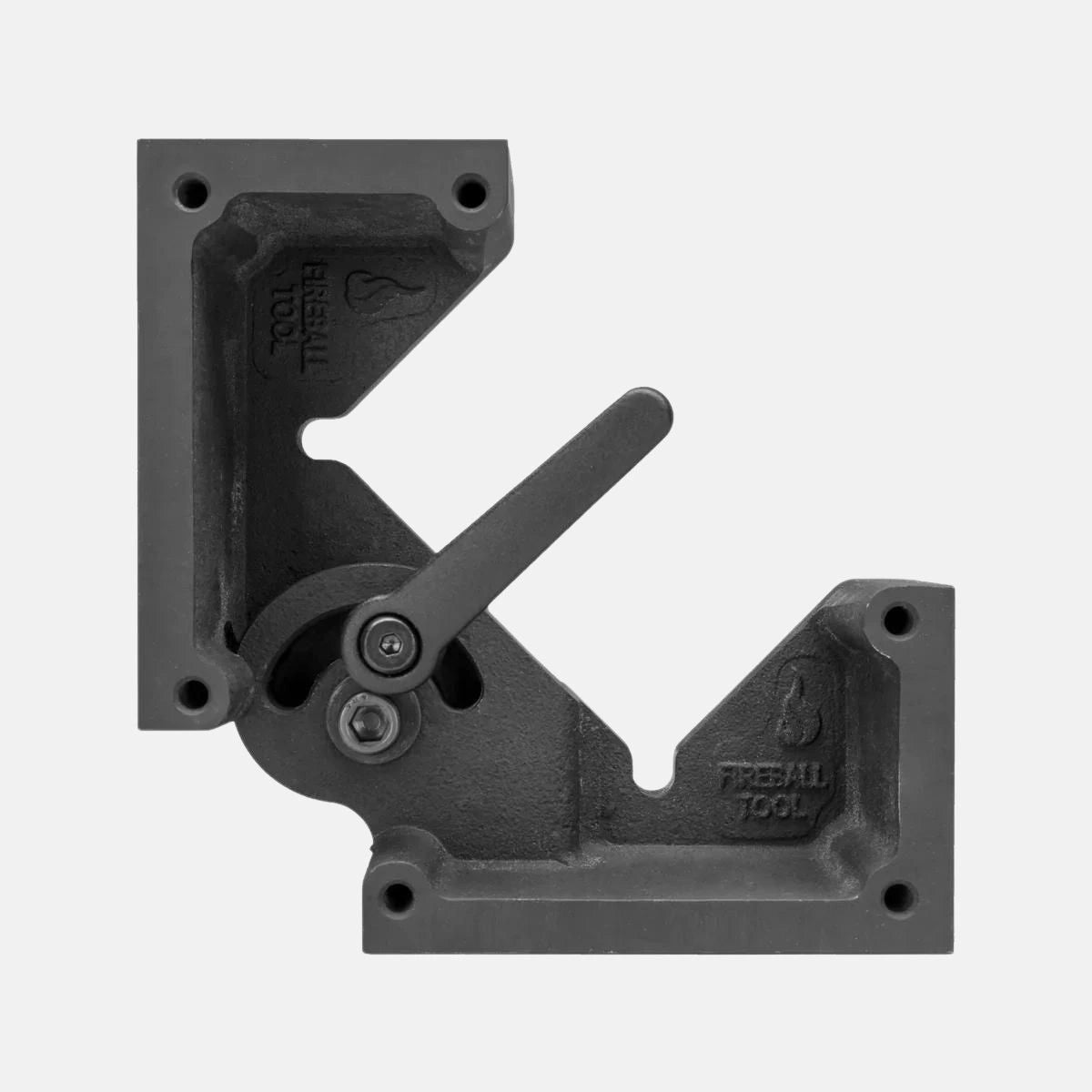

Use it as an ordinary, adjustable angle square that adjusts from 40 to 180 degrees.

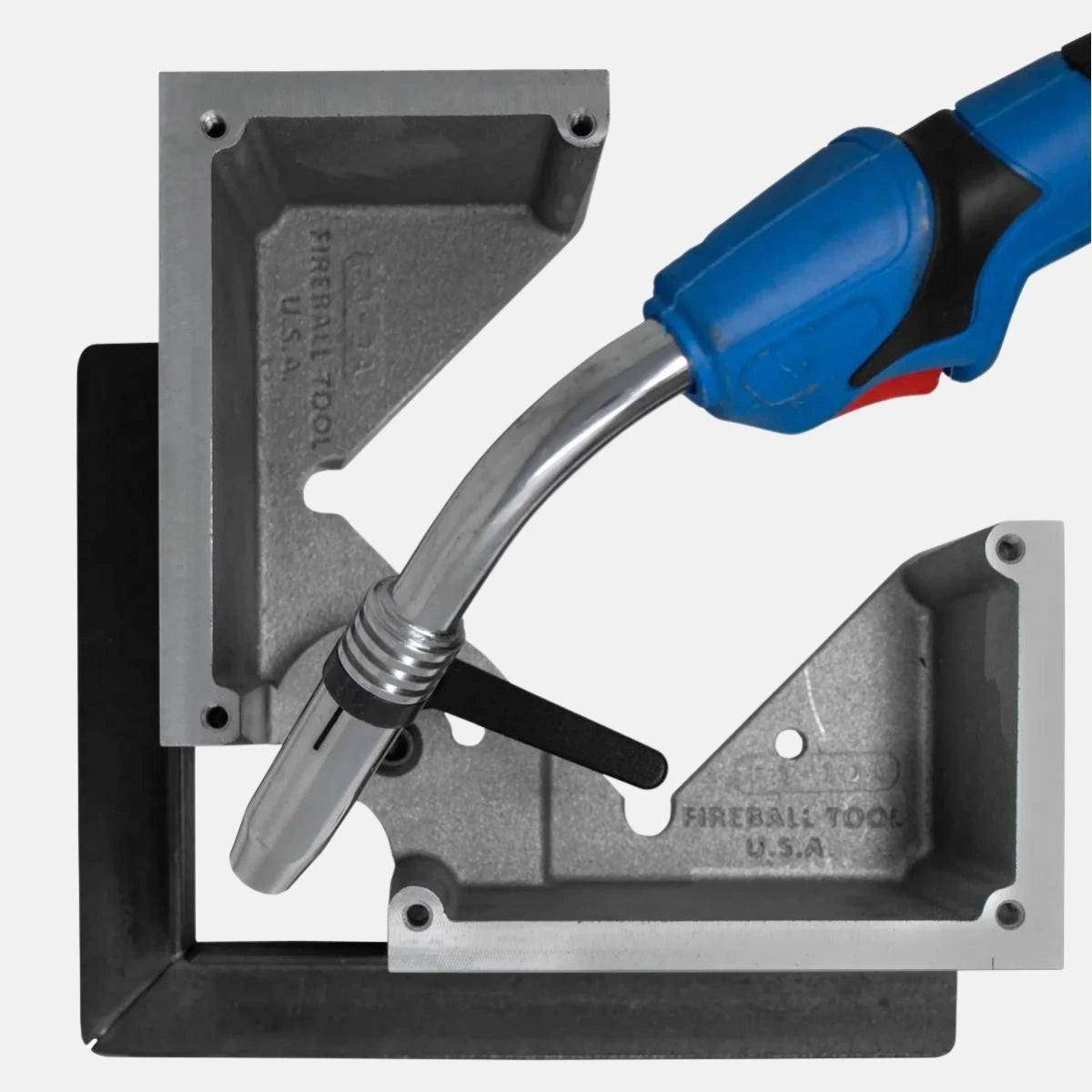

Right Angle 90 Degree Square with generous weld accessibility. Total height of 200 mm in this configuration.

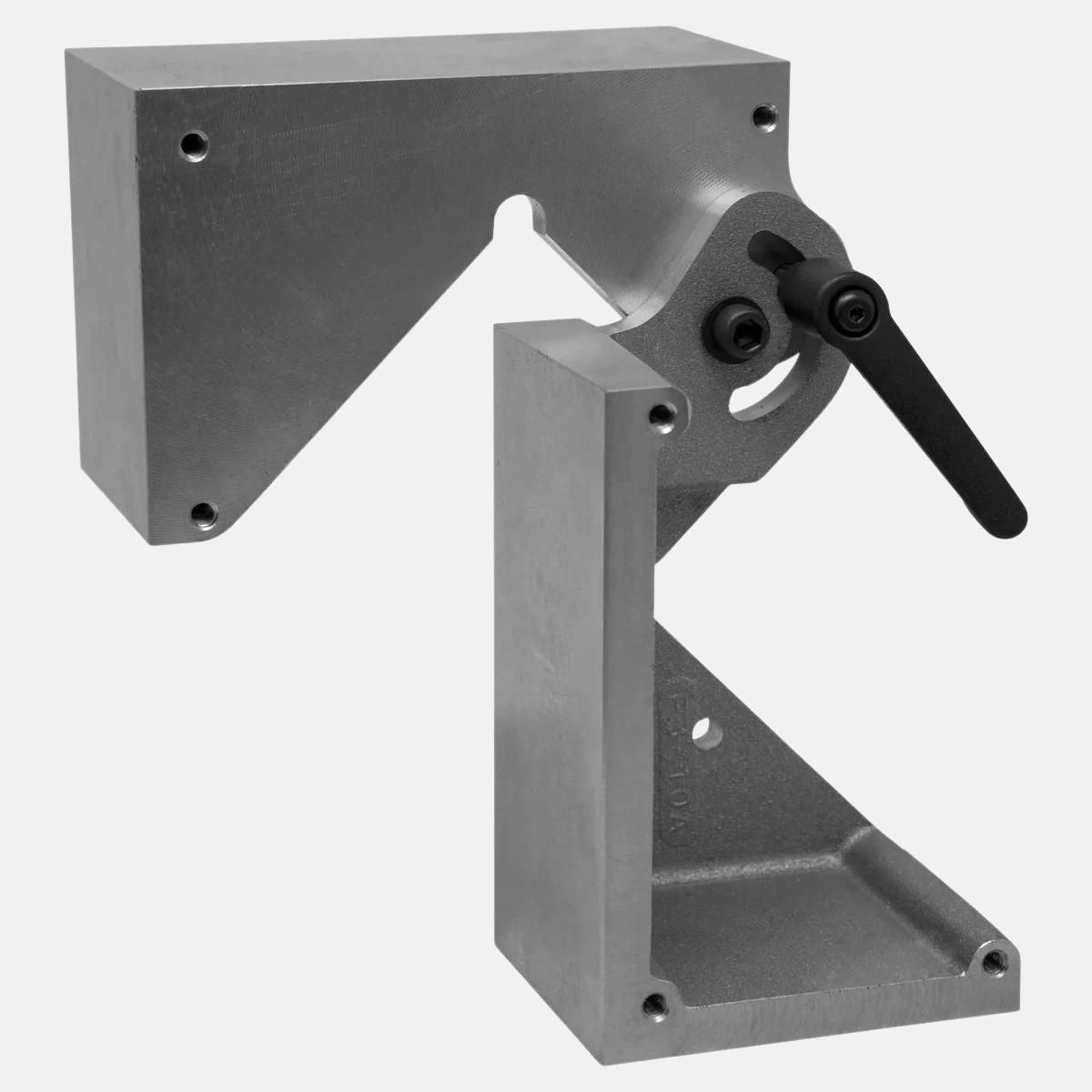

Tall 300 mm square when fully opened and locked into place

Remove the fasteners to get two individual squares

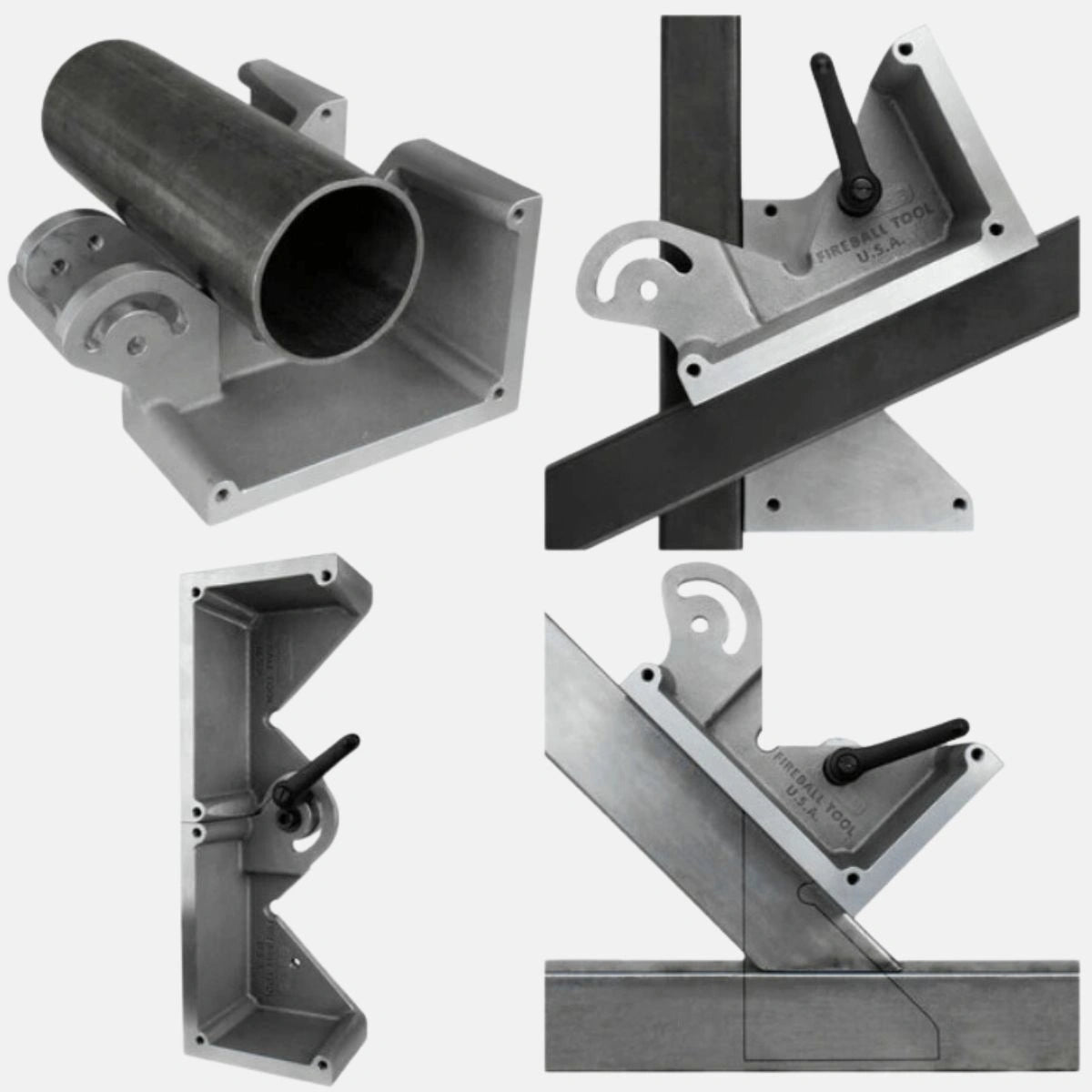

Use the large V-groove to hold large round tubing or pipe

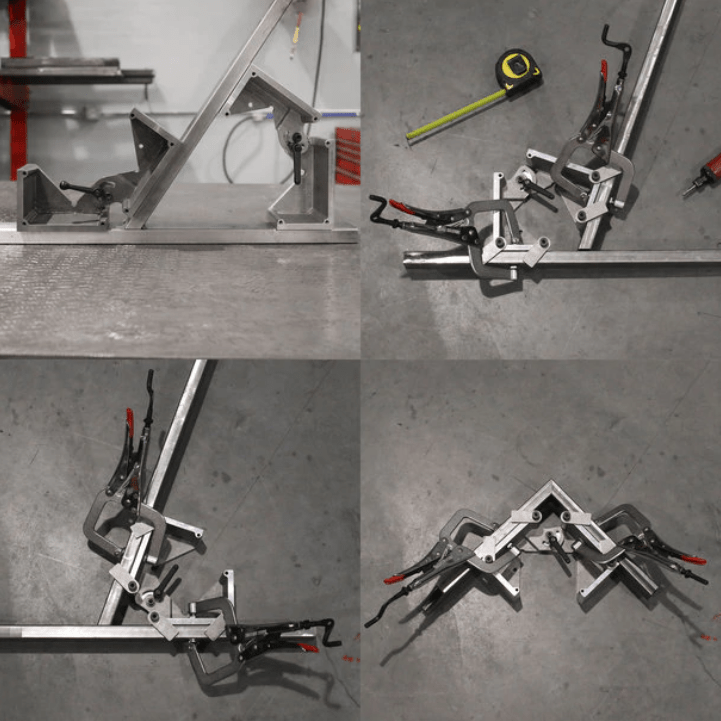

Switch up mating surfaces to position material in offset positions.

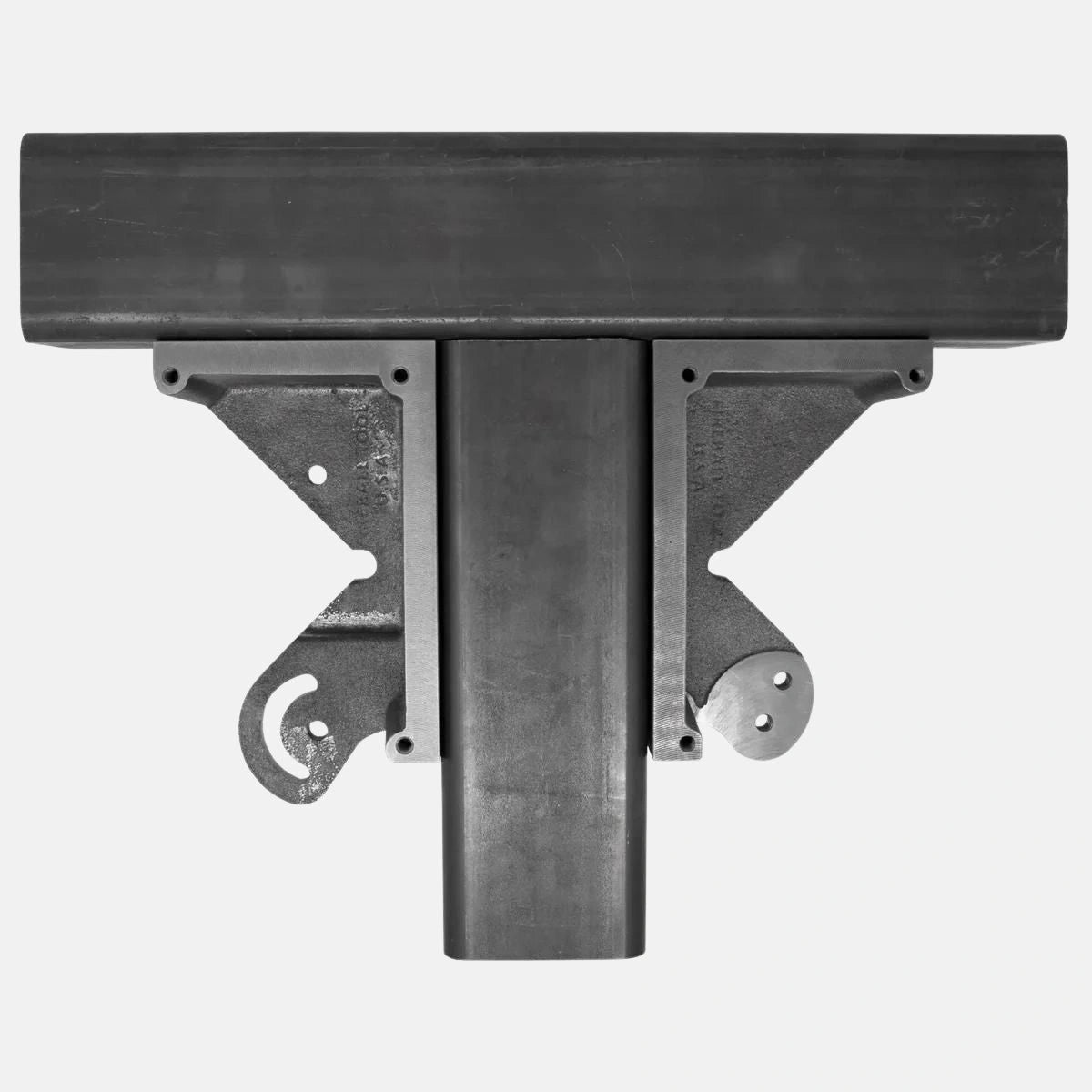

Put the squares back together but with the mating surfaces reversed. This allows you to use the square to hold material offset to each other.

Use a second pivot point on the square with the mating surfaces reversed to change the balance of the square, it’ll seem like an entirely different square tool!

Tips For Variable Angle Settings

One Angle Setting, Two Ways To Hold

Each angle you set creates two useful sets of angles on the square. You get the main angle and a complimentary angle (one acute, one obtuse)
The most accurate way to get an angle is to use a digital protractor. A scale is not included due to complexities in getting an accurate, high quality scale made
Use a 4 inch block with a flat surface as shown below to set a 90 degree angle

Use Shims or 25-50-75 Blocks

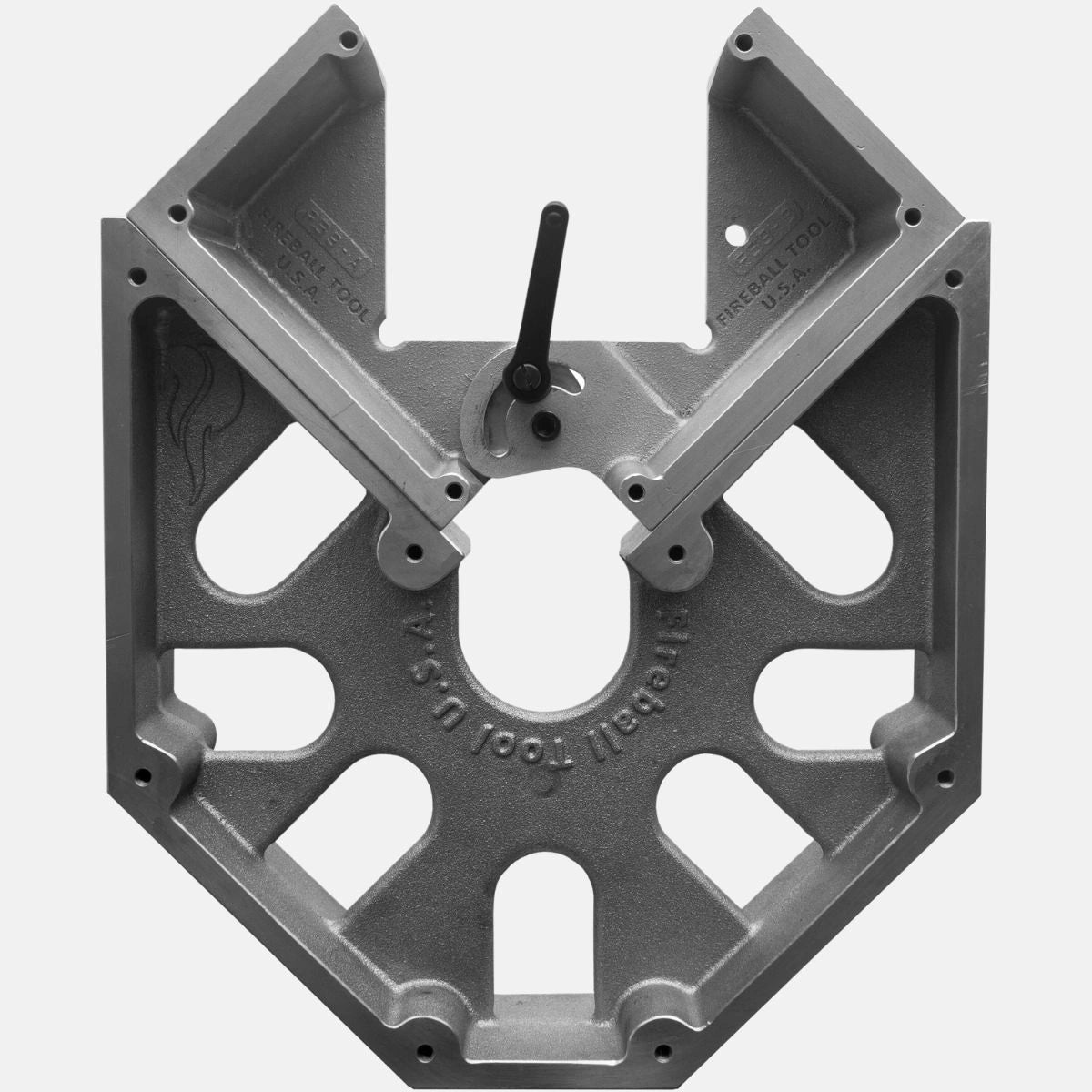

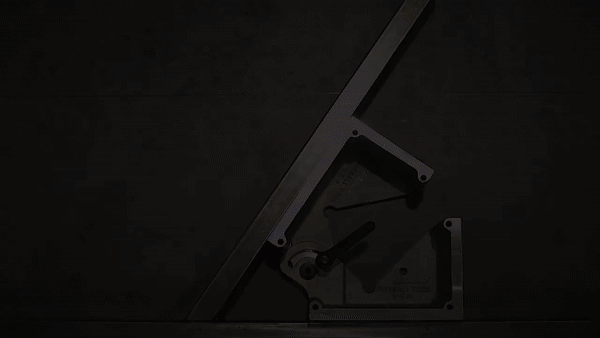

Use Mega Square

Use Minion Square

Aluminum (AL)	Cast Iron (FE)	Dragon Scale (FE)
Pros Lightweight (Ideal for welding on the go) Resistance to deformation vs aluminum billet Some natural resistance to weld spatter. Cons Can be be damaged if dropped or if used in heavy duty projects.	Pros Great for heavy duty projects Excellent resistance to deformation and raising burrs when scratched. Some natural resistance to weld spatter. Cons Heavy (Not ideal for mobile welding) Susceptible to rust.	Fireball’s new Dragon Scale coating provides the corrosion resistance of our previous black oxide finish with the added benefit of enhanced spatter resistance. It’s spatter resistance needs to be seen to believed; it out performs even the best weld spatter sprays without the use of any sprays.

Included Accessories

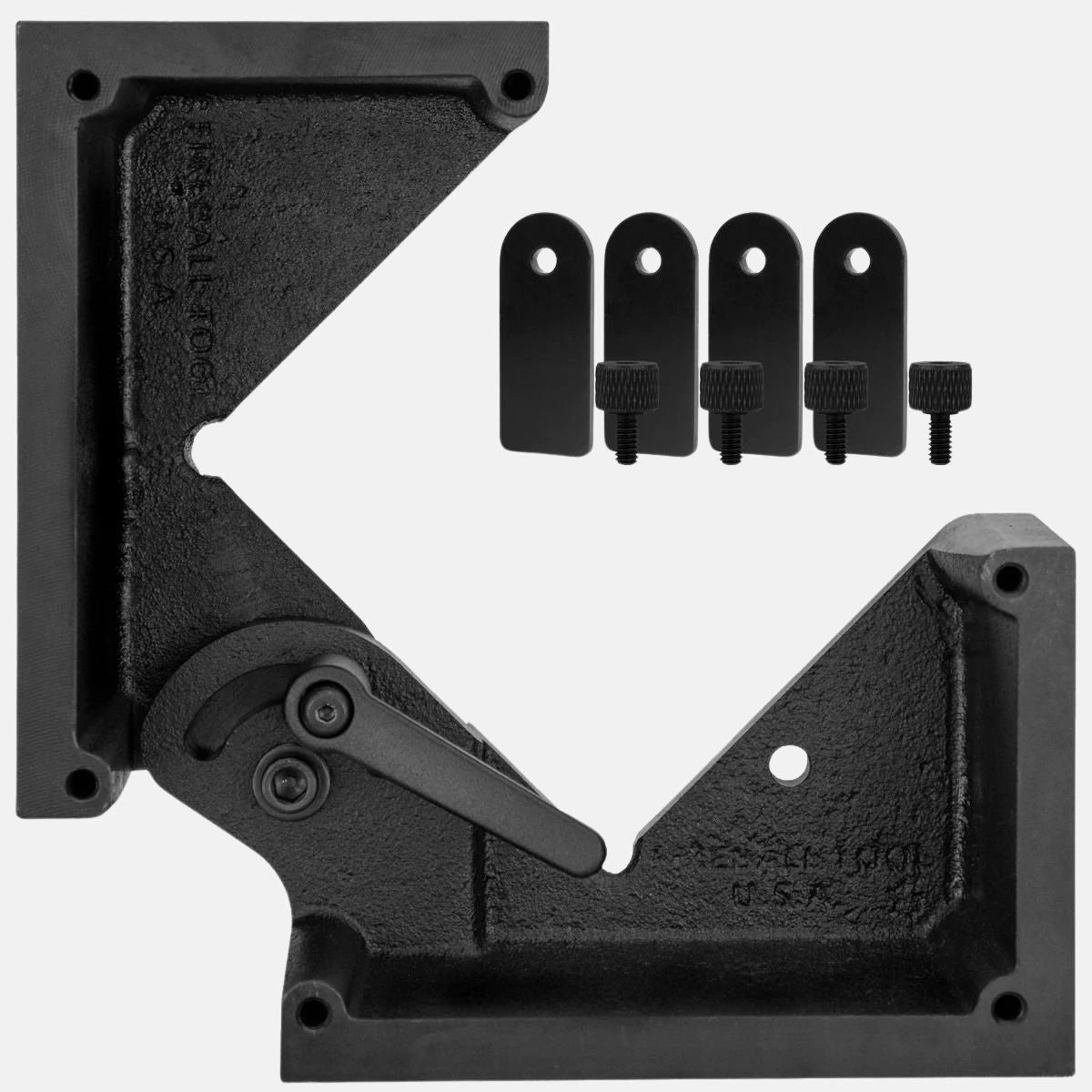

6 Edge Location Tabs

Our revolutionary tabs allow you to align your material up so that you don’t even need a welding table! Don’t spend thousands on a flat table, just use our squares! Tighten the tabs onto the front or back of your square and you can immediately get to work. Sure, there are different jigs out there, but can they line your material perfectly in seconds?

6 Tool-less Thumbscrews

But it doesn’t stop there. We reinvented the game by introducing our thumbscrews. Say goodbye to your hex keys and Allen screwdrivers and freely adjust the tabs with only your fingers!

Optional Add-ons

Edge Alignment Pins

Install our edge alignment pins on any square to create a large, overhanging edge which can be used to index the square on a different plane. Depending on the square, this allows you to create edges which are 90 degrees (perpendicular), 45 degrees, parallel, and even 60 and 30 degrees from the edge.

Use it with our Monster squares to create a speed square for layout.
Use it to hang the square off the edge of a table for working vertical or perpendicular to table surface
Use it to elevate the squares off the ground or table for extra clearance when you’re fitting and welding entire frames
Tip! If trying to create a parallel edge with the mega square for marking, use our shims to get that perfect distance!

Videos

New Magic Square and Magnetic Shim Kit Demo
