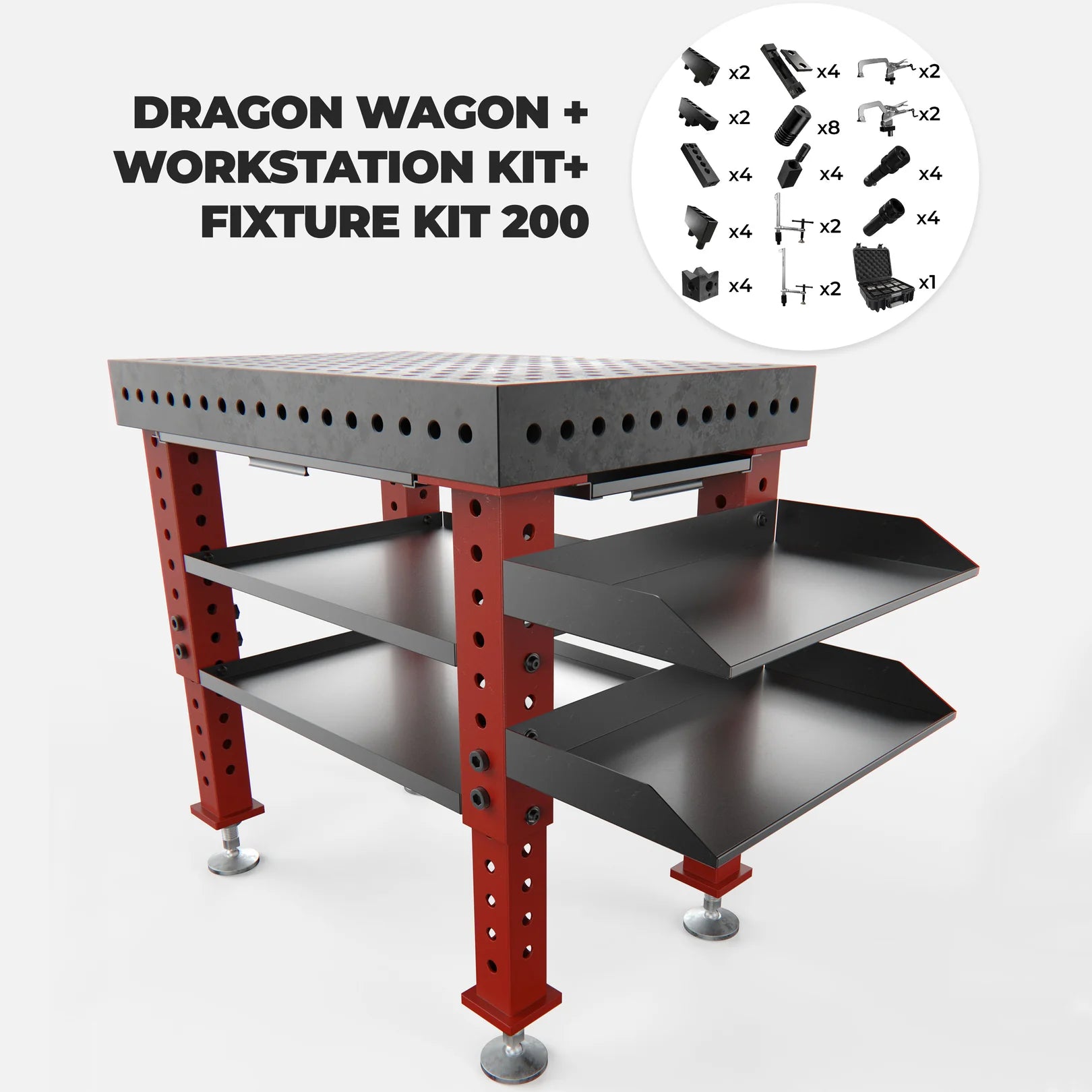

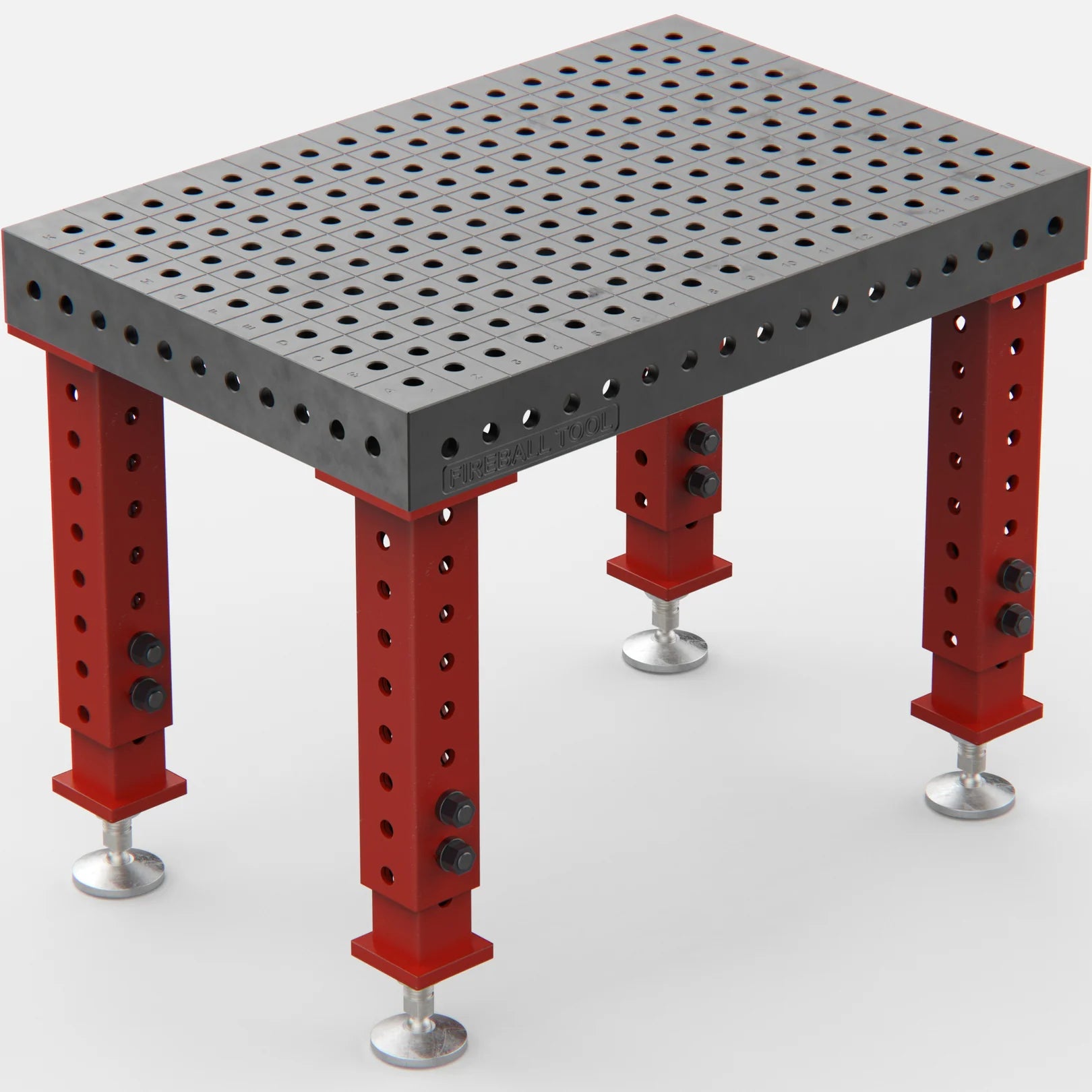

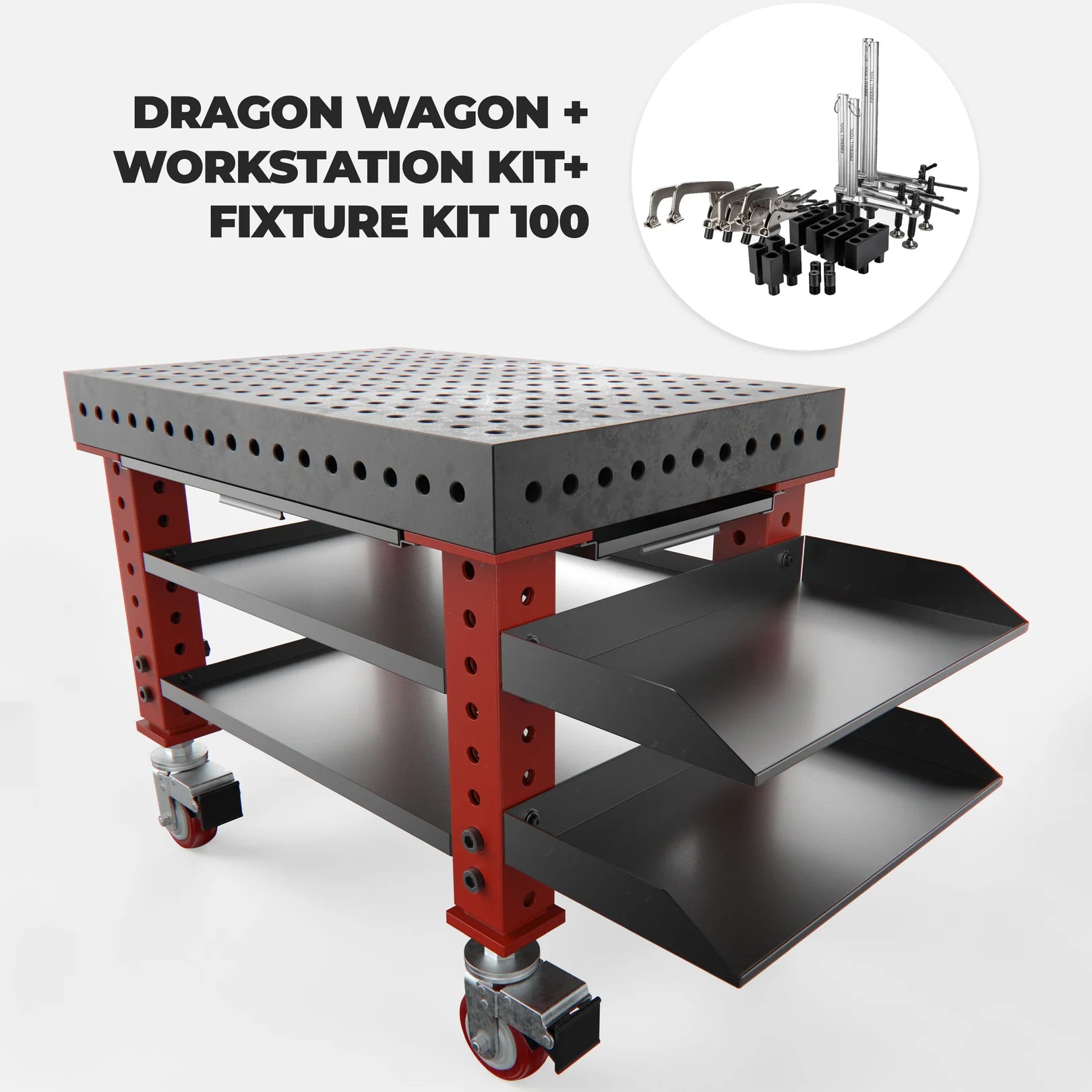

Dragon Wagon 1000x600 mm (Standard Duty)

Fireball Tool EuropeSKU: FM19-TCH10060-FE-BO
No reviews

Legs: No Legs (Tabletop Only)
Add Ons: Table Only
Price (excluding tax):
Sale price€1,300.00

360° View 3D Model (Click & Drag)

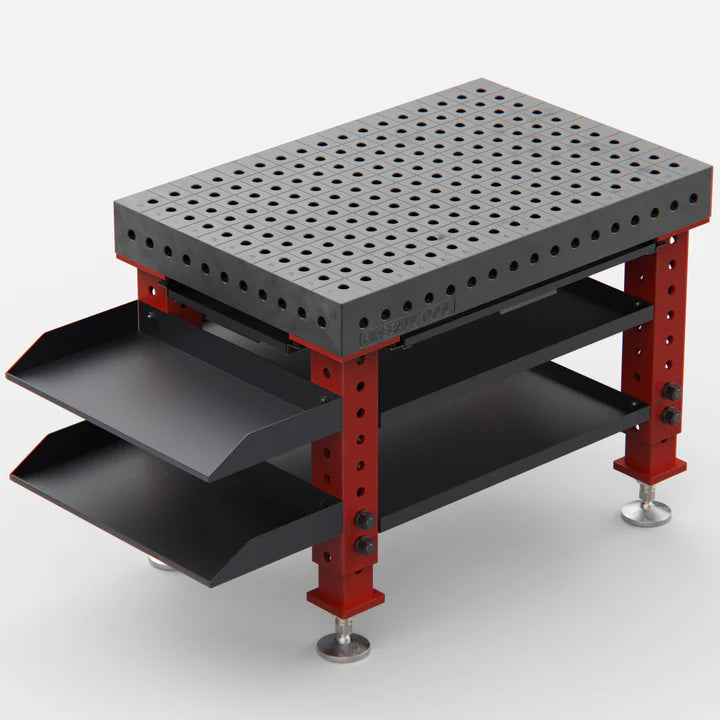

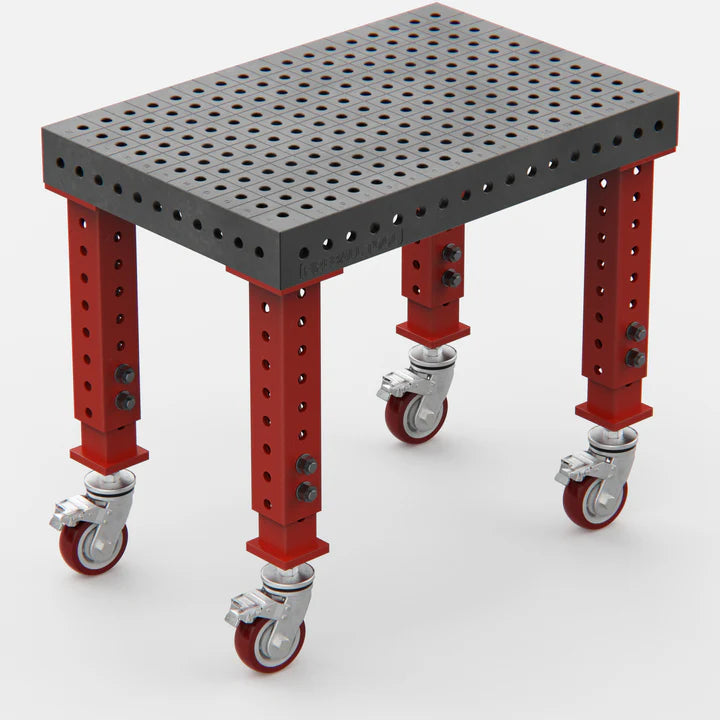

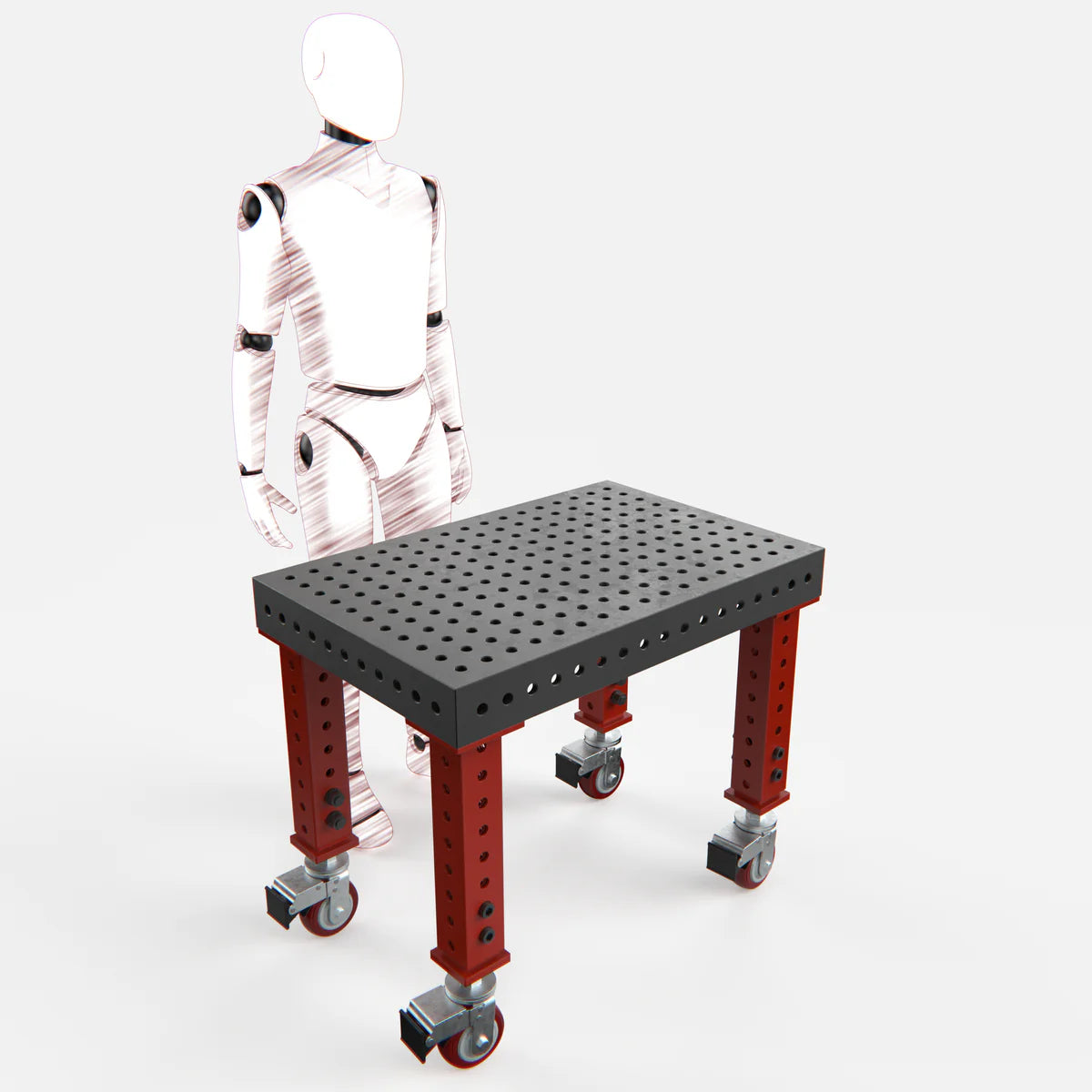

Dragon Wagon - 1000x600 mm


  • Coating- Corrosion, spatter, and scratch resistant Dragon Scale

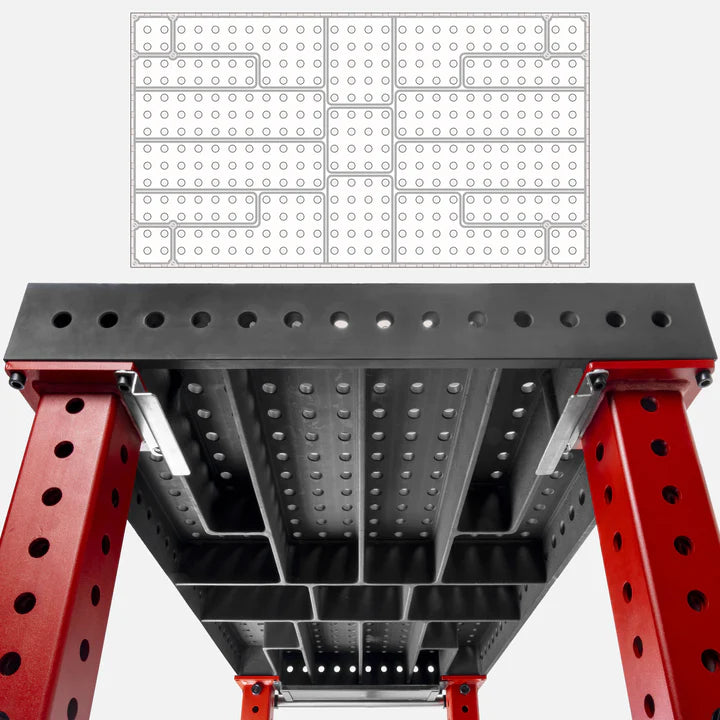

  • Ribbing- Full height 100 mm ribbing engineered to torsional rigidity
  • Holes- All counterbore and chamfered on back sides
  • Side face on the tables are 100 mm tall with 1 row of holes.
  • The modular leg accessory system provides an extensive range of customization options.
  • 12 mm thick table that shares all the same fixtures as the 25 mm thick table.
  • Flatness (± 0.127 mm) full length, corner to corner
Tabletop Dimensions 1000x600 mm

Table Side Height

100 mm

Table Thickness

12 mm

Hole Diameter

19 mm

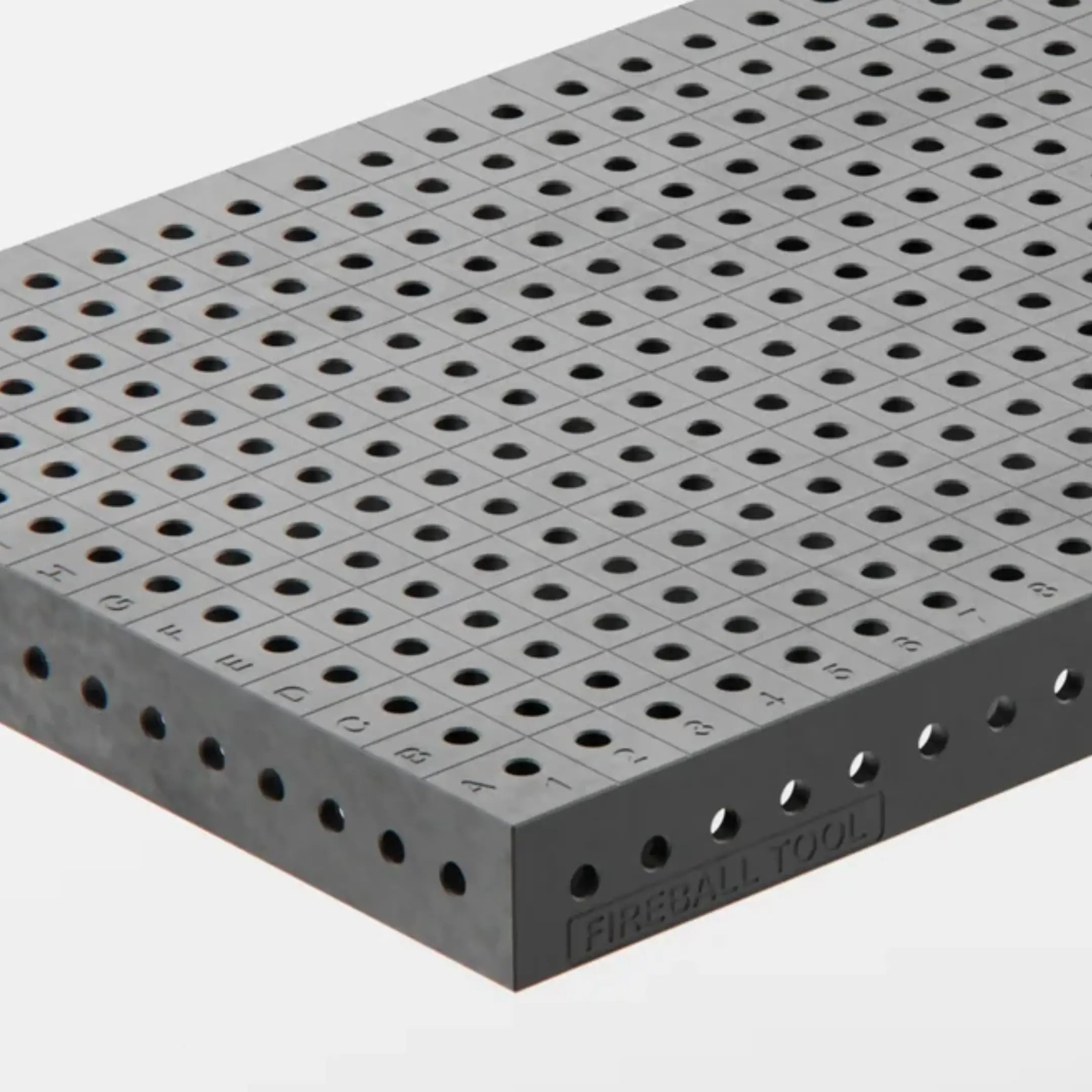

Grid Pattern

50 mm

Material

Gray Cast Iron

Finish

Dragon Scale

Tabletop Weight

120 kg

Leg Type

Standard Duty

Number of Legs

4

Capacity Per Leg

270 kg

Rated Weight Capacity with Legs

680 kg

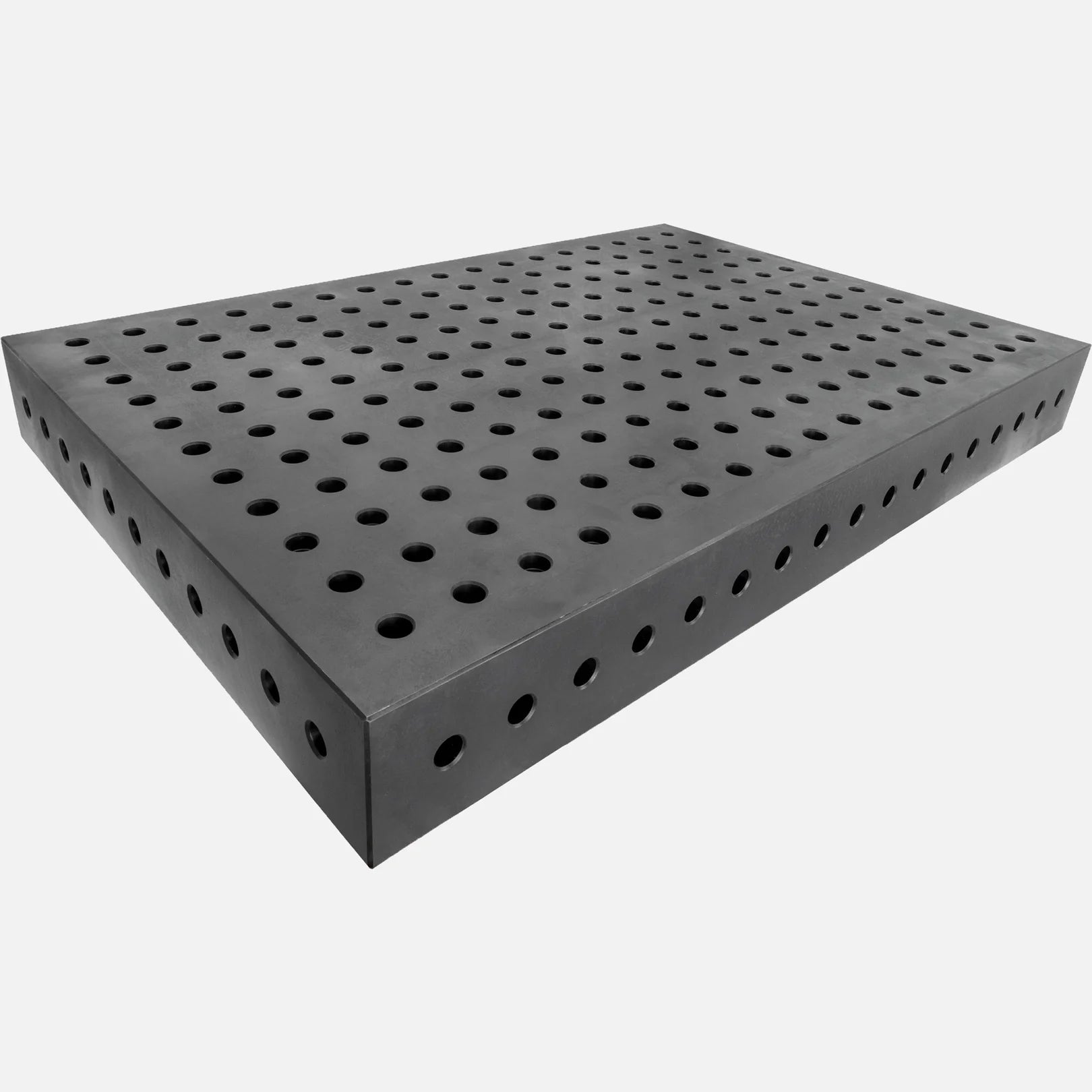

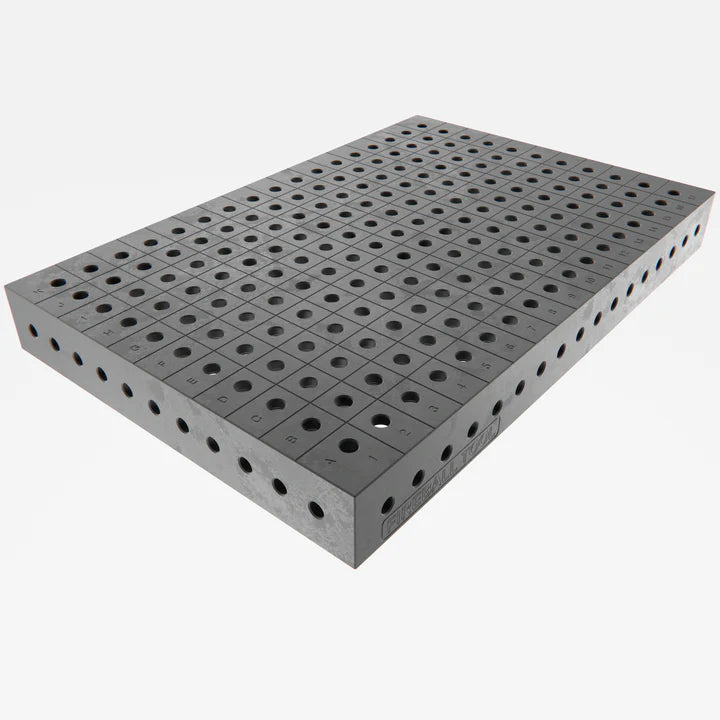

Tabletop Construction

12 mm thick Gray Cast Iron on top and 12 mm thick sides, additional reinforcement ribs underneath. Machined flat on all 5 sides to within +/- 0.0635 mm per 600x600 mm area. Side apron on the tables are 100 mm tall with 1 row of holes.

Dragon Scale Coating - Corrosion, spatter & scratch resistant

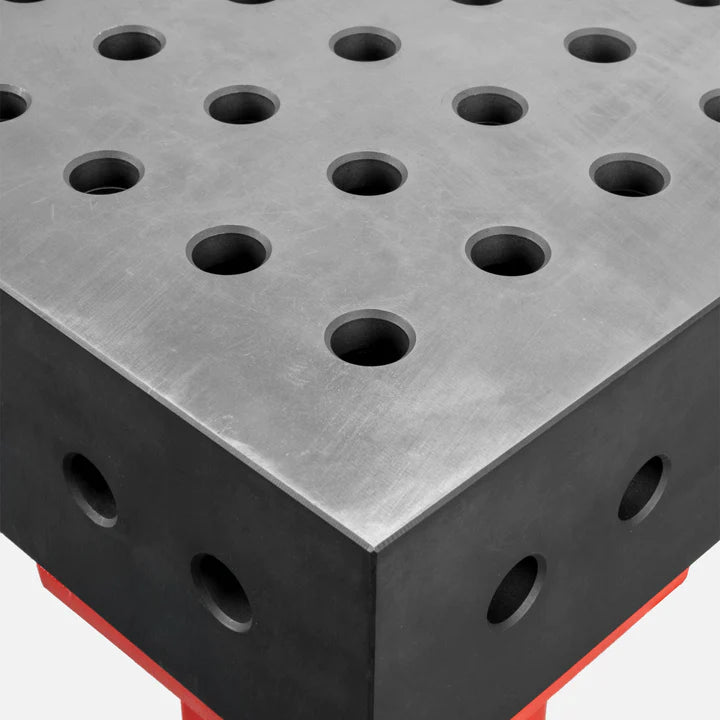

Counterbore Underside

Chamfer on top and bottom

Dragon Scale Coating

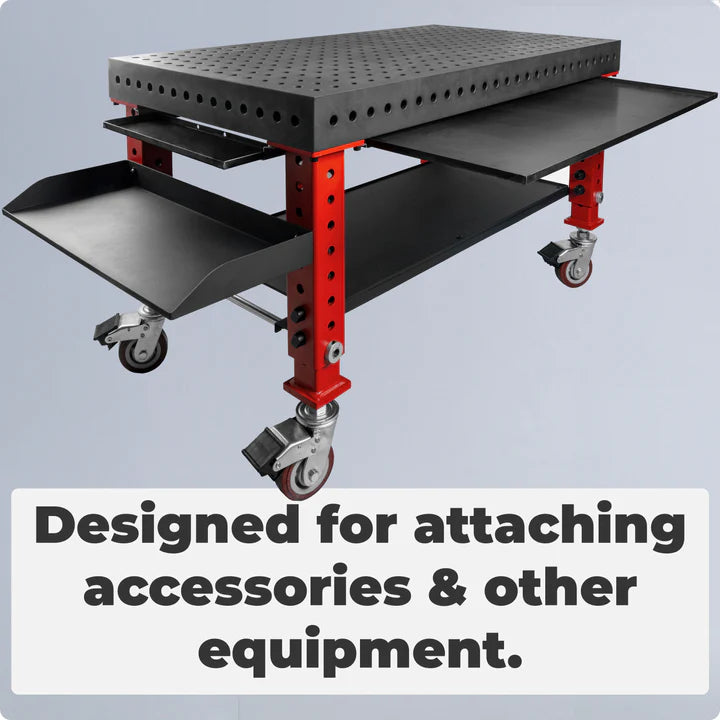

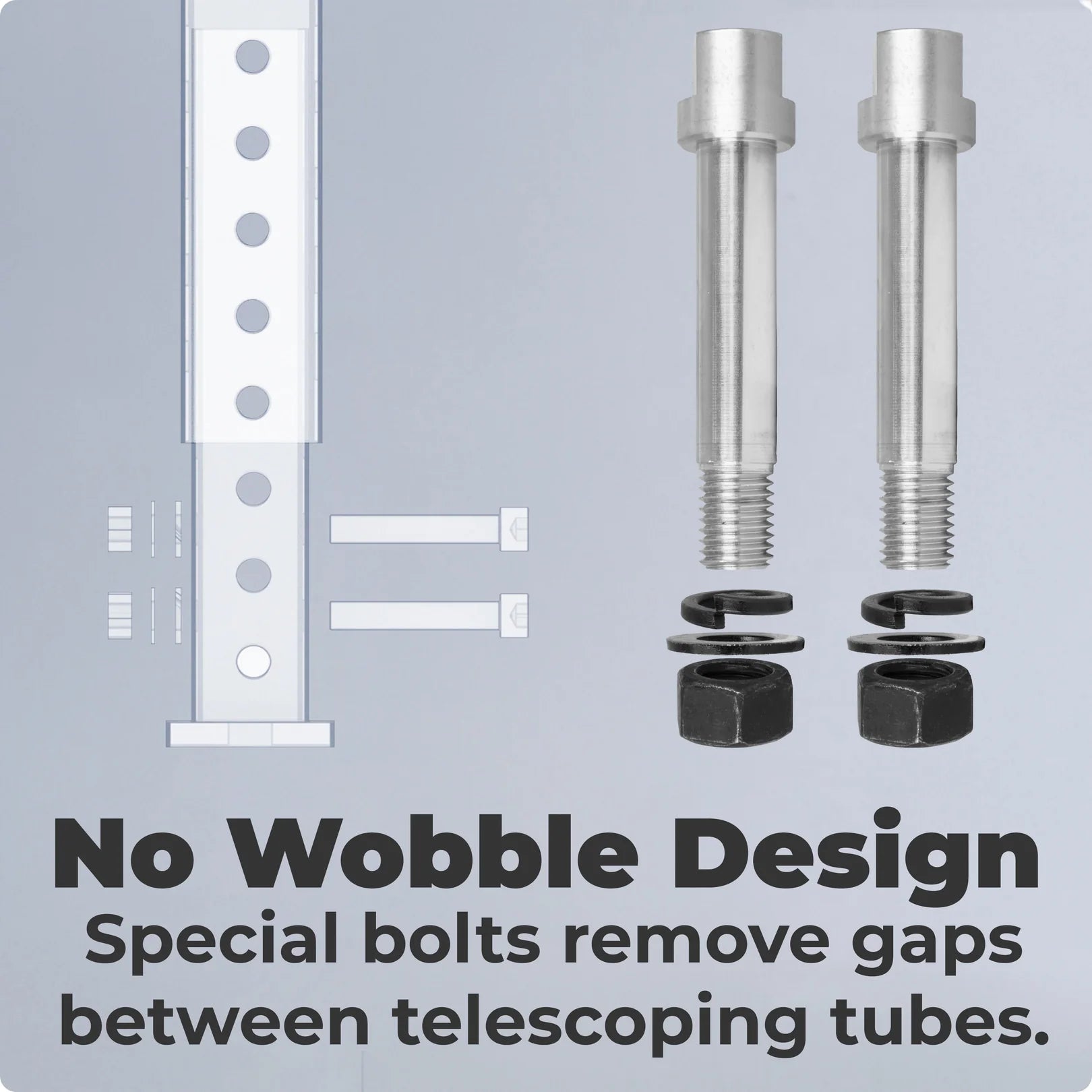

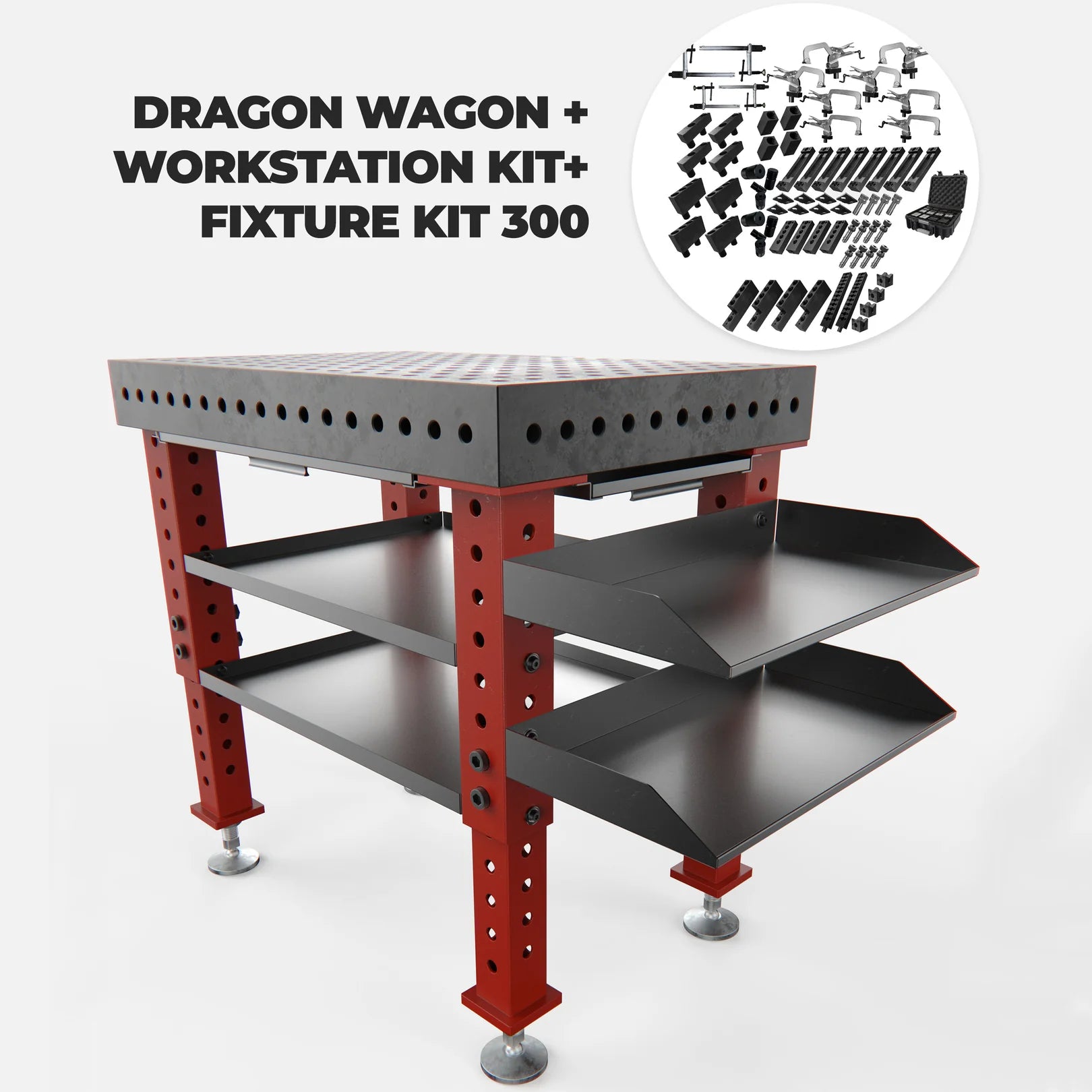

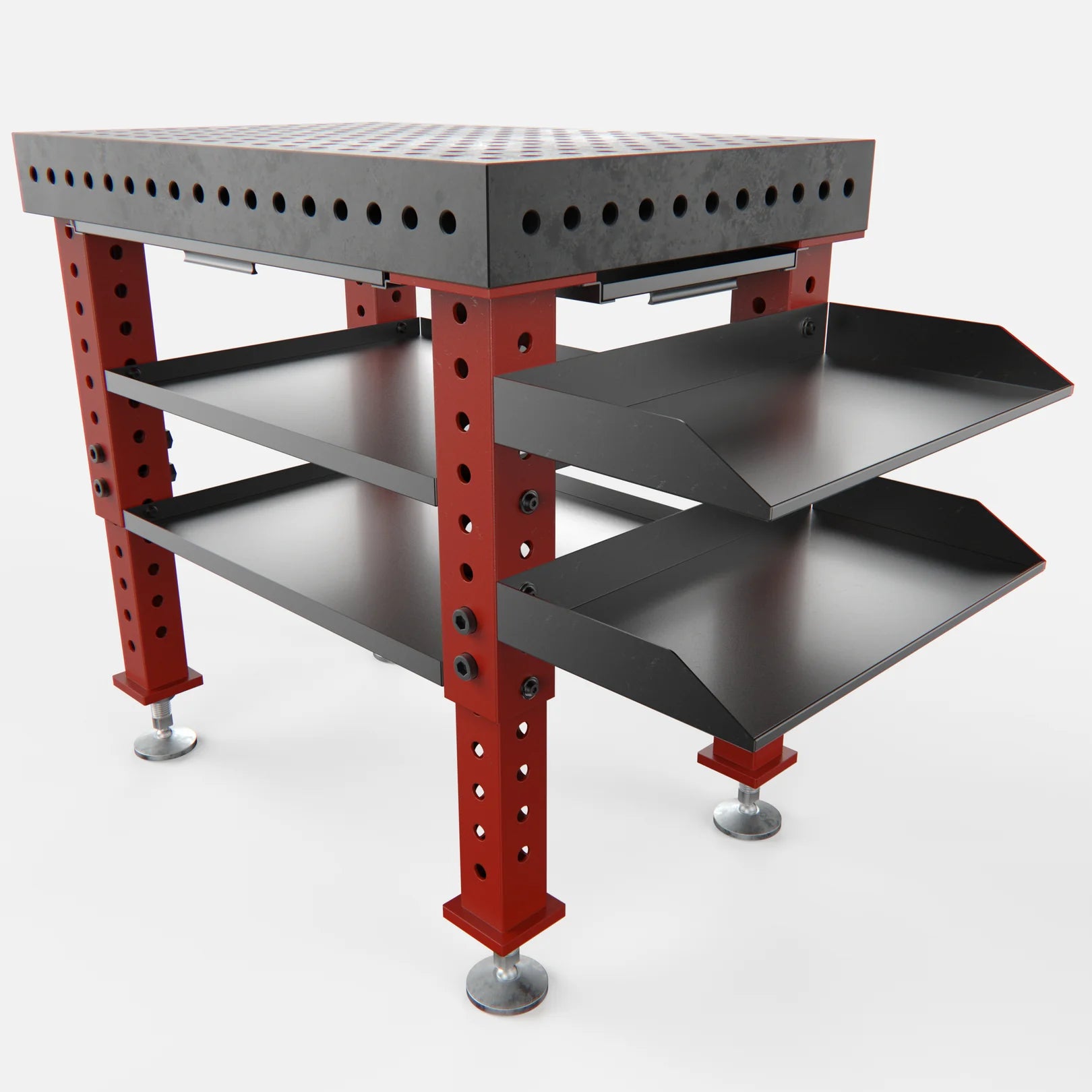

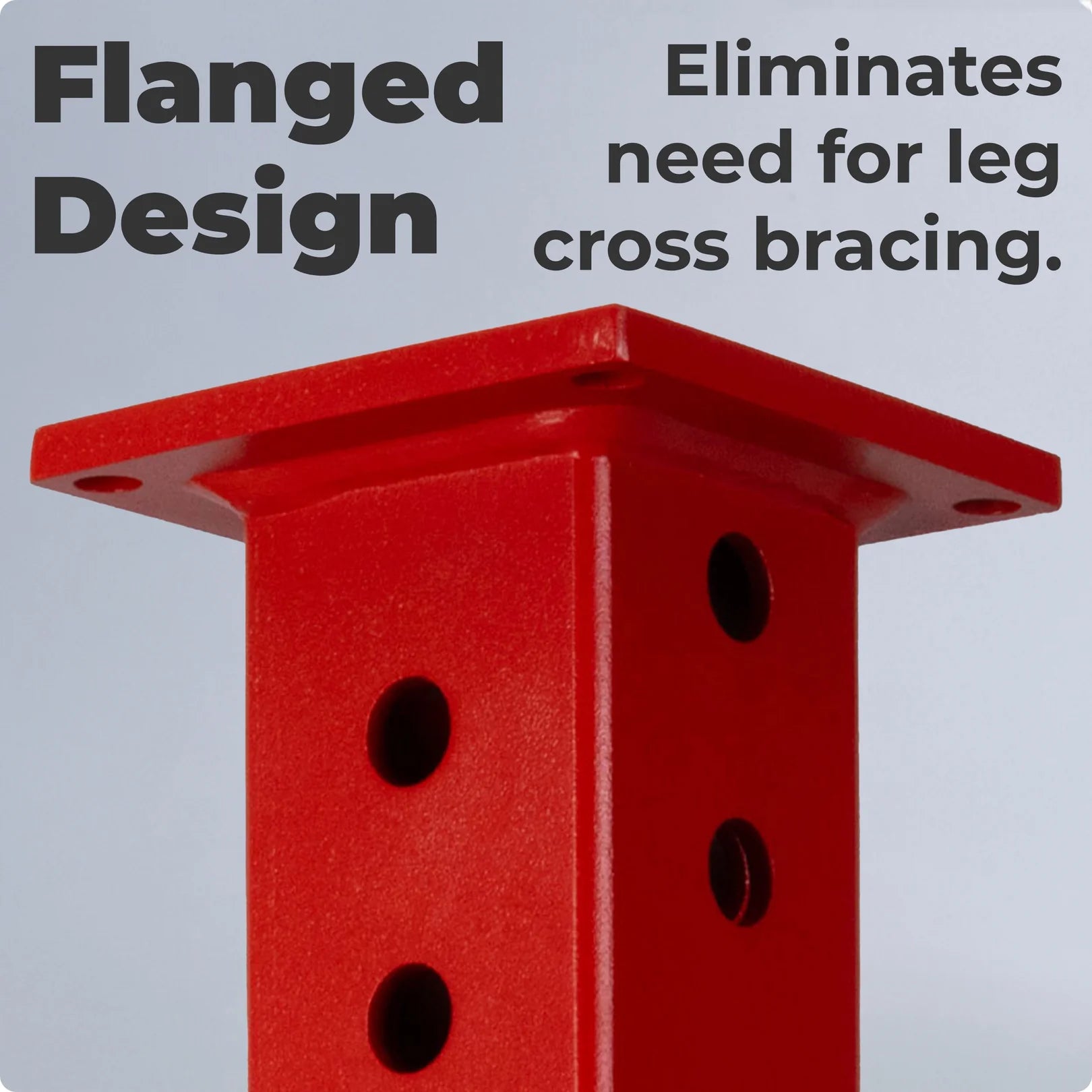

Modular Accessory Legs

Modular system that allows for a huge variety of accessory customization. Add shelves seats, leg braces, slag tray and more.

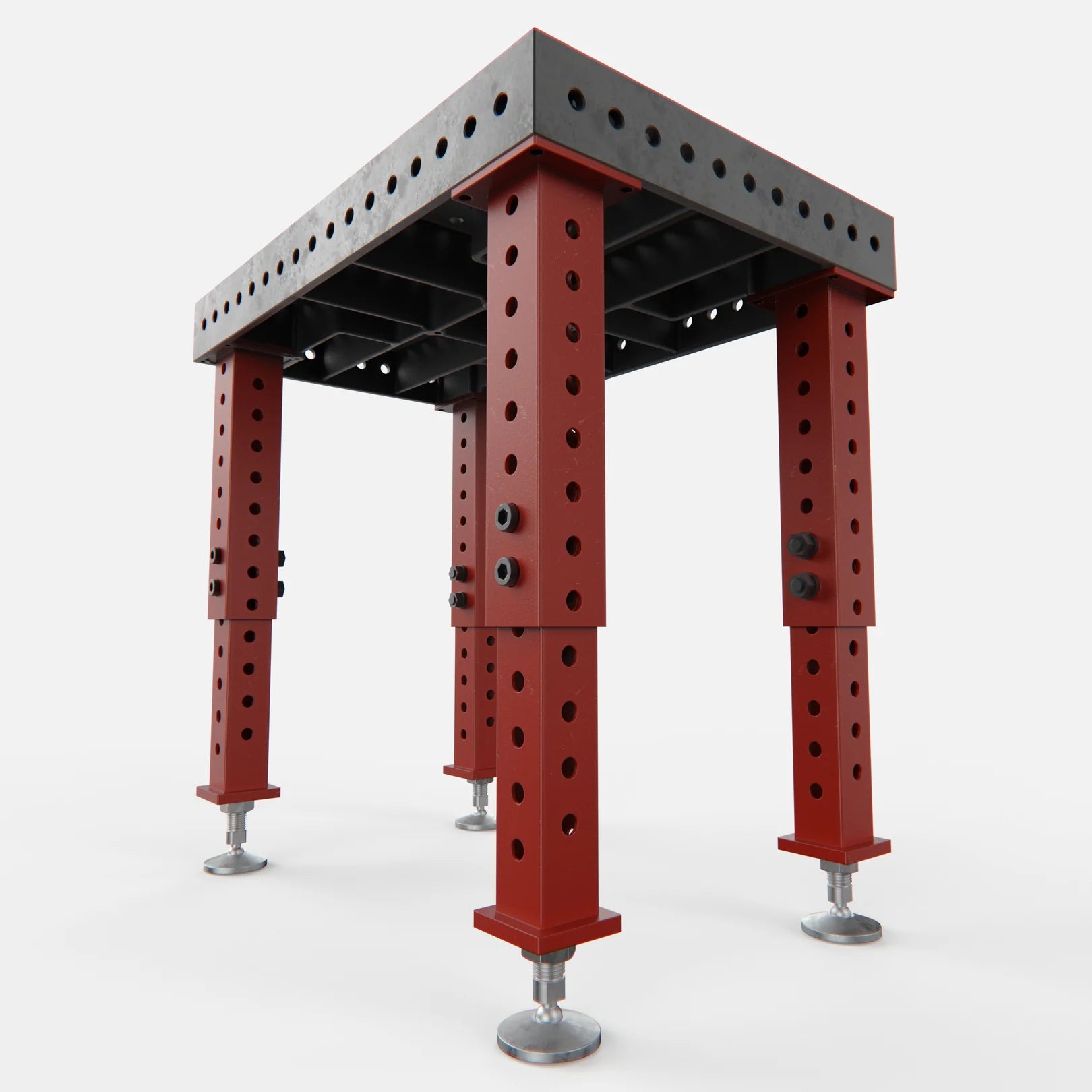

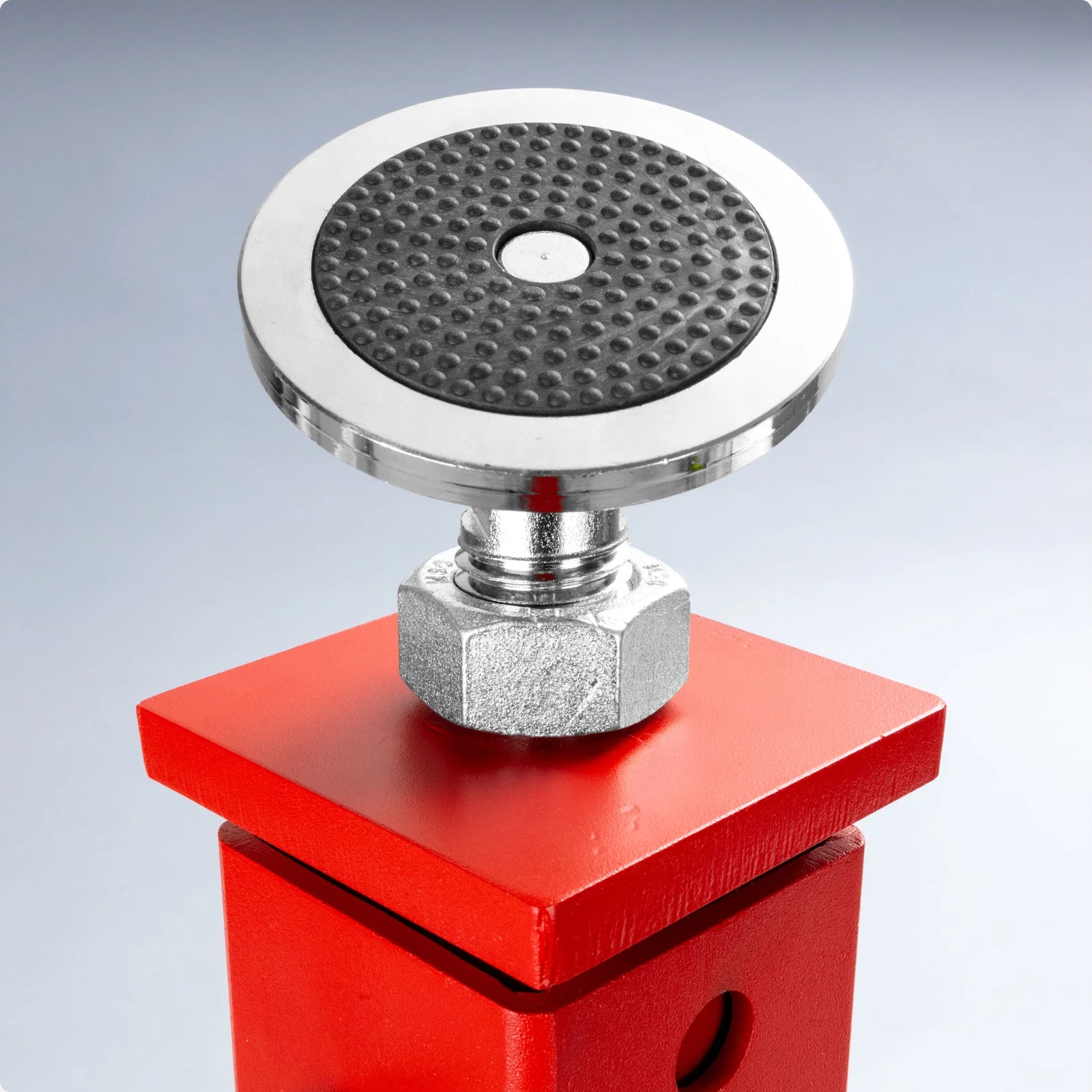

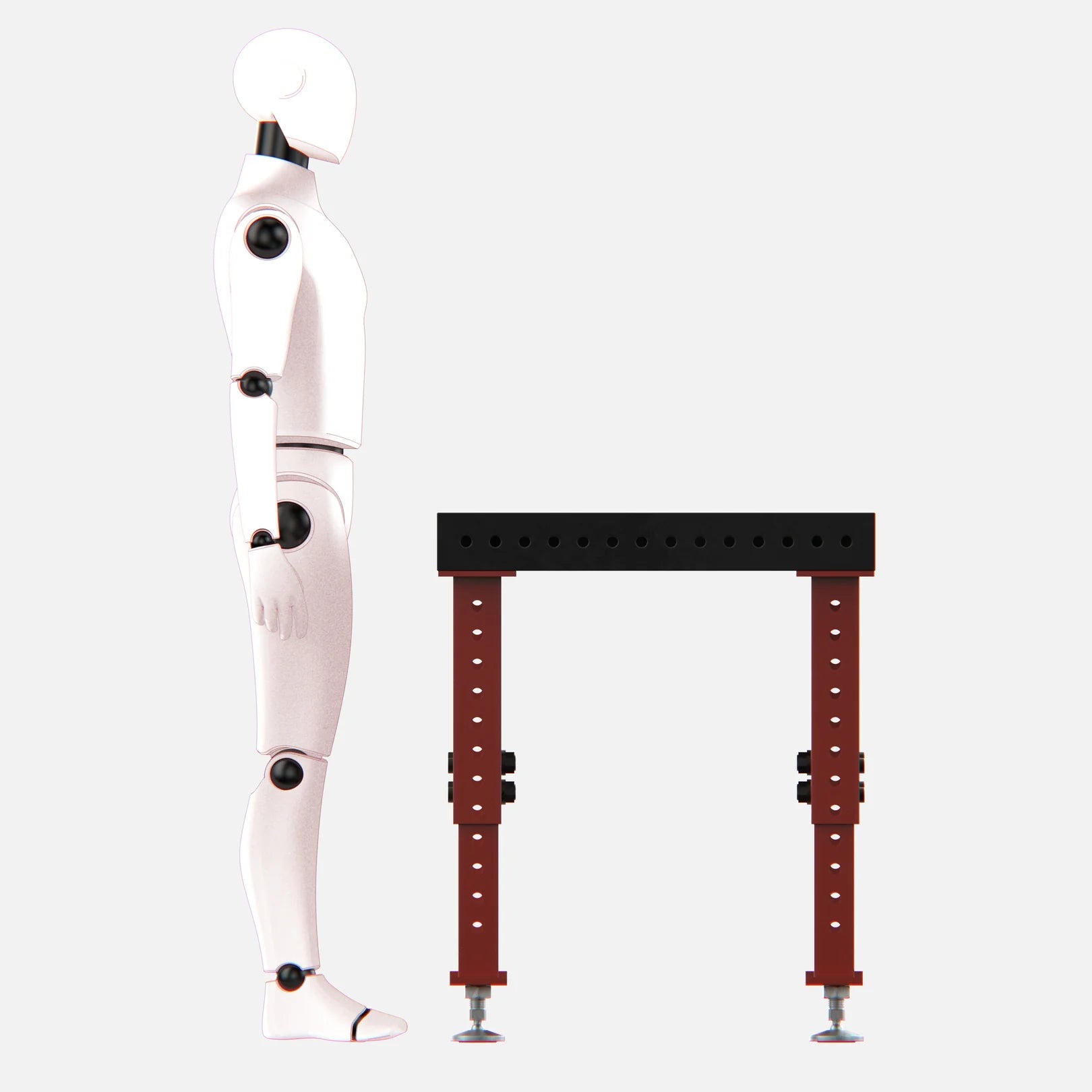

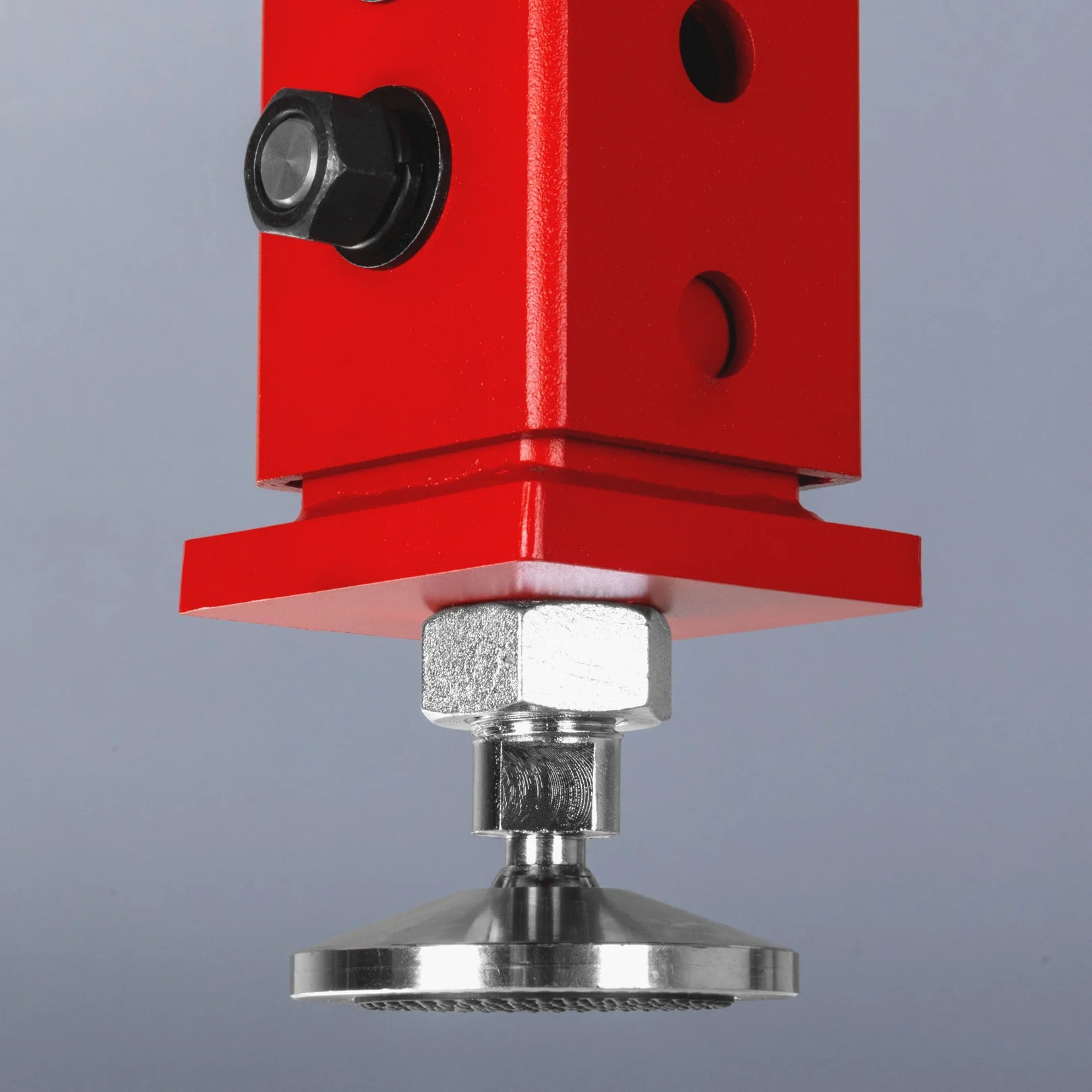

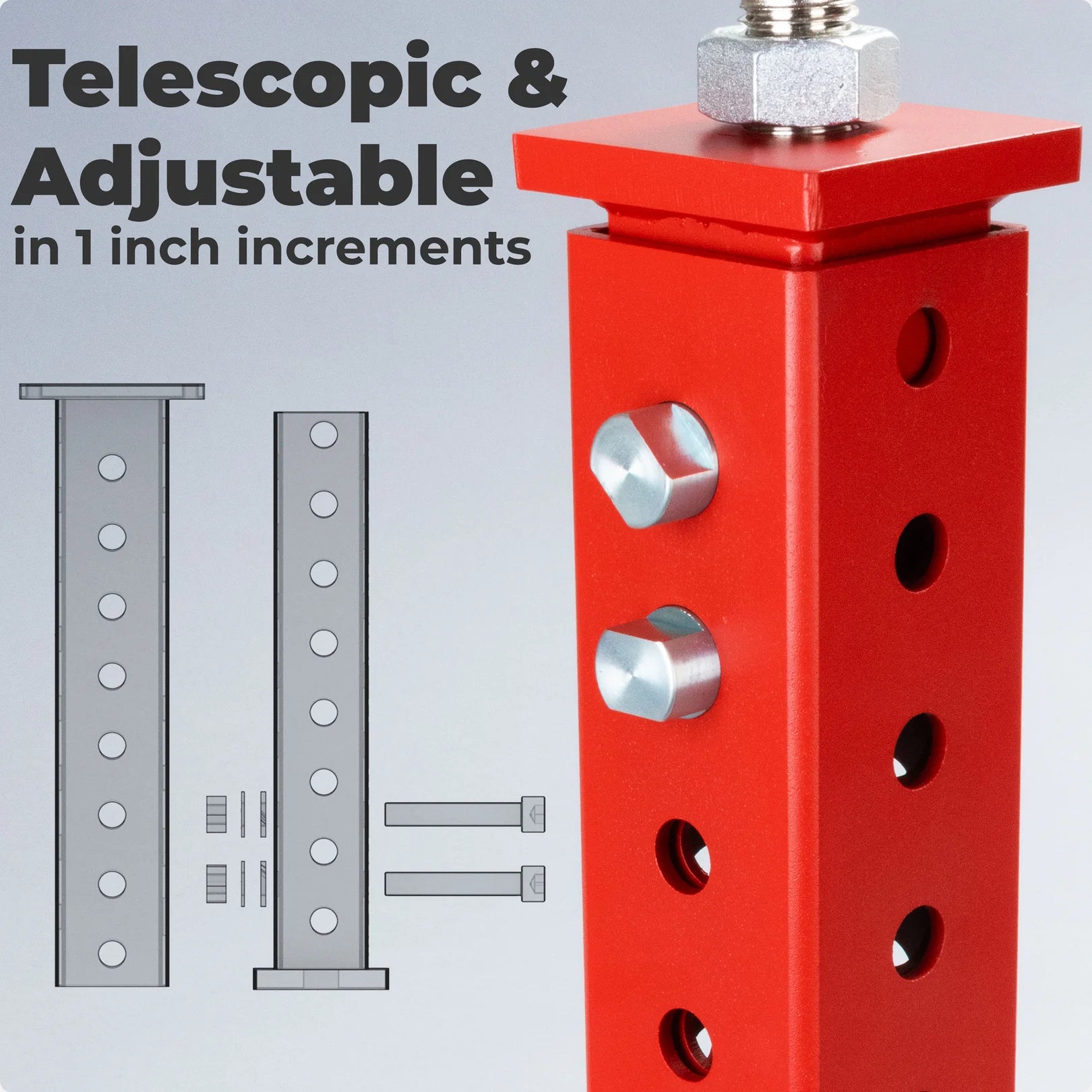

Adjustable Height Leg

Leg Height

21" - 31"

Leg Weight

12.54 kg

Table Surface Height

25" - 35"

Static Load Capacity

340 kg

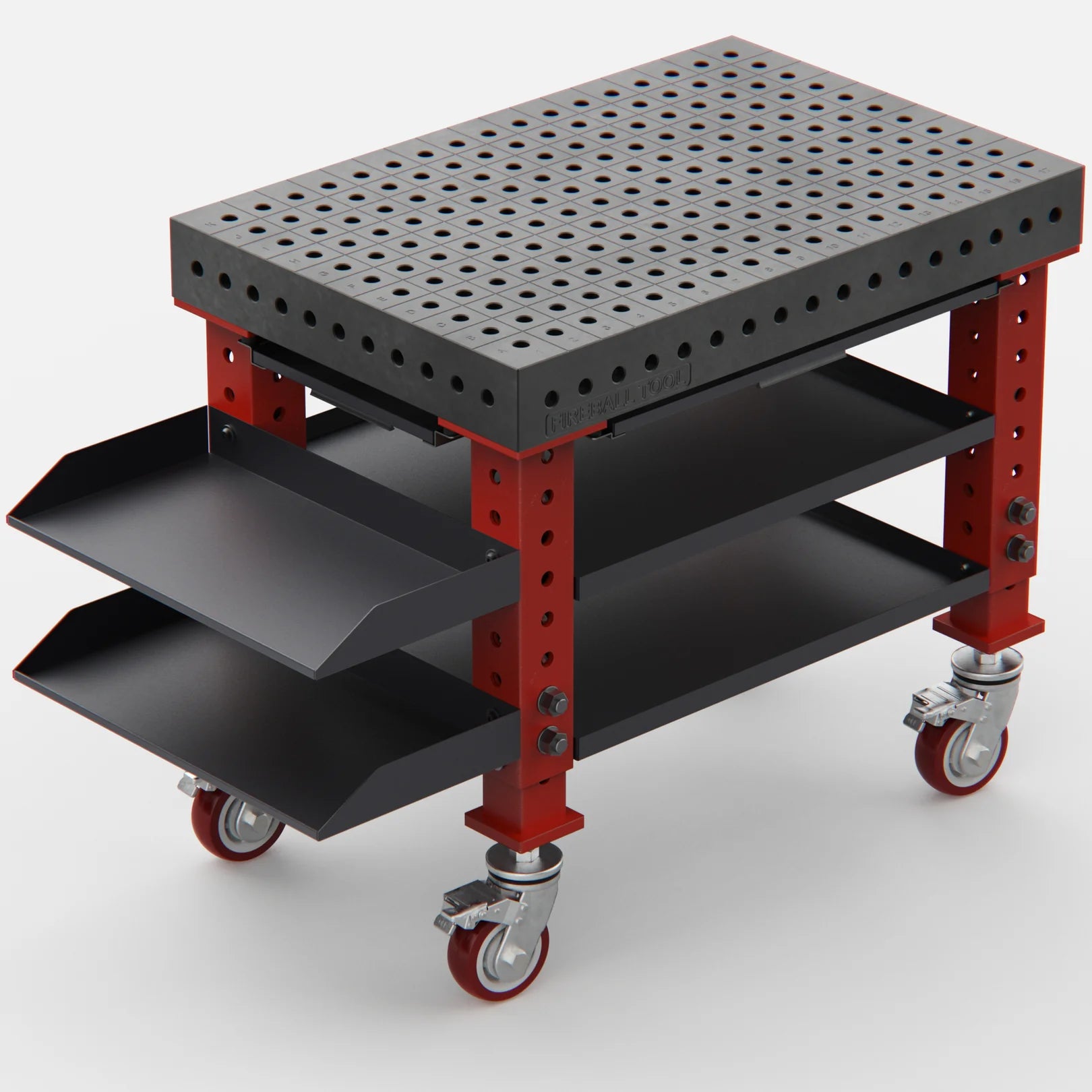

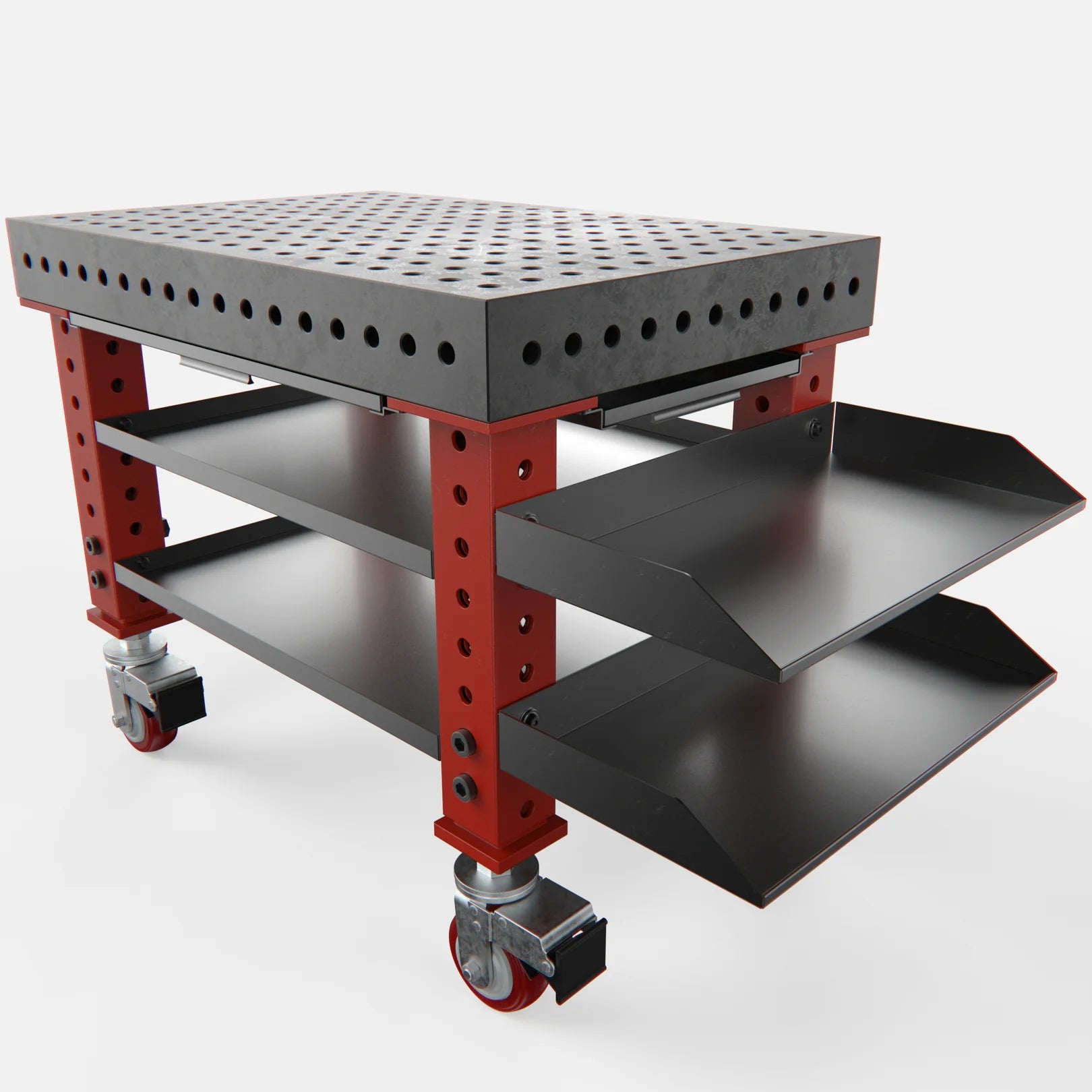

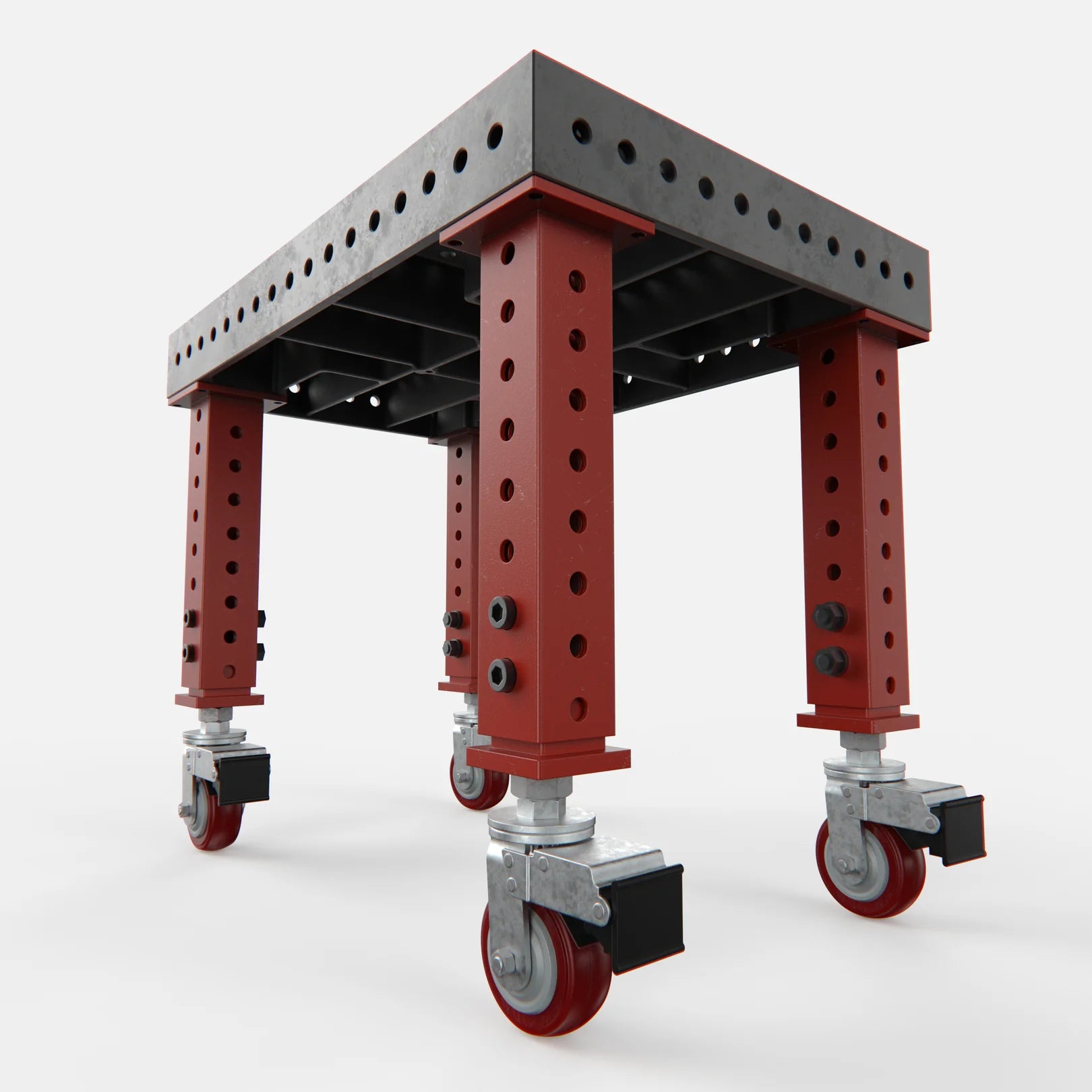

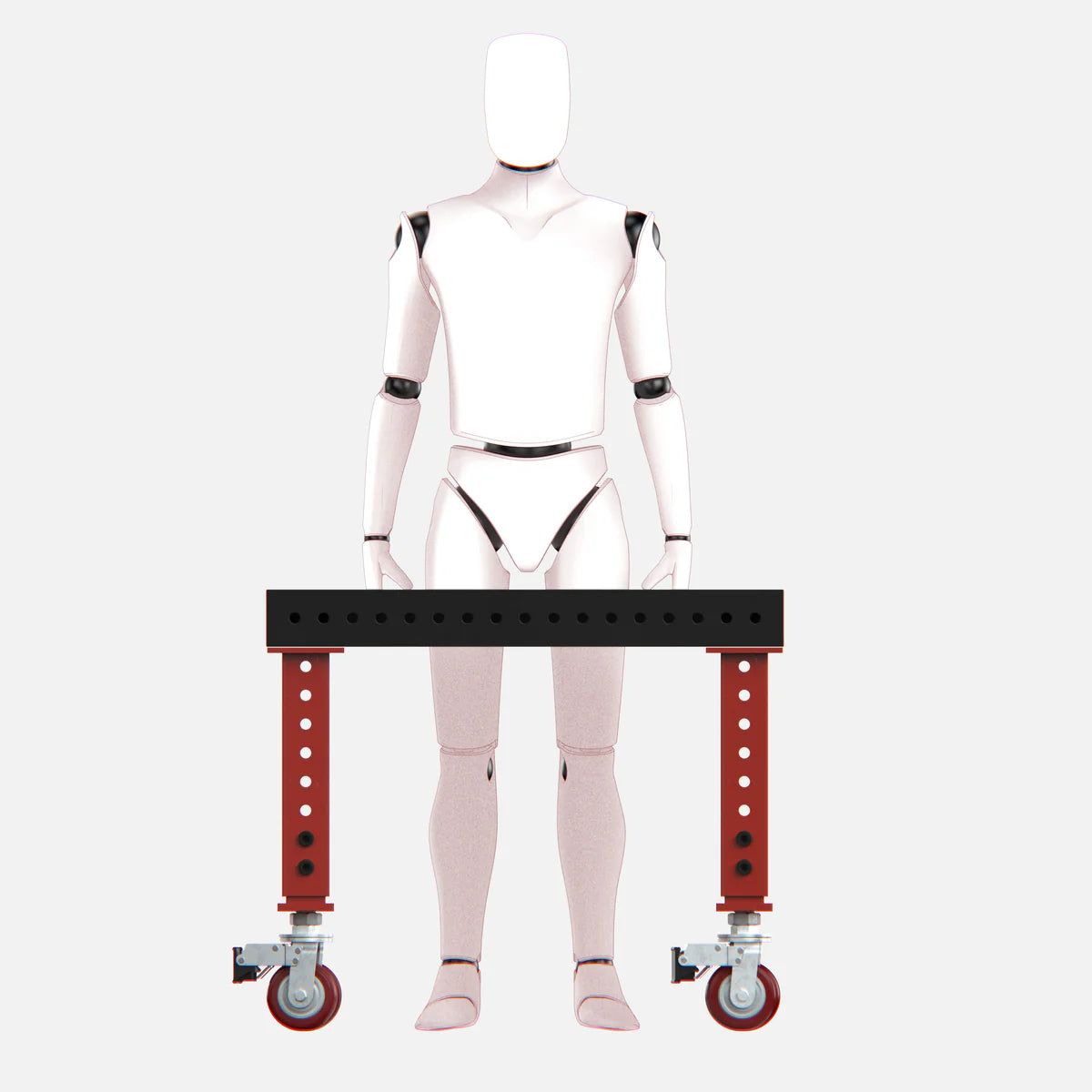

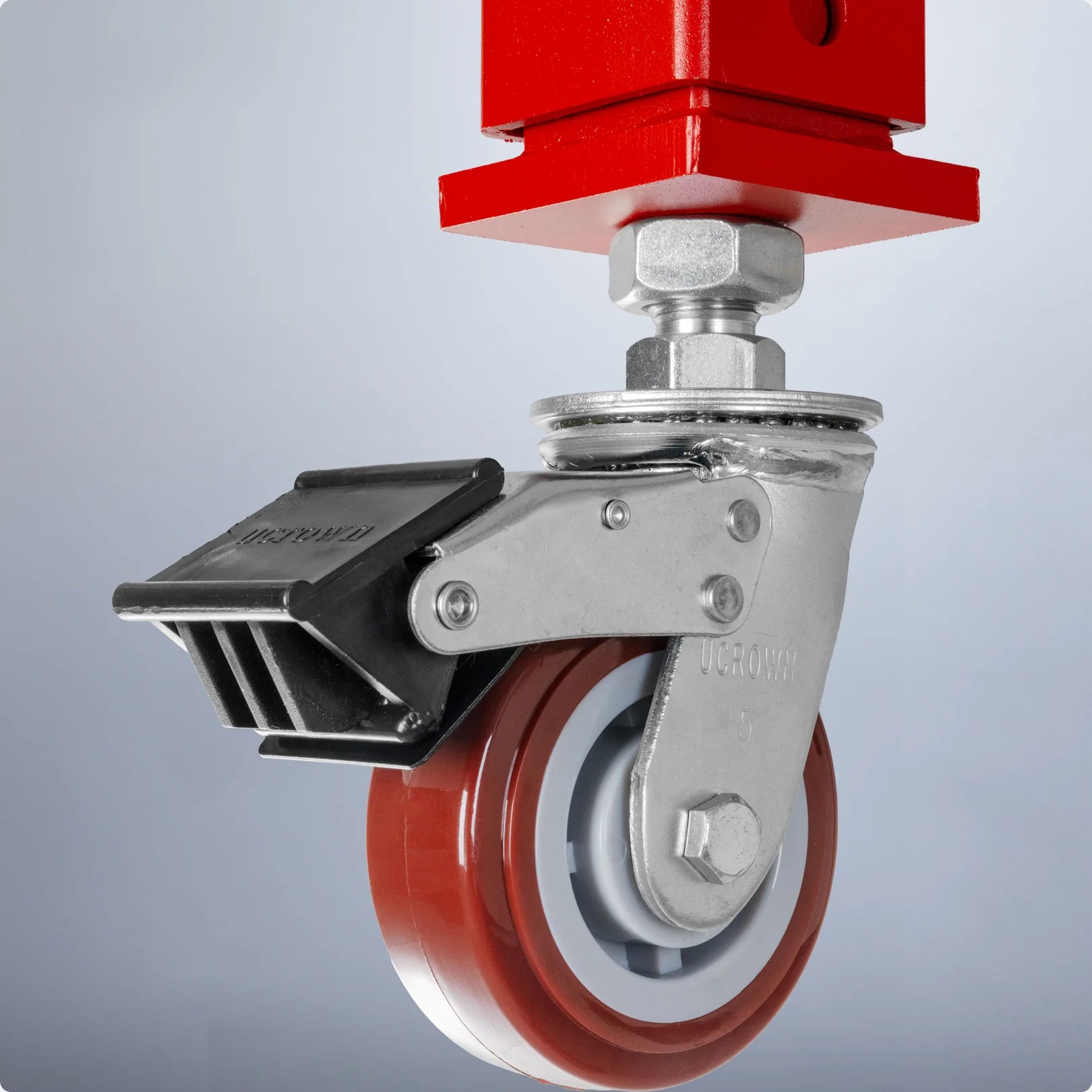

Adjustable Leg + Caster

Leg Height

650 - 900 mm

Leg Weight

15 kg

Table Surface Height

750 - 1,000 mm

Static Load Capacity

340 kg

How does the FM19 system compare to other Table Systems?


FM19 - Ø19 mm

  • 50 mm Grid Pattern
  • 19 mm Diameter Hole

FM16 - Ø16 mm

  • 50 mm Grid Pattern
  • 16 mm Diameter Hole

FM28 - Ø28 mm

  • 100 mm Grid Pattern
  • 28 mm Diameter Hole

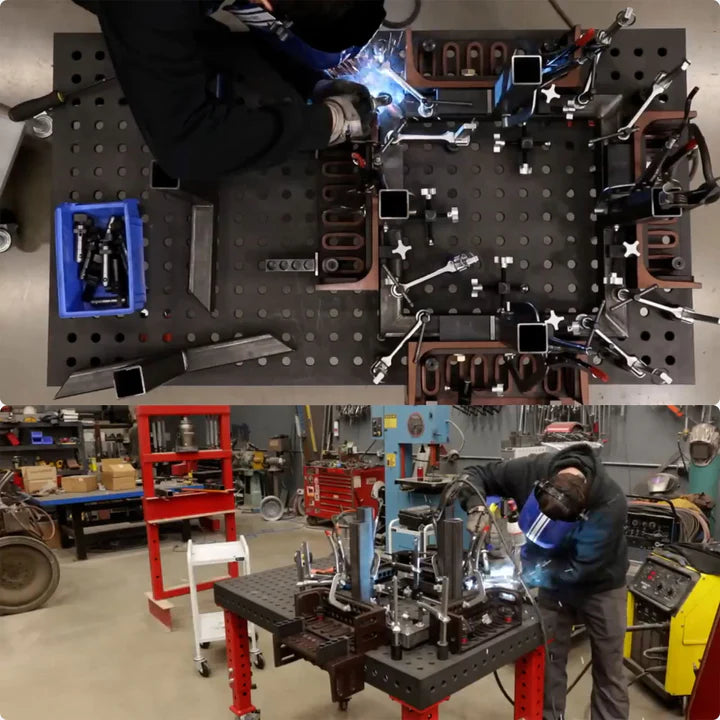

Fixturing System

The Fireball Tool fixture system is superior to others on the market. It features blocks that can be used in many different ways to maximize their usage. It also can be incrementally adjusted to ensure maximum coverage as efficiently as possible while others fail to reach certain distances without a complicated fixture.

FM19 - Ø19 mm

FM16 - Ø16 mm

FM28 - Ø28 mm

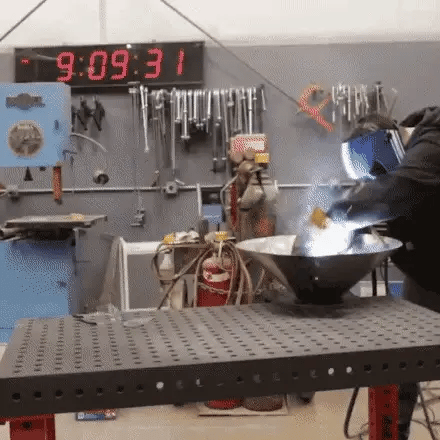

Fireball’s new Dragon Scale coating provides the corrosion resistance of our previous black oxide finish with the added benefit of enhanced spatter resistance.

Its spatter resistance needs to be seen to believed; it out performs even the best weld spatter sprays without the use of any sprays.

How To Install Legs on a Dragon Wagon

This is how to install legs on a Dragon Wagon. Remember, it is heavy so try to get a friend to help you.

Step 1: Stand the table up on its side (You can use a clamp in one of the side holes in order to get a grip).

Step 2: Brace the table so it does not tip over.

Step 3: Put the legs on horizontally, starting from the bottom legs (make sure the holes line up on each leg across from one another). Torque the bolts to 40.67Nm.

Step 4: Stand the table up now that all legs are on. Remember, the table weighs upwards of 90 kg - 180 kg depending on the size, so be very careful (this is where your friend can help).
