Three axis square is a unique solution to clamping in 3 axis at once.

• Use the inside or outside faces. 4 machined faces on both the inside and outside of the square.
• No limit on inside face, large 100 mm height limit on outside face.
• Ductile cast iron for tensile strength.
• Balanced to sit on its front feet, with additional small magnets on the front feet to resist tipping.
• Feet of the square are 25 mm wide to match our Fireball Fence Block fixture system.
• Tapped holes in both feet for installing pins that quickly align the feet with the 50 mm grid pattern of common welding tables.
• The XL is larger version, offering all the same features, with only the following changes: 177 mm height limit on outside face and 76 mm passthrough vs 50 mm passthrough on the standard square.

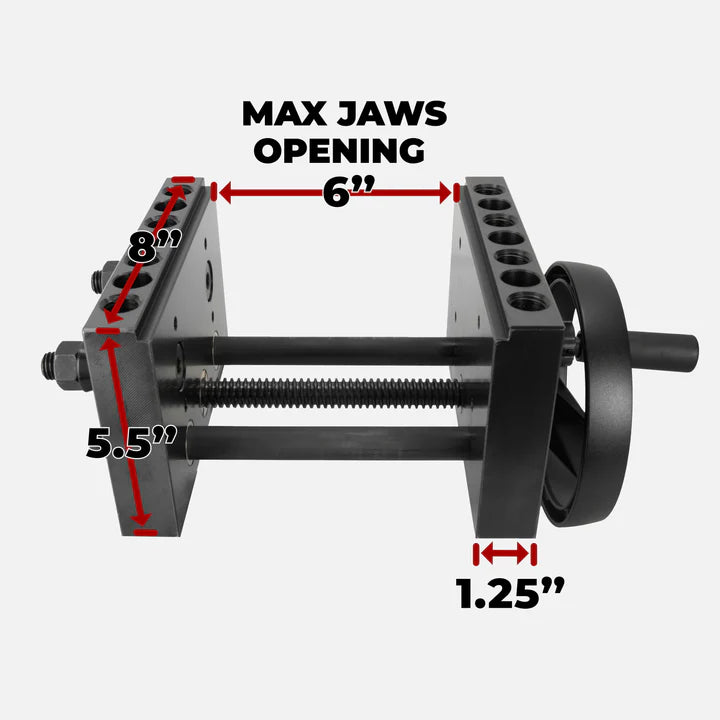

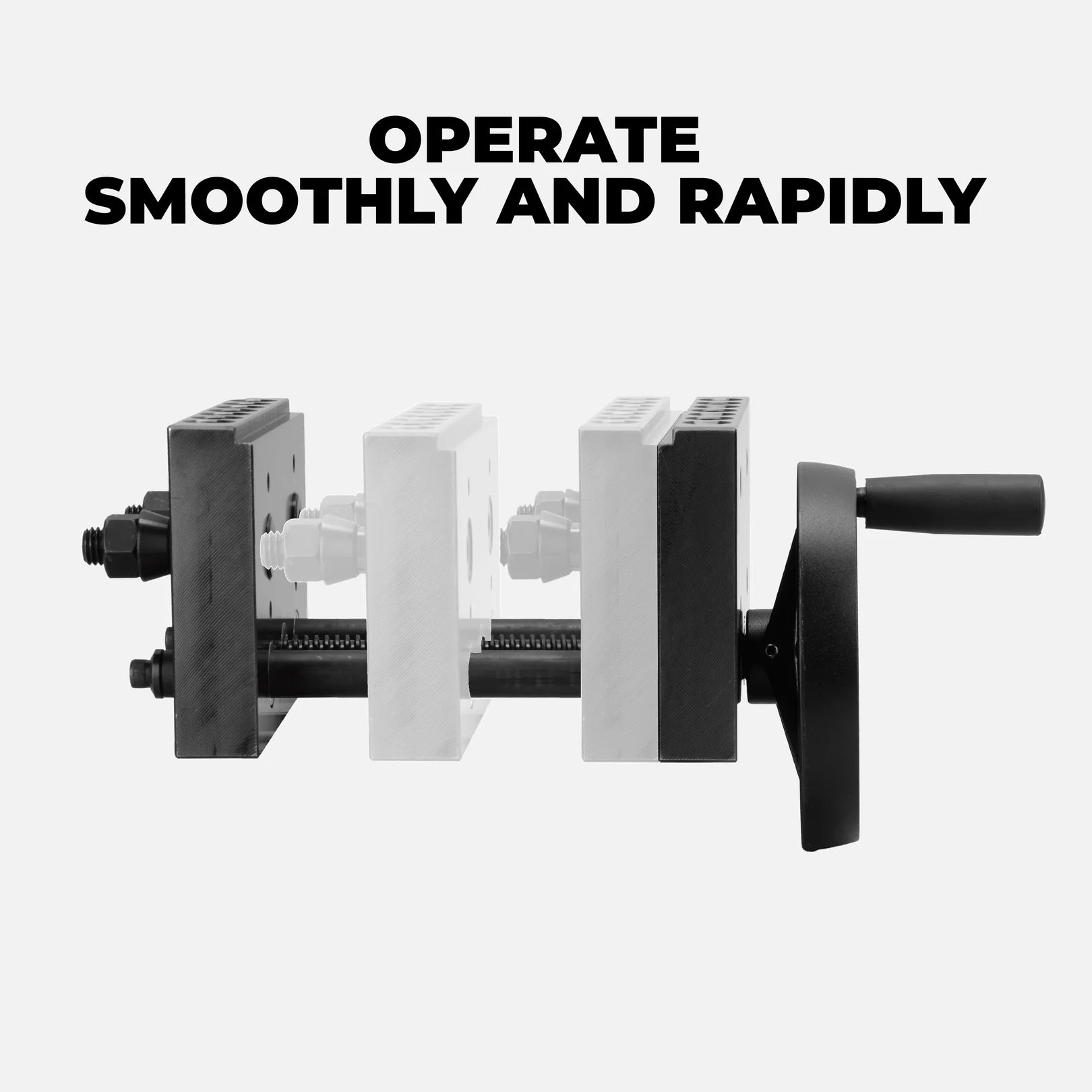

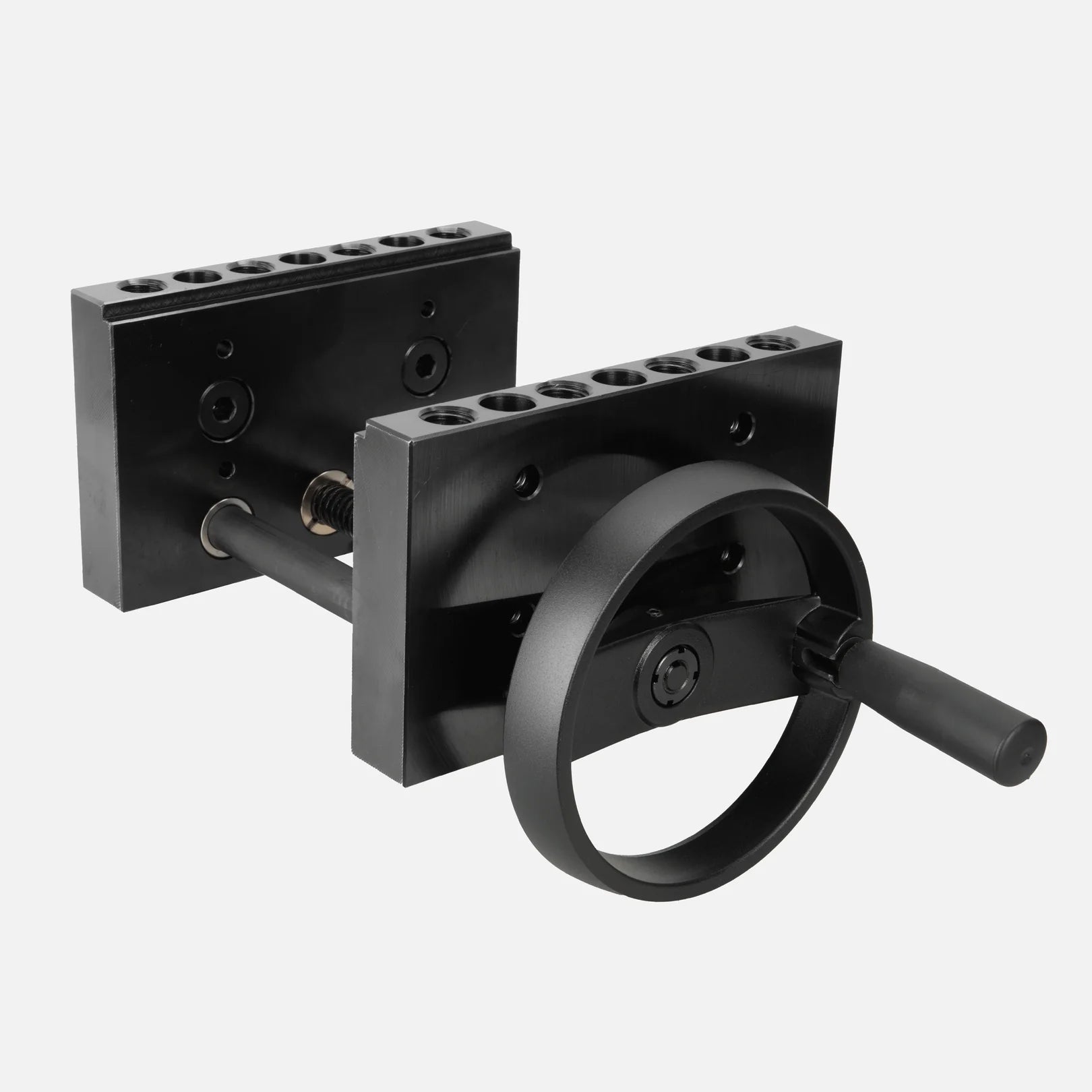

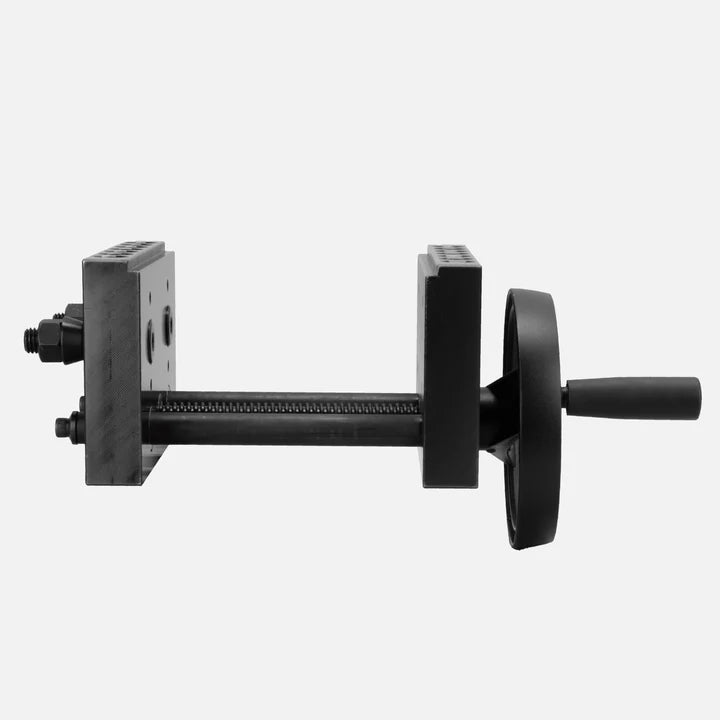

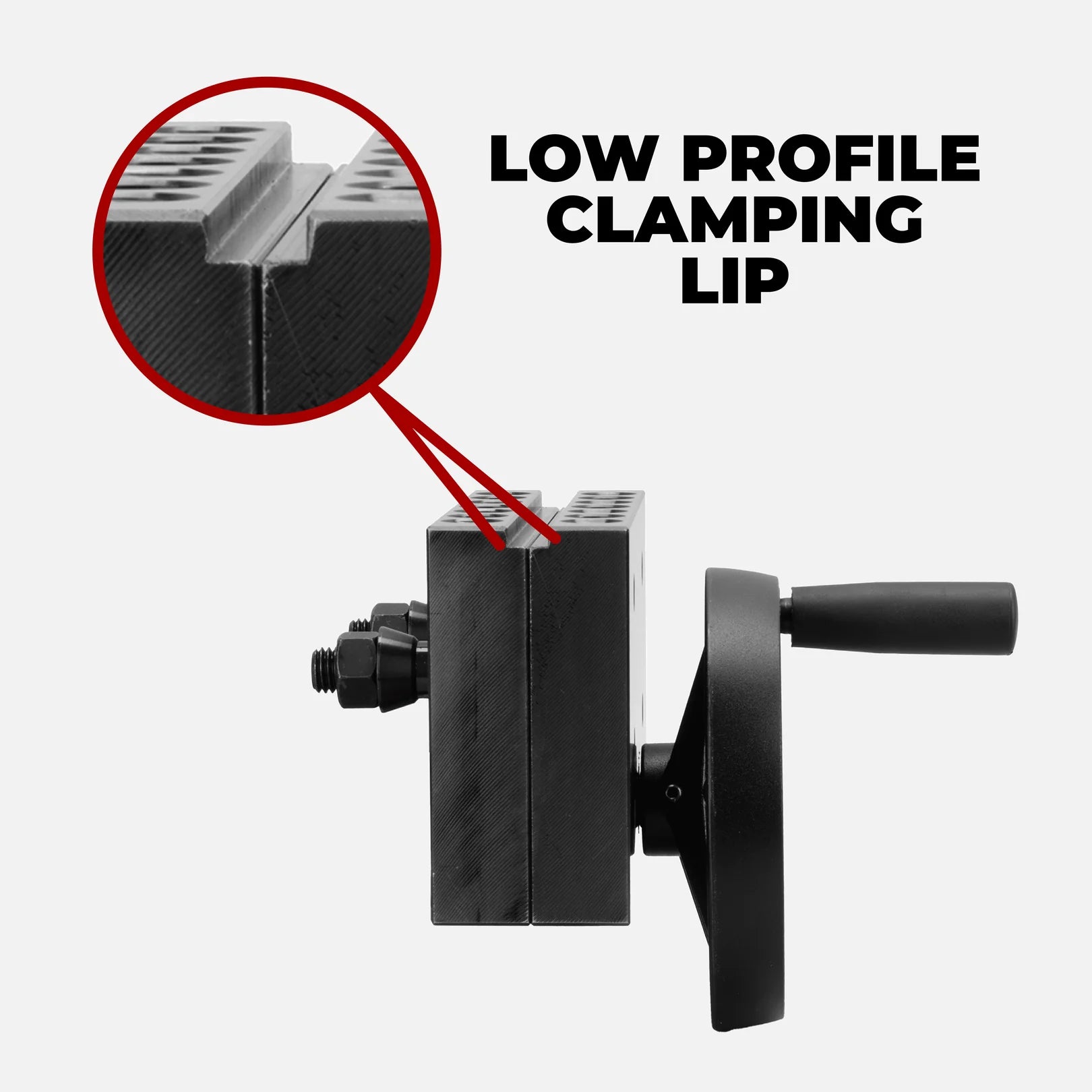

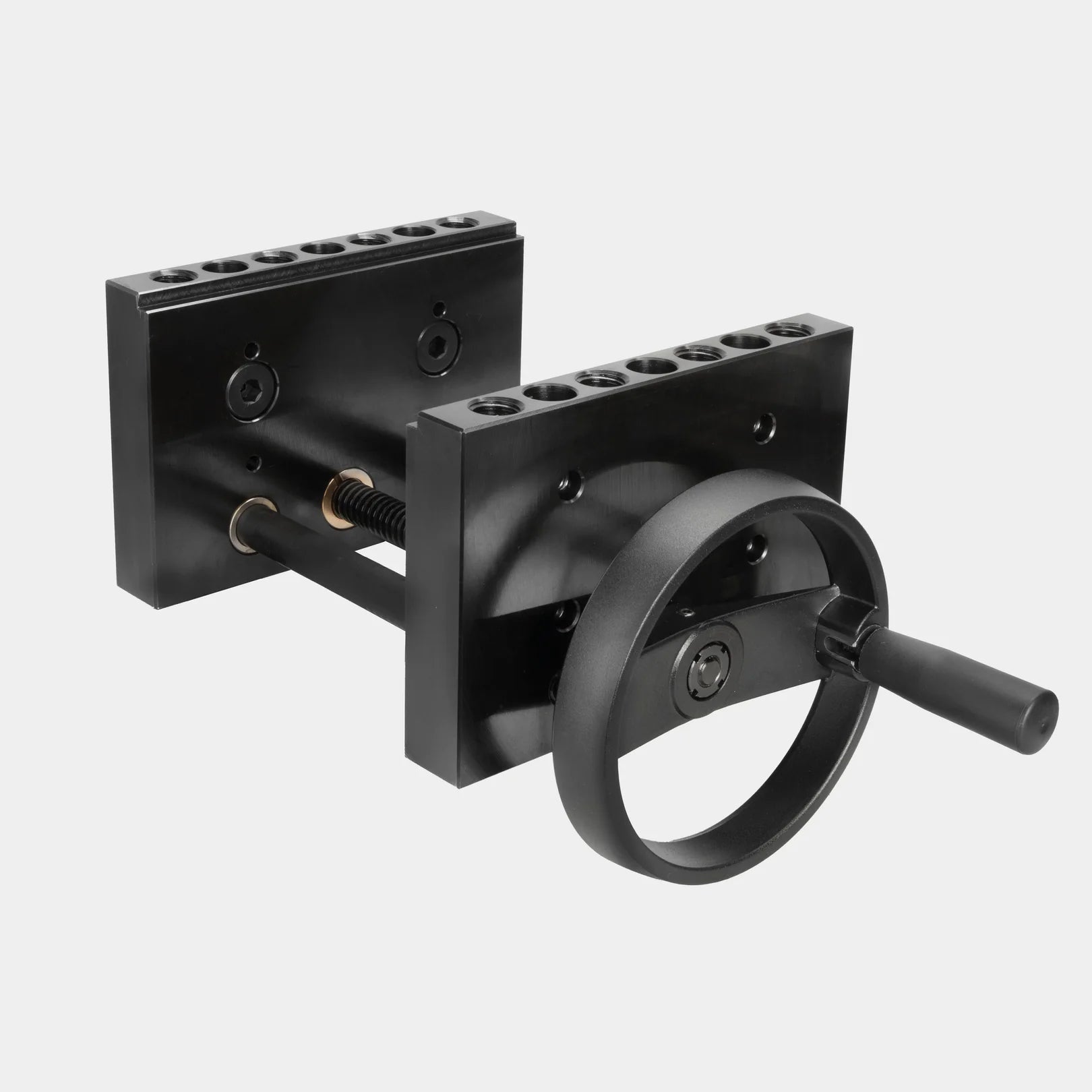

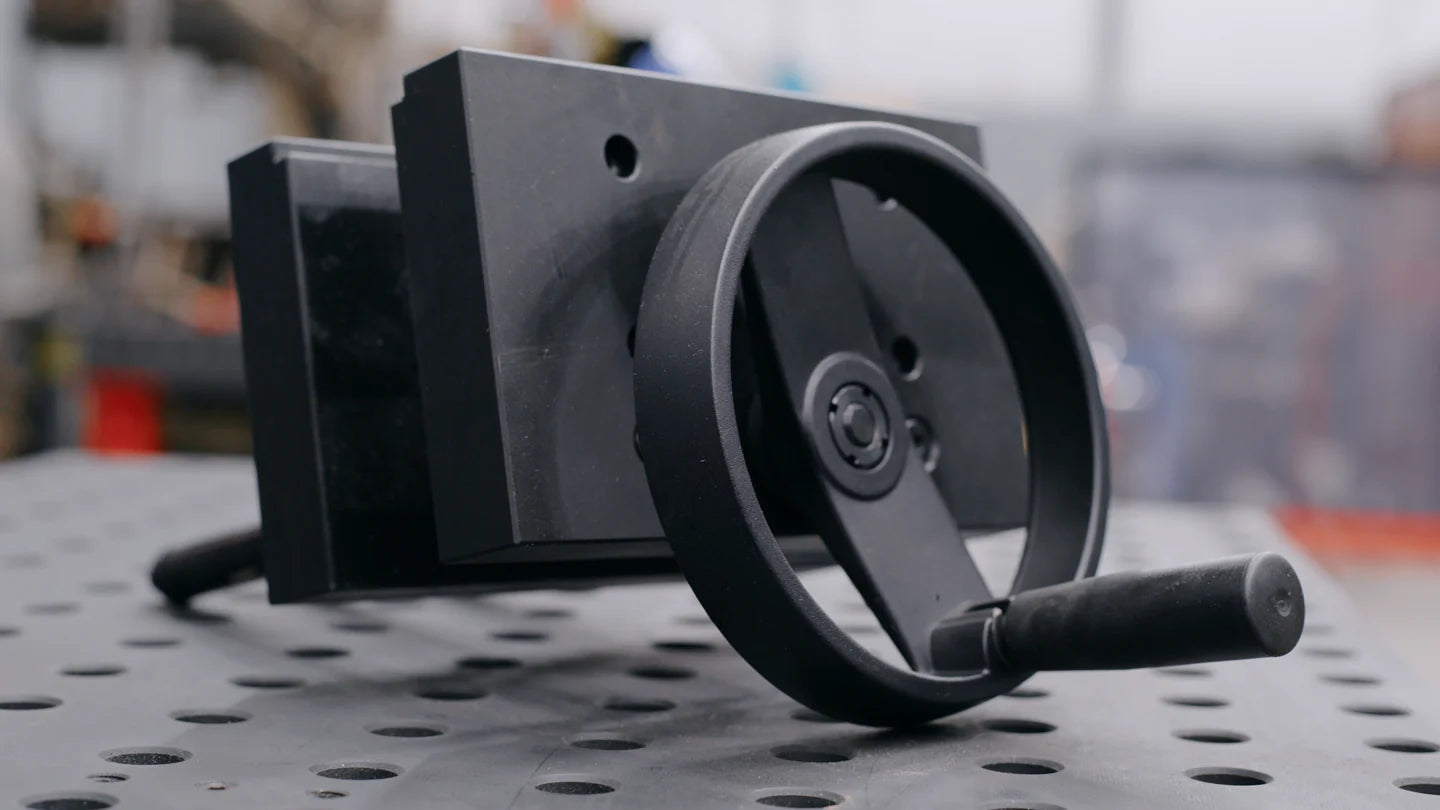

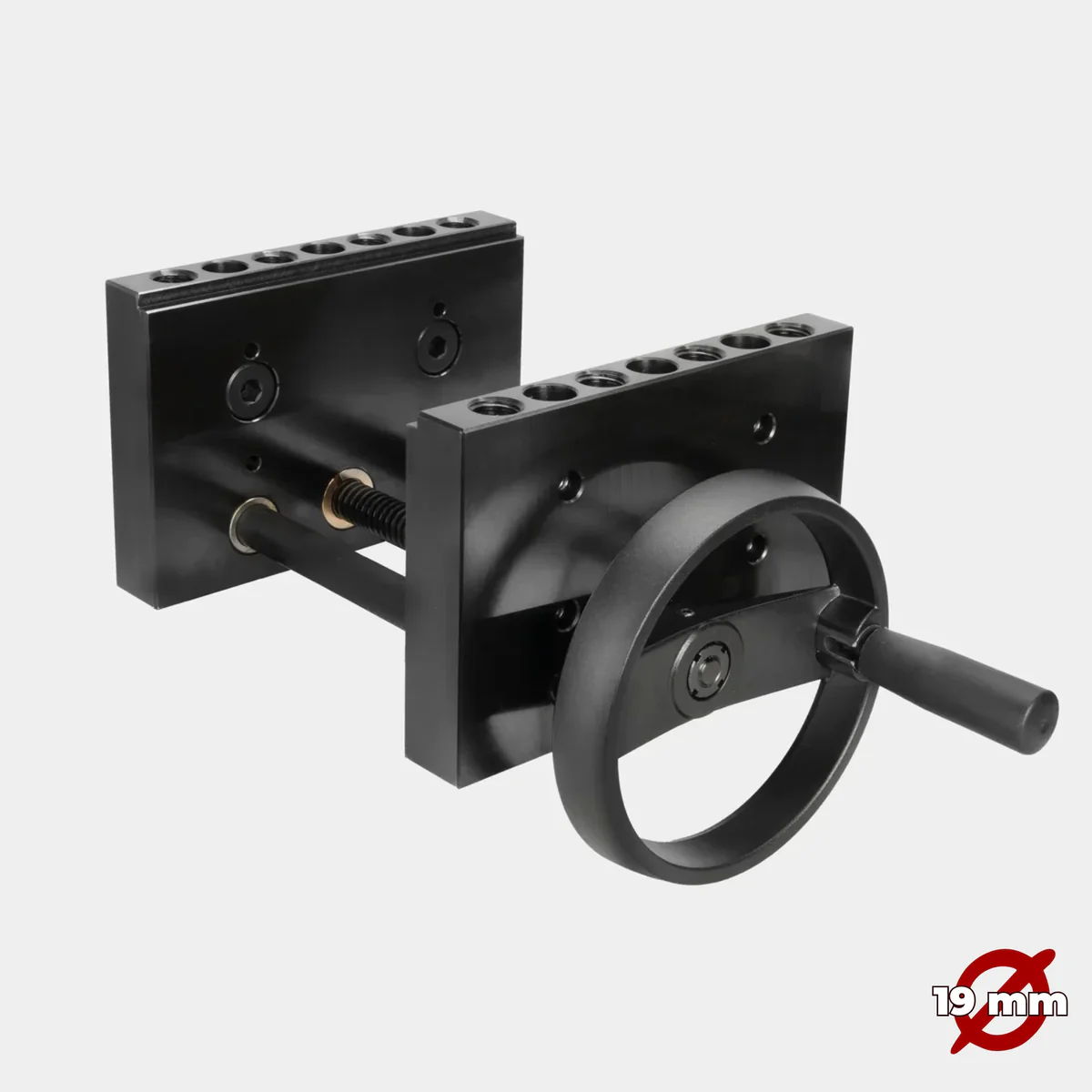

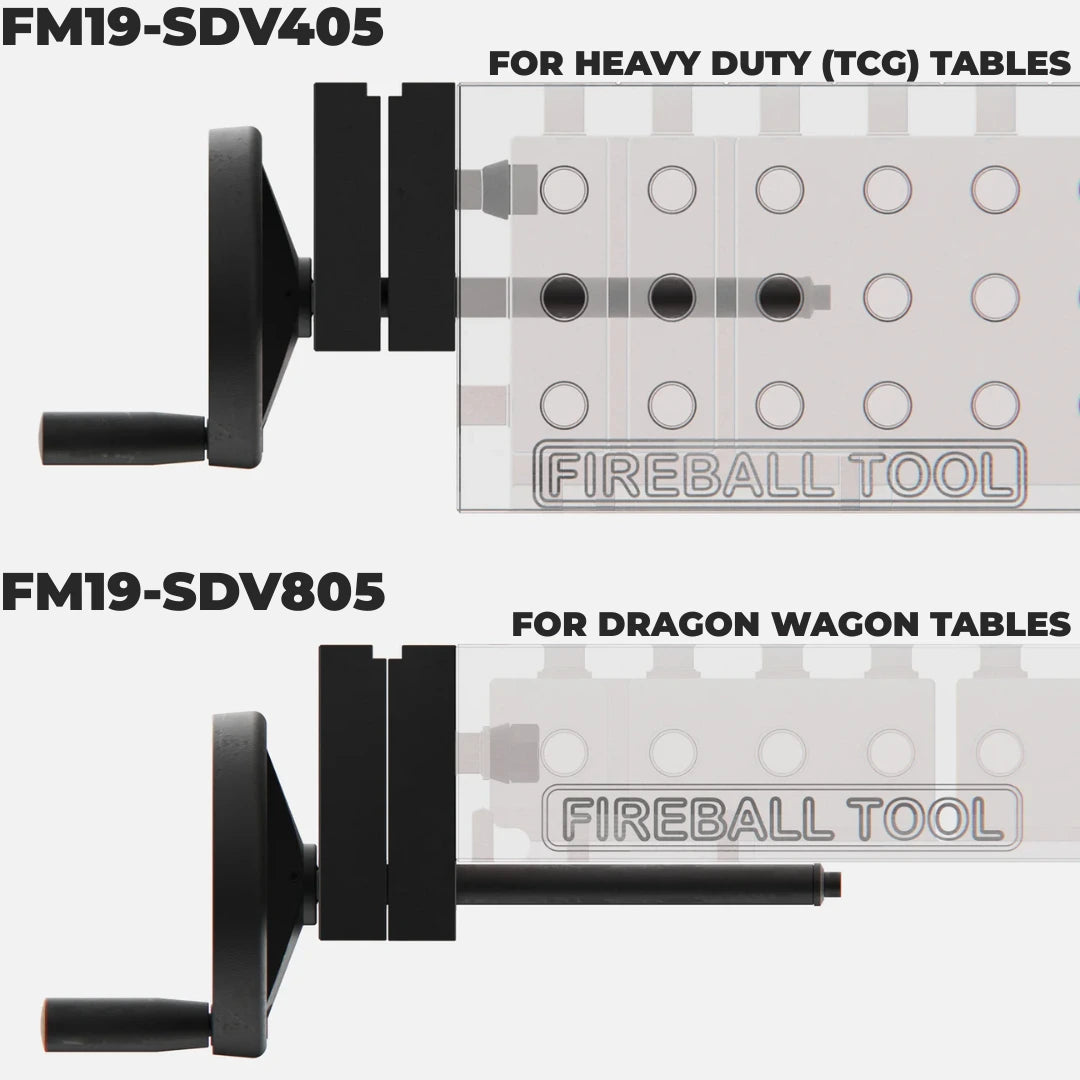

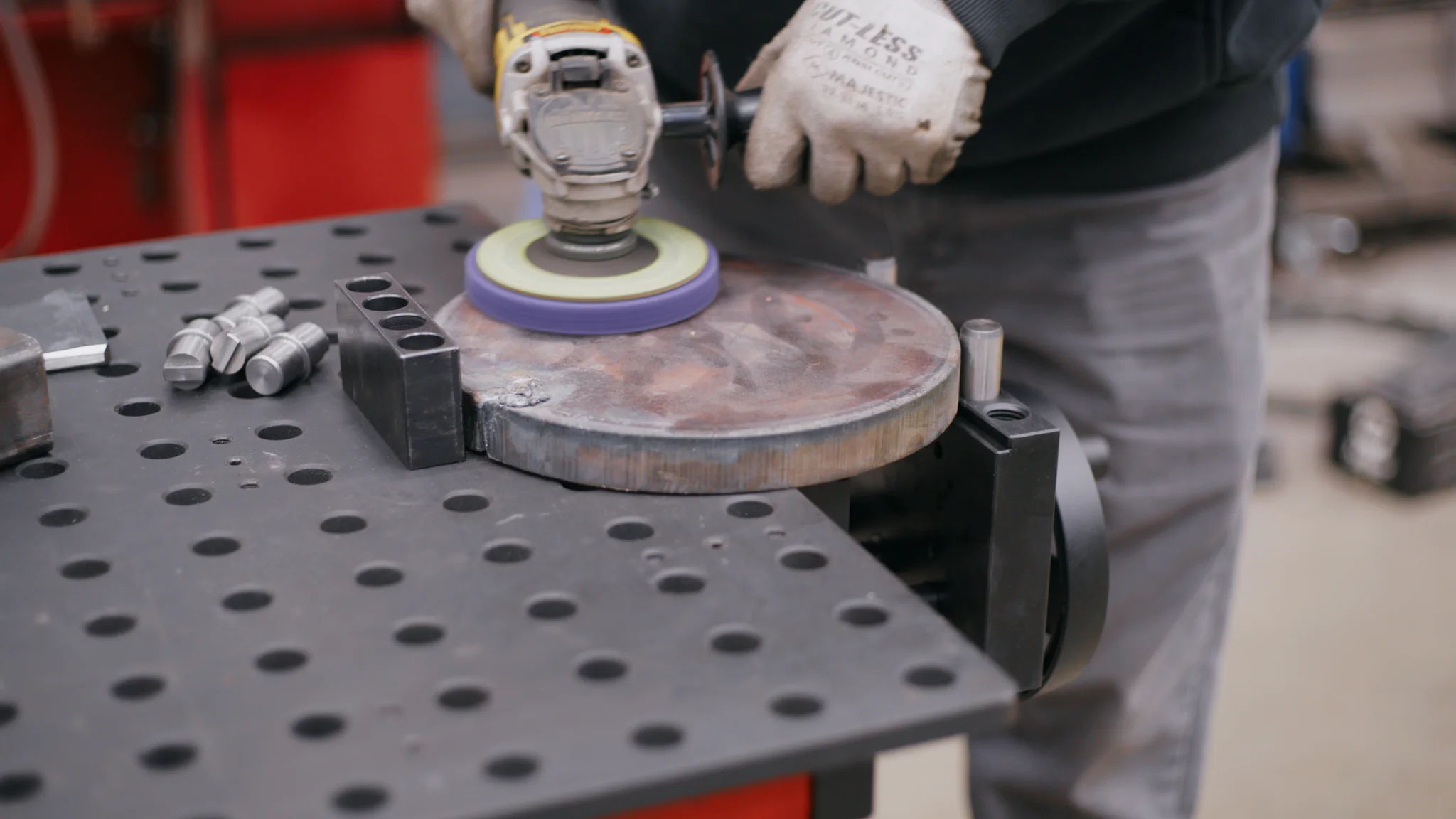

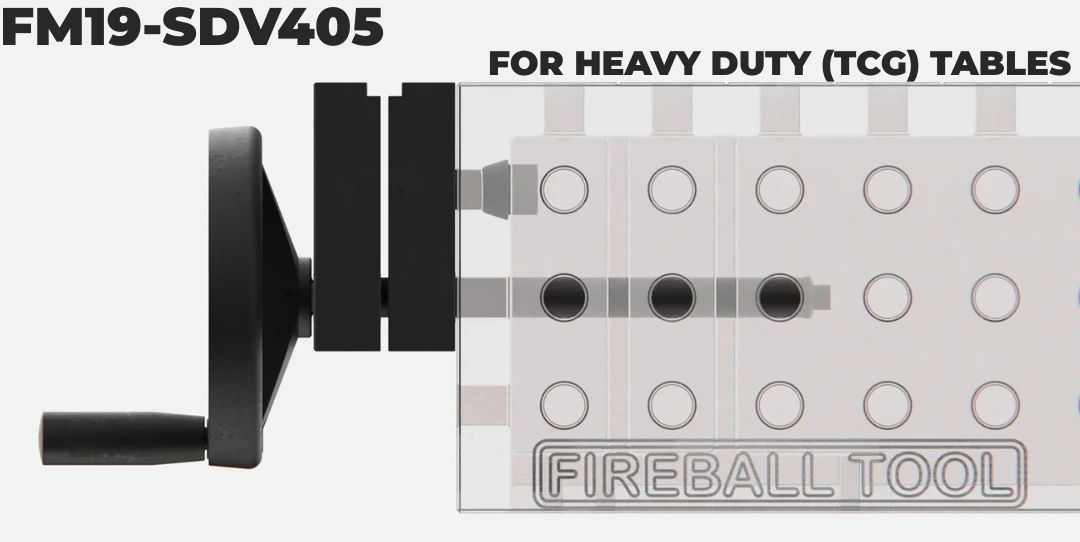

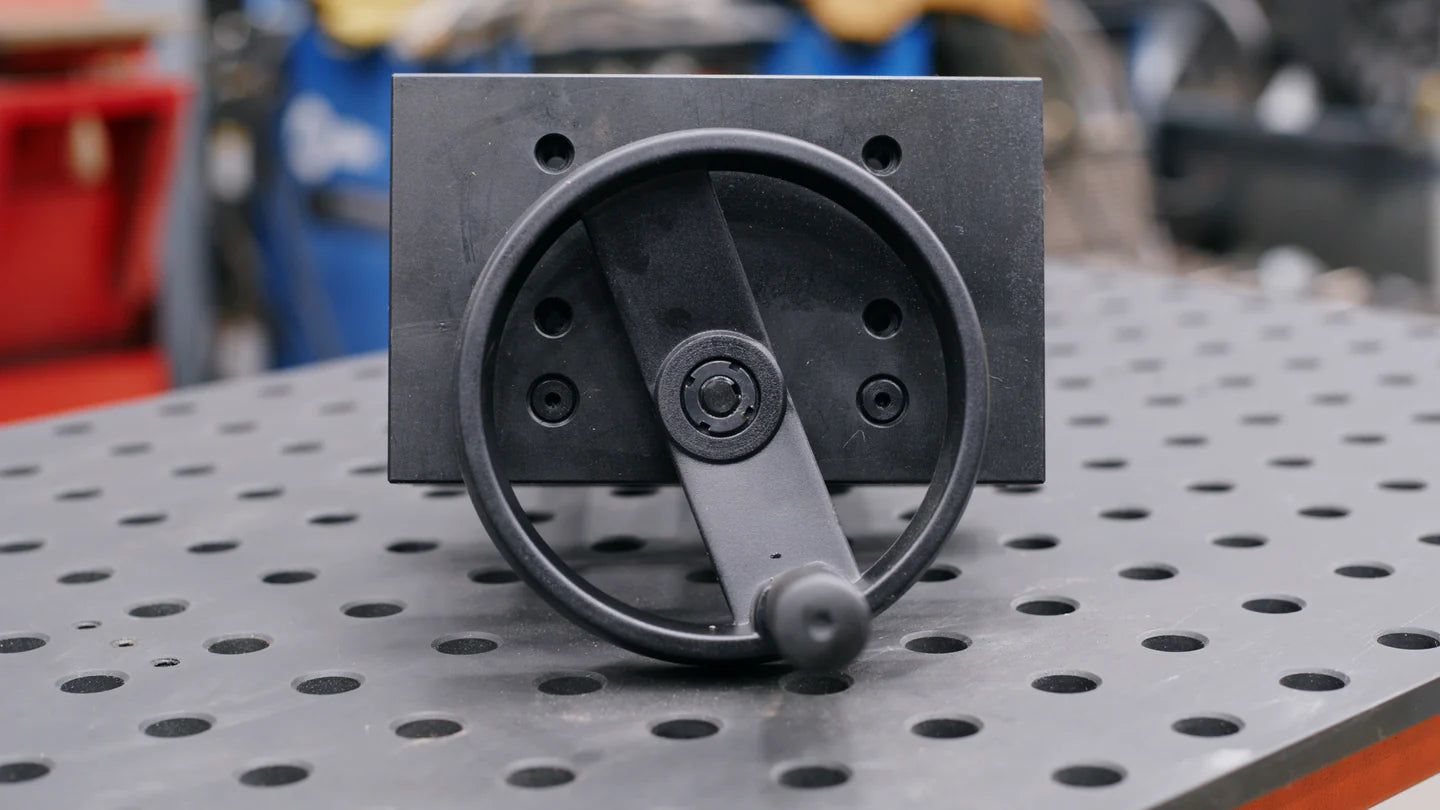

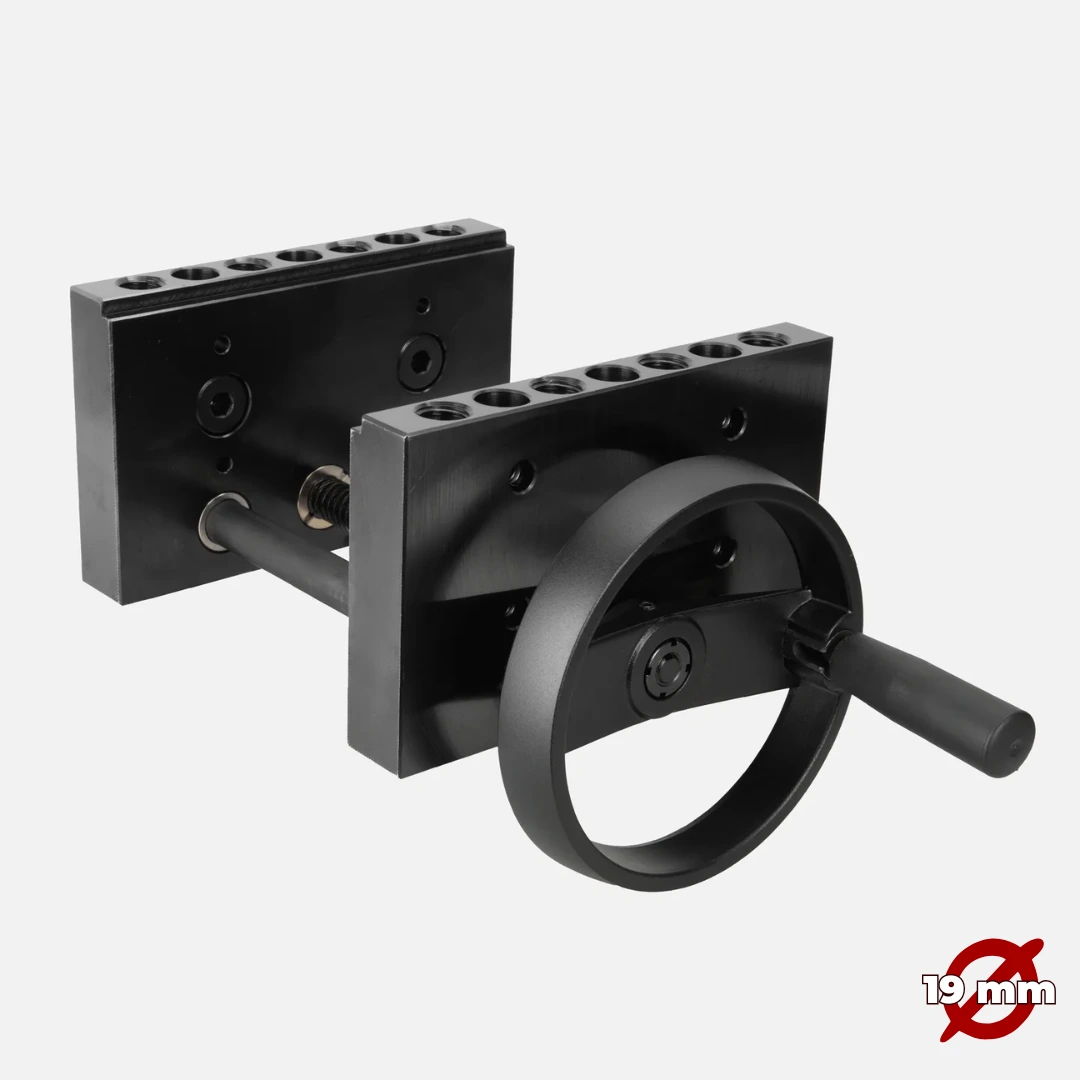

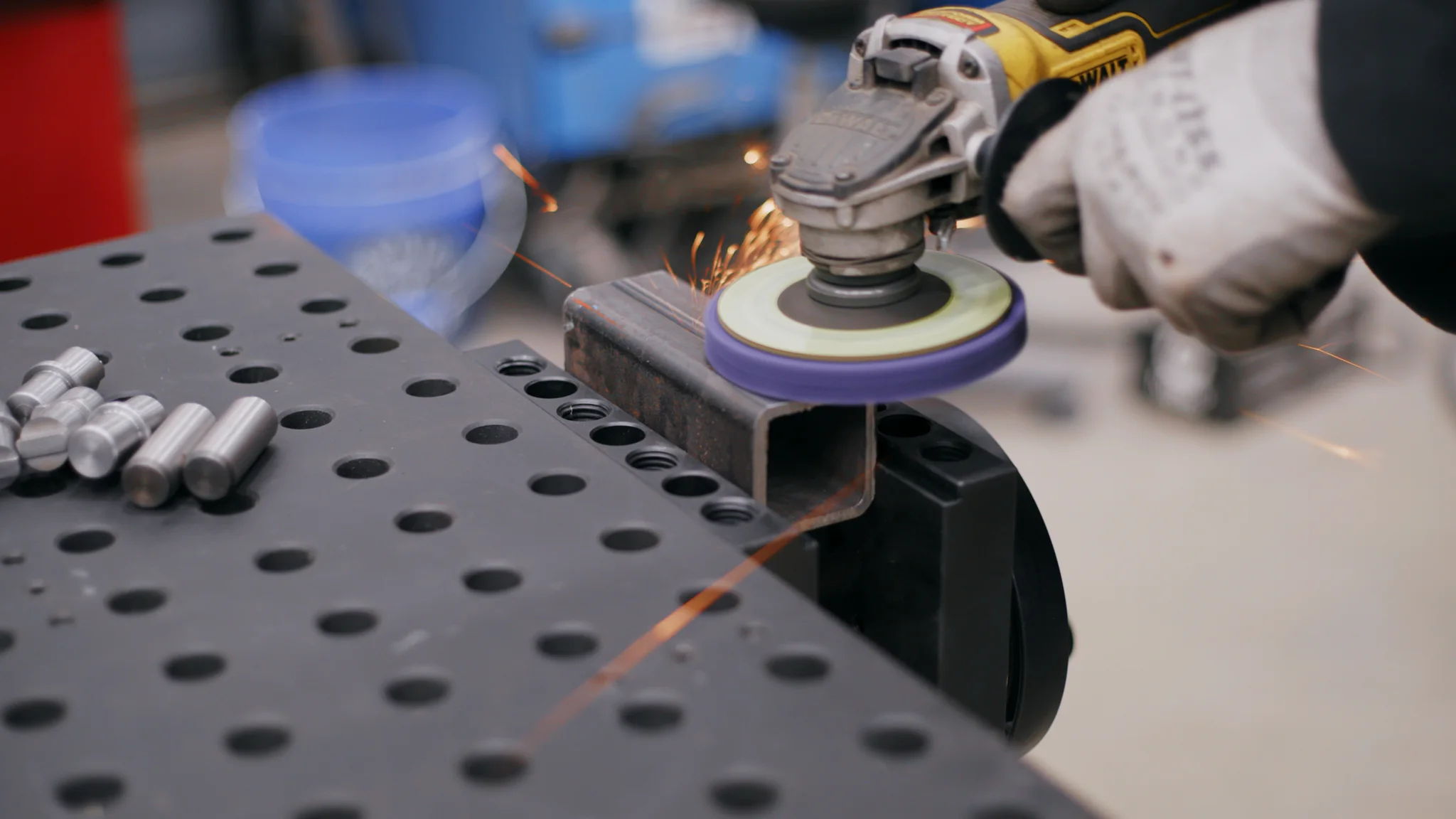

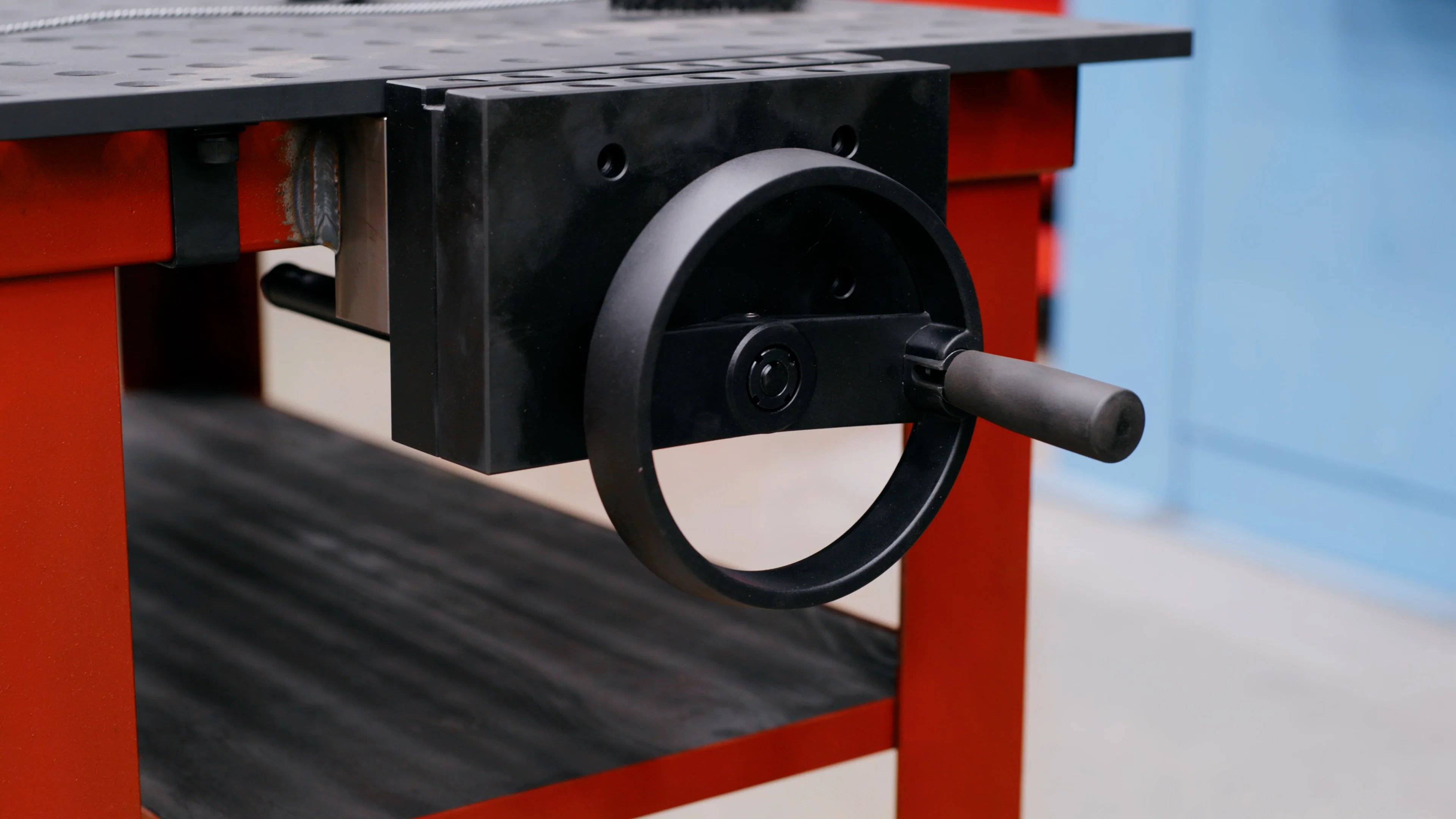

The Sidekick Vise is designed to mount to the side of your Fireball table and provides a quick and easy way to hold parts for grinding or sanding. It features a low-profile lip that allows you to clamp parts while maximizing the area available for welding or grinding operations.

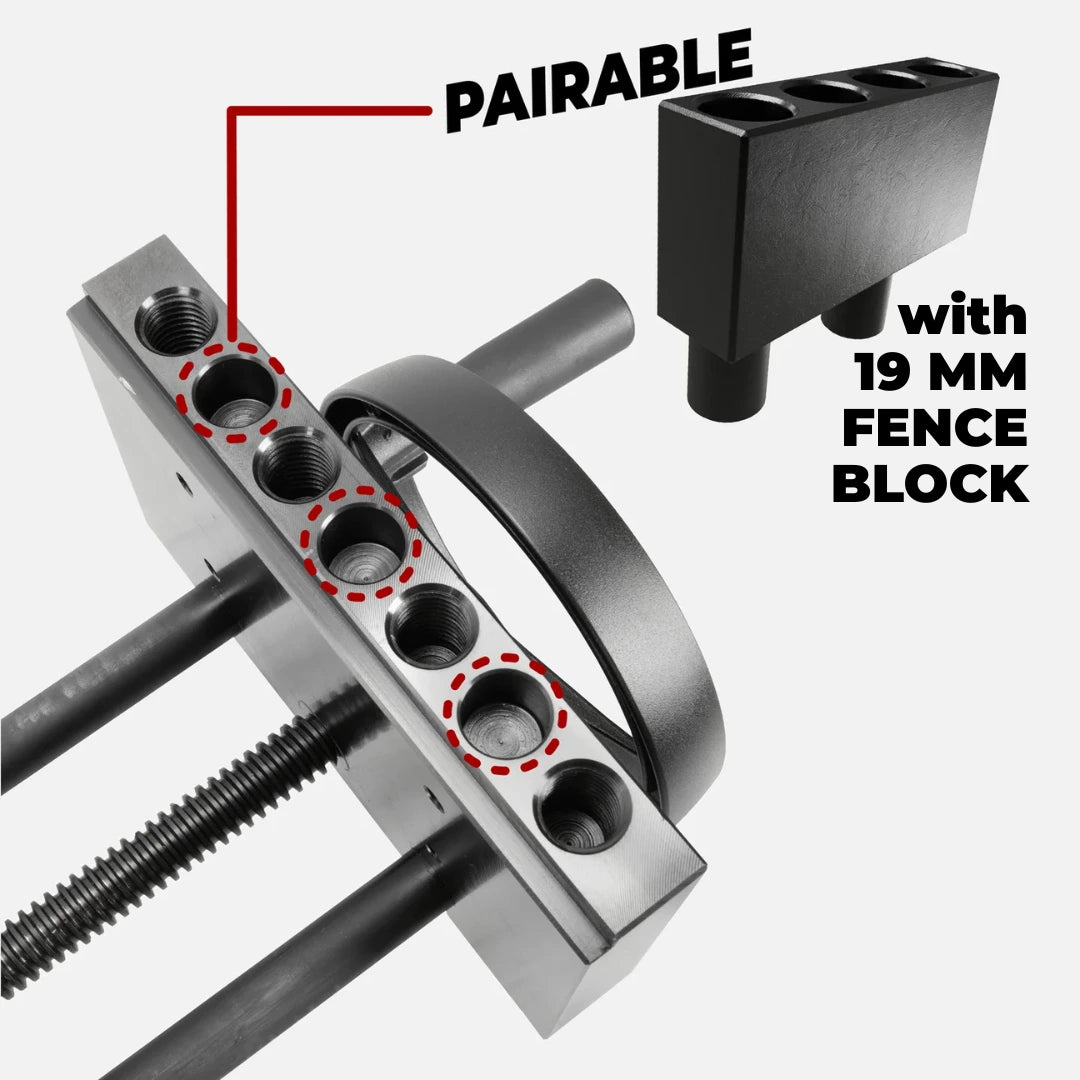

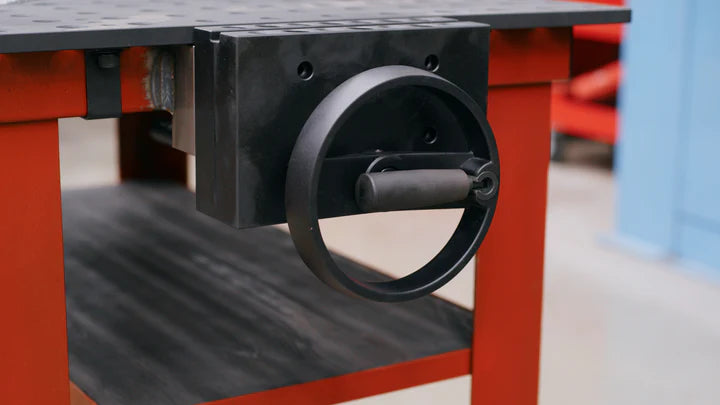

You can use the Side Vise with 19 mm system fixtures, or use it on its own. Because the top of the vise sits flush with the table surface, you can also use the table as part of the backstop, allowing you to clamp very large workpieces.

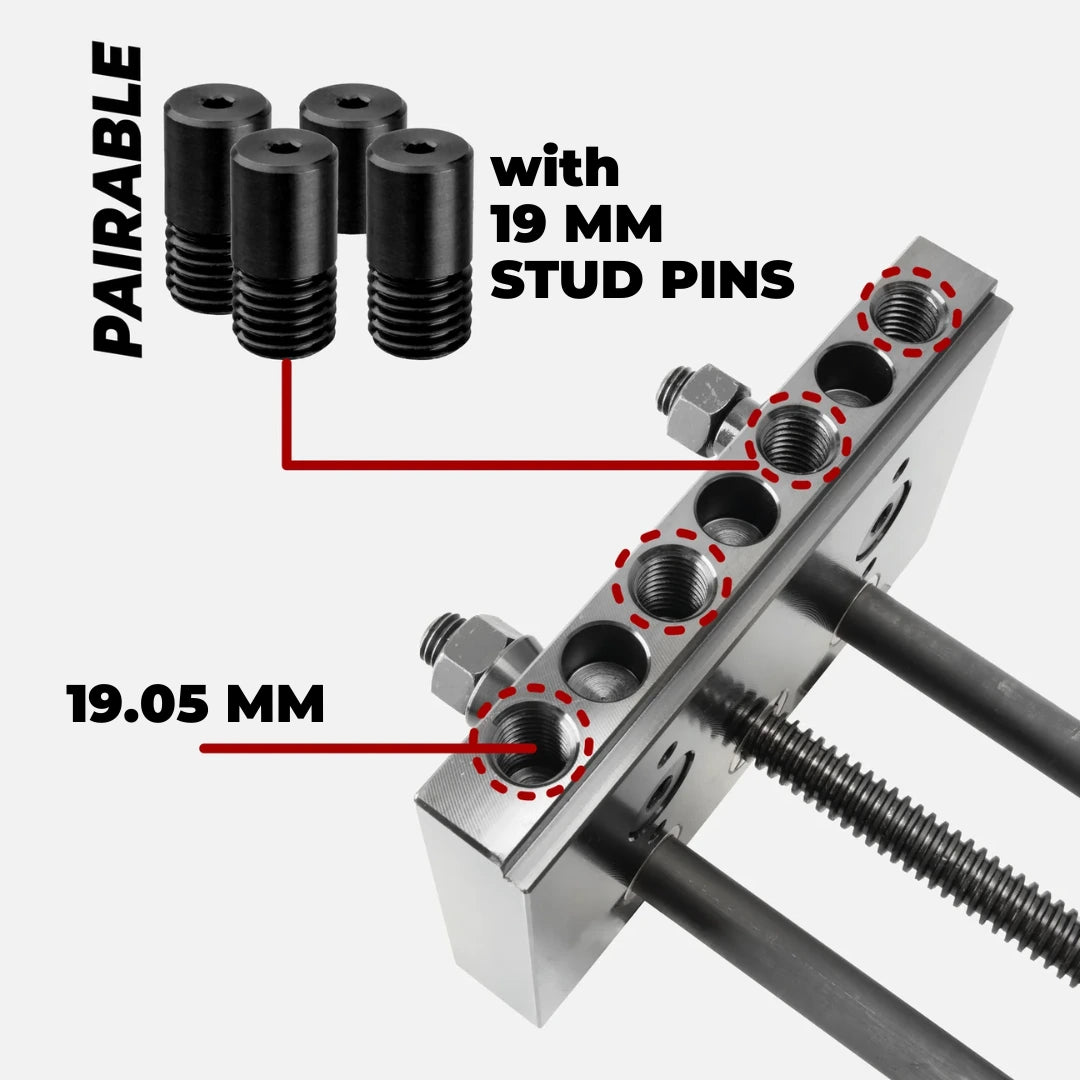

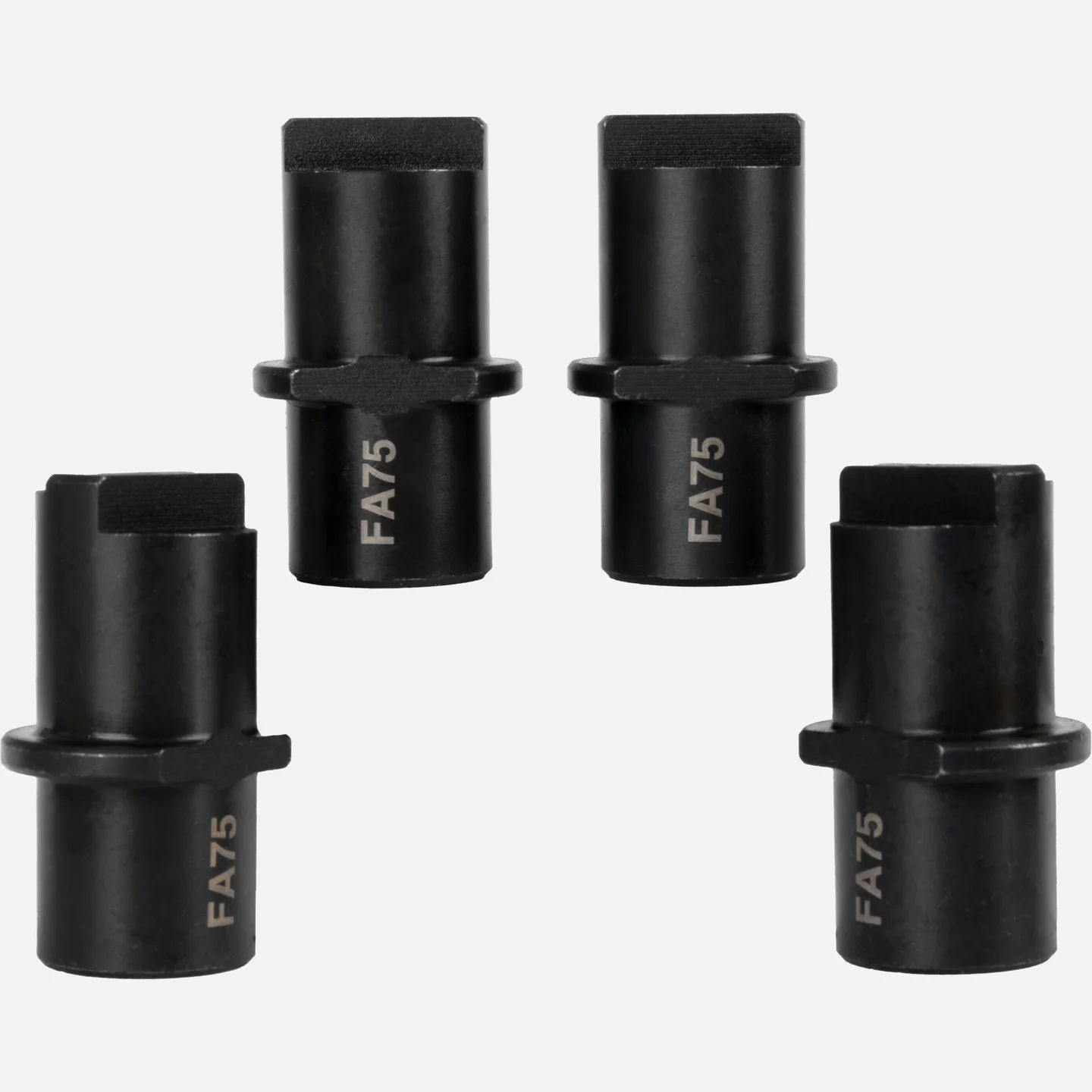

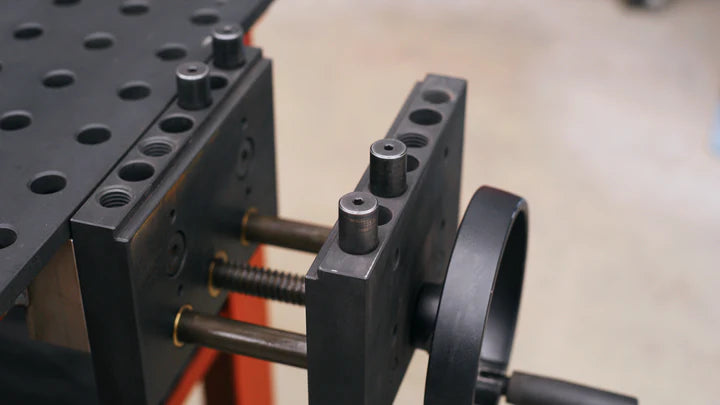

The vise comes with basic pins included, with the option to upgrade to special vise pins (FA75-SVP102-4PPK).

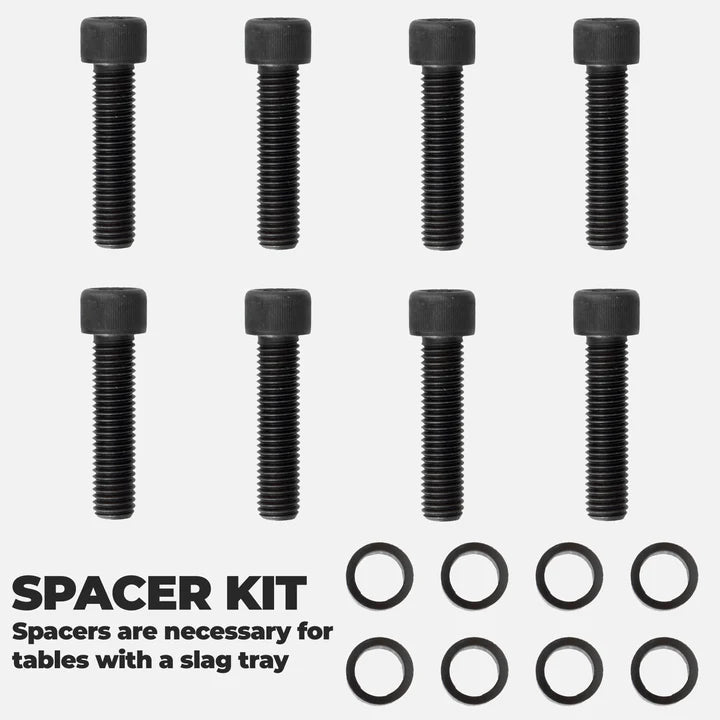

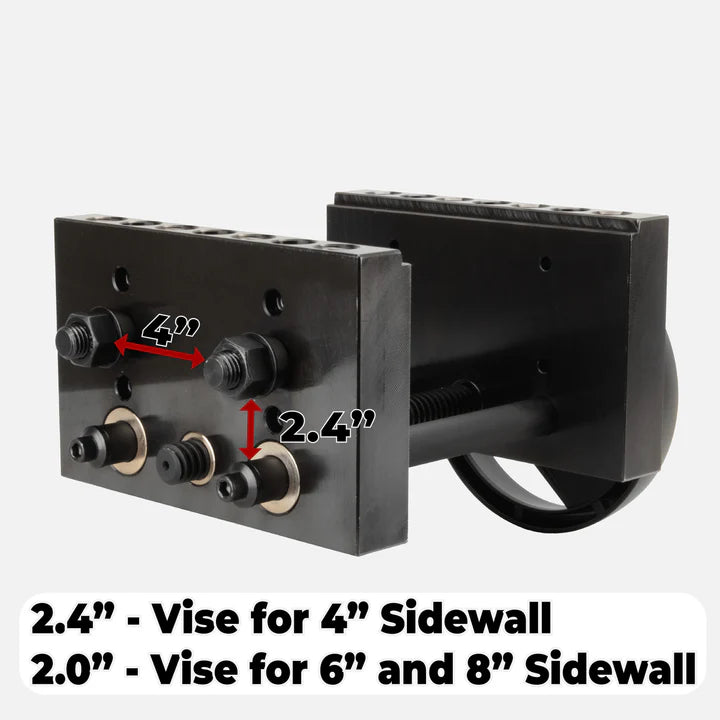

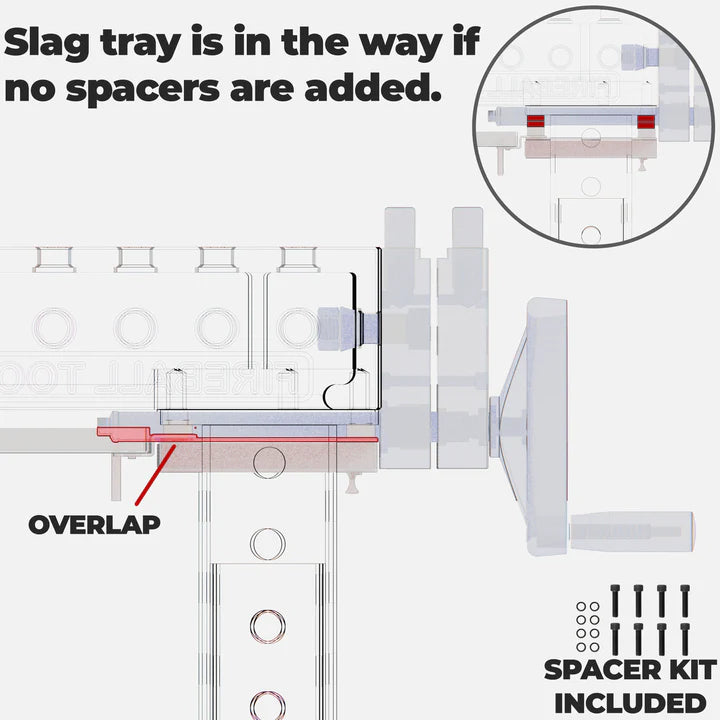

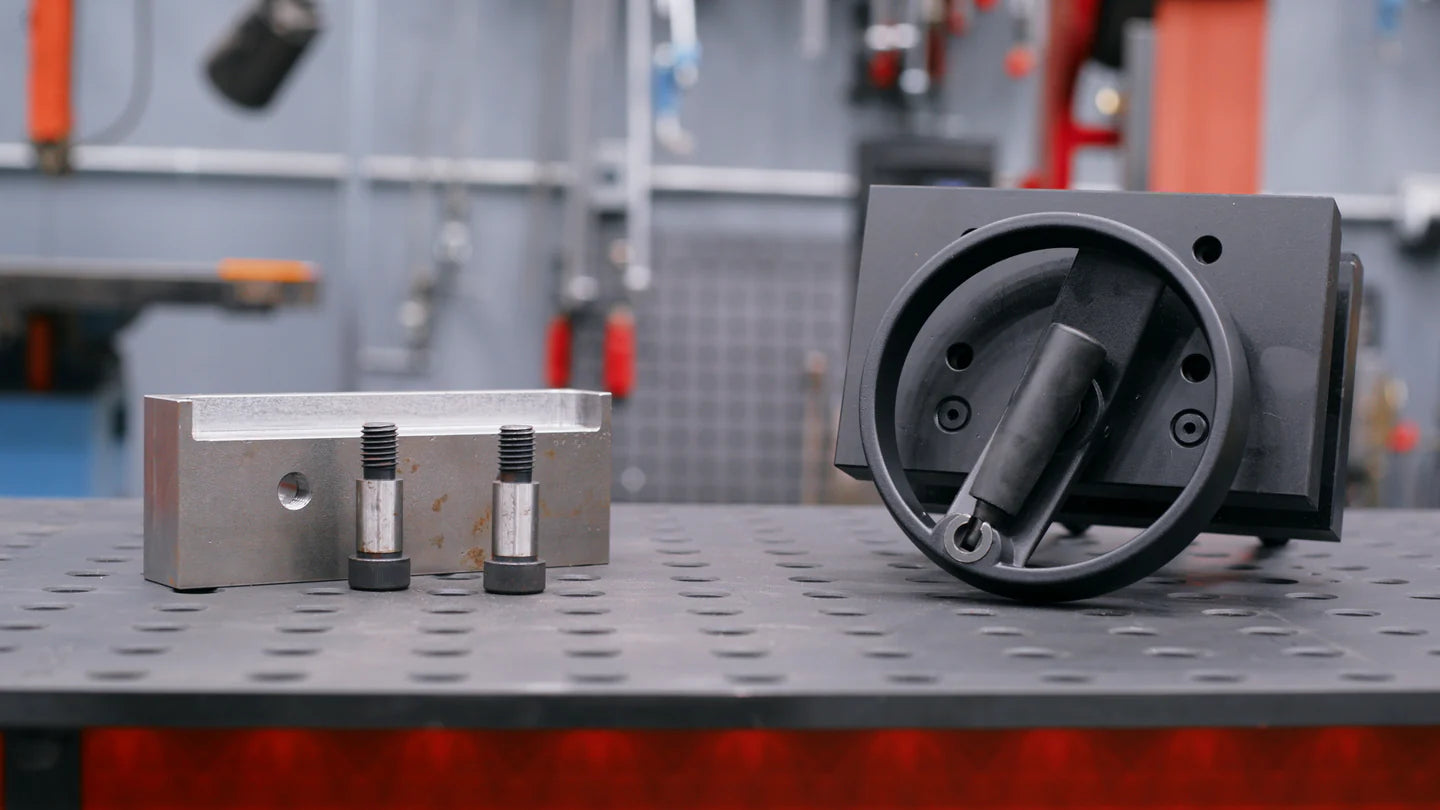

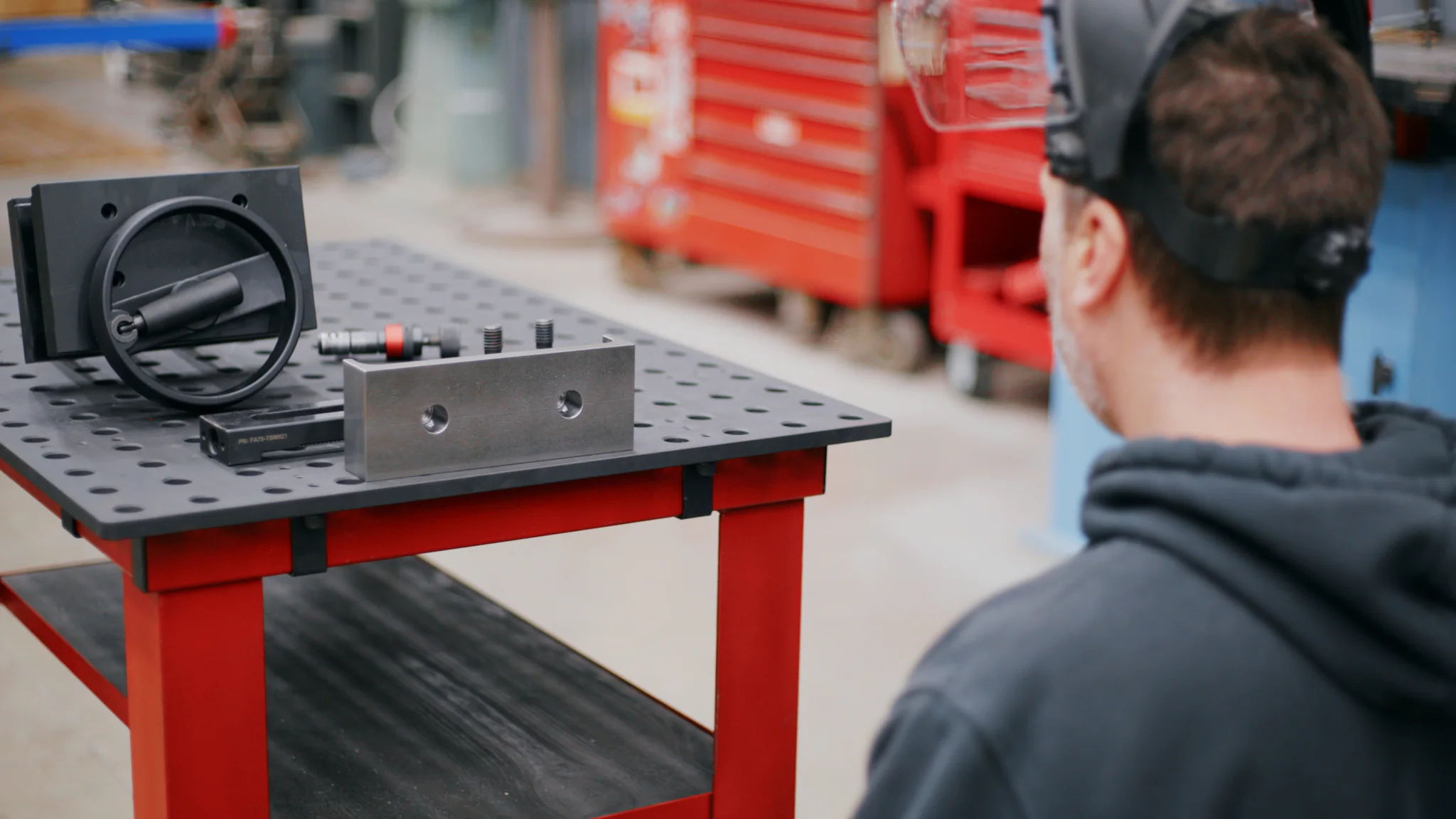

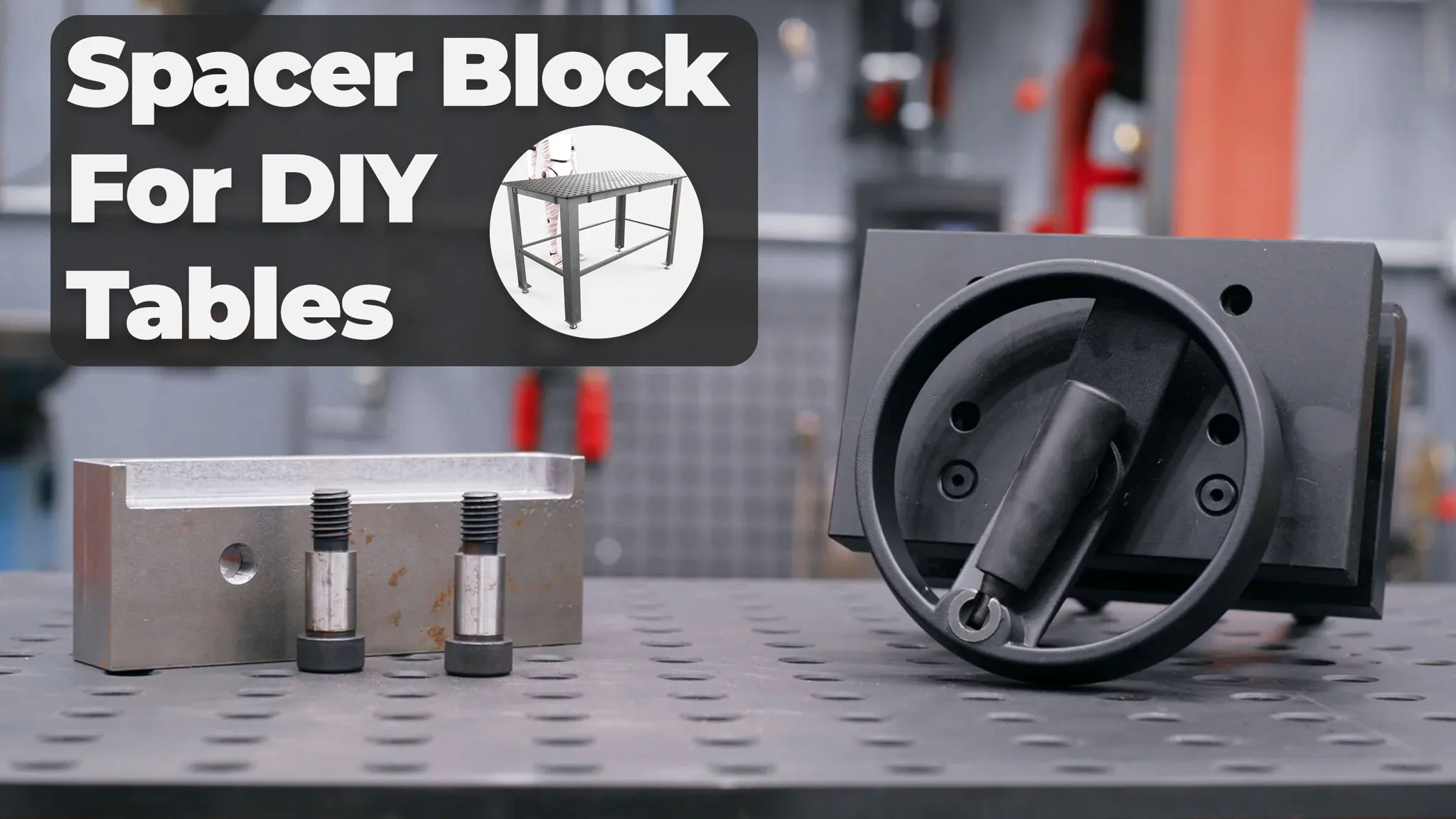

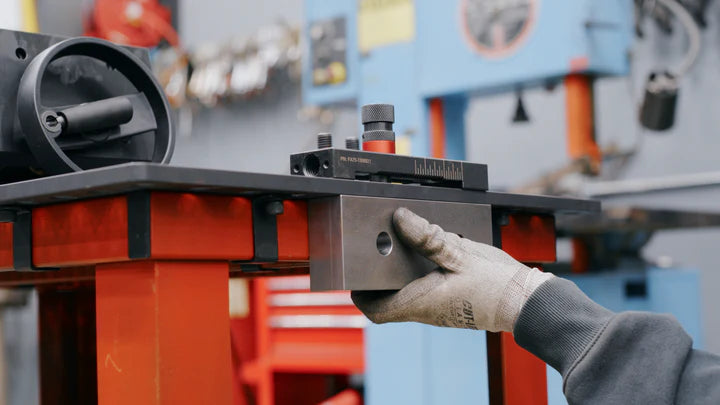

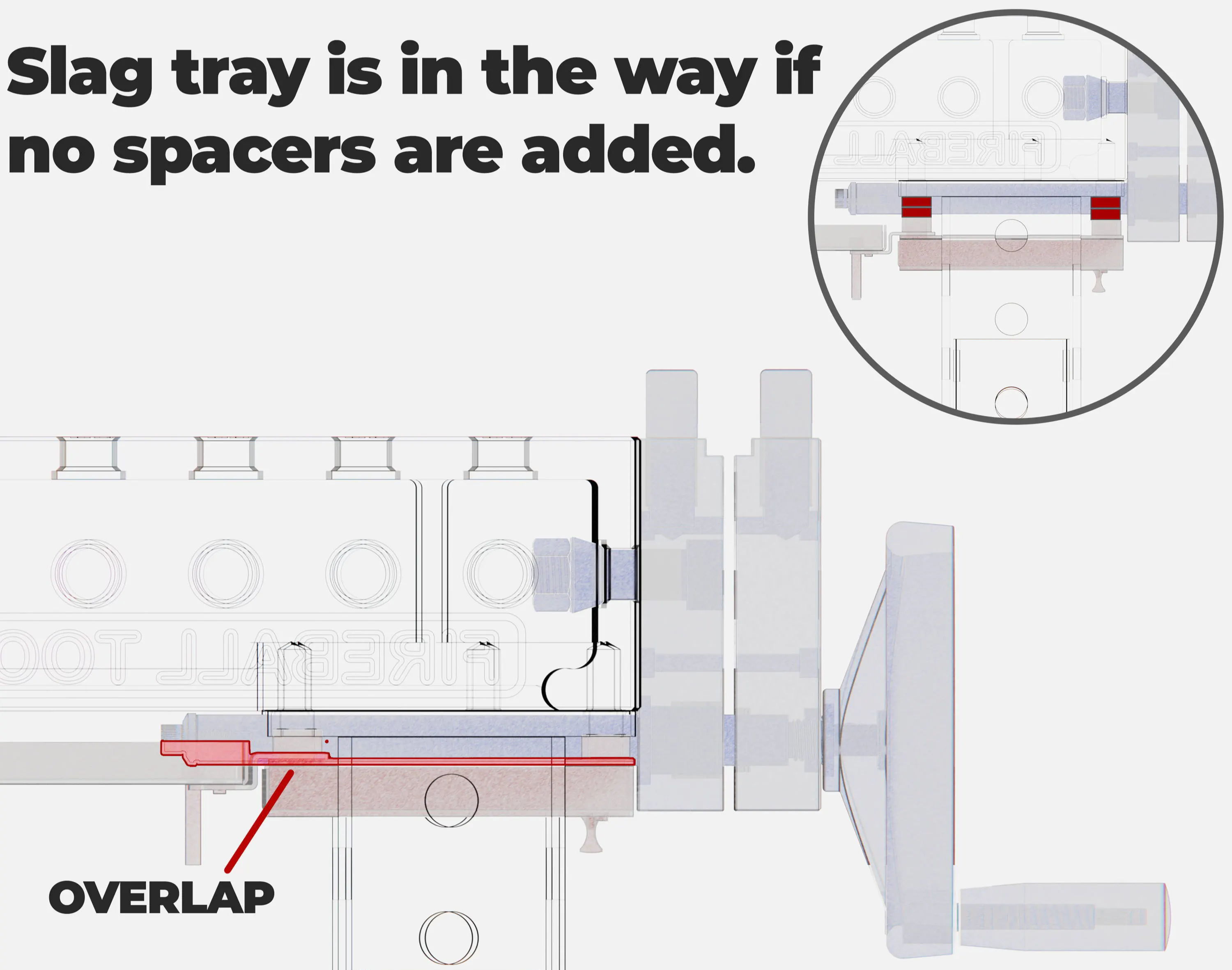

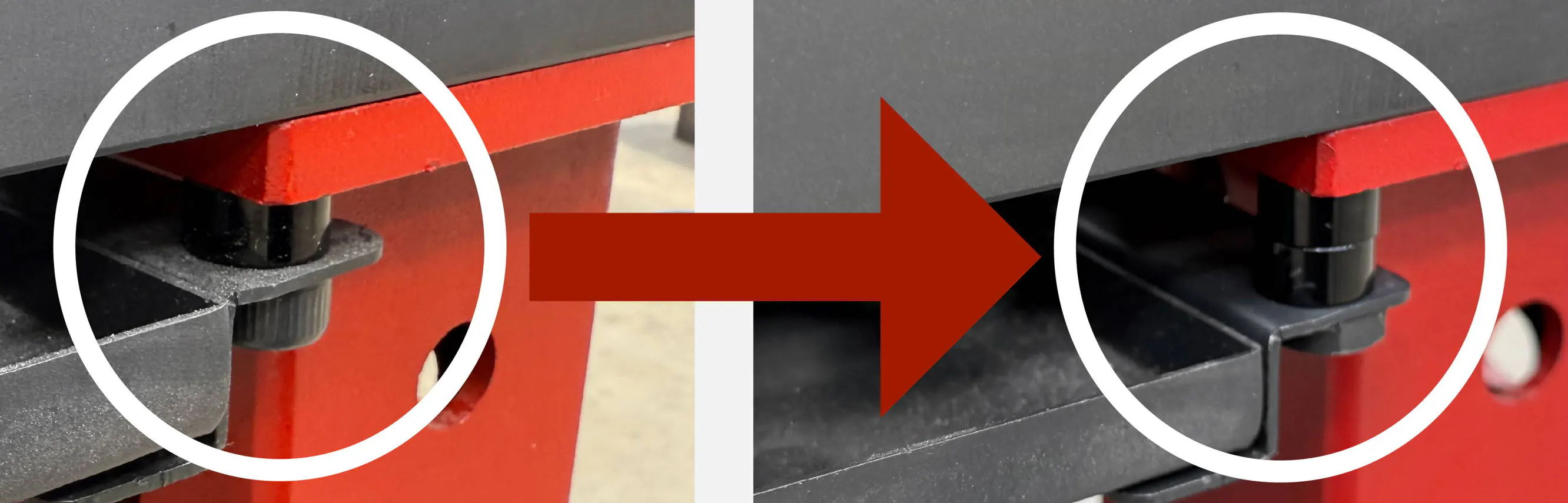

• To install on the PDY Series of tables a spacer block MUST be welded to the frame of the table.

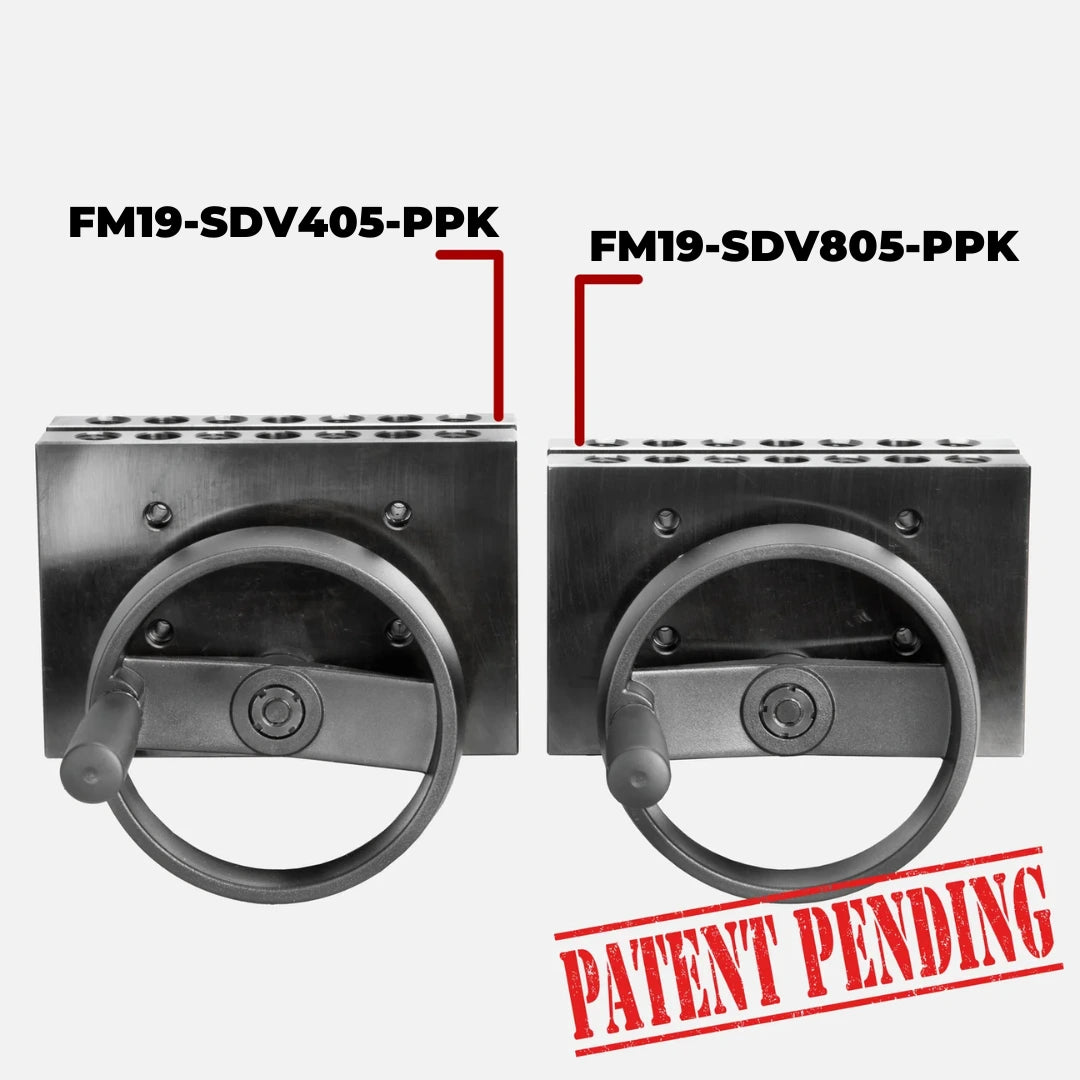

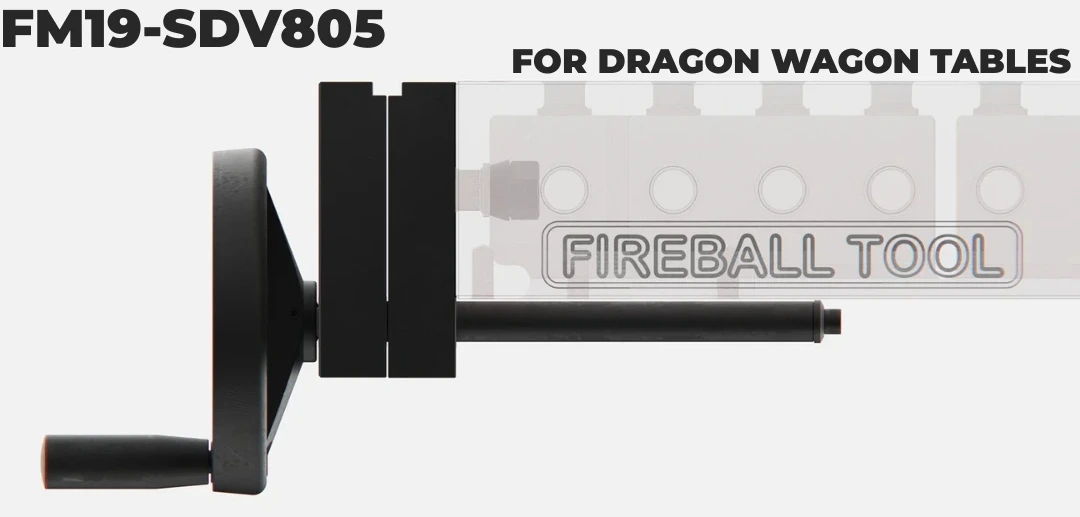

• Spacer Block is compatible with FM19-SDV805 vise only.
