- The Compact Hardtail vise is lighter weight and more compact than our other vises in the Hardtail Vise Series at 41 kg and 660 mm overall length.
- Rated for 4,500 kg of pressure, this vise features the straight pull action of our hardtail vise series, along with an enclosed dynamic jaw.
- Body material is 60,000 PSI Ductile Cast Iron.
165 mm Jaw Compact Hardtail Vise
We do not recommend bolting with tacking bolts (FA75-BTA200) due to the large heads on those bolts interfering with the swivel action. We recommend bolts from the connecting bolt series FA75-PNC150, FA75-PNC220, FA75-PNC330 or any standard 19 mm or 16 mm diameter bolt from fastener stores.

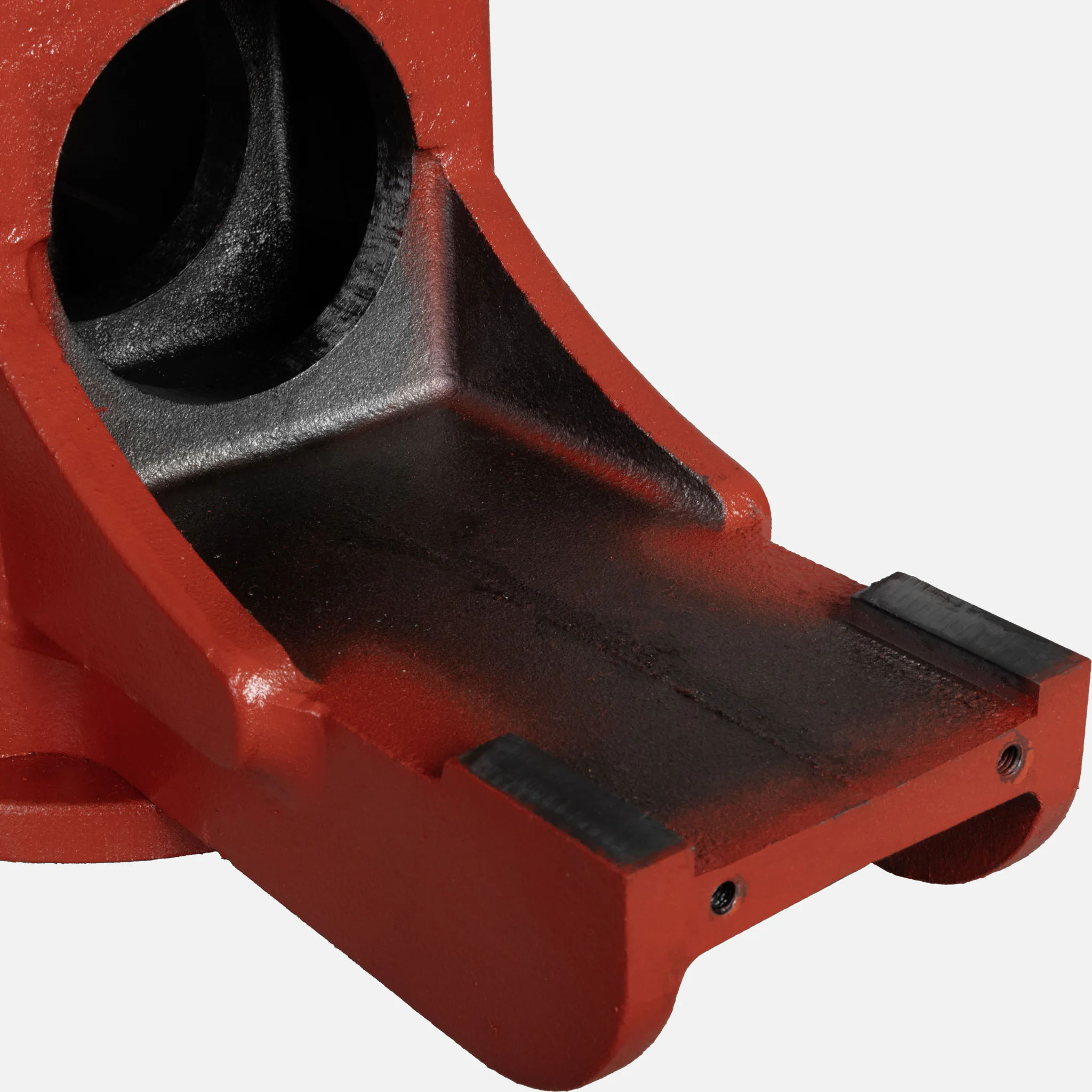

Way grooves underneath the front jaw slide keep vise steady and stable even when fully extended.

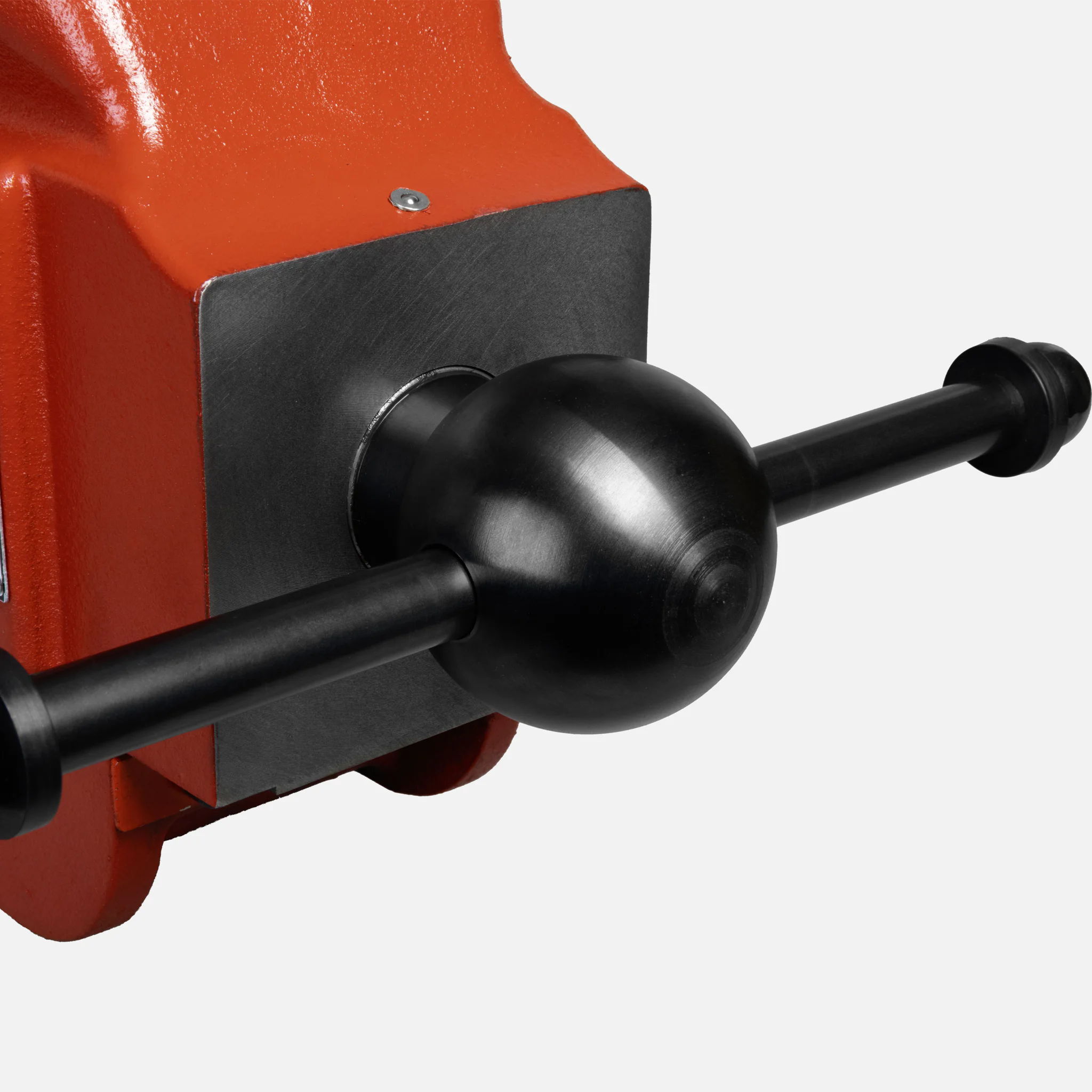

Vintage meatball style handle on nose of the vise.

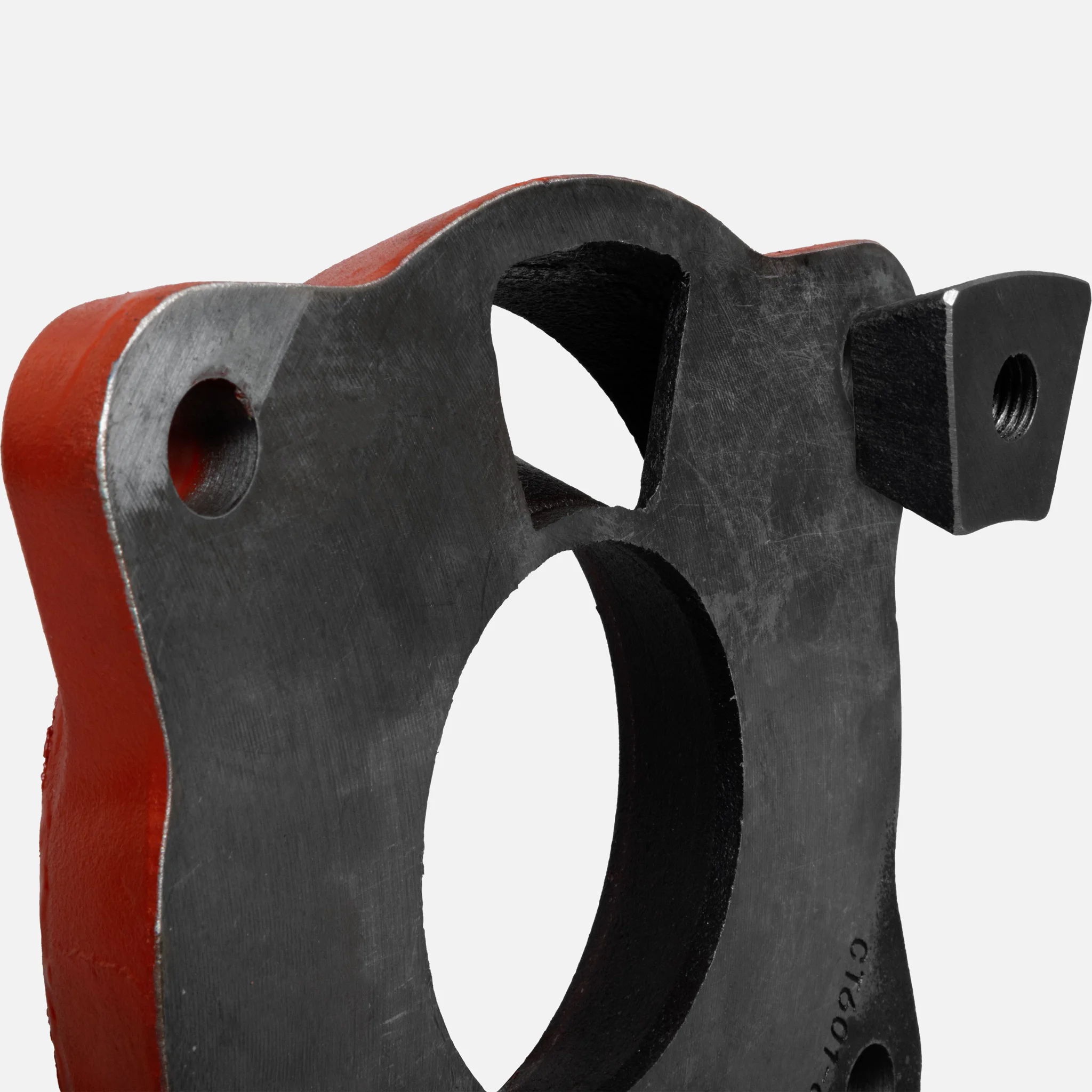

Swivel base locks down with two wedge nuts captured in a cast iron raceway.

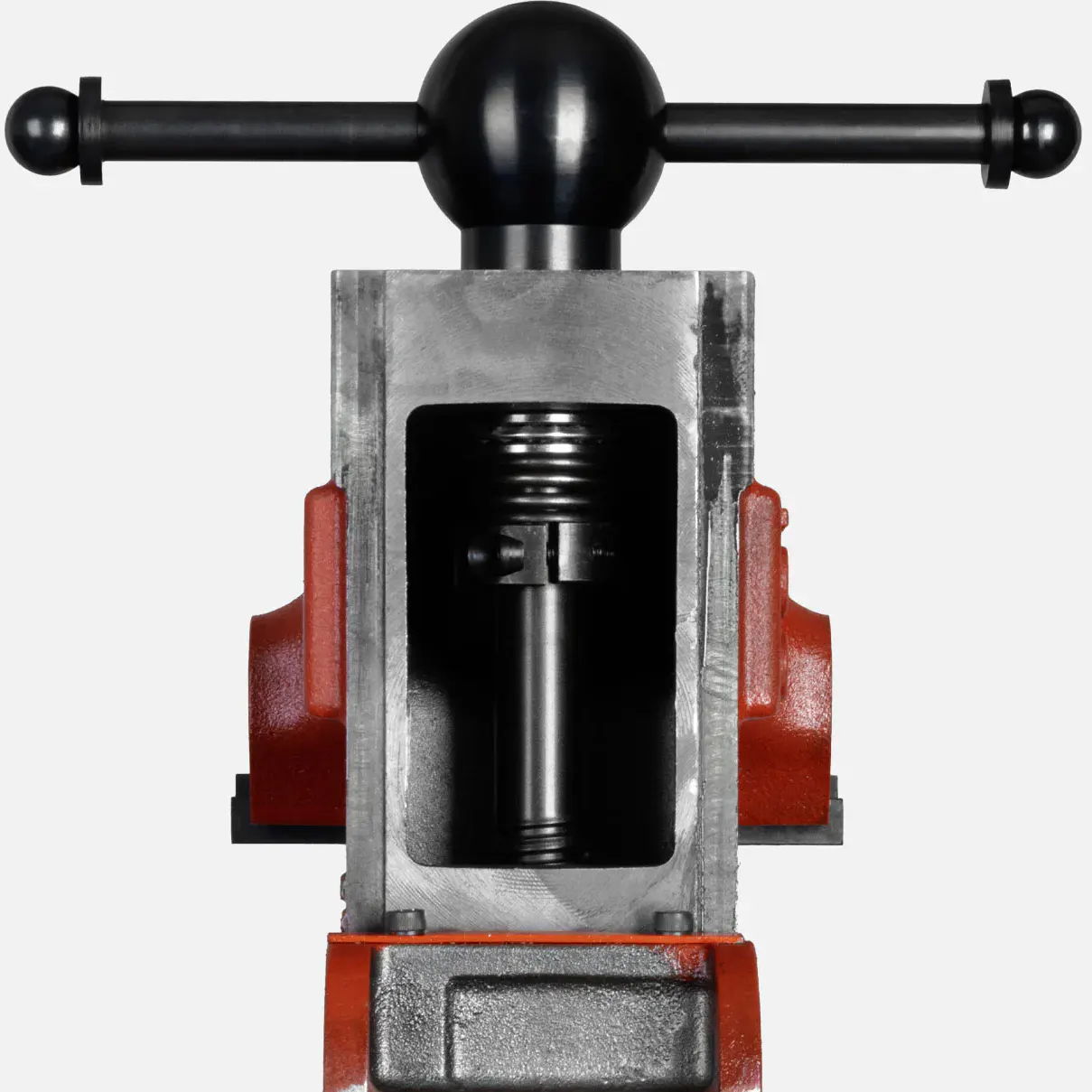

Thrust bearings for smooth power transmission using large diameter lead screw.
Vise Dimensions
FB-CT601-150

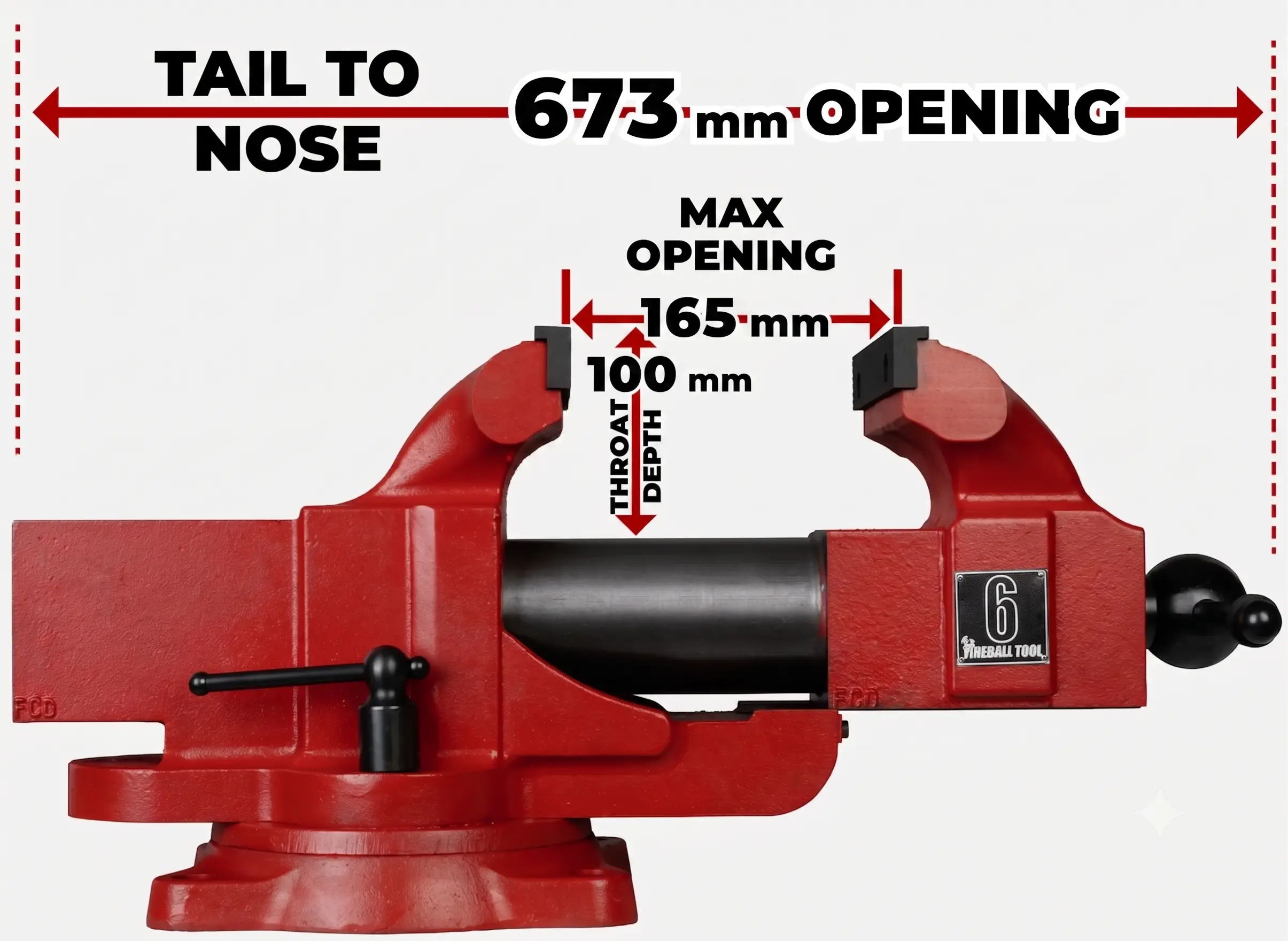

Max Opening
165 mm
Jaw
165 mm
Throat Depth
100 mm

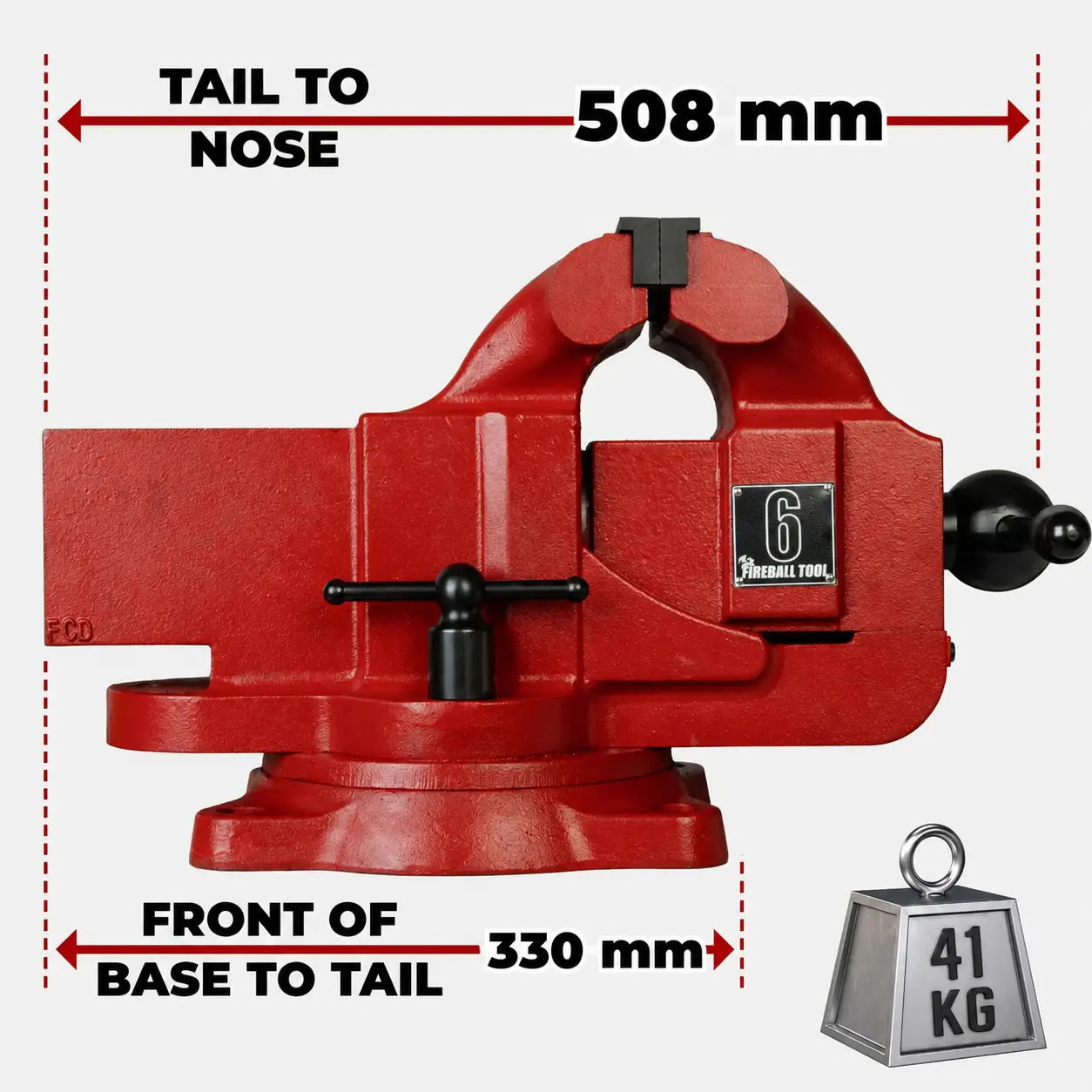

Nose to Tail (Closed)
508 mm
Front of Base to Tail
330 mm

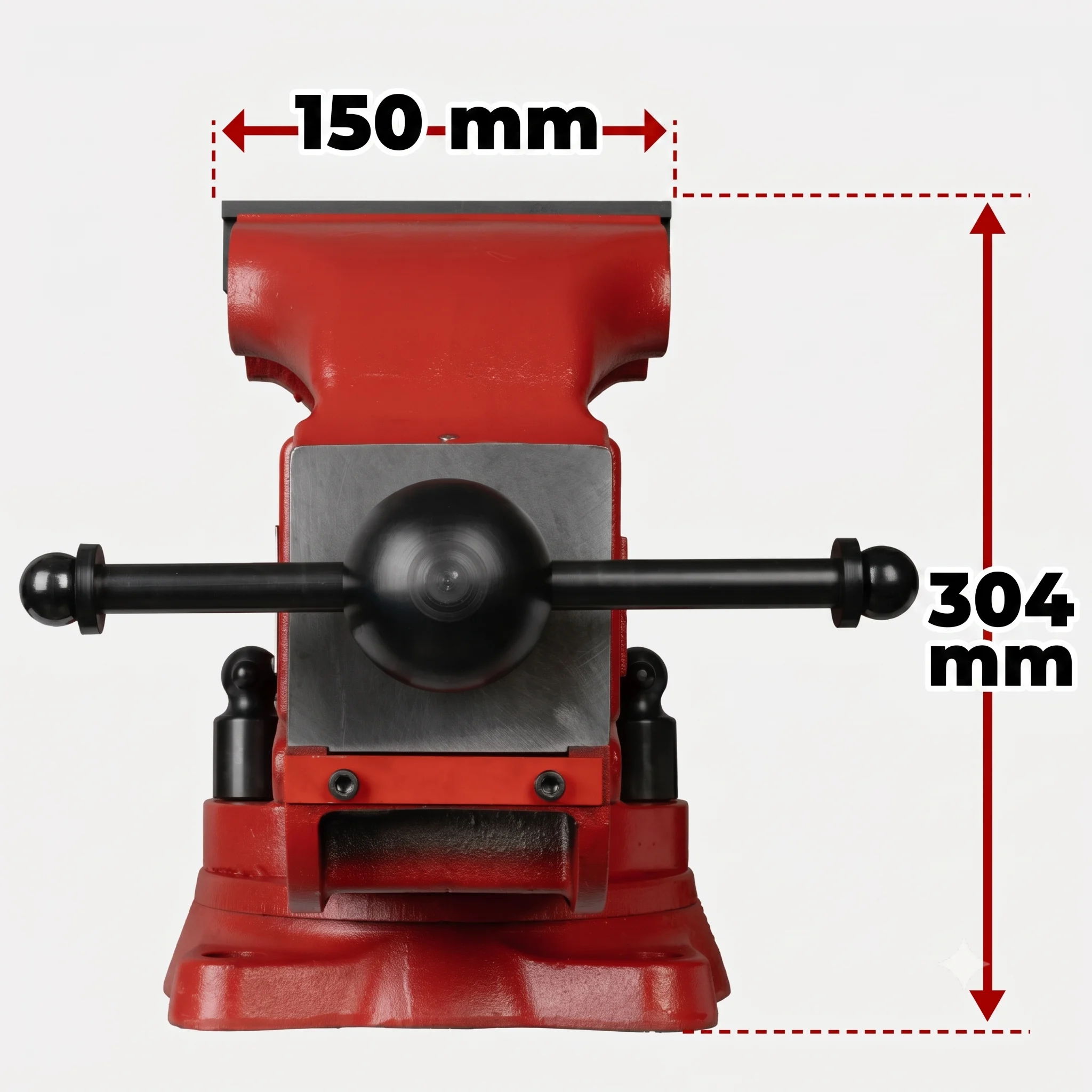

Overall Height
304 mm

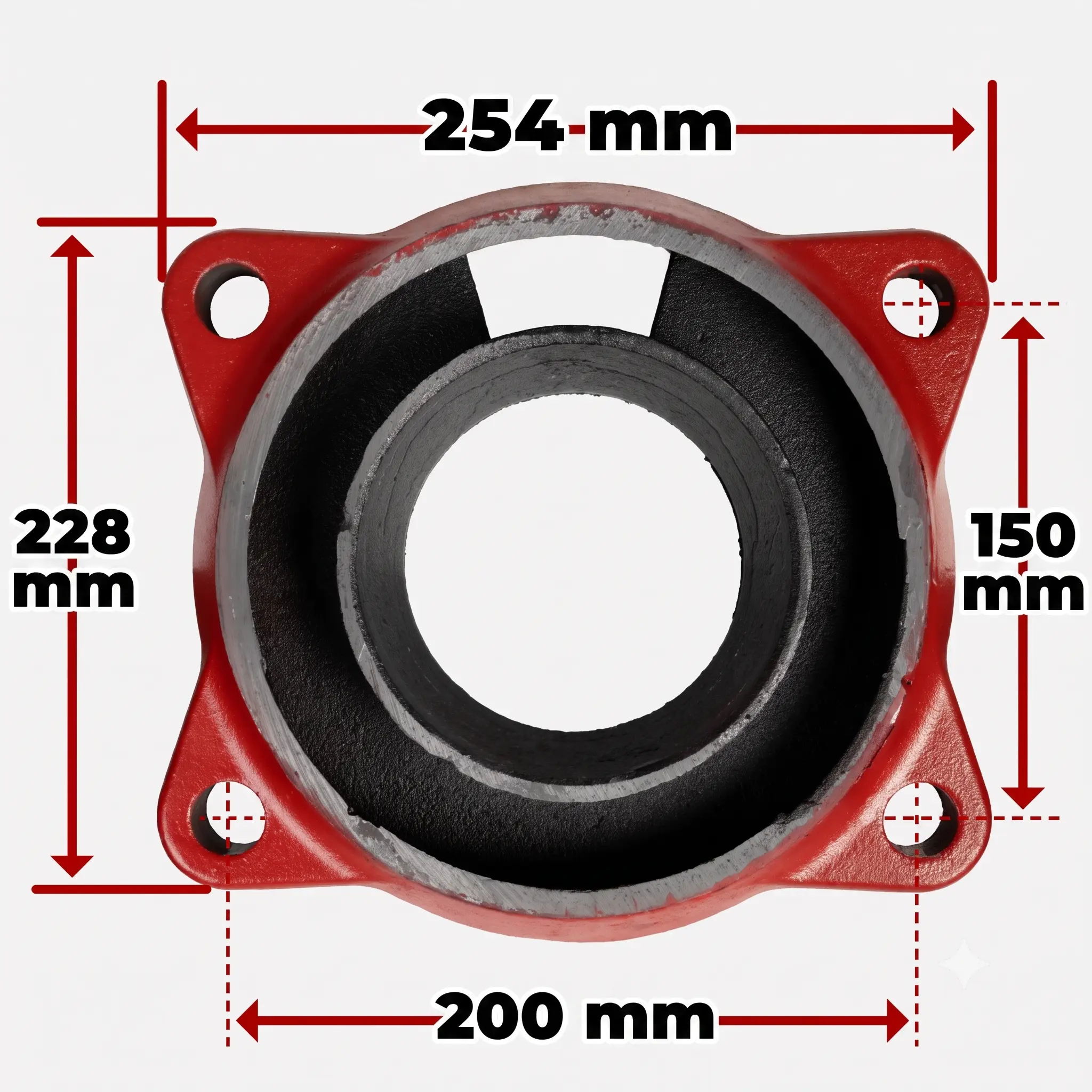

Base Width
254 x 228 mm
Mounting Pattern
200 x 150 mm
Material
60,000 PSI Ductile Iron
Clamping Force
3,600 kg (136 N·m input)
Mounting Hole Diameter
19.04 - 21.59 mm
Weight
41 kg
Maintenance
- Use grease on the slides for lubrication and corrosion resistance.
- Apply light layer of anti-corrosion coating or oil to other exposed parts such as handles and jaws for protection against corrosion, especially if used outdoors.
How do the Hardtail Vises Compare
Jaw Width
165 mm
Max Jaw Opening
355 mm
Weight
122 kg
Clamping (136 N·m input)
4,750 kg
Normal Working Range (at Max Opening)
0 – 13,600 kg
Best Use
Shop / Industrial / Production
Weight Category
Permanent bench installation
F5-HTV510
Sold out
Jaw Width
127 mm
Max Jaw Opening
300+ mm
Weight
80 kg
Clamping (136 N·m input)
4,750 kg
Normal Working Range (at Max Opening)
Up to 9,000 kg
Best Use
Field / service truck
Weight Category
Mobile-capable
Jaw Width
165 mm
Max Jaw Opening
165 mm
Weight
41 kg
Clamping (136 N·m input)
3,600 kg
Normal Working Range (at Max Opening)
Up to 4,500 kg
Best Use
Field / service truck
Weight Category
Mobile-capable
How Is It Shipped?
Ships inside a crate
