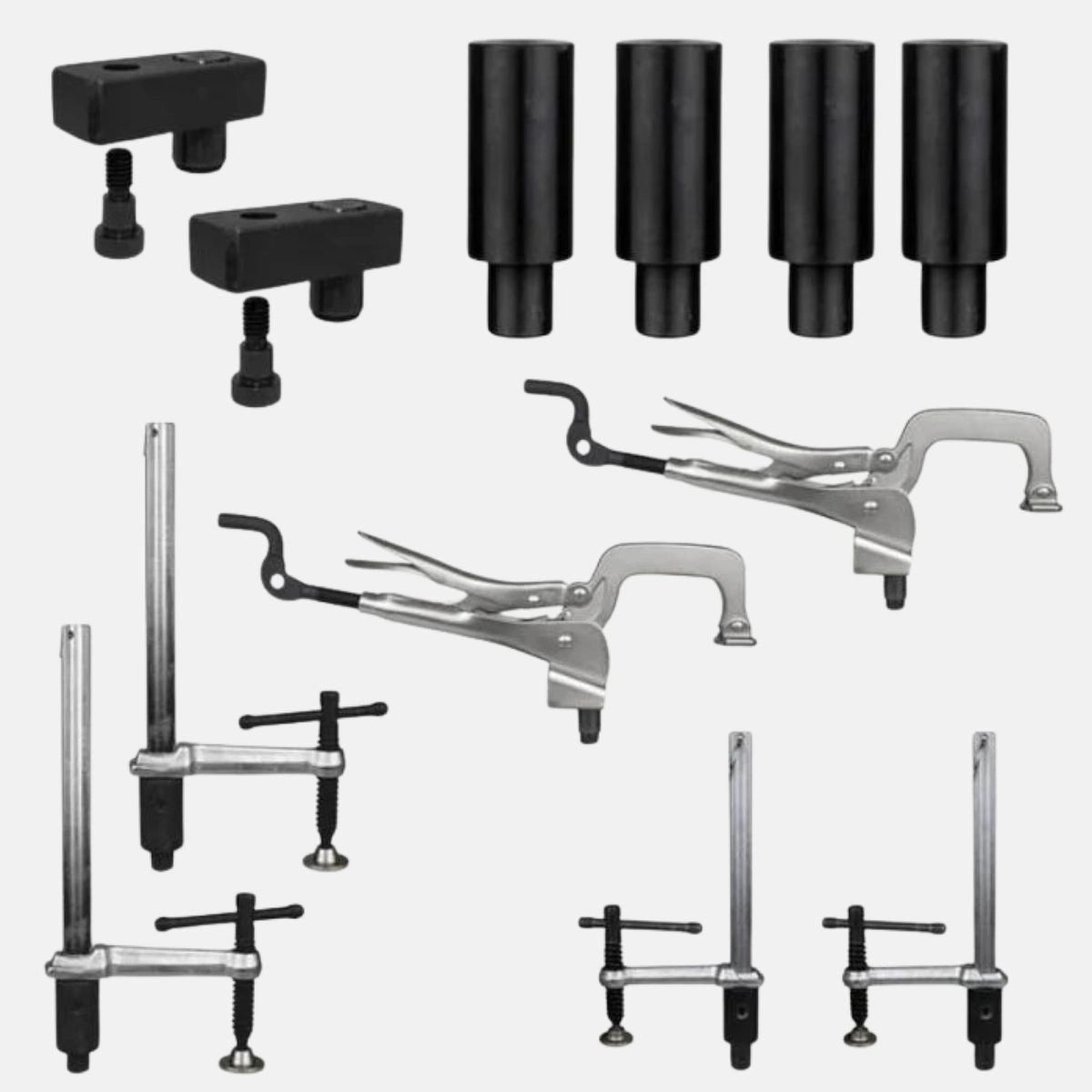

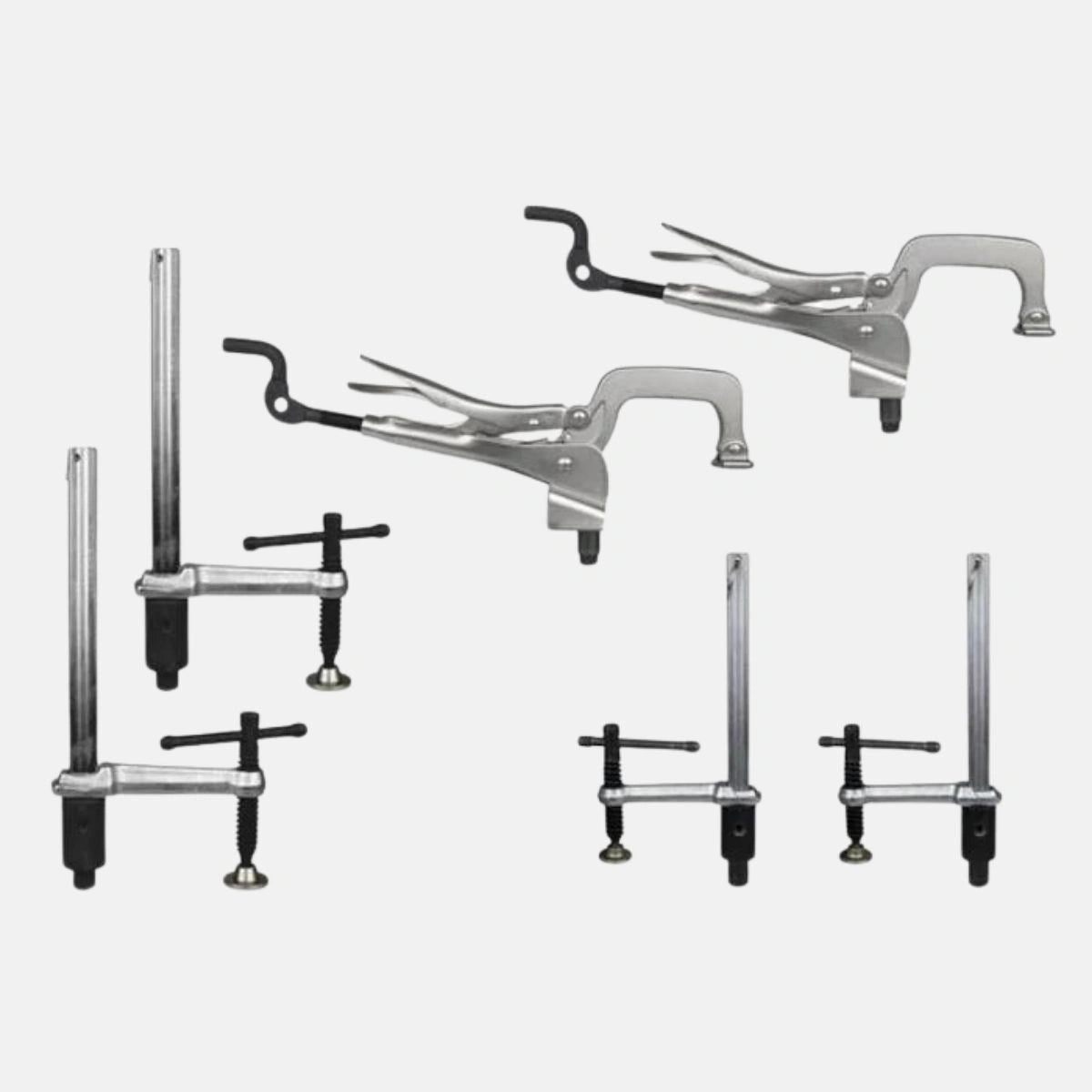

This is the ideal starter package for a welding table with 16 mm holes. Lets you quickly set a 90 degree angle and clamp your material down.

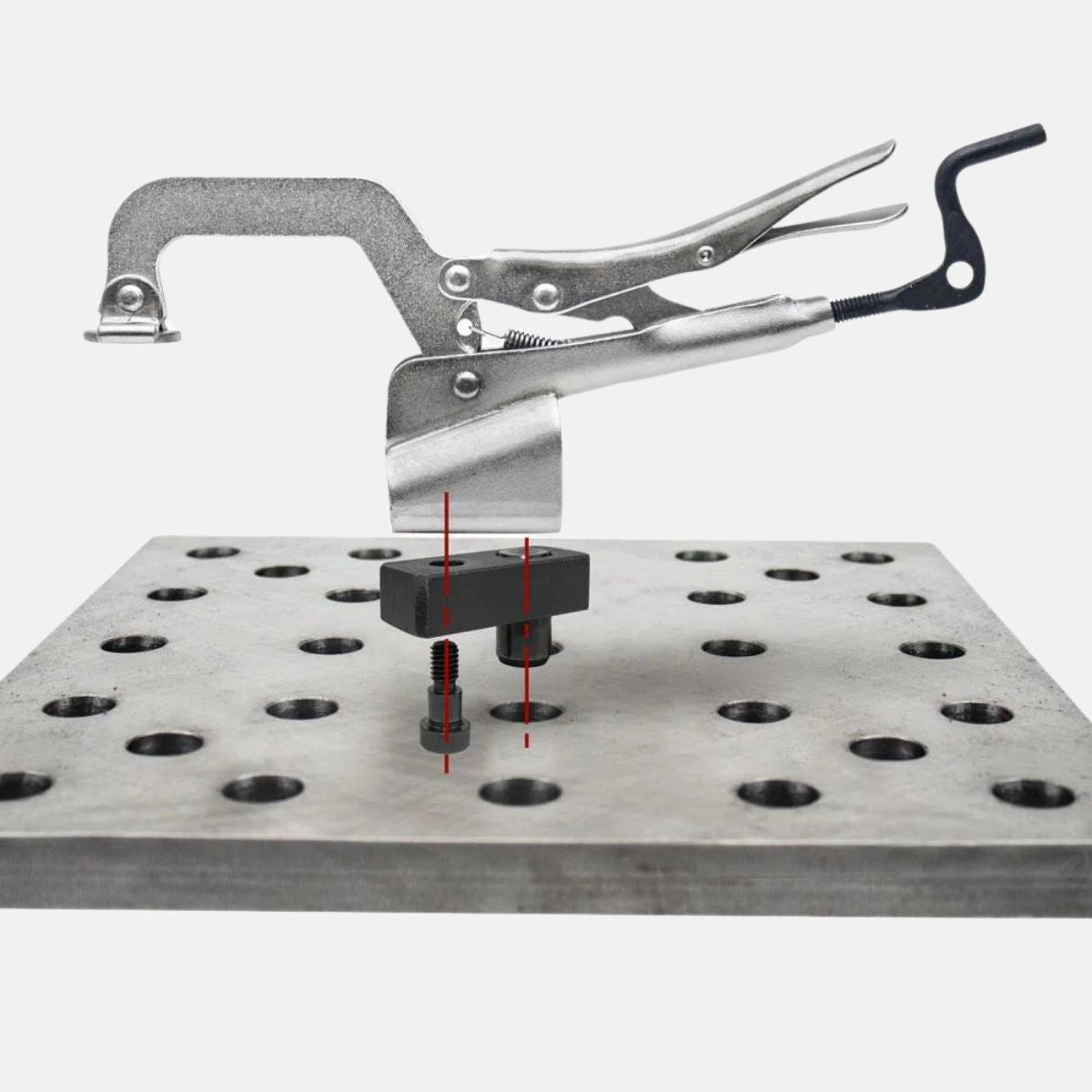

Swivel Base for Inserta Pliers
Swivels 360° and provides a 25mm extension of the Inserta Pliers base for the extended reach, or retraction, of the Inserta Pliers as needed for precise placement of the clamping pad.
| Qty | Thread | Weight |
| 2 | M8 | 0.18 kg |
Locating Pins
Use the Locating Pins as a stop wherever parts need to be positively located for clamping.
| Qty | Top Diameter | Bottom Diameter | Top Height | Weight |
| 4 | 25 mm | 16 mm | 38 mm | 0.22 kg |

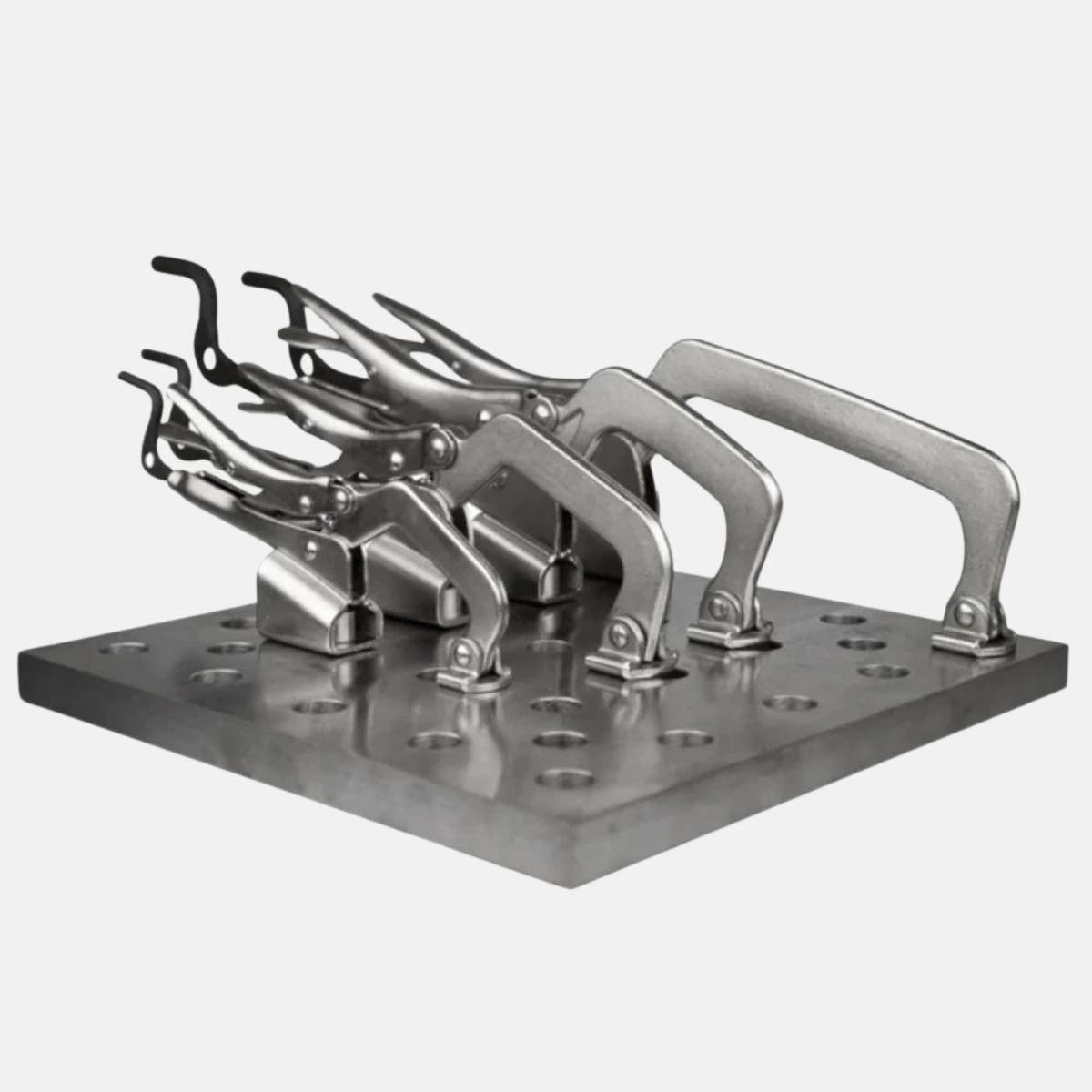

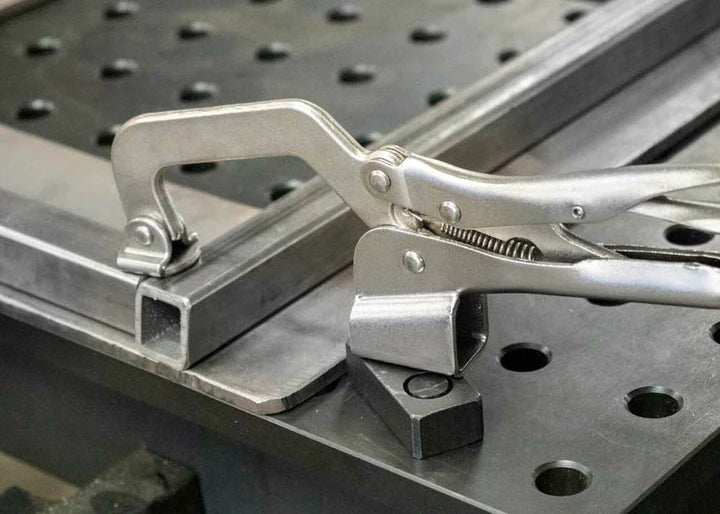

Inserta Pliers
Insert into ⌀ 16 mm for fast hold-down clamping.
The patented rear crank handle allows clamp pressure adjustment while the crank clamp is in locked position.
Use the crank handle to pre-set the clamp opening in repetitious clamping applications.
| Qty | Throat Depth | Opening B | C | Weight |
| 2 | 85 mm | 100 mm | 26 mm | 0.7 kg |

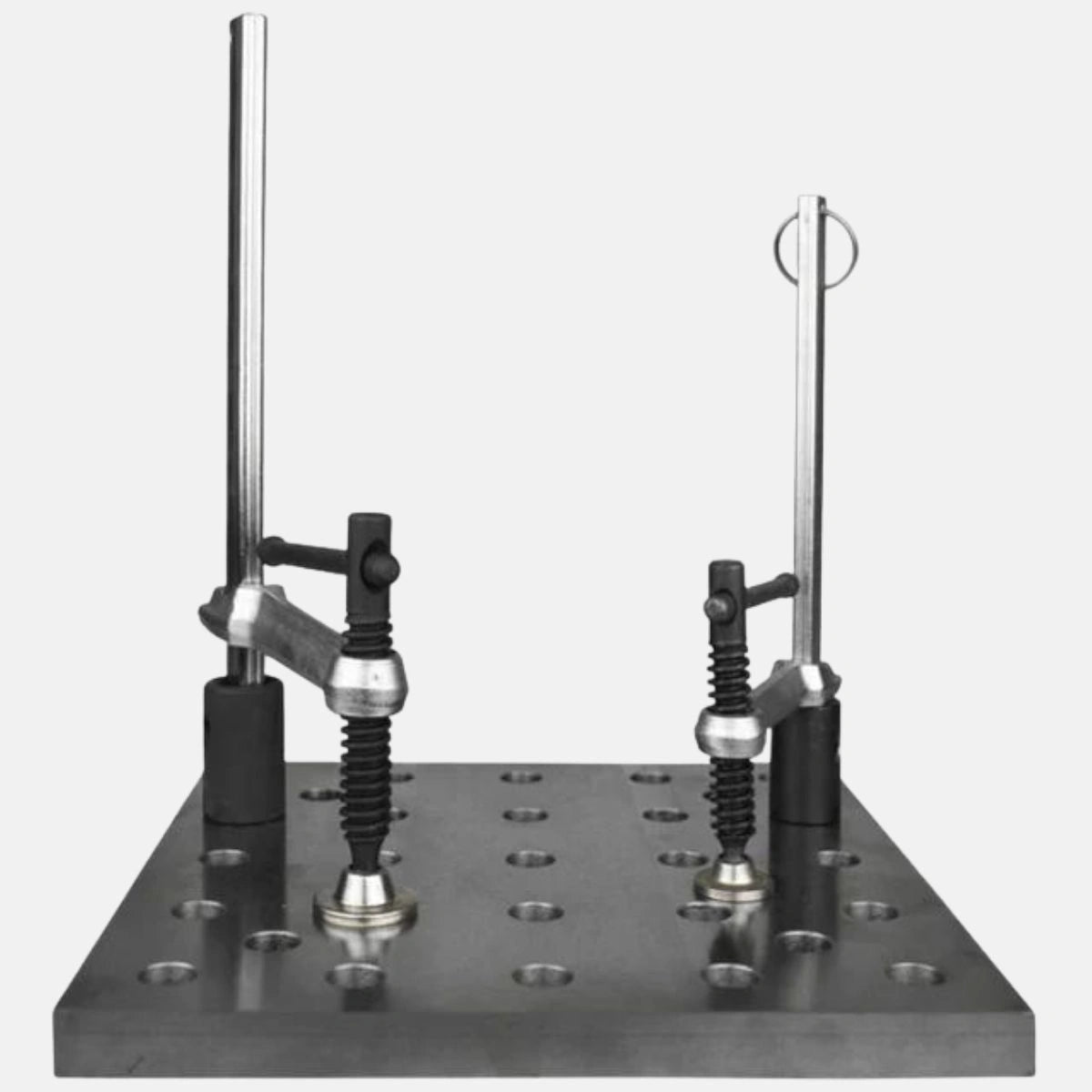

Inserta Clamps
Place the Inserta Clamps into the 16mm holes on your welding table for fast, easy clamping. Clamp in the vertical or horizontal position at any height.
| Qty | Clamping Capacity | Throat Depth | Clamping Pressure | Rail Size | Weight |
| 2 | 150 mm | 83 mm | 135 kg | 16x8 mm | 0.6 kg |
| 2 | 200 mm | 100 mm | 180 kg | 20x10 mm | 1.0 kg |
