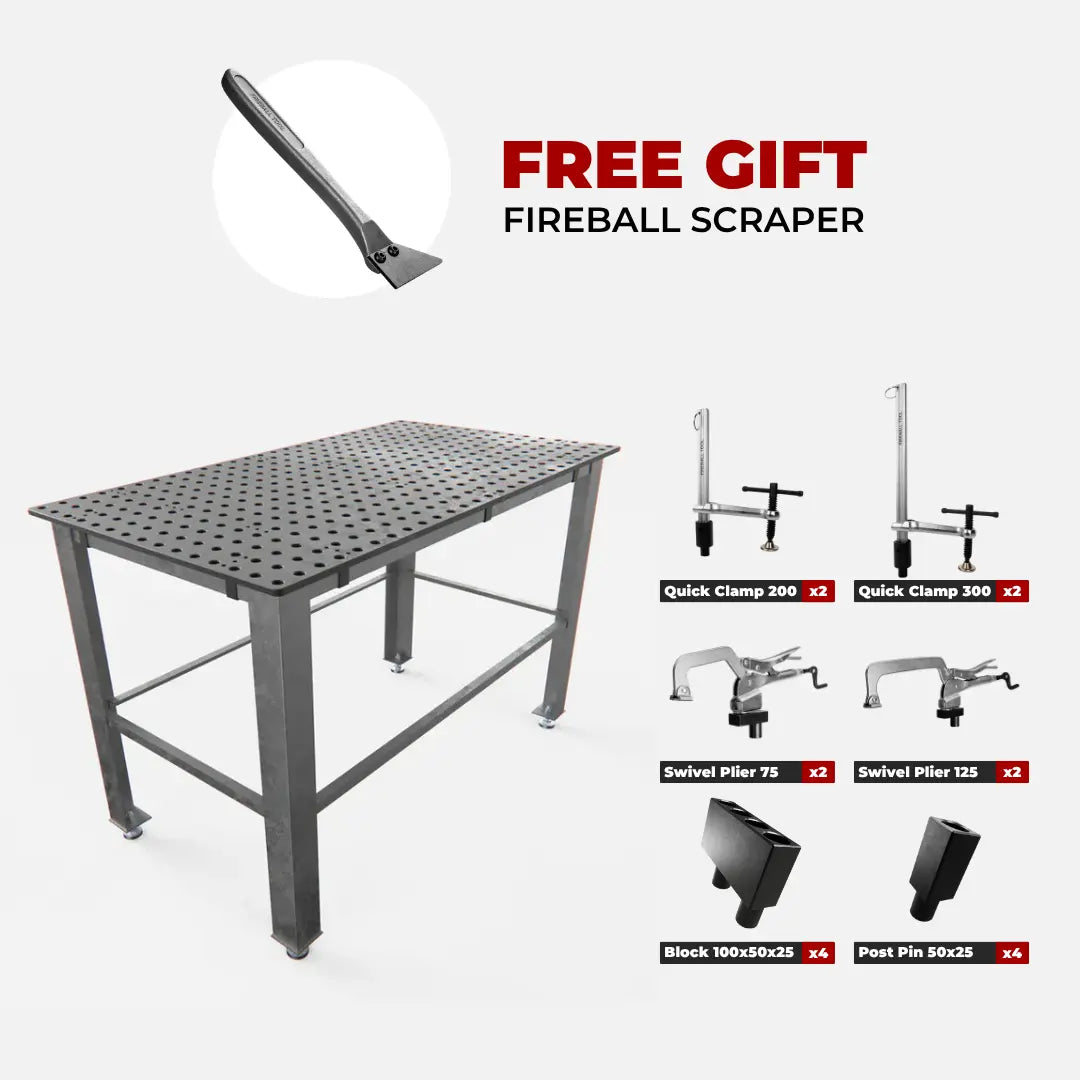

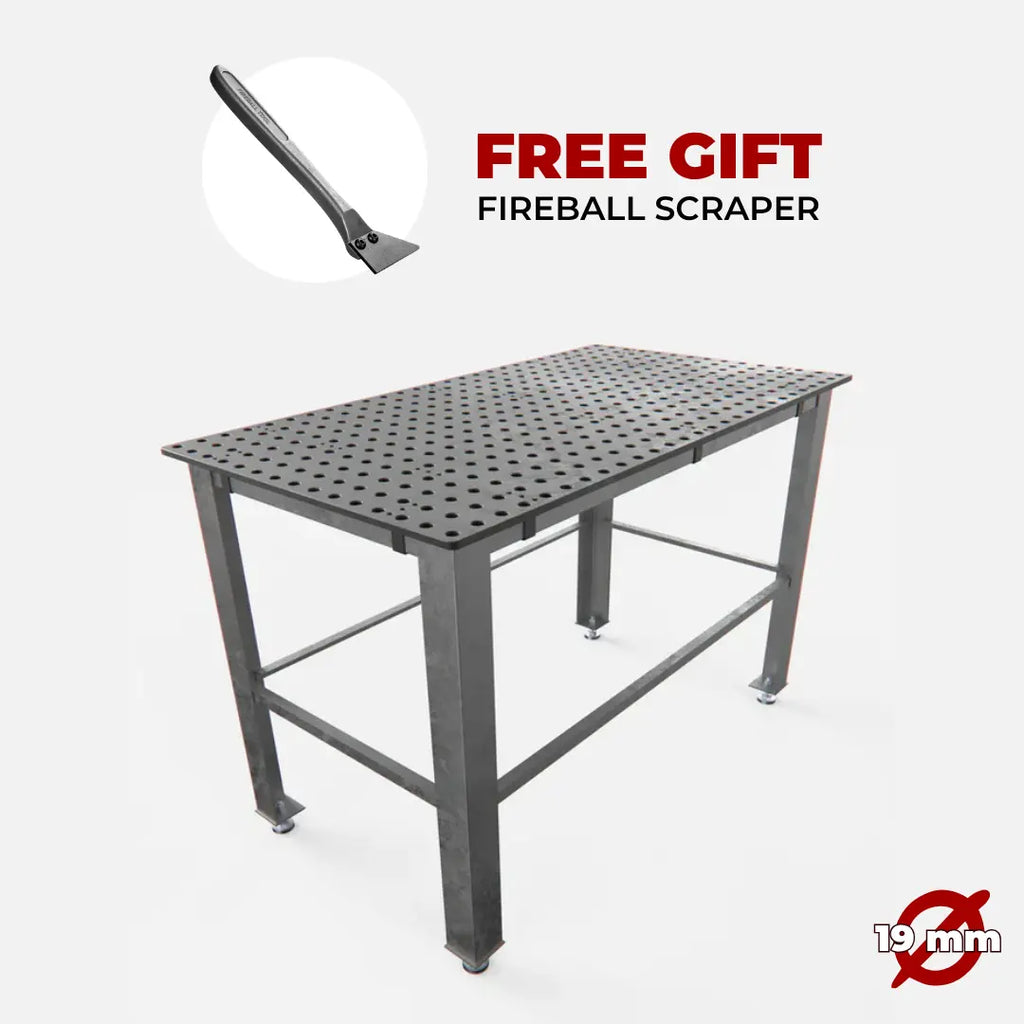

DIY Table System (1400x800 mm) - 19 mm System

Fireball Tool EuropeSKU: FM19-PDY1480-BDK3
0 avis

Prix:
Prix réduit€960.00
 Plus de moyens de paiement

Description

The Maverick table series is a minimalist table designed for professional use.

  • Flat 12 mm thick steel plates. Our plates are ground for flatness, it's not a random piece of steel plate from the mill.
  • CNC machined holes.
  • Dragon Scale finish to protect against corrosion and weld spatter.
  • Ability to fine tune the plate in relation to the frame using set screws.
  • Table holes are 19 mm diameter on a 50 mm grid, designed for use with the Fireball 19 mm system clamps and fixtures.


Assembly Required
This table requires assembly by the customer. When you purchase the table kit, the plate, mounting hardware, tubular frame, and legs are all included.
Full assembly will require welding and/or drilling:

  • The table top does not need to be welded to the frame. For best flatness we suggest just bolting to the frame using the included steel straps.
  • Tube frame does not need to be welded together, welding is optional.
  • The legs require welding to attach the foot plate and nuts for the leveling feet.
  • Attaching the legs to the frame requires welding or drilling/bolting.
  • Attaching leg braces to the legs requires welding or drilling/bolting.


Need a Larger Table?

This table can be quickly expanded by supplying new pieces of tubing to create a larger frame.


About the Fireball 19 mm System
The Fireball 19 mm table system features 19 mm diameter holes on a 50 mm grid and our innovative line of fixtures that are the fastest and easiest to use in our industry. Furthermore, all fixtures in the 19 mm Fireball line are compatible with both 12 mm thick standard duty and 25 mm thick heavy duty tables.
