Economisez 5%
Fireball Tool EuropeSKU: F6-GTS150-AL-LRK
0 avis

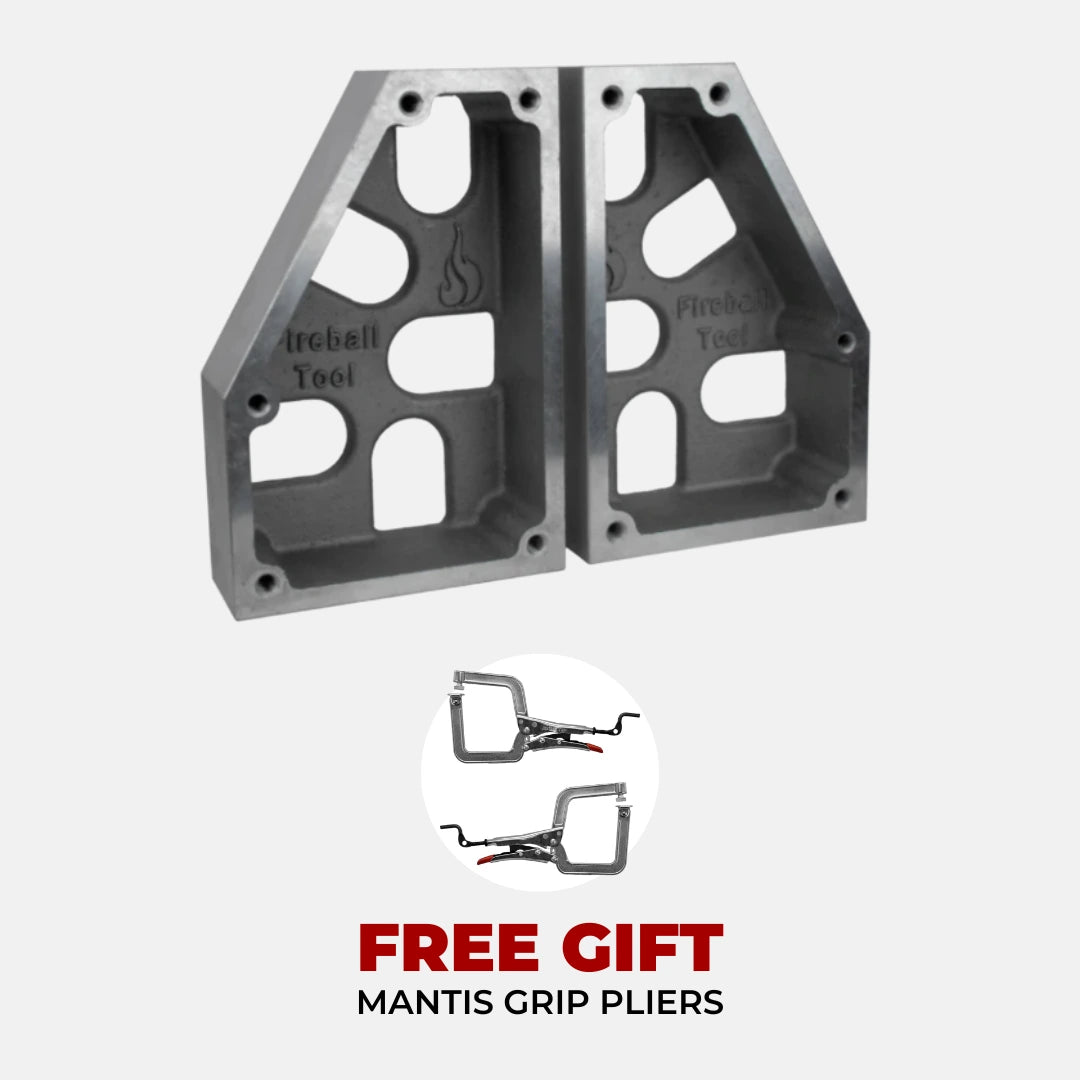

Material: Aluminium (AL)
Prix:
€85.50 €90.00

Like perfect minions, these squares are compact, come in sets, and are ready to hold your work when summoned.

These squares come in a compact configuration for use in tight spaces. Each square measures 150 x 100 x 38 mm, the 100 mm width is perfect for picket spacing on gates and fences. They are the first square we offer which has a built in 60/30 degree angle. The cutout also provides just the right amount of joint access when using it to clamp things at 90 degrees.

Bosses on the square allow mounting of tabs to both sides of the tool.

Squares are sold as a "left and right" pair, each pair will come with 2 squares, 8 tabs, 8 thumbscrews.

Patented Design

Material Dimensions (mm) Weight (kg)

Cast Aluminum

150 x 100 x 38

1.6

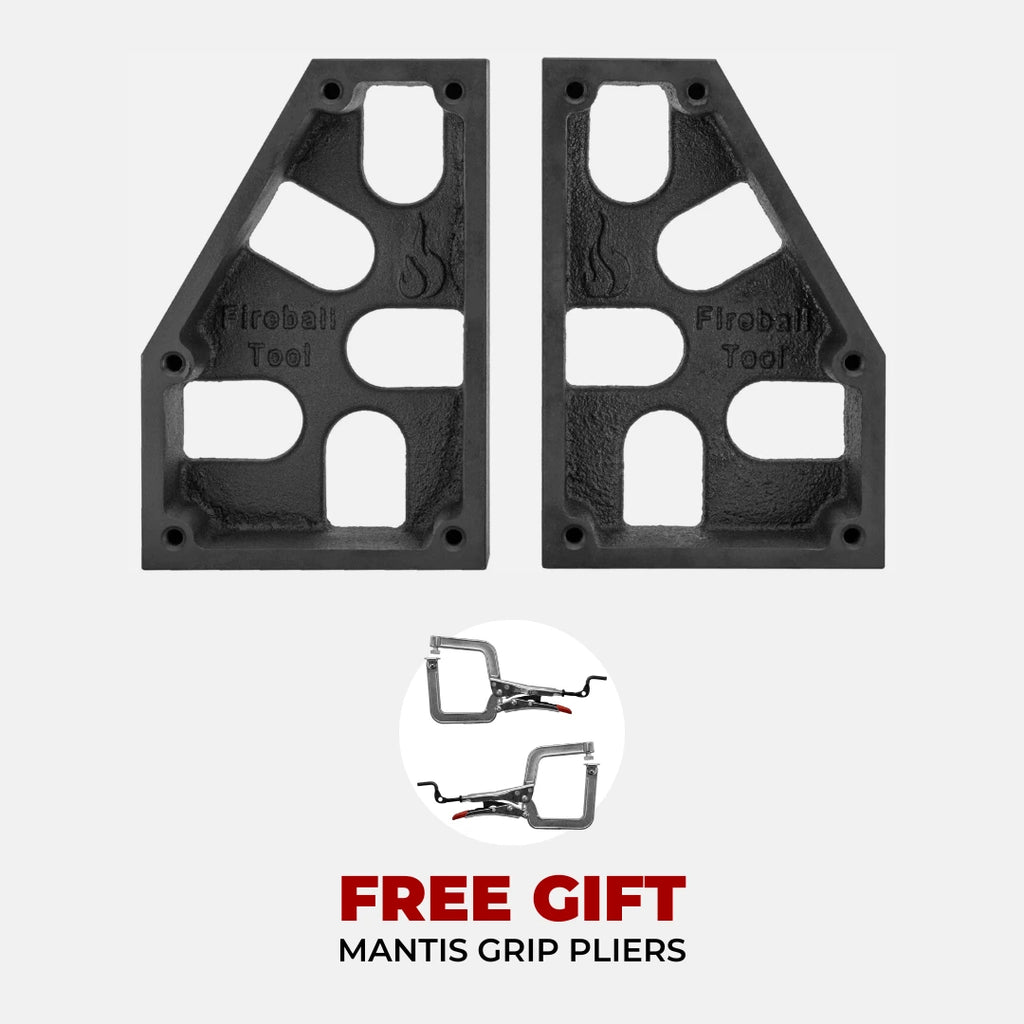

Dragon Scale (FE)

150 x 100 x 38

3.0

Compact Size For Tight Spaces

100mm Width Perfect For Picket Spacing

Clamp The Angles Together To Create Custom Spacing

Aluminum (AL) Cast Iron (FE) Dragon Scale (FE)

Pros

  • Lightweight (Ideal for welding on the go)
  • Resistance to deformation vs aluminum billet
  • Some natural resistance to weld spatter.

Cons

  • Can be be damaged if dropped or if used in heavy duty projects.

Pros

  • Great for heavy duty projects
  • Excellent resistance to deformation and raising burrs when scratched.
  • Some natural resistance to weld spatter.

Cons

  • Heavy (Not ideal for mobile welding)
  • Susceptible to rust.

Fireball’s new Dragon Scale coating provides the corrosion resistance of our previous black oxide finish with the added benefit of enhanced spatter resistance.

It’s spatter resistance needs to be seen to believed; it out performs even the best weld spatter sprays without the use of any sprays.

Included Accessories

4 Edge Location Tabs

Our revolutionary tabs allow you to align your material up so that you don’t even need a welding table! Don’t spend thousands on a flat table, just use our squares! Tighten the tabs onto the front or back of your square and you can immediately get to work. Sure, there are different jigs out there, but can they line your material perfectly in seconds?

4 Tool-less Thumbscrews

But it doesn’t stop there. We reinvented the game by introducing our thumbscrews. Say goodbye to your hex keys and Allen screwdrivers and freely adjust the tabs with only your fingers!

Optional Add-ons

Edge Alignment Pins

Install our edge alignment pins on any square to create a large, overhanging edge which can be used to index the square on a different plane. Depending on the square, this allows you to create edges which are 90 degrees (perpendicular), 45 degrees, parallel, and even 60 and 30 degrees from the edge.

  • Use it with our Monster squares to create a speed square for layout.
  • Use it to hang the square off the edge of a table for working vertical or perpendicular to table surface
  • Use it to elevate the squares off the ground or table for extra clearance when you’re fitting and welding entire frames
  • Tip! If trying to create a parallel edge with the mega square for marking, use our shims to get that perfect distance!
