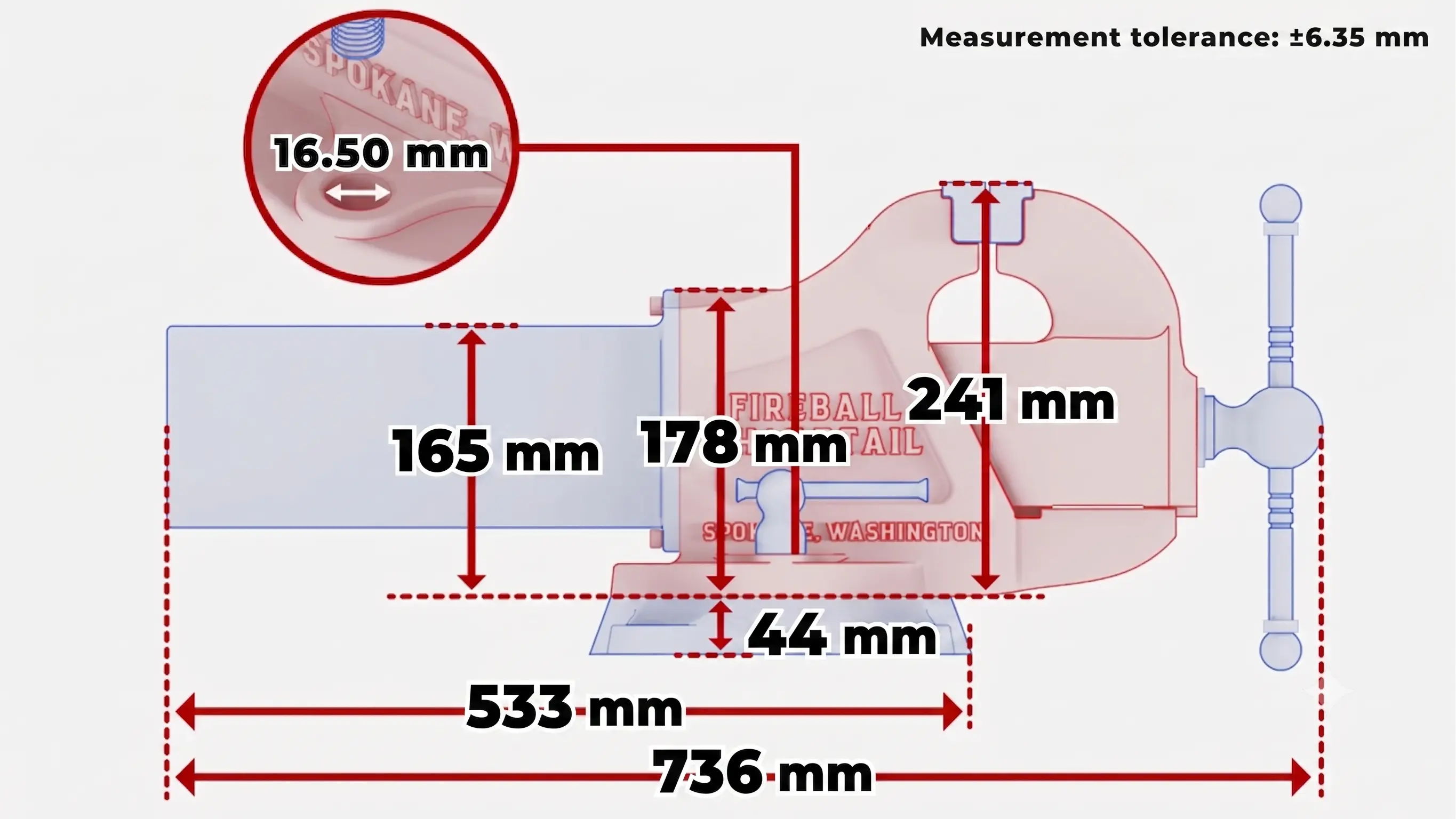

- 736 mm from nose to tail
- 285 mm height from base to top of jaw
- 146 x 254 mm mounting pattern in the base with 19 mm bolt holes.

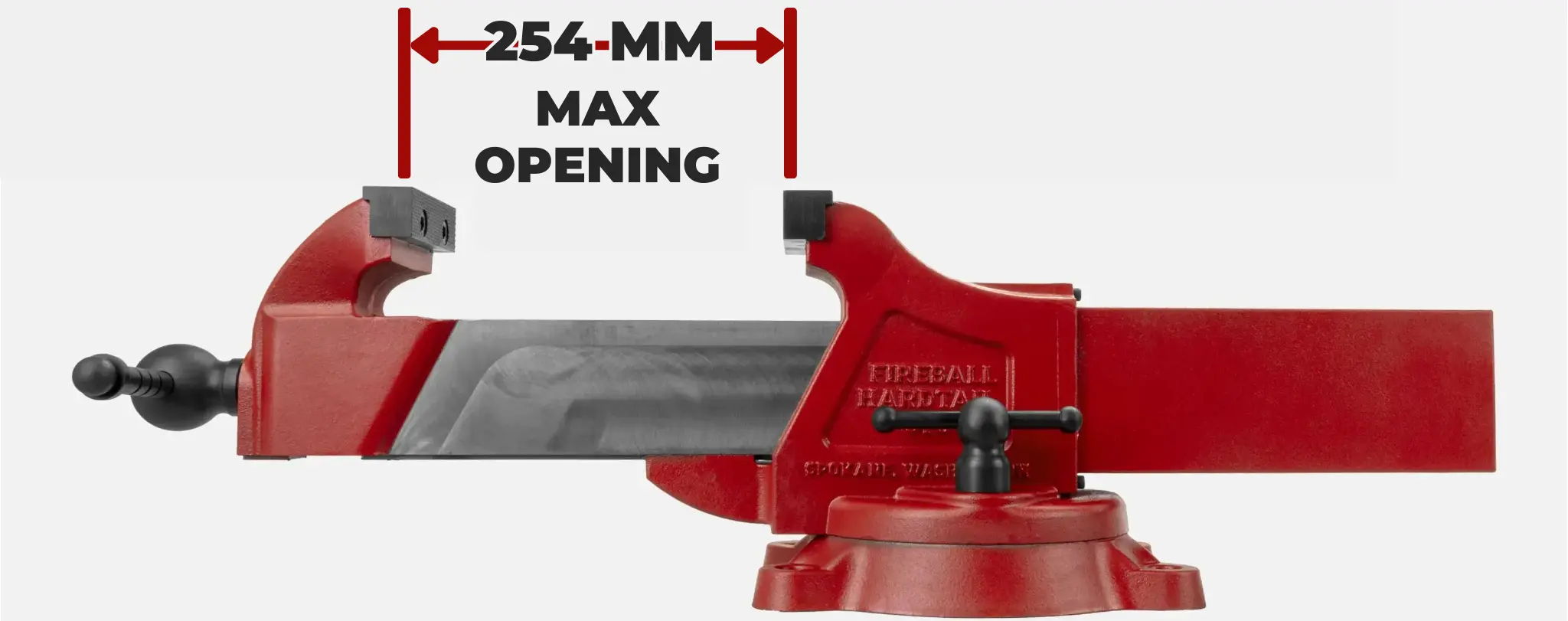

- 254 mm opening with slide fully engaged within body of vise.
- 127 mm wide serrated jaw included.
- 4,500 kg - 6,800 kg clamping force by hand
- 25 mm diameter lead screw
- Weight: 68 kg / 88 kg In Crate
Mini Hardtail Vise

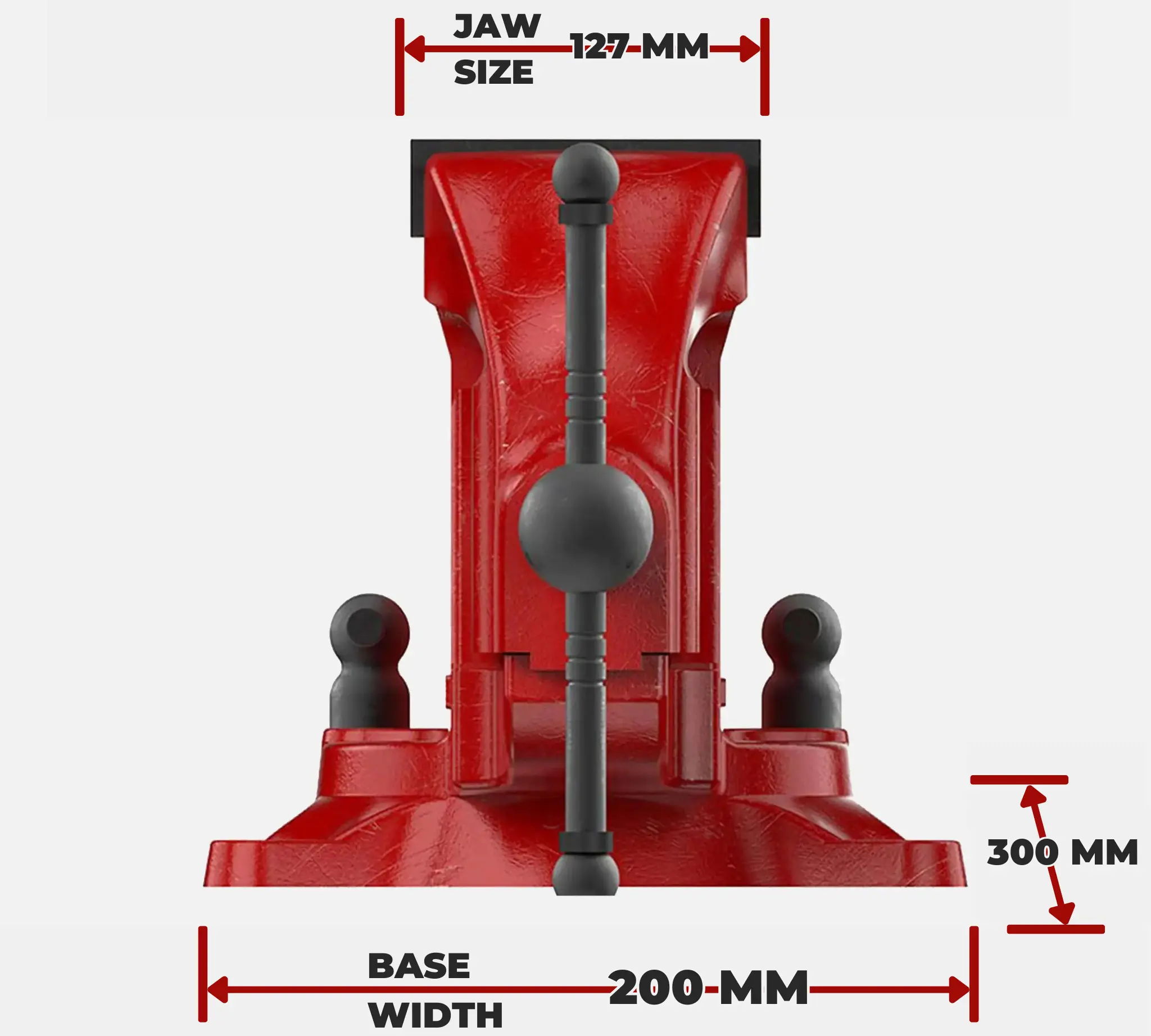

| Nose To Tail | Front of Base to Tail | Height | Base Width | Jaw |
| 736 mm | 533 mm | 285 mm | 300 x 200 mm | 127 mm |

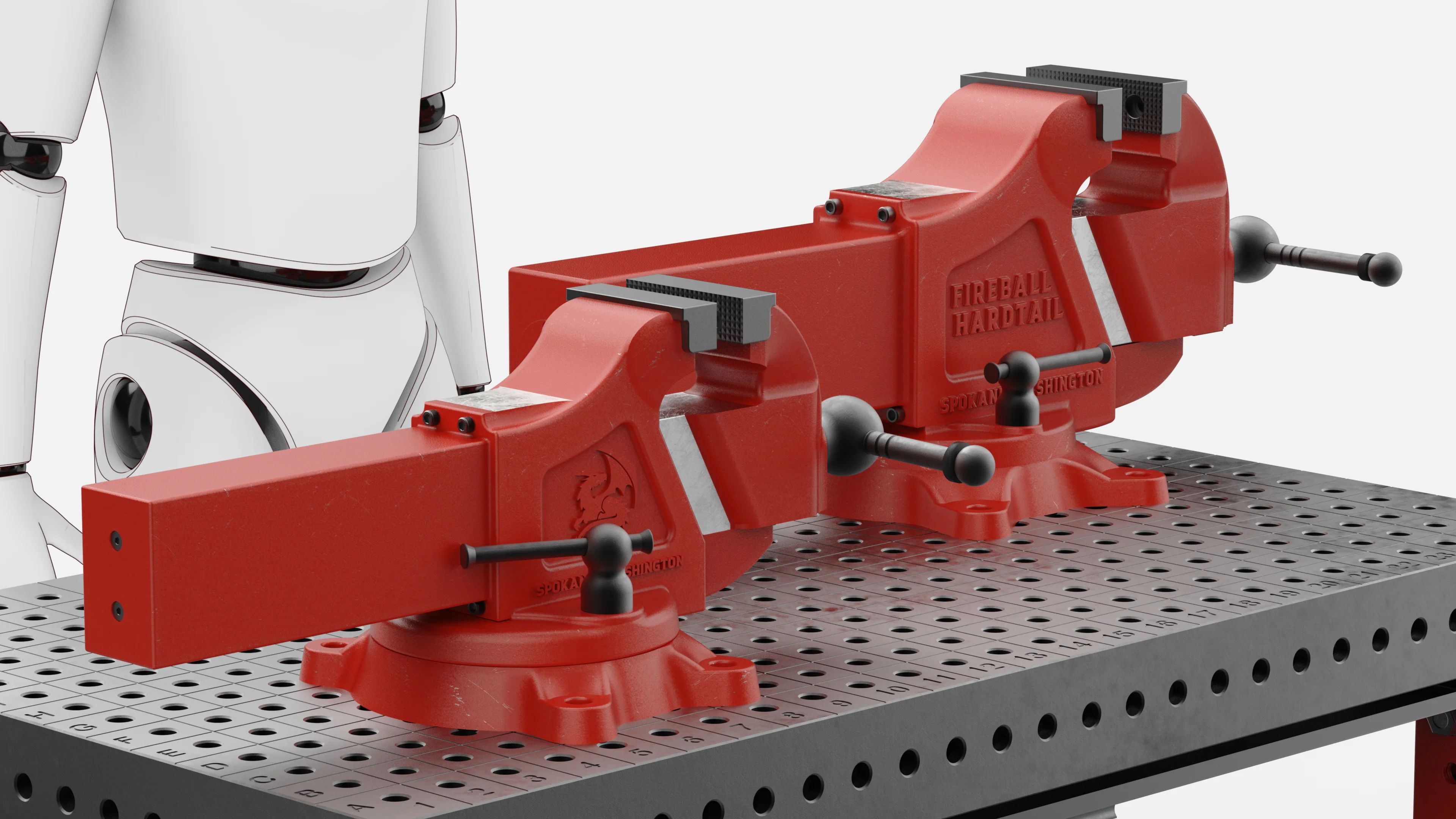

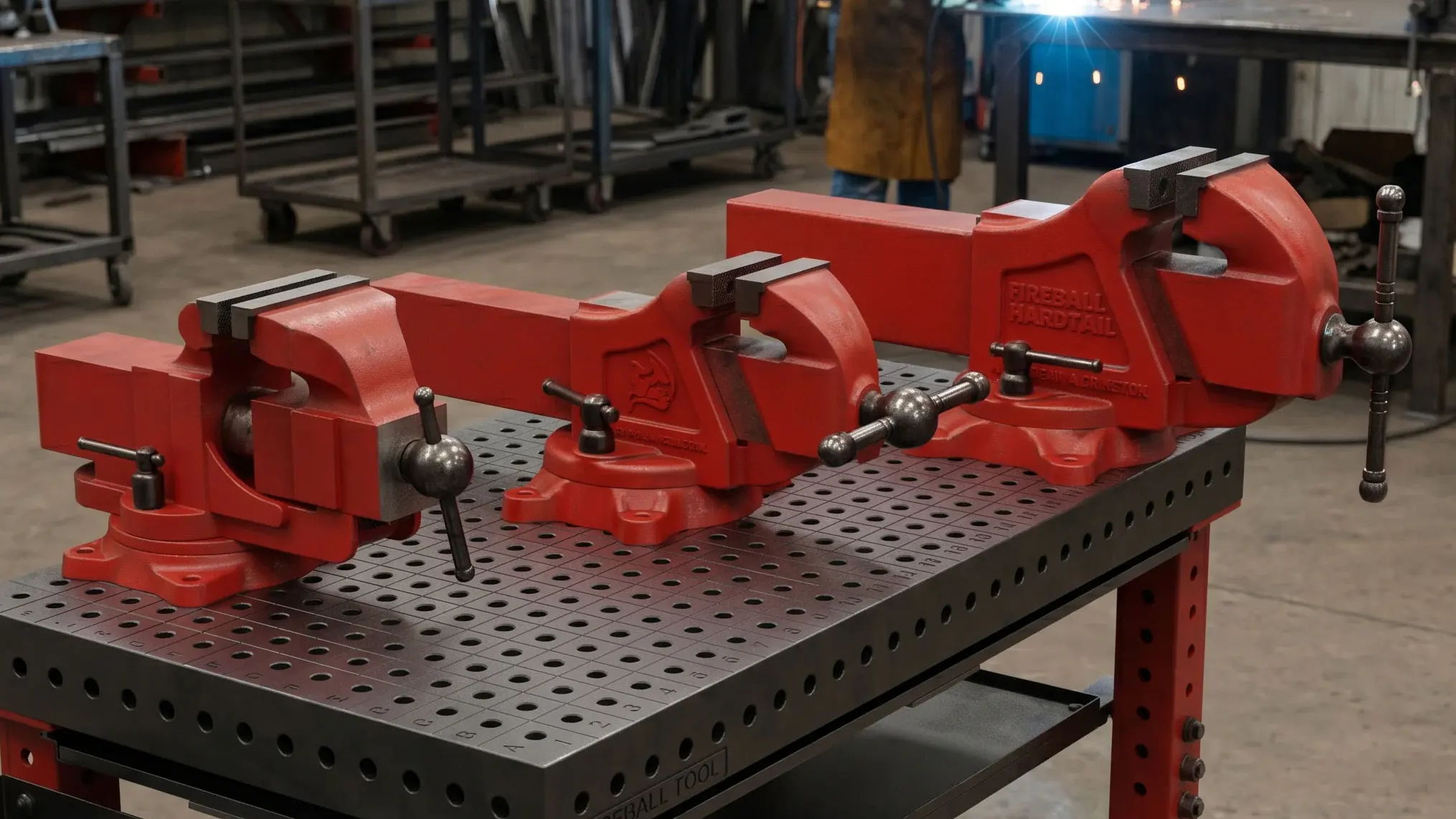

How It Compares to the Large Hardtail Vise

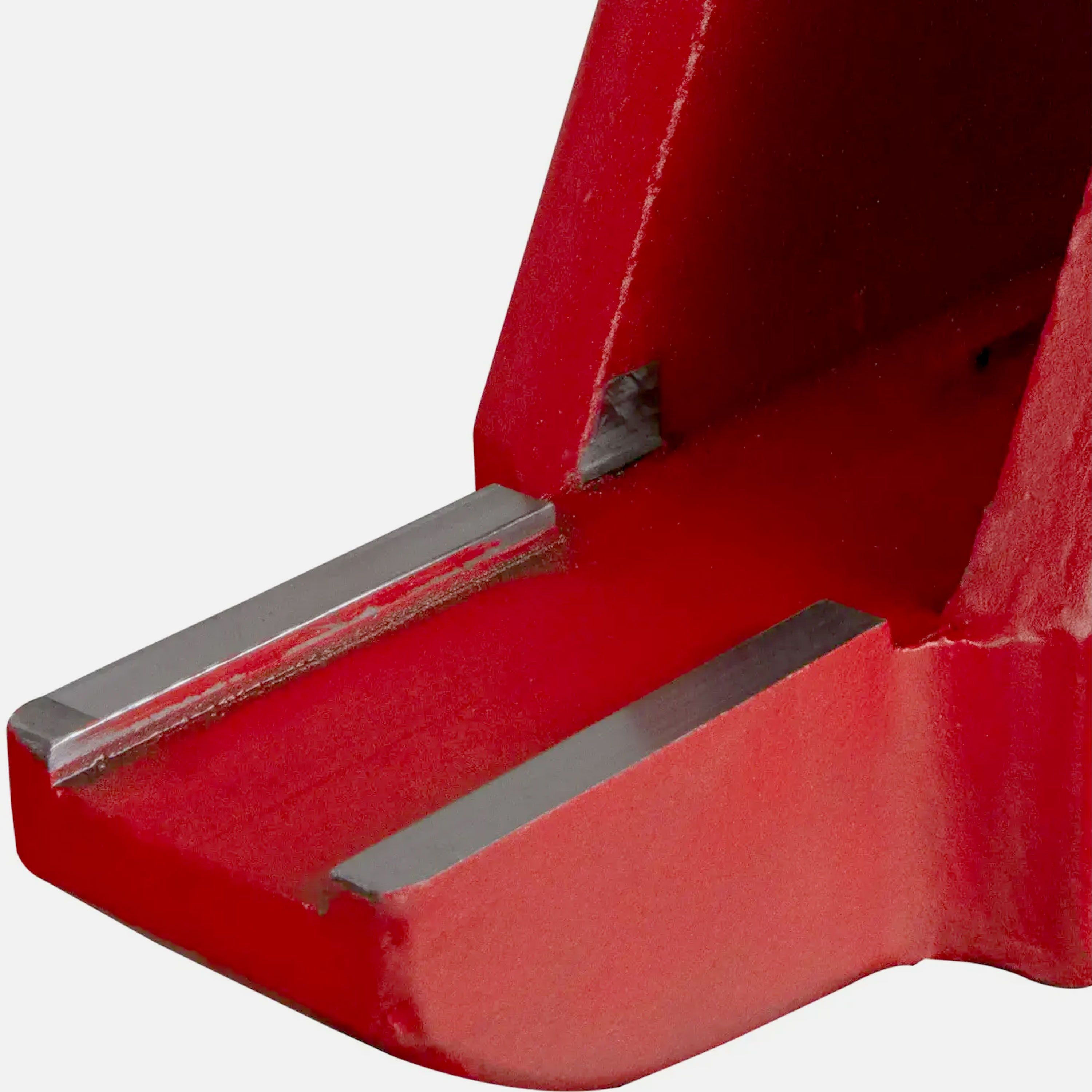

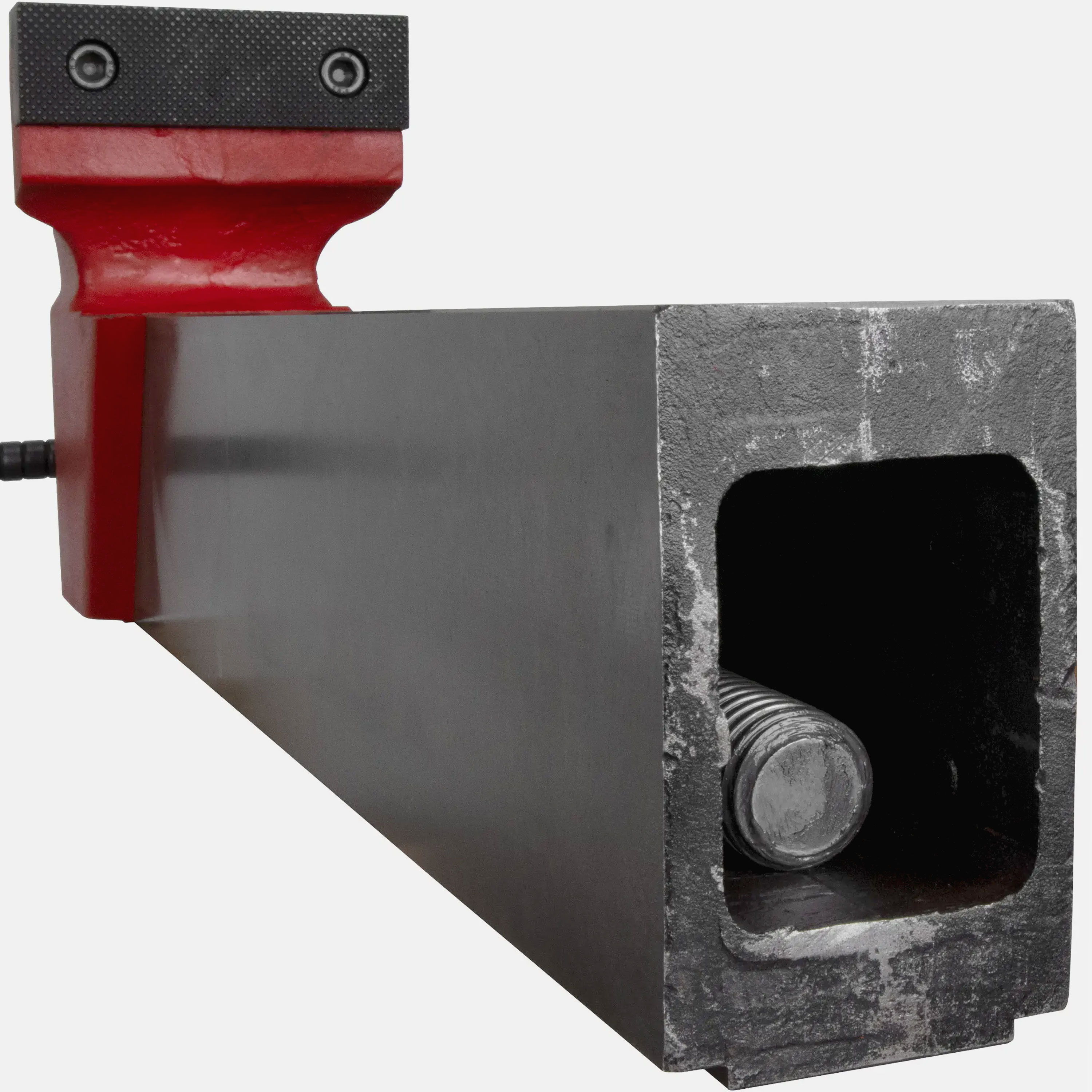

Way grooves underneath the front jaw slide keep vise steady and stable even when fully extended.

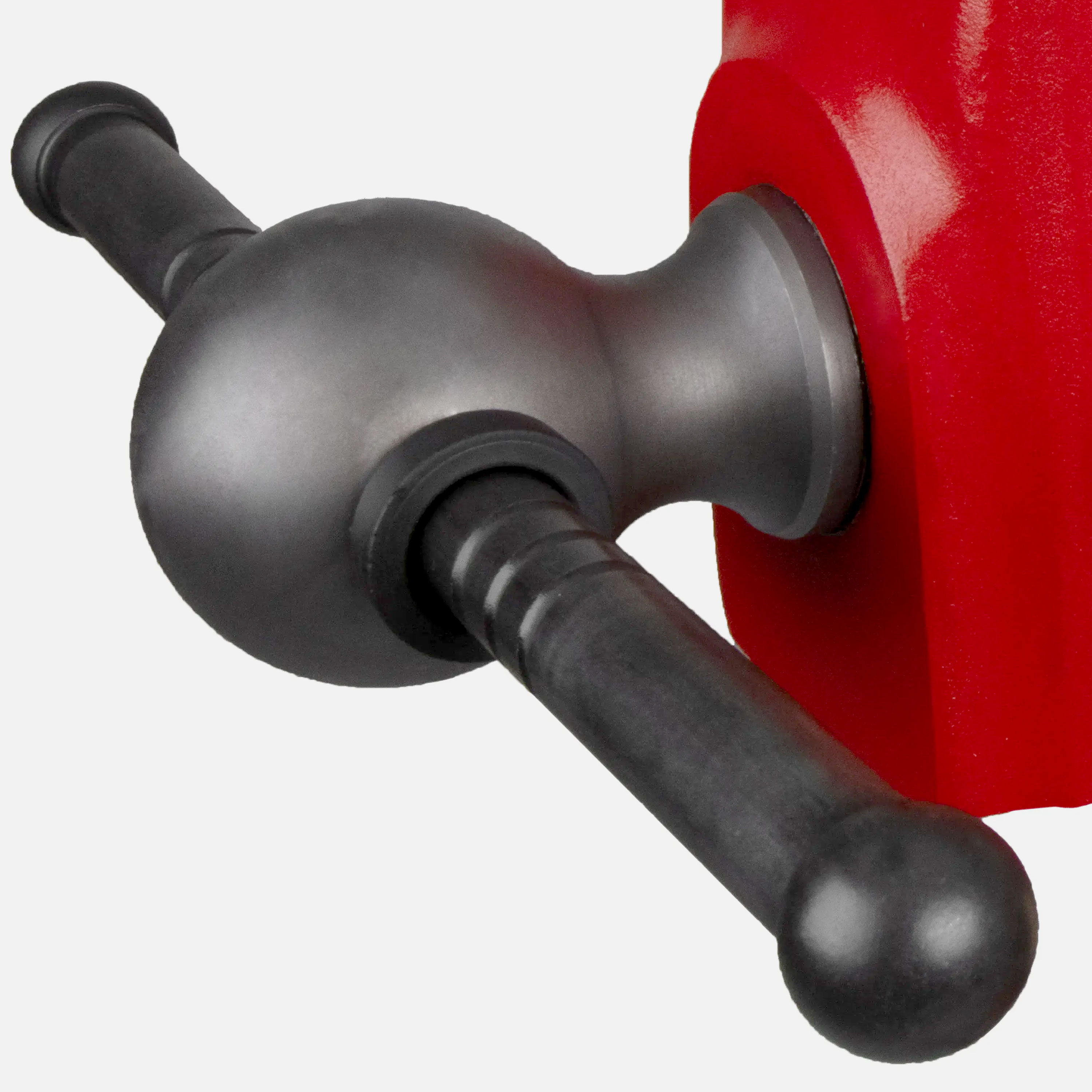

Vintage meatball style handle on nose of the vise.

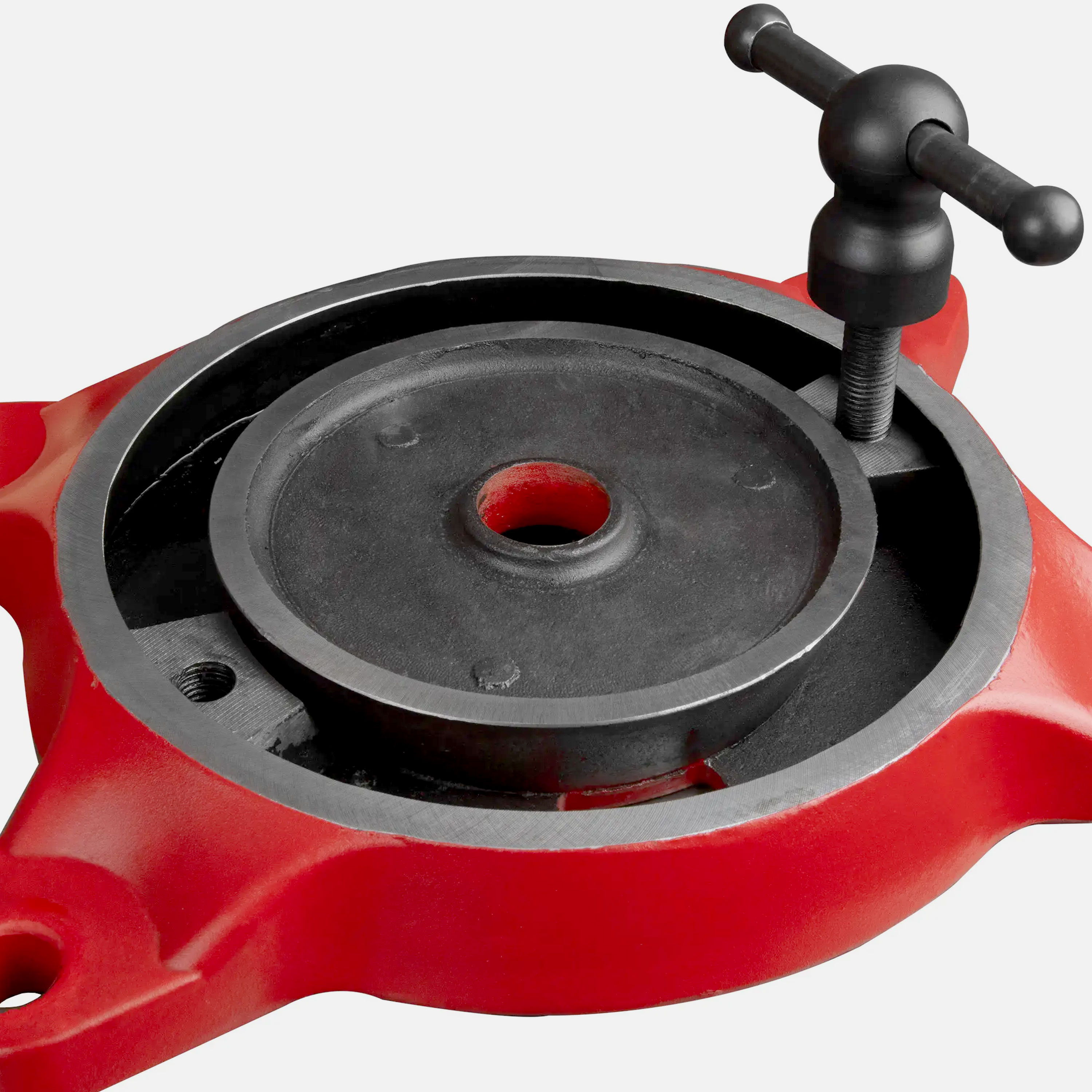

Swivel base locks down with two wedge nuts captured in a cast iron raceway.

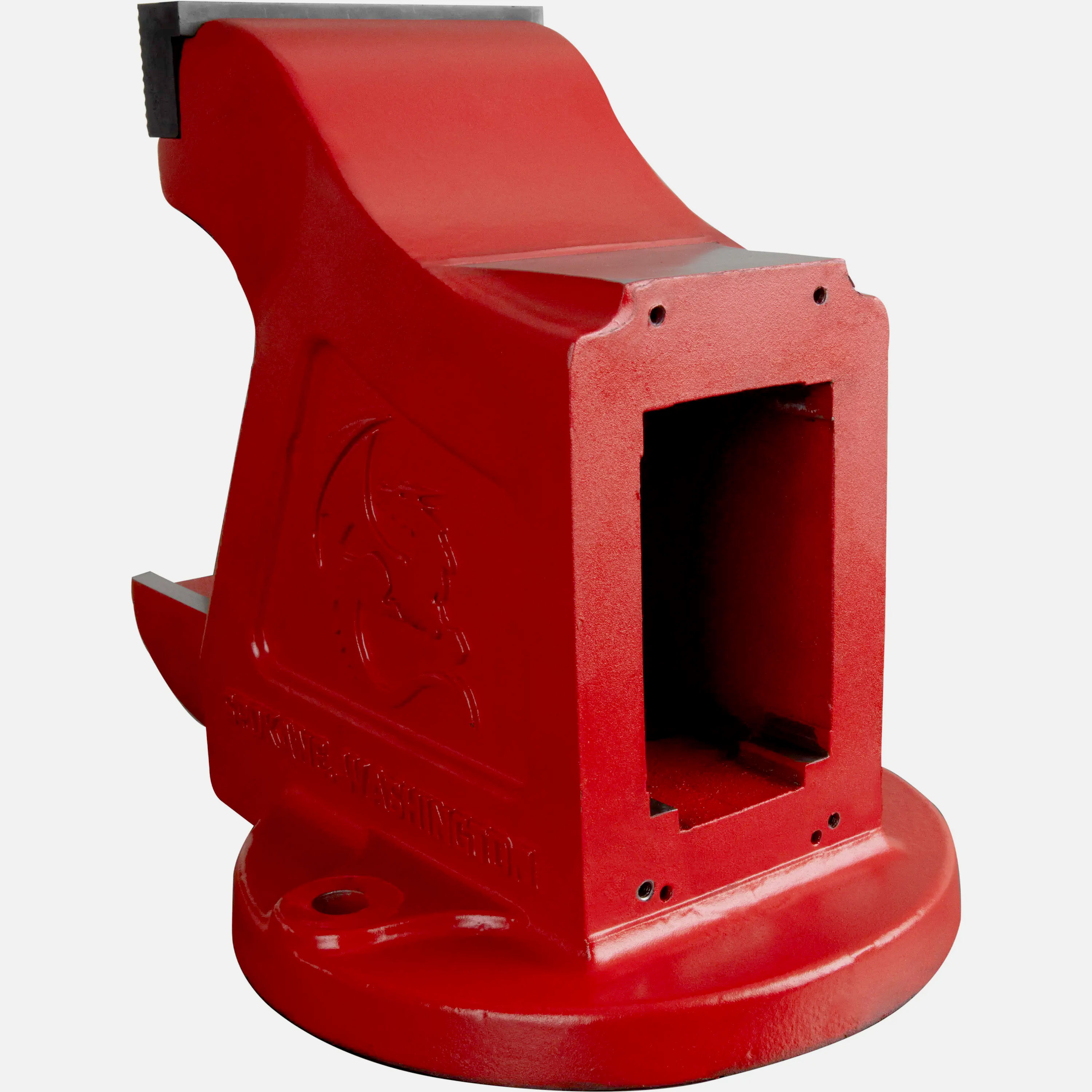

Base and body cast from high tensile strength ductile iron.

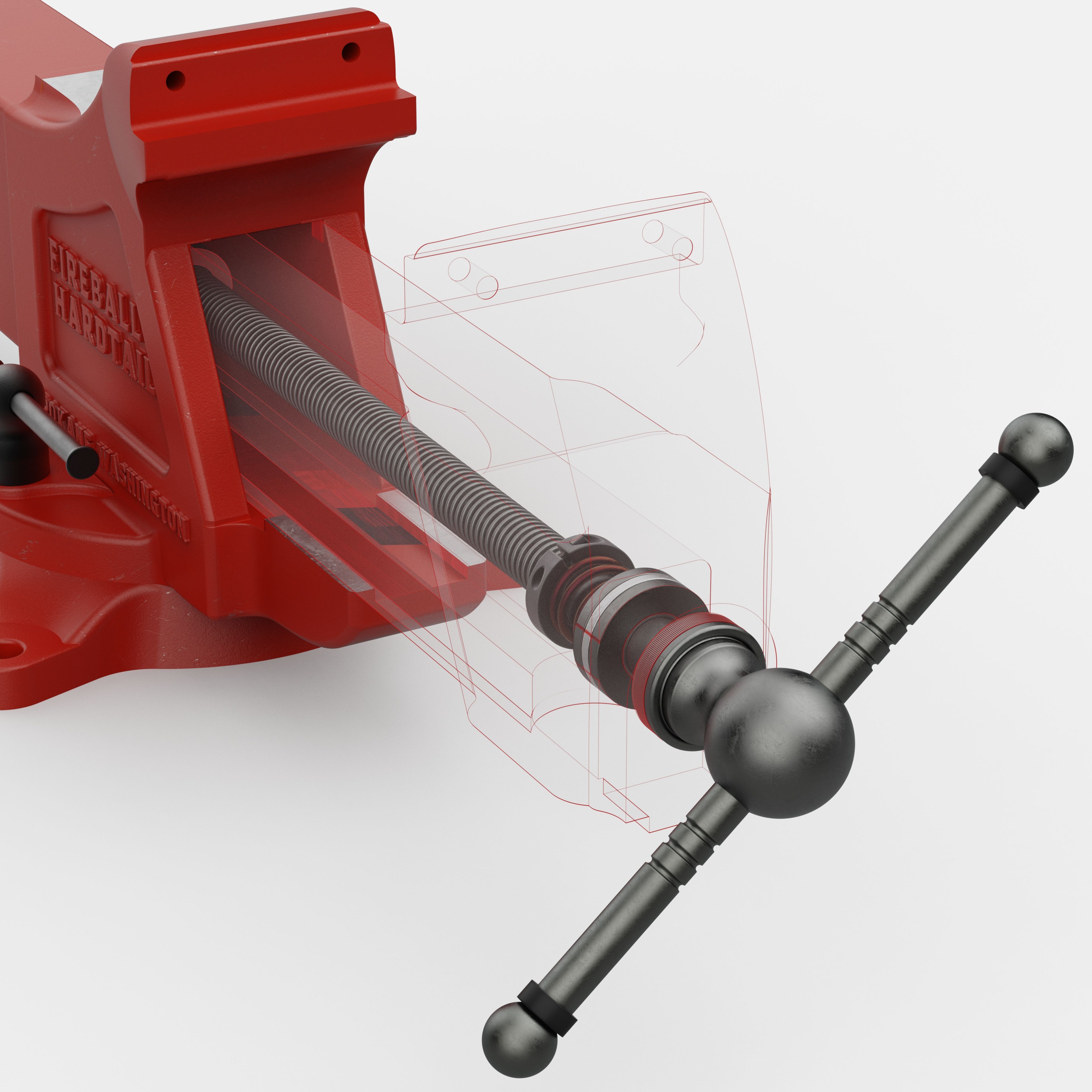

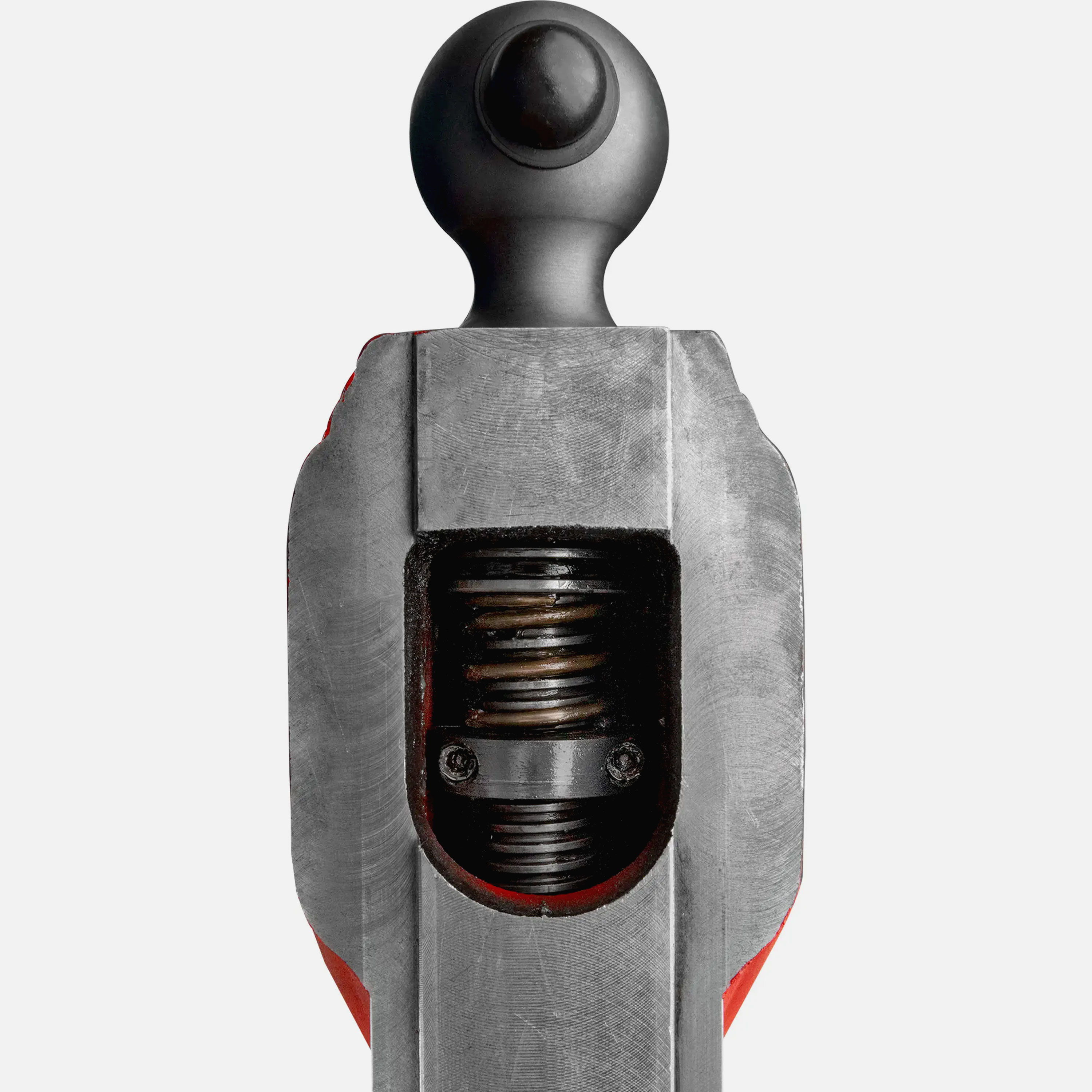

The vise spindle and nut are in a straight pull configuration where the nut is able to distribute the compressive load in all directions through the hardtail.
This is in contrast to most wedge nut designs where load is transferred as a shear force to a single point in the vise through a spindle nut that is wedged into the body.
Thrust bearings for smooth power transmission using large diameter lead screw.

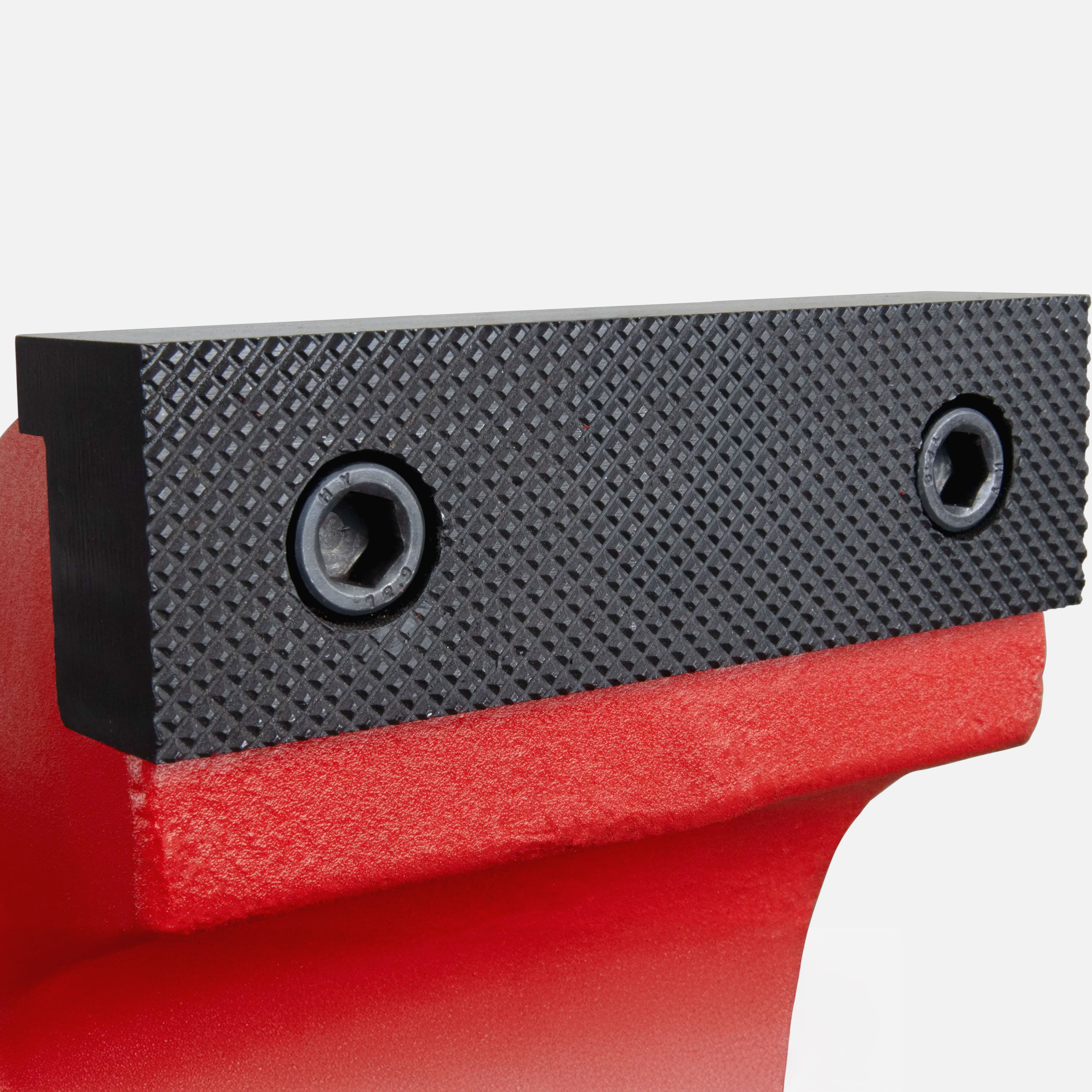

Included serrated Jaws
Optional Accessories
(COMING SOON)
For Mini Hardtail Vise (127 mm Jaw)
Aluminum Hardtail Vise Jaws
Mounting Plate
How Is It Shipped?
Ships inside a crate.
Mini Hardtail Vise
Crate Dimensions: 838 x 381 x 457 mm
Shipment Weight: 80 kg
