With great power comes great responsibility, within this bar clamp resides unlimited capacity for creation and destruction.

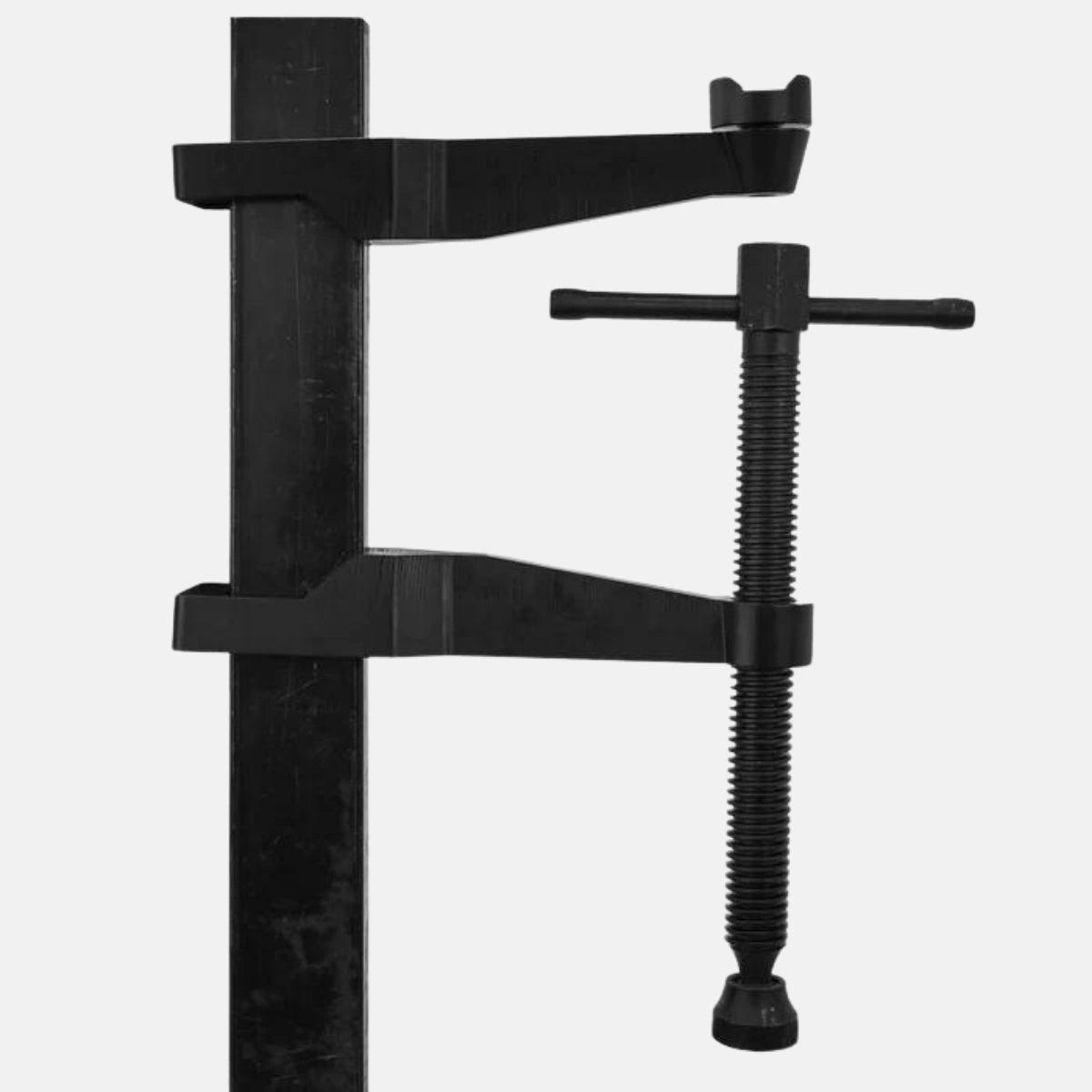

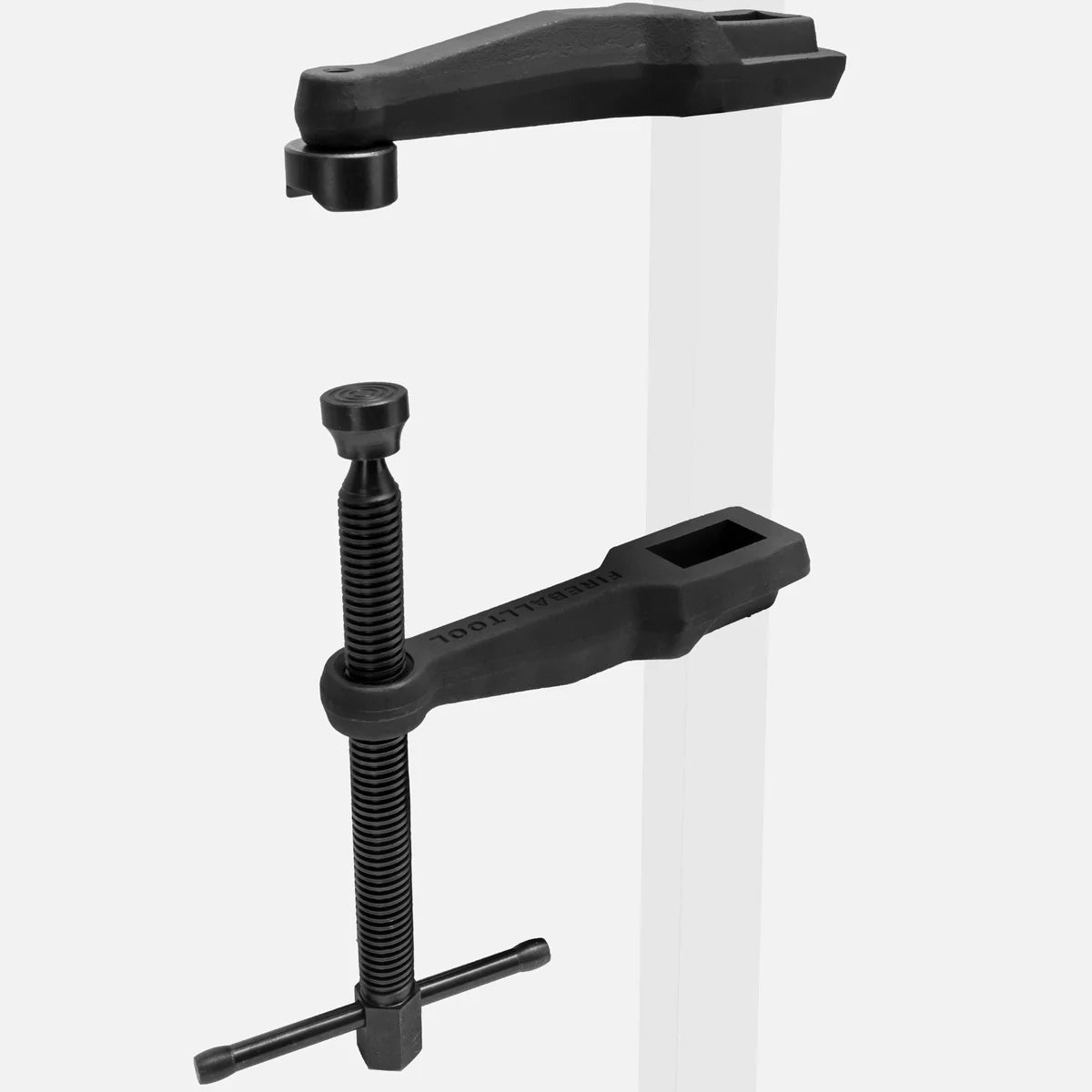

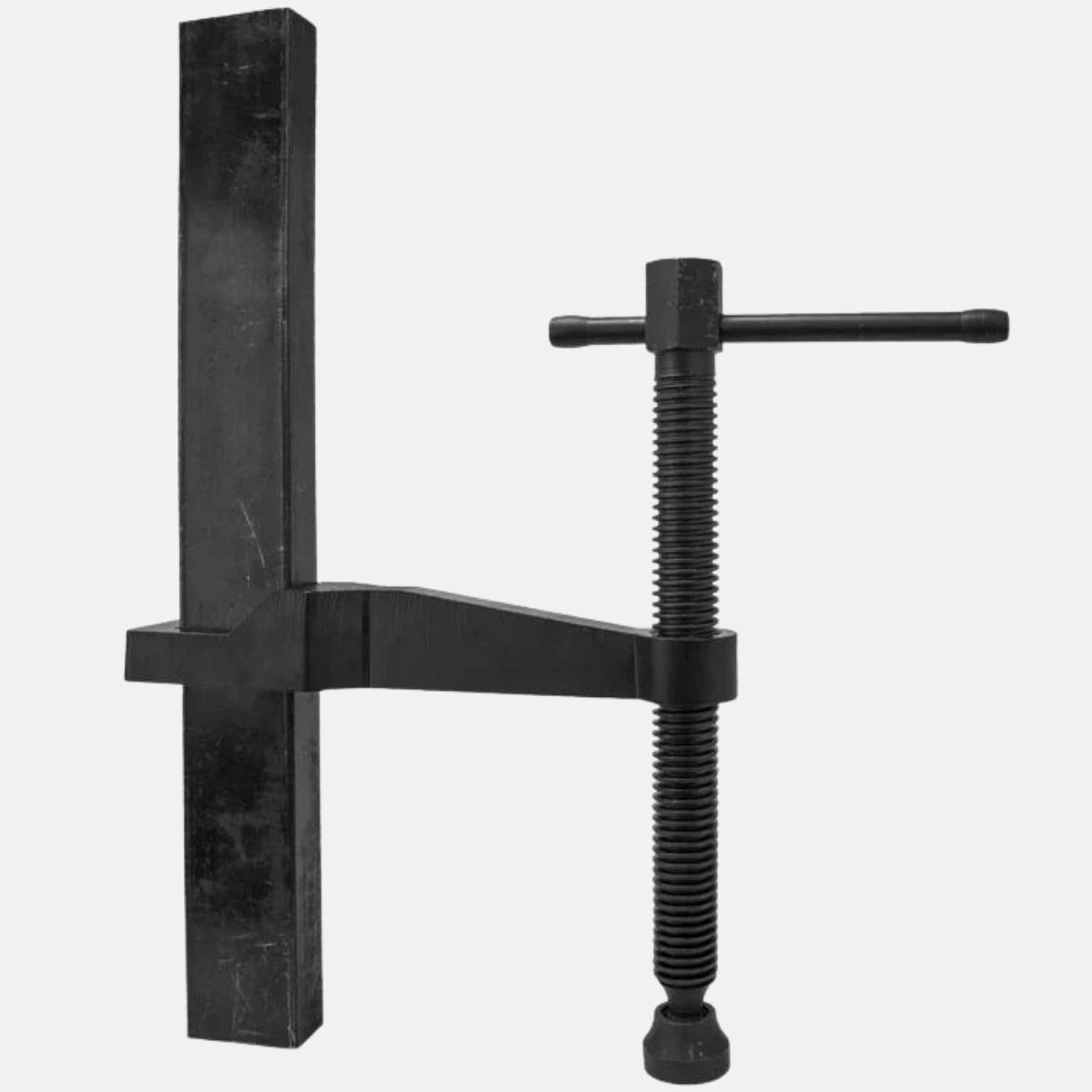

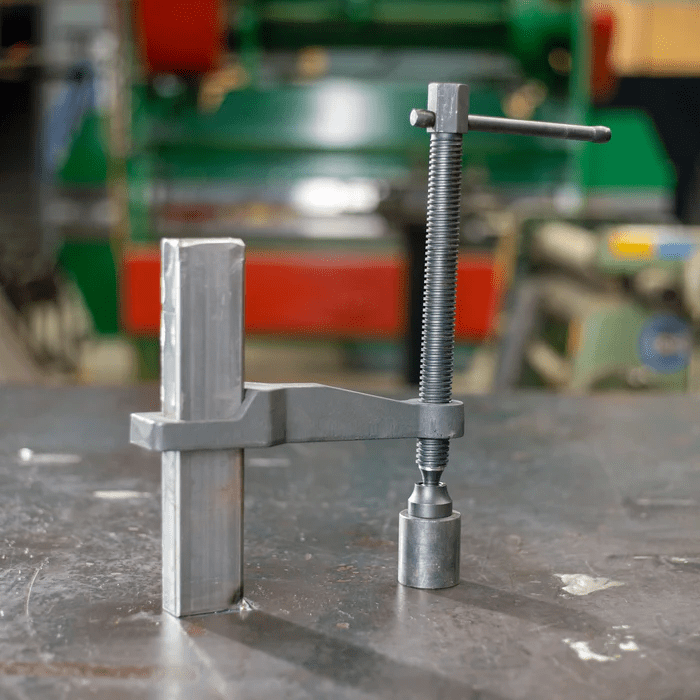

Slip these bad boys over your choice of 2” x 1” material and clamp away. Thin wall, thick wall. The stronger your material the stronger your clamp, the longer your tubing the longer your clamp.

With 1/8” thick wall tubing you can easily get 1,100 kg or more, the power is limited by the strength and length of the material you are using to hold the arm in place.

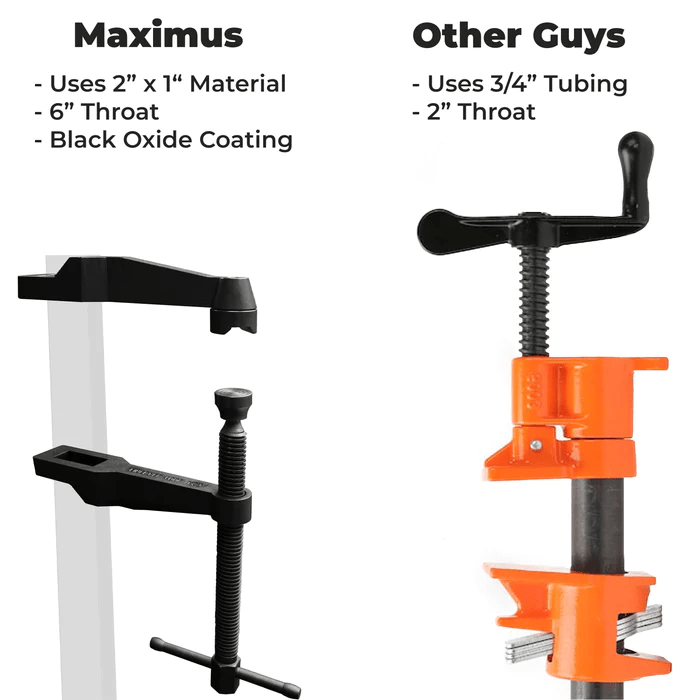

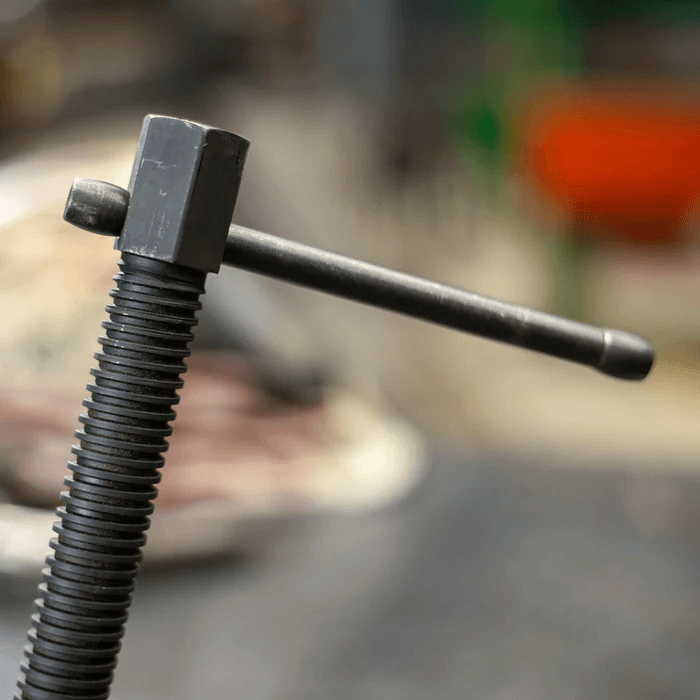

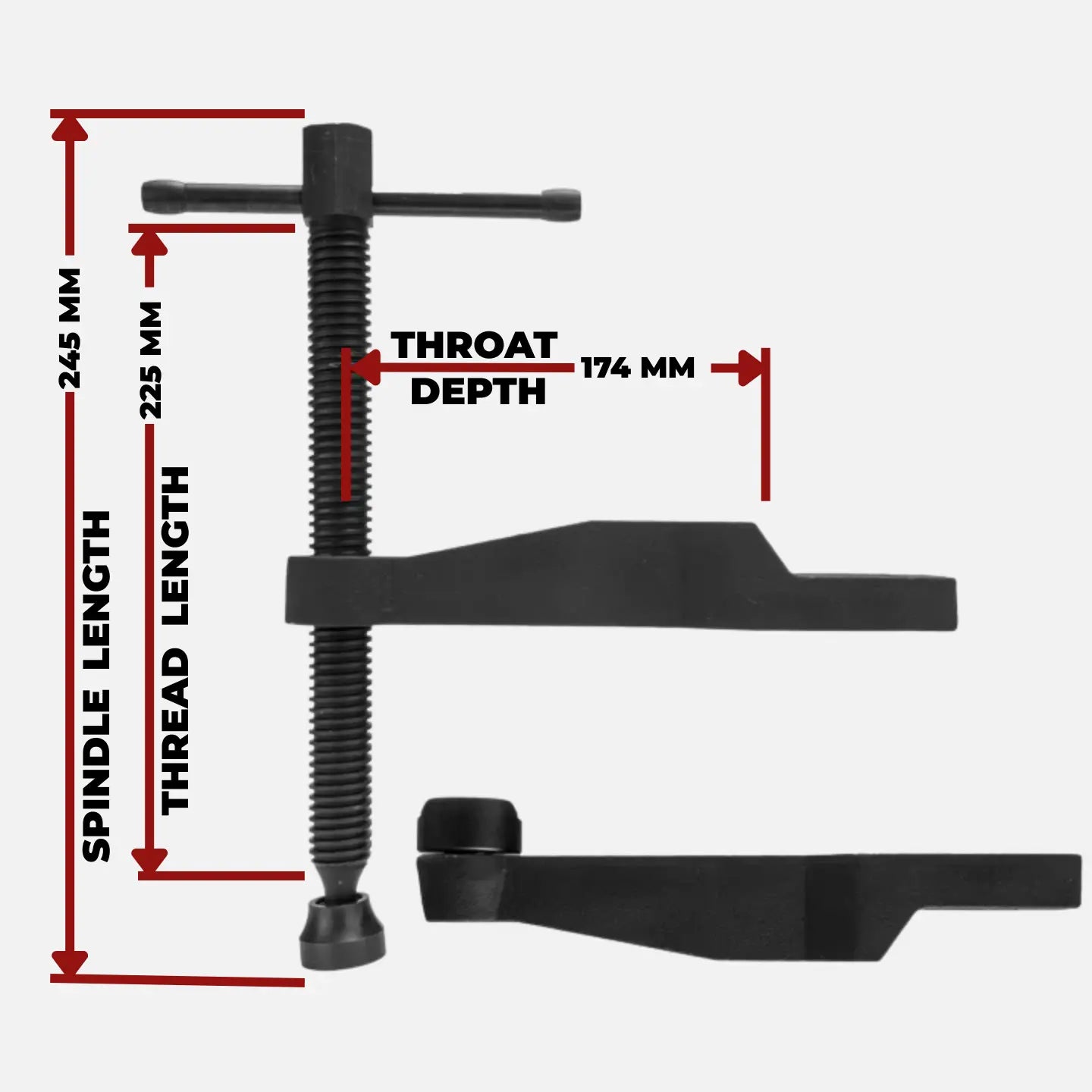

The spindle on these clamps are 1” diameter with 6 threads per inch and rated for over 4,500 kg of clamping force. Extra long spindles (9″ of spindle, 12″ overall length) let you get around obstacles and really move material. A 6″ throat depth from bar to center of pad directs the pressure where it’s needed.

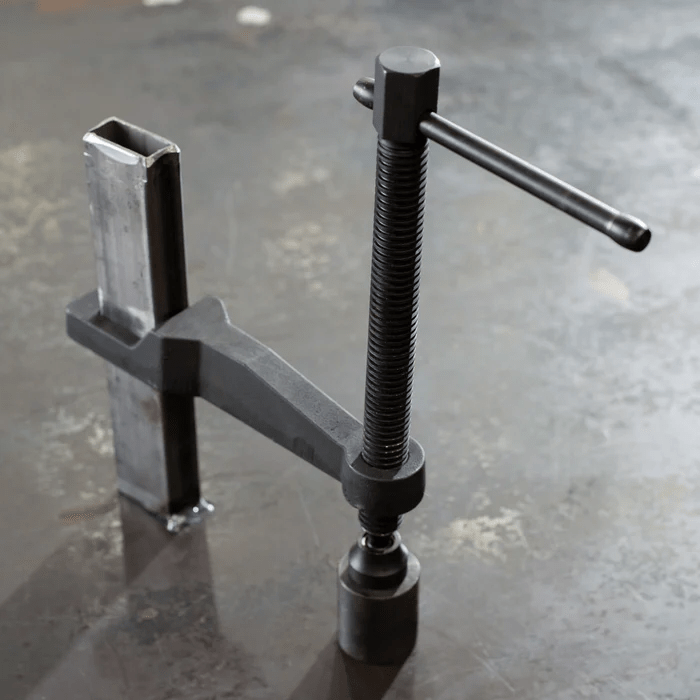

• You don’t have to cut up your C clamps anymore, just weld on a piece of tubing.
• You can spread or clamp depending on the direction you’re pushing.

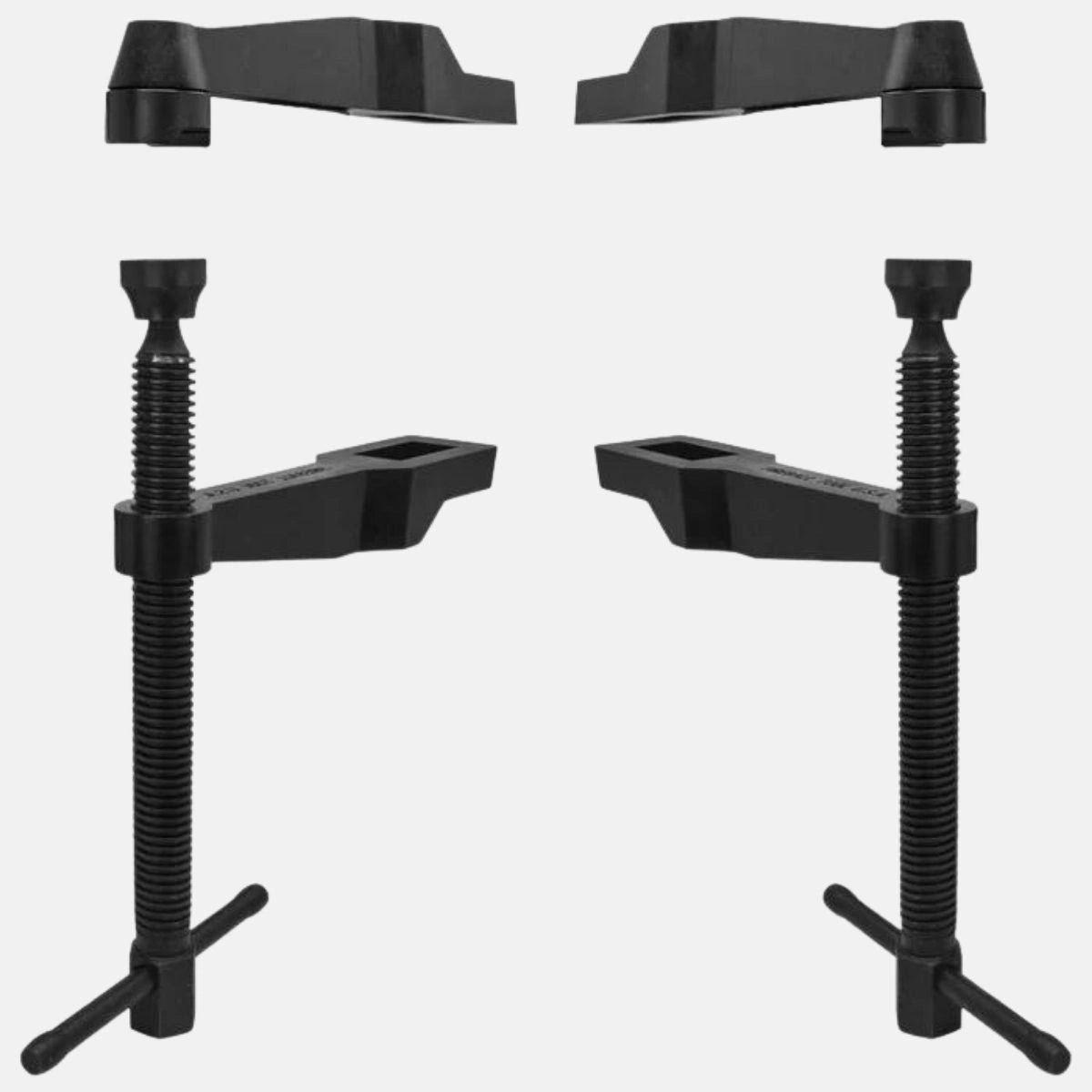

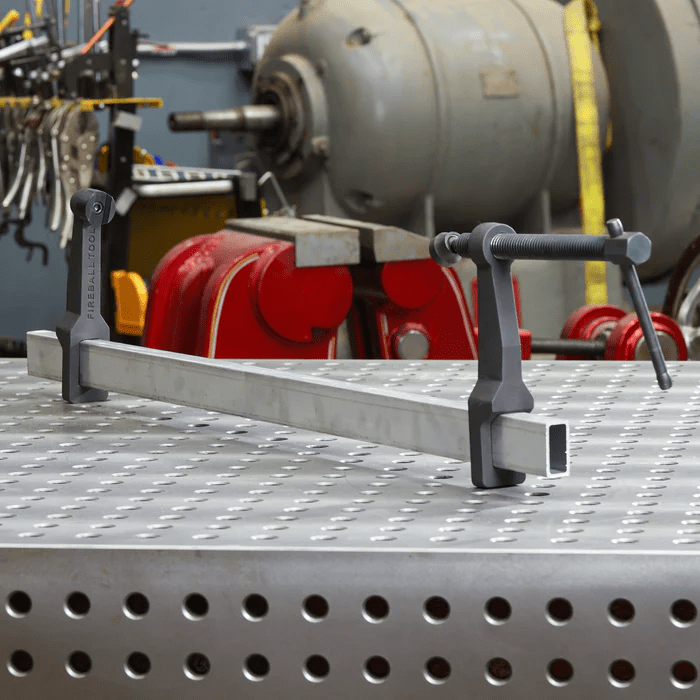

• You can place multiple clamp heads or feet on a single bar to provide multiple clamping points.

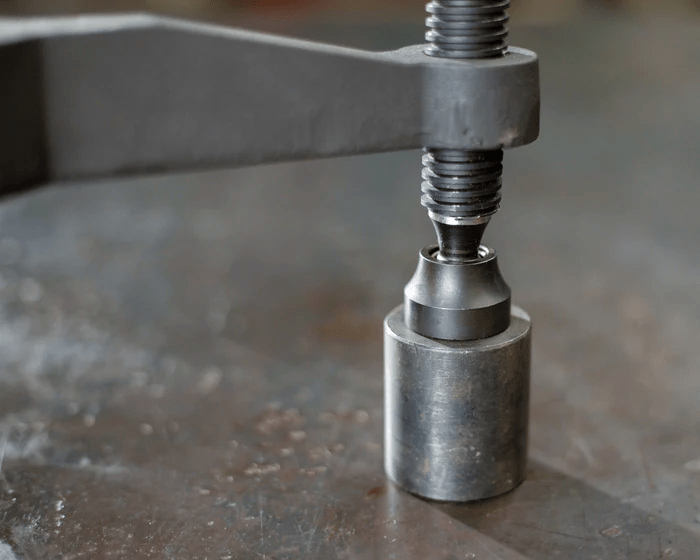

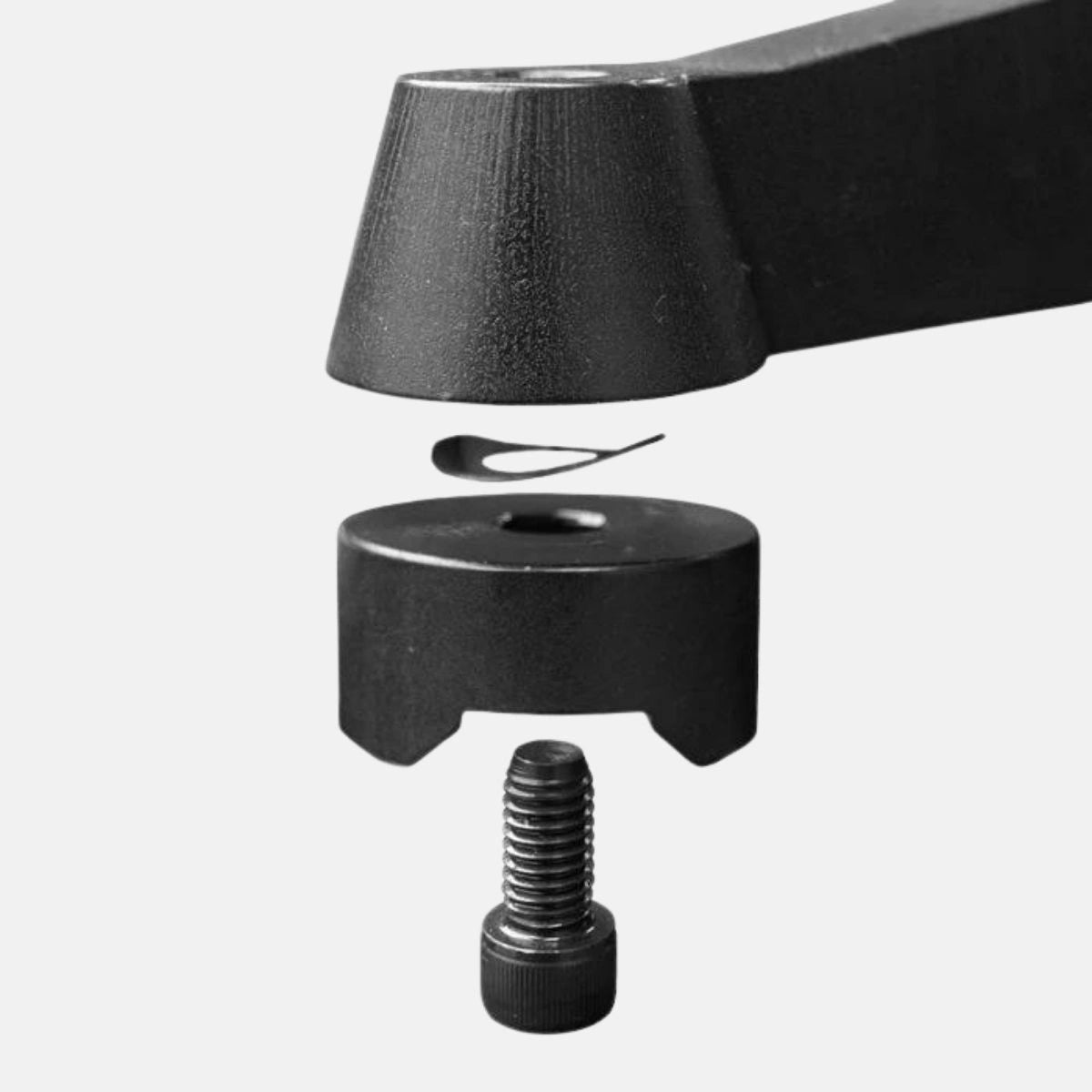

• The large footpad works equally well on flat or round material. It’s held in place with a spring washer which prevents it from flopping around but still allows you to rotate the pad angle.
