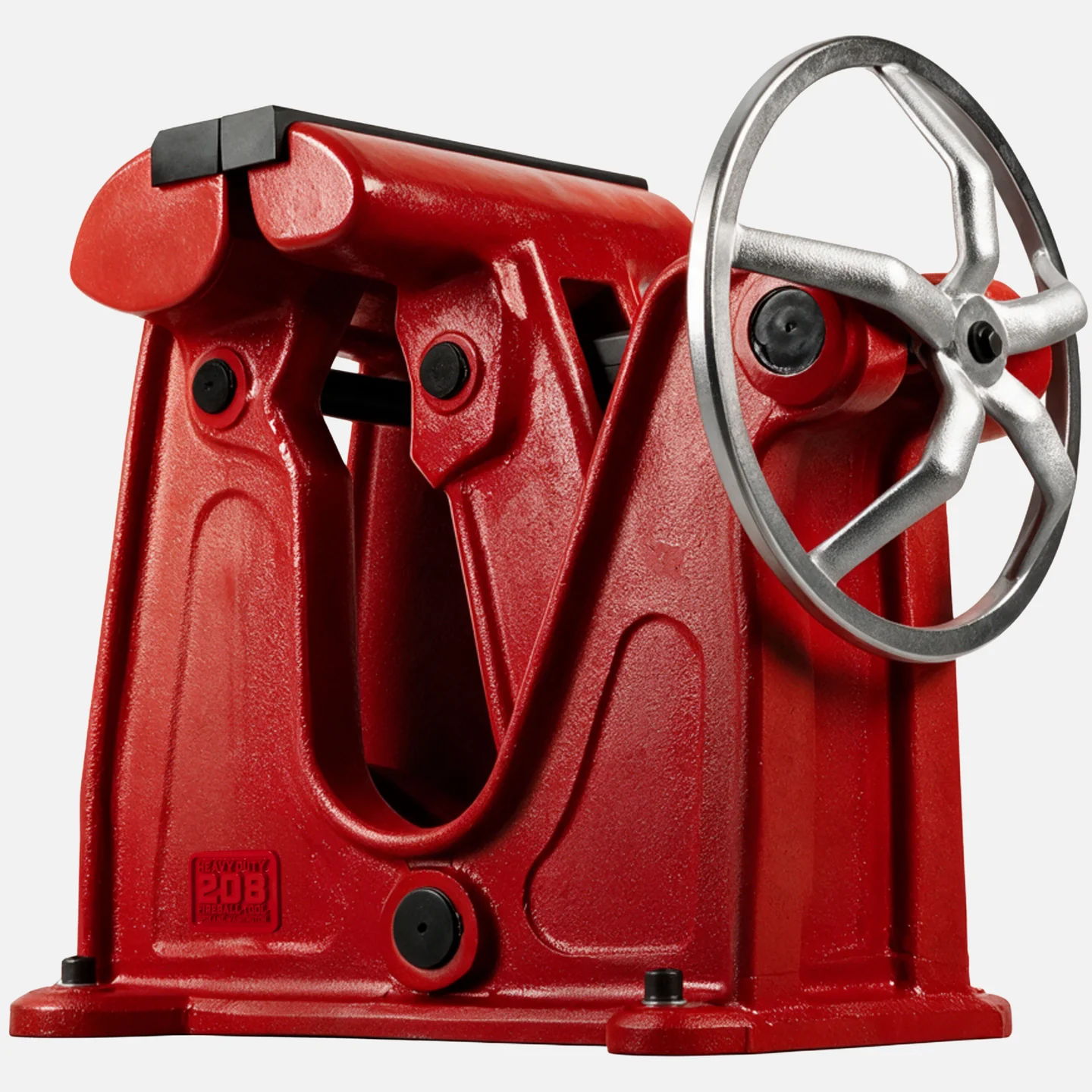

816 kg of ductile cast iron. Built to hold whatever you put in it, and work it from every side.
Which Square?
Every line, size and material on one chart.
| Square | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 400 mm | Material | Price |

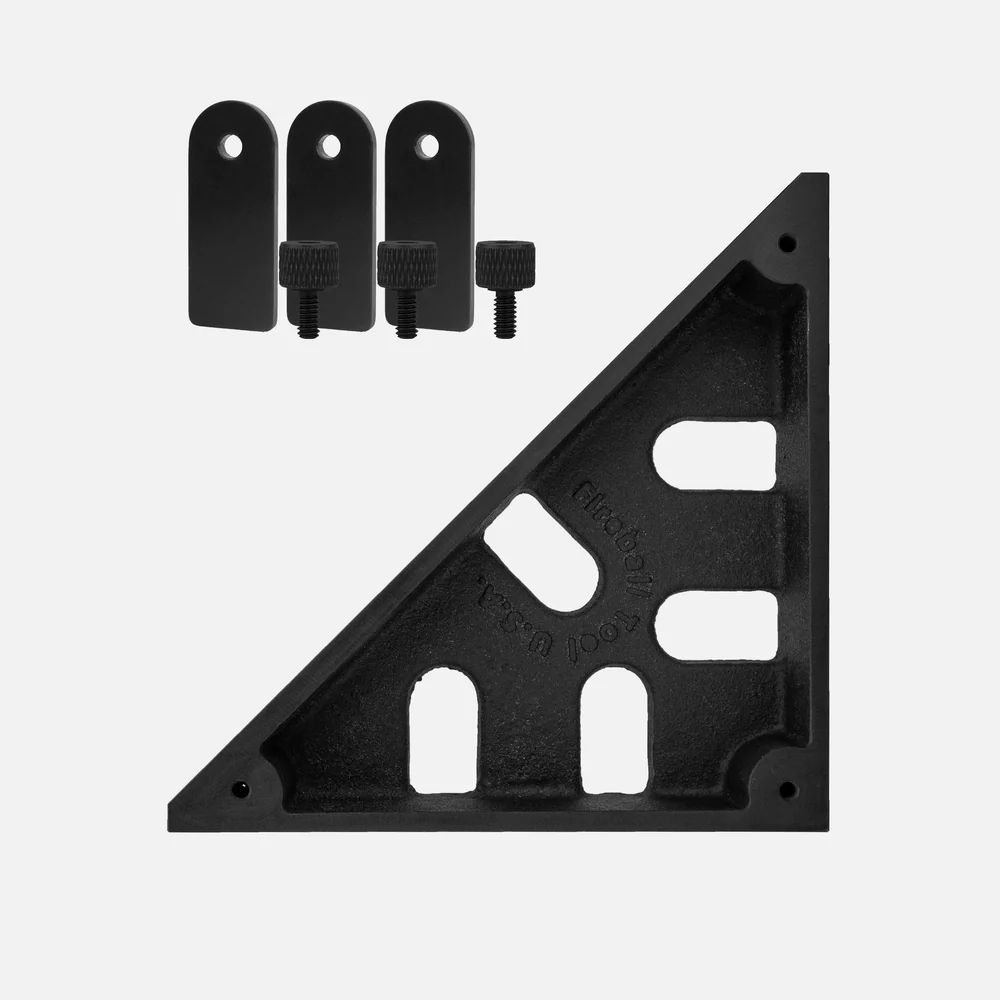

MegaEveryday fit-up | | | | | | | | Cast Iron DS / Aluminum | From €50.00 |

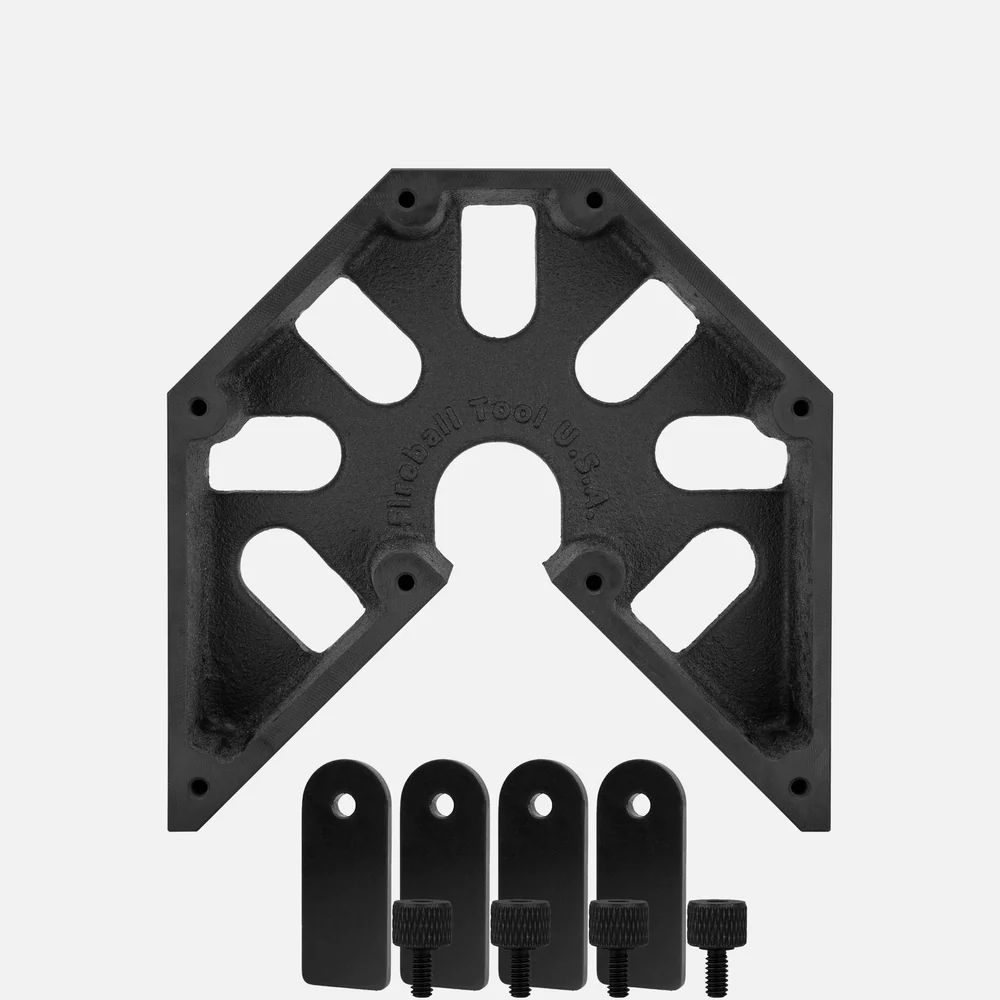

MonsterTabs, parallel set-ups | | | | | | | | Cast Iron DS / Aluminum | From €40.00 |

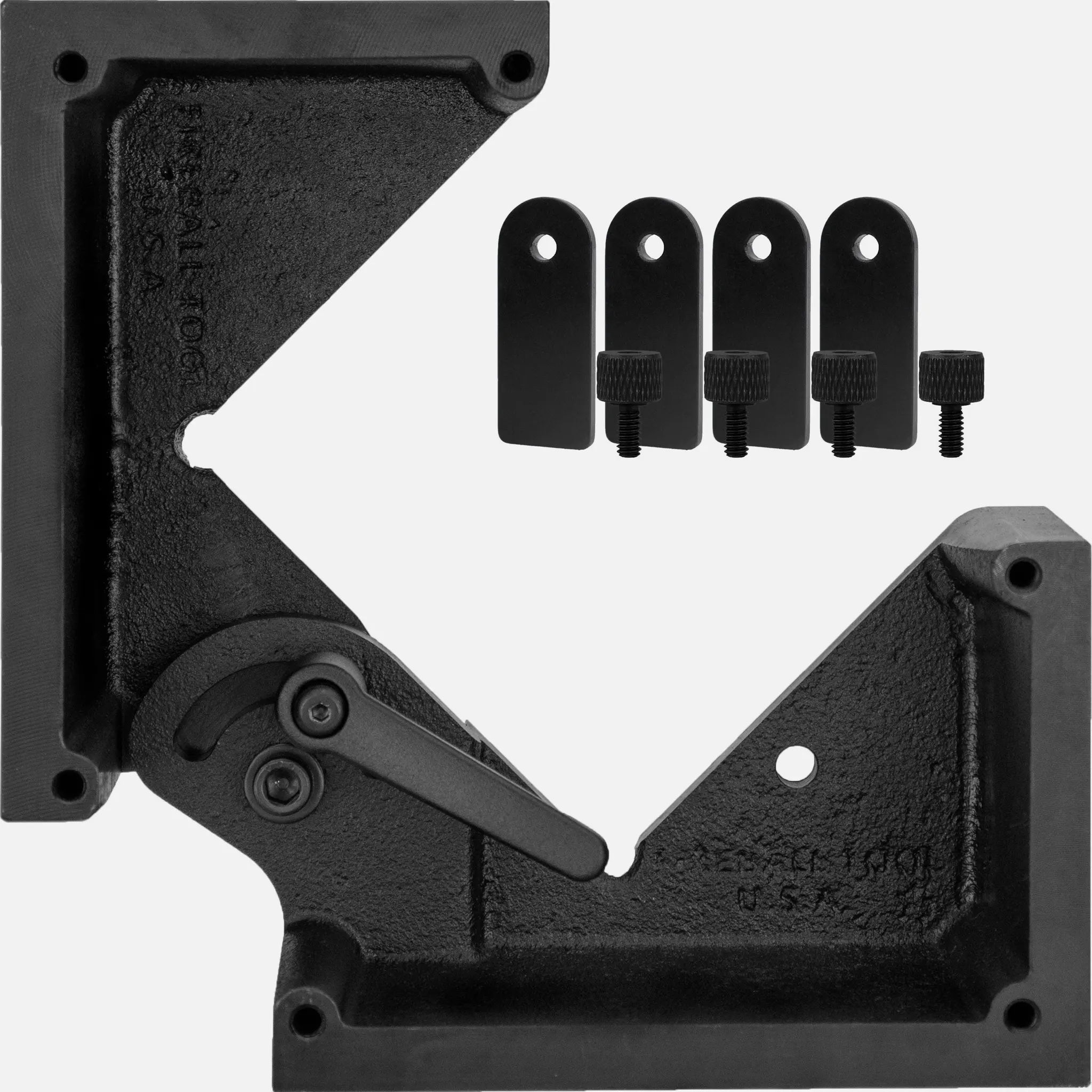

MagicAdjustable angles, round stock | | | | | | | | Cast Iron DS / Aluminum | From €120.00 |

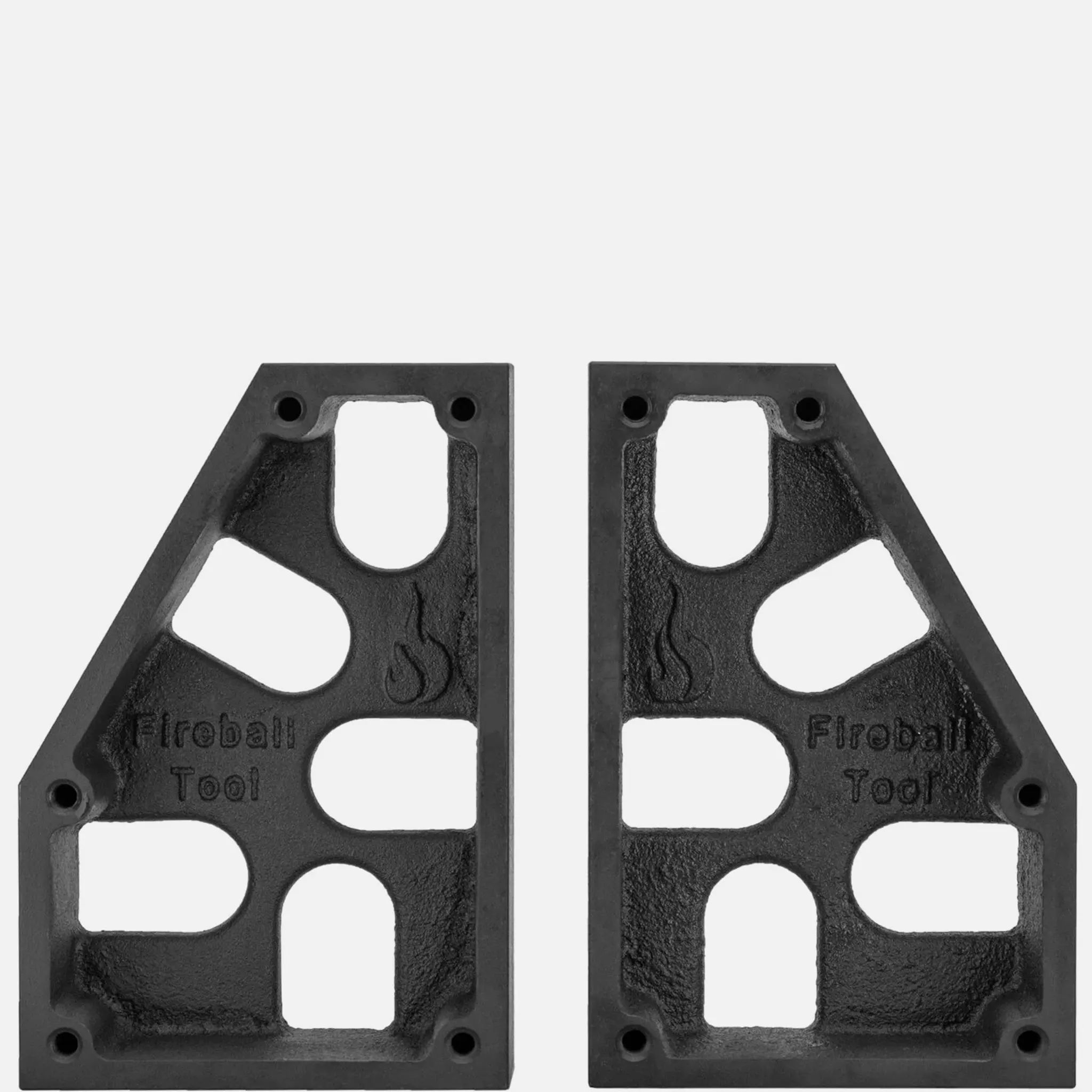

MinionTight spaces, gates, fences | | | | | | | | Cast Iron DS / Aluminum | From €90.00 |

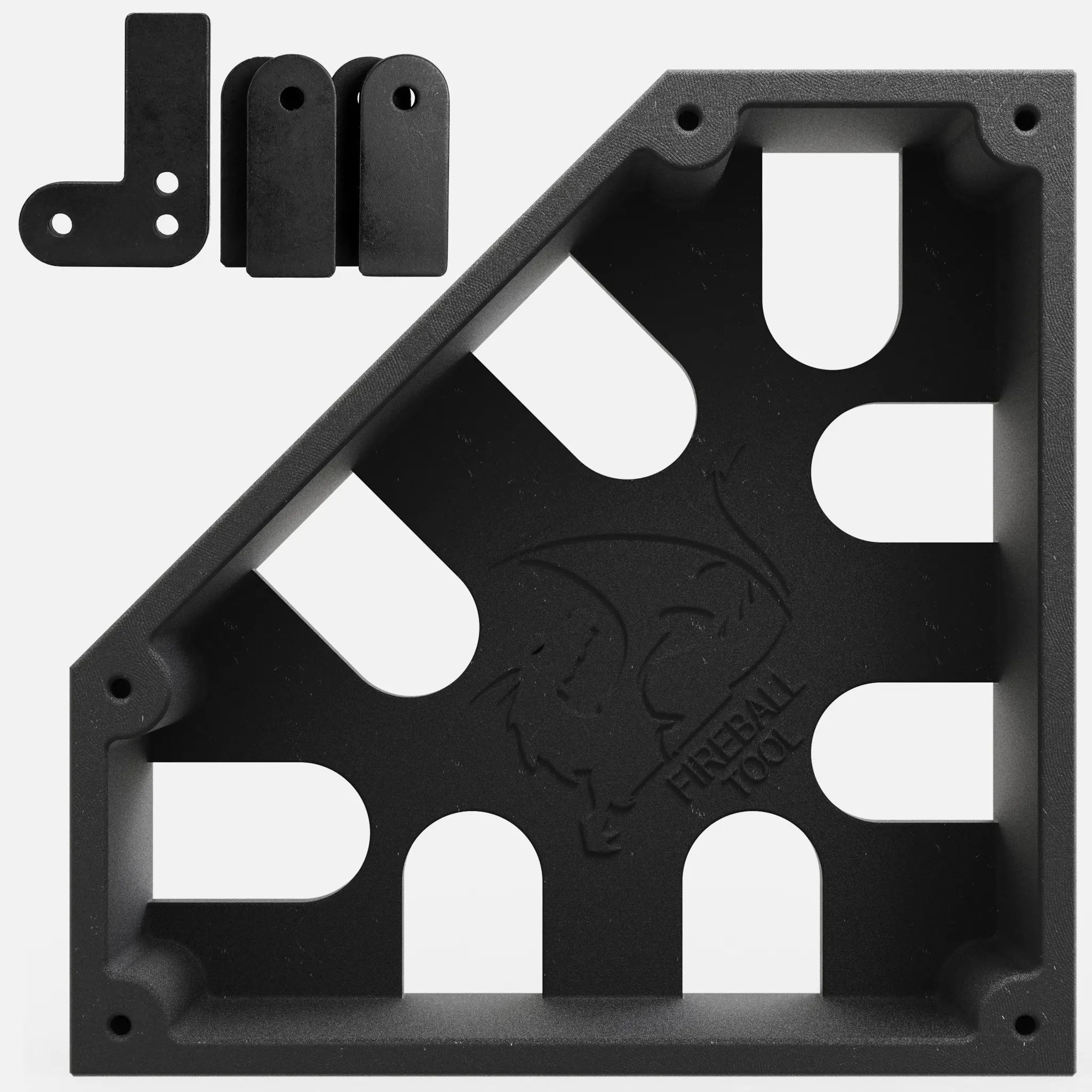

MutantOpen-corner welding | | | | | | | | Cast Iron DS / Aluminum | From €95.00 |
MiterMarking tube | | | | | | | | Cast Iron DS / Aluminum | €35.00 |
| Square | Options | Material | Price |
3-Axis3-axis clamping on a fixture table | Standard - 100 mm face / XL - 177 mm face | Cast Iron DS | From €165.00 |
Built for the shop floor
Work it from every side

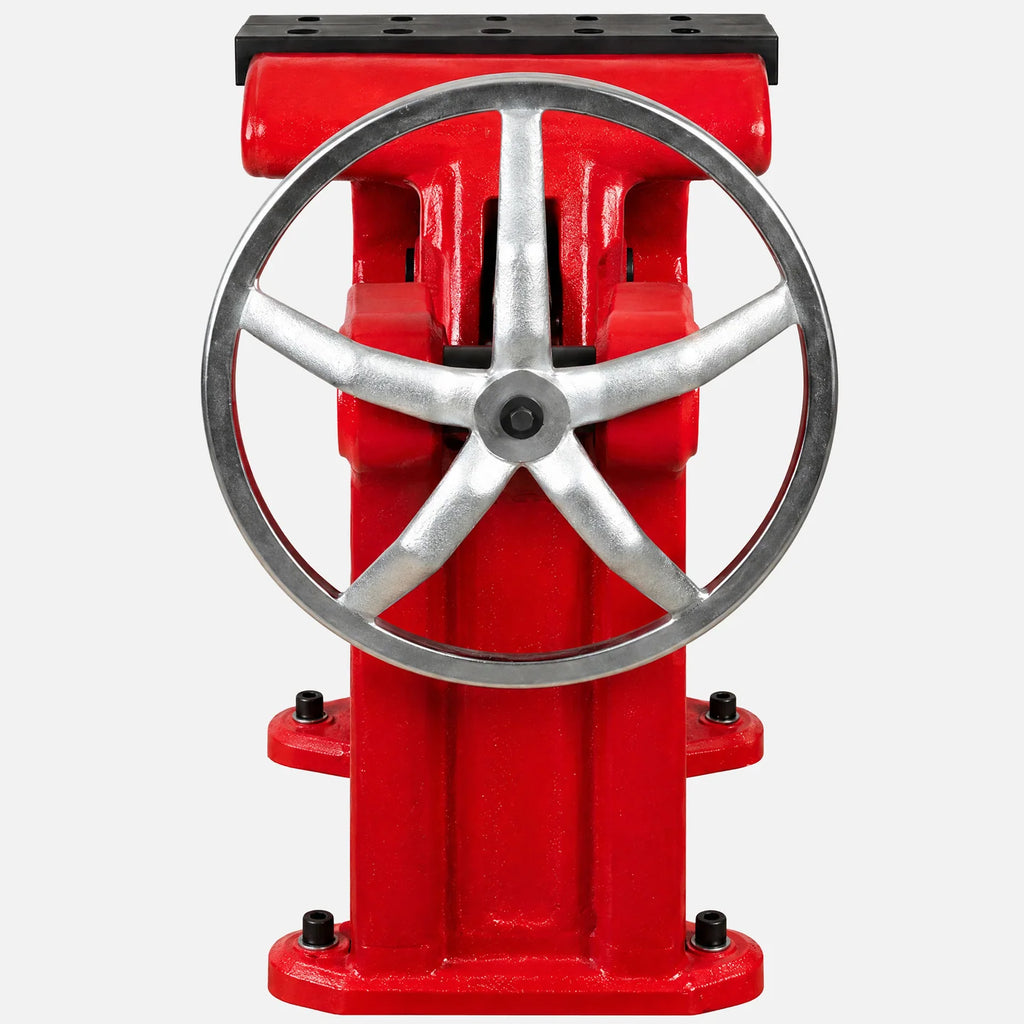

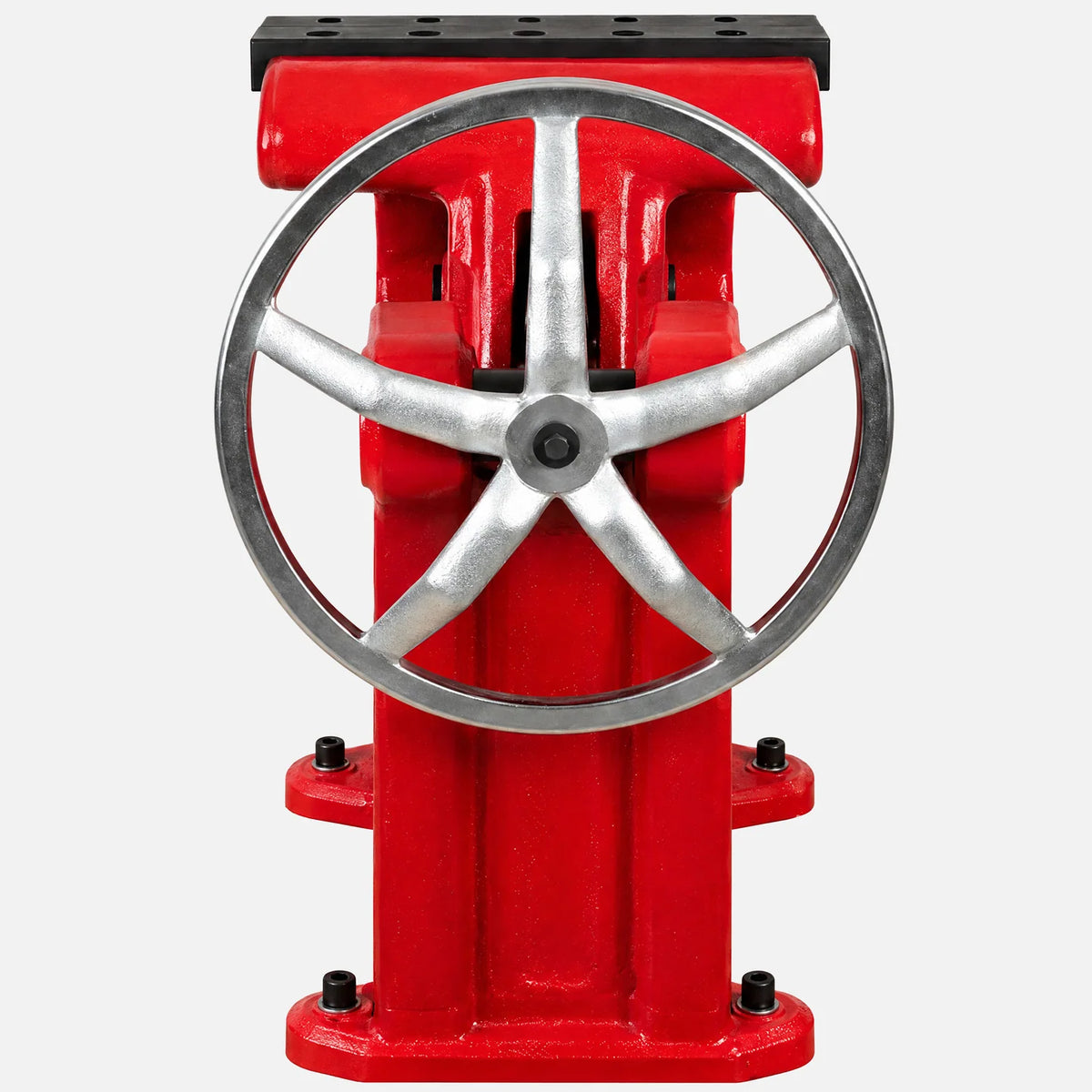

Wheel within reach
558 mm wheel wraps the frame. Spin it from the side.

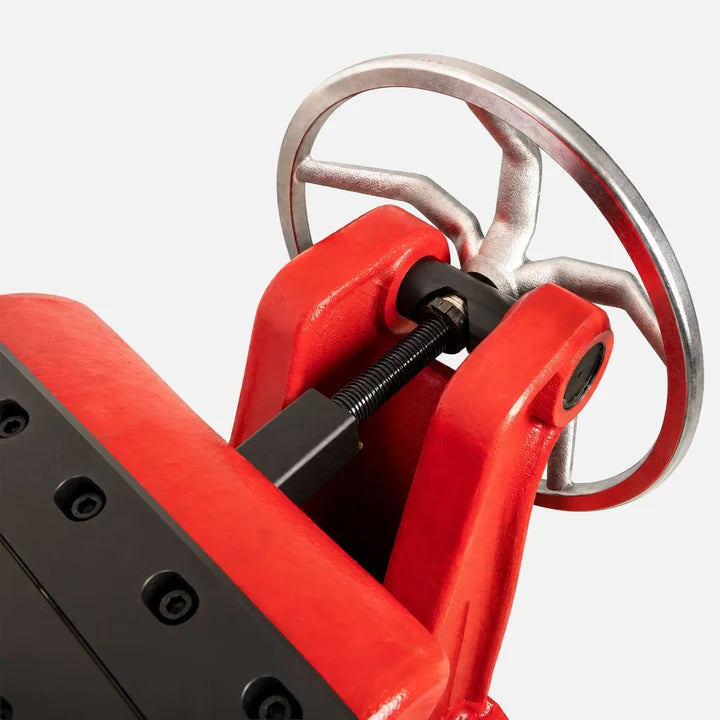

Stout 38 mm screw
Left-hand threat. Turn right, the jaw moves in.

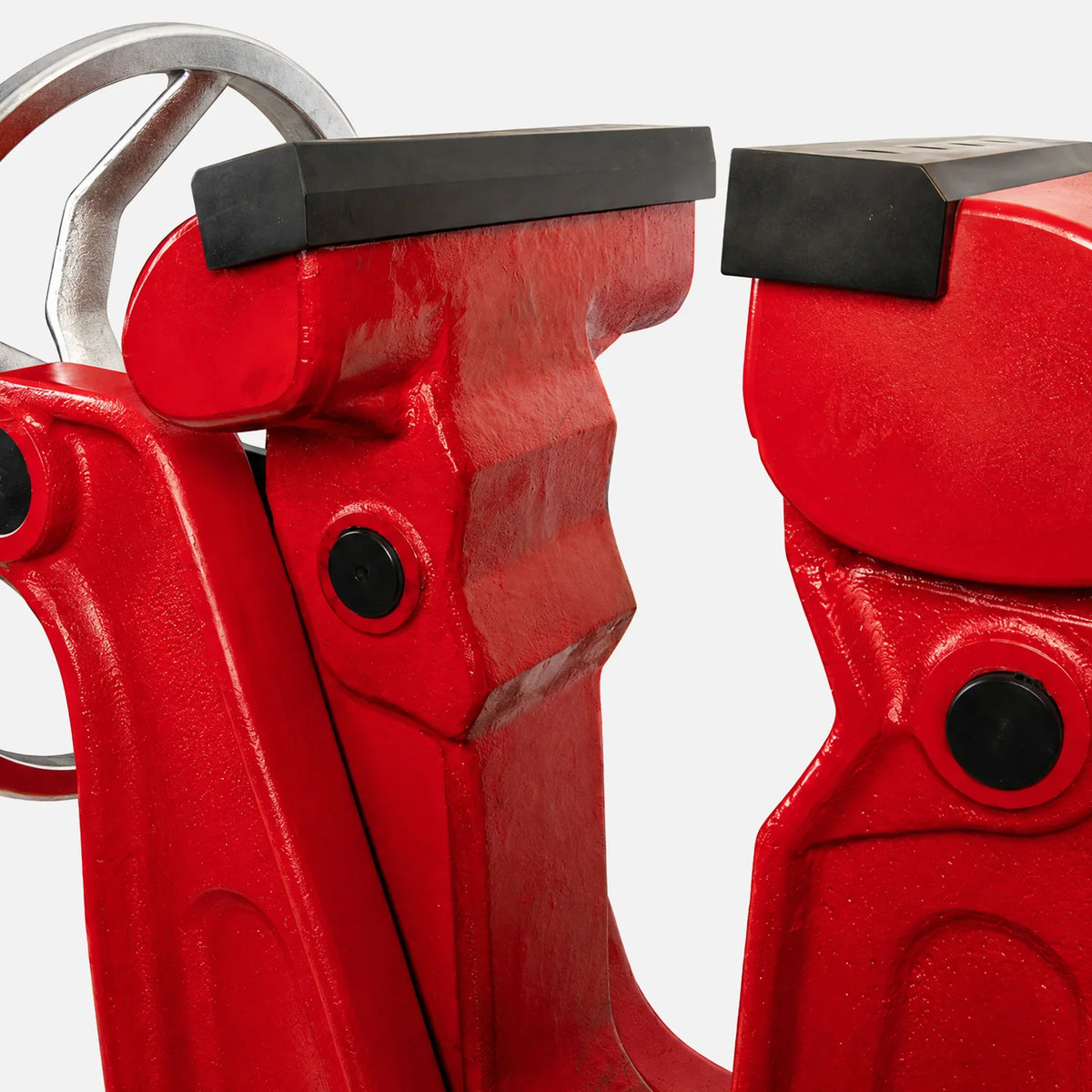

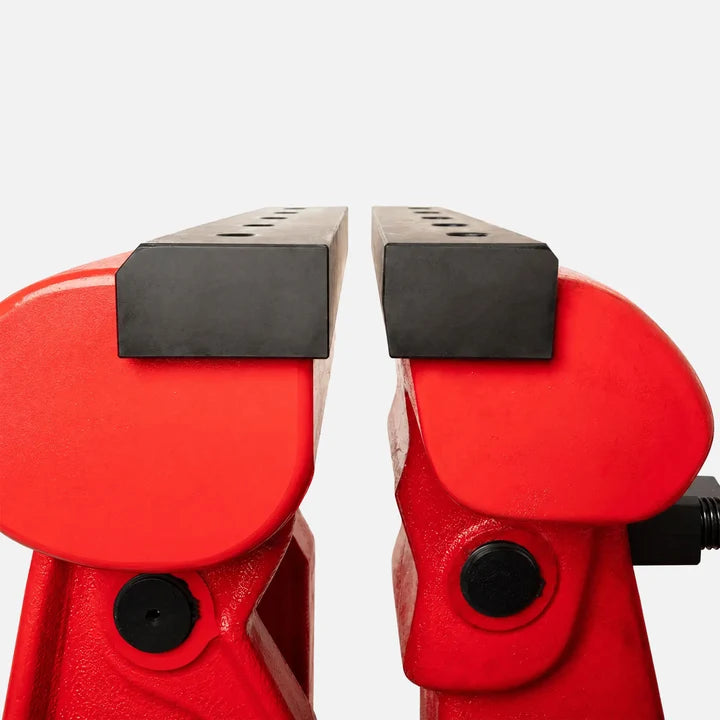

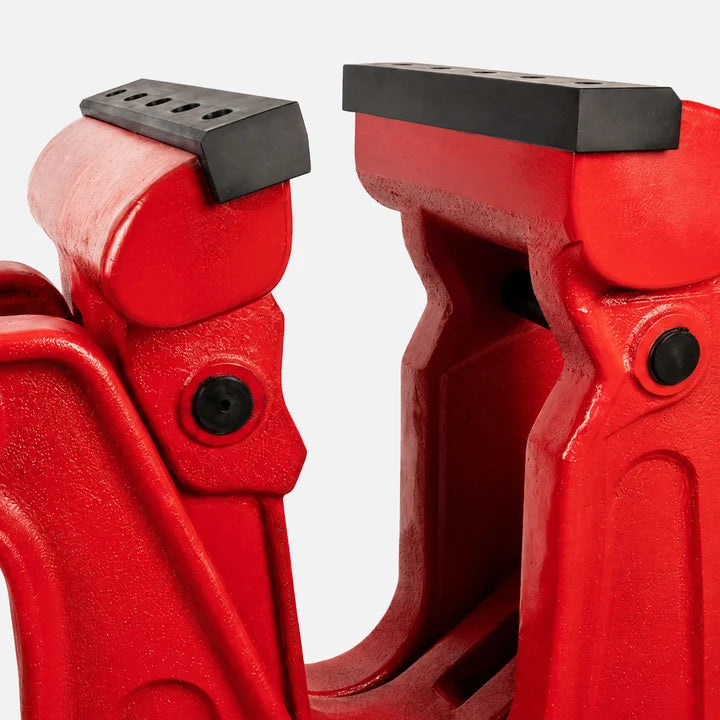

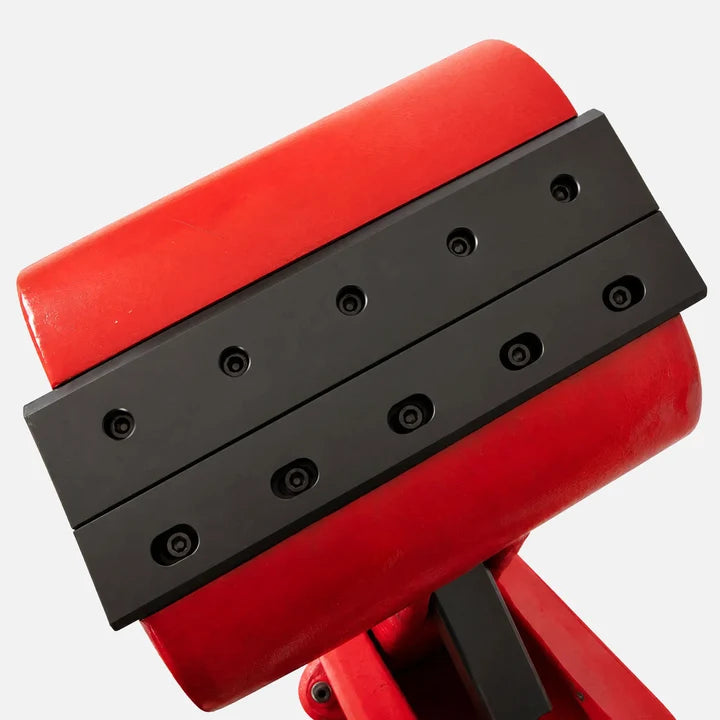

508 mm jaws
About 14 kg each. Built to hold big work.

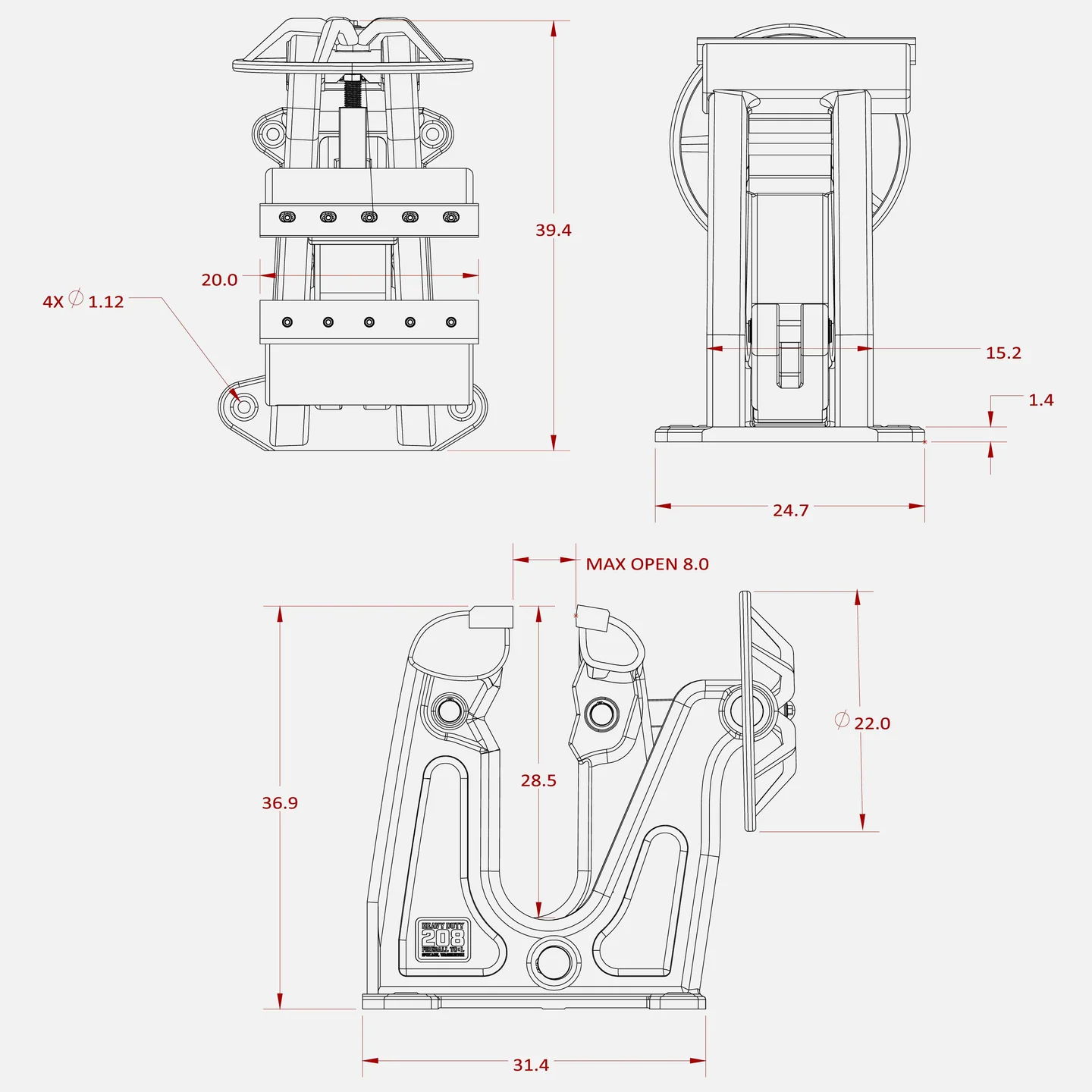

Vise Specifications
Weight
816 kg
Material
Ductile Cast Iron
Jaws
508 mm long
Max Opening
203 mm
Jaw Weight
About 14 kg each
Jaw Offset
100 mm past the frame
Gripper Jaws
V in the frame, matching V on the arm
Screw
1-1/2"-5 ACME, left-hand
Handwheel
558 mm
Pivot Pin
76 mm
Height
940 mm floor to top of jaws
Footprint
798 mm x 627 mm
Mounting
4 bolt holes, bolting optional
Finish
Paint
STORY OF THE FIREBALL BLACKSMITH VISE
The vise that went from mistakes to success!
When I first built this prototype vise, I tried adding a hydraulic jack to see if it could work. Almost! The handle was awkward, the setup didn't feel right. That failure led to the production version, the Fireball 208 Blacksmith Floor Vise. The hydraulic system isn't about extreme clamping force; it's about speed and convenience. Quick part changes, smoother operation, and more flexibility. The 208 is designed to work faster, smarter, and more comfortably.
Quick answers
Do I have to bolt it down?
No. At 816 kg it stays put. Bolt holes are there if you want them.
Why not a giant 100 mm screw?
Safety. A 38 mm screw is designed to break first under overload, before anyone gets hurt. If it does, just replace it.
Why a wheel instead of a handle?
It spins like a flywheel and sits where you stand, at the side of the vise.
