All Fireball tables use identical 19 mm holes on a 50 mm grid, so fixtures you buy today work on every Fireball table you'll ever own.
Heavy Duty Tables
5-Sided, 25 mm Thick, 200 mm Sidewall Height
Out of stock
Out of stock
Out of stock
Dragon Wagon
5-Sided, 12 mm Thick, 100 mm Sidewall Height
Out of stock
Out of stock
Out of stock
Pro Table Kits
19 mm Diameter, 50 mm Hole Spacing, 12 mm Thick
Out of stock
Out of stock
Out of stock
16 mm Ø Table System
Pro Table Kits
16 mm Diameter, 50 mm Hole Spacing, 12 mm Thick
Out of stock
Out of stock
Out of stock
Table Series Comparison
| Heavy Duty Series | Dragon Wagon | Pro Series Kits | |
| Hole Size | 19 mm | 19 mm | 19 mm or 16 mm |
| Grid Pattern | 50x50 mm | 50x50 mm | 50x50 mm |
| Plate Thickness | 25 mm | 12 mm | 12 mm |
| Set Screw Leveling | - | - | |
| Flatness | (+/-) 0.127 mm Entire Table | (+/-) 0.127 mm Entire Table | (+/-) 0.127 mm with leveling Entire Plate |
| Sidewall Height | 200 mm | 100 mm | - |
| Material | Cast Iron | Cast Iron | Cast Iron |
| Finish | Dragon Scale | Dragon Scale | Dragon Scale |
| Grid Lines | | | |
| Coordinate System | | | |
| Legs | Heavy Duty | Standard Duty | Angle Iron |
| Tacking Bolt Spacer Size | - | 1/2" (12.7 mm) | 1/2" (12.7 mm) |
Available Sizes
| Dimensions (mm) | Heavy Duty | Dragon Wagon | Pro Series |
| 2600x1400 | | - | - |
| 2000x1400 | | - | - |
| 1400x1400 | | - | |
| 1400x800 | - | | |
| 1000x600 | - | | |
Features
| Heavy Duty Series | Dragon Wagon | Pro Series Kits | |
| Plate Thickness | 25 mm | 12 mm | 12 mm |
| Sidewall Height | 200 mm | 100 mm | None |
Choosing the table that's right for you
The Fireball table system uses the same fixtures for all tables. So whether you are starting with a mobile 12 mm thick plate or a truck sized heavy duty table, all fixtures work on both tables.
Heavy Duty

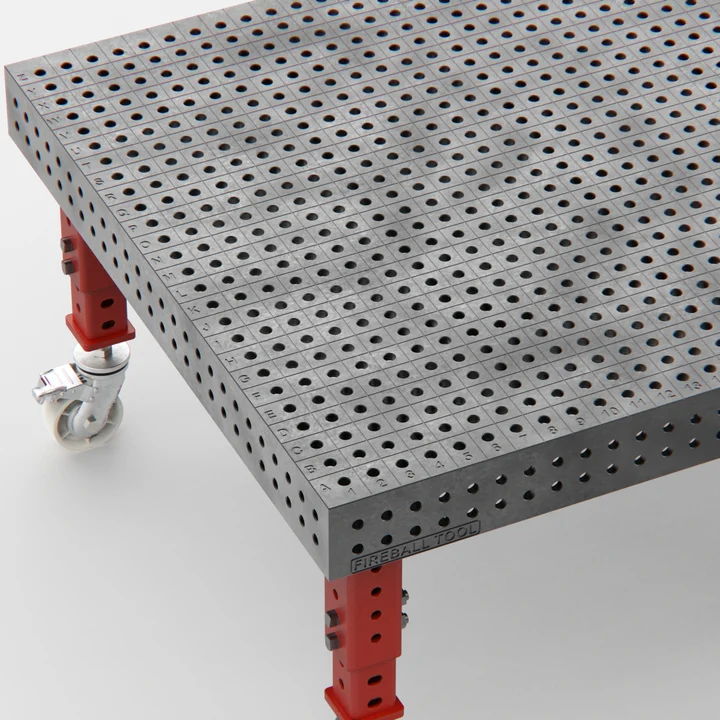

Heavy Duty Series Tables feature a single piece, cast iron construction for best rigidity and flatness with 25 mm thick top and sides.
- Machined from single piece casting, 25 mm Top & Sides
- Our most rigid table series

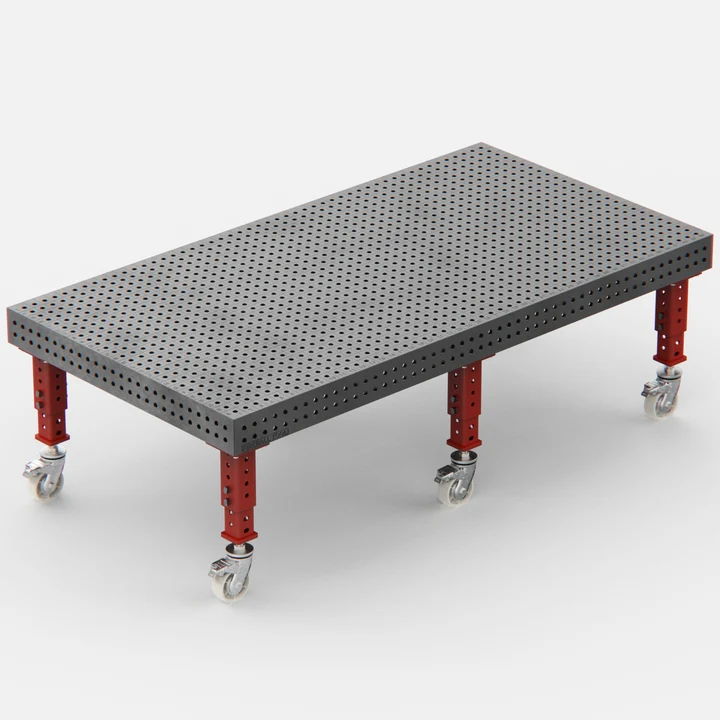

Standard Duty / Dragon Wagon
Same construction method as heavy duty series, but with 12 mm thick top and sides.
- Machined from single piece casting. Holes machined to 12 mm thickness, with extra material and thickness on the underside.
- Railroad track style ribbing for extra rigidity.
Pro Series
Ultimate work station solution that keeps everything organized.
- Machined from single piece casting. Holes machined to 12 mm thickness, with extra material and thickness on the underside.
- Reinforced railroad track style ribbing on perimeter for extra rigidity.
Start small, scale up later.
Every Fireball table uses identical 19 mm holes on a 50 mm grid, so fixtures you buy today work on every Fireball table you'll ever own. Start with a Pro Table plate and upgrade to a Heavy Duty table later; your entire tooling investment transfers immediately.
| Your Situation | Recommended Table | Why |
| Heavy structural work, frame straightening, large weldments | Heavy Duty | Single-piece cast iron, 25 mm thick top & sides, 200 mm side wall - most rigid series |
| Mobile workstation, robotic cell, compact shop, combinable layout | Dragon Wagon | Portable, 12 mm thick, 100 mm sidewall, caster options - starts at under €2,000 |
| Student, hobbyist, light repair, fram maintenance | Pro Table | Affordable 12 mm flat plate kit - add angle-iron legs, scale up later |
