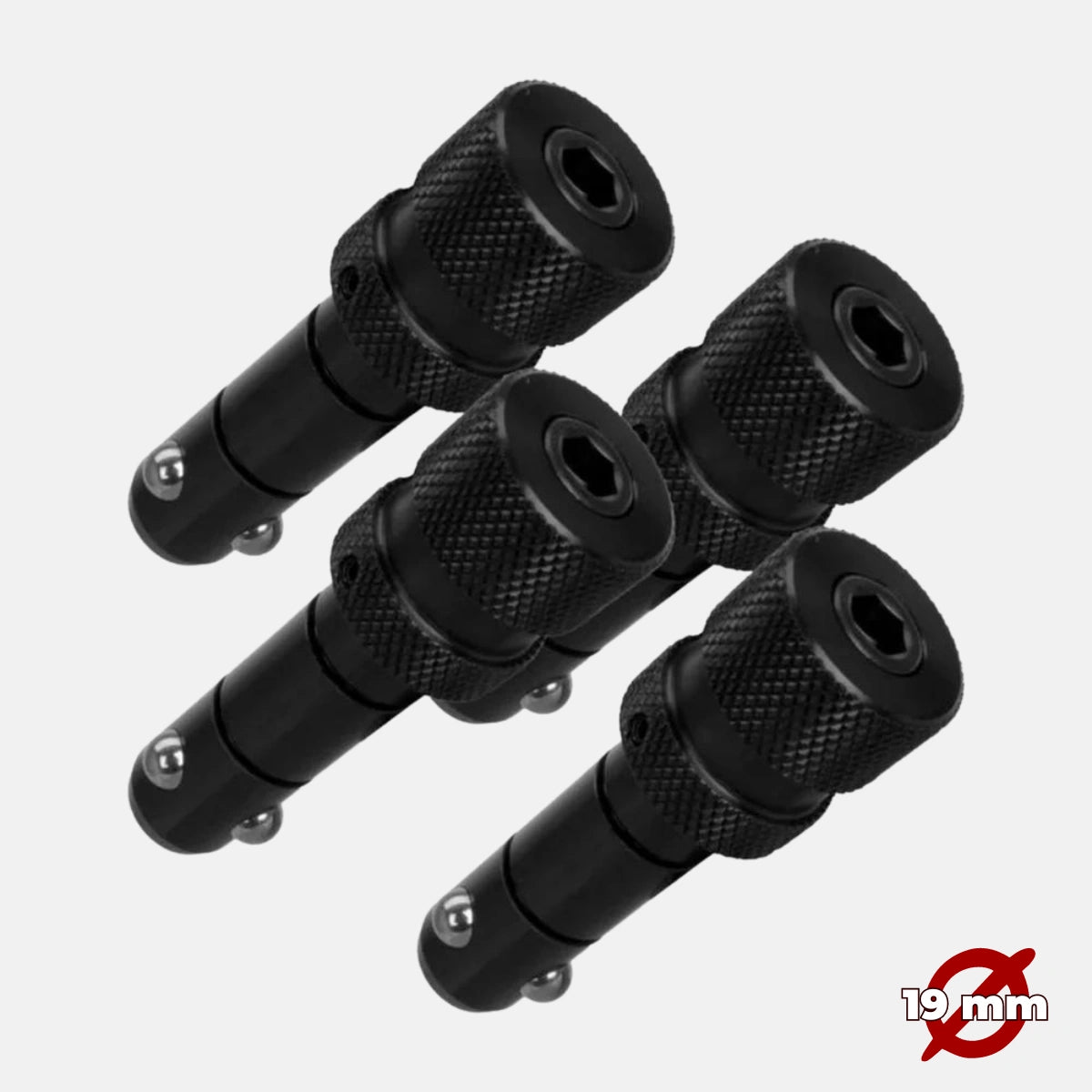

Our tacking bolts are what “holds” the parts in place when creating a fixture, but instead of having to grind away a weld, you just need to twist the head in order to loosen.
These tacking bolts are designed to hold two 25 mm thick parts together, like a 25 mm thick table and a 25 mm thick fixture.

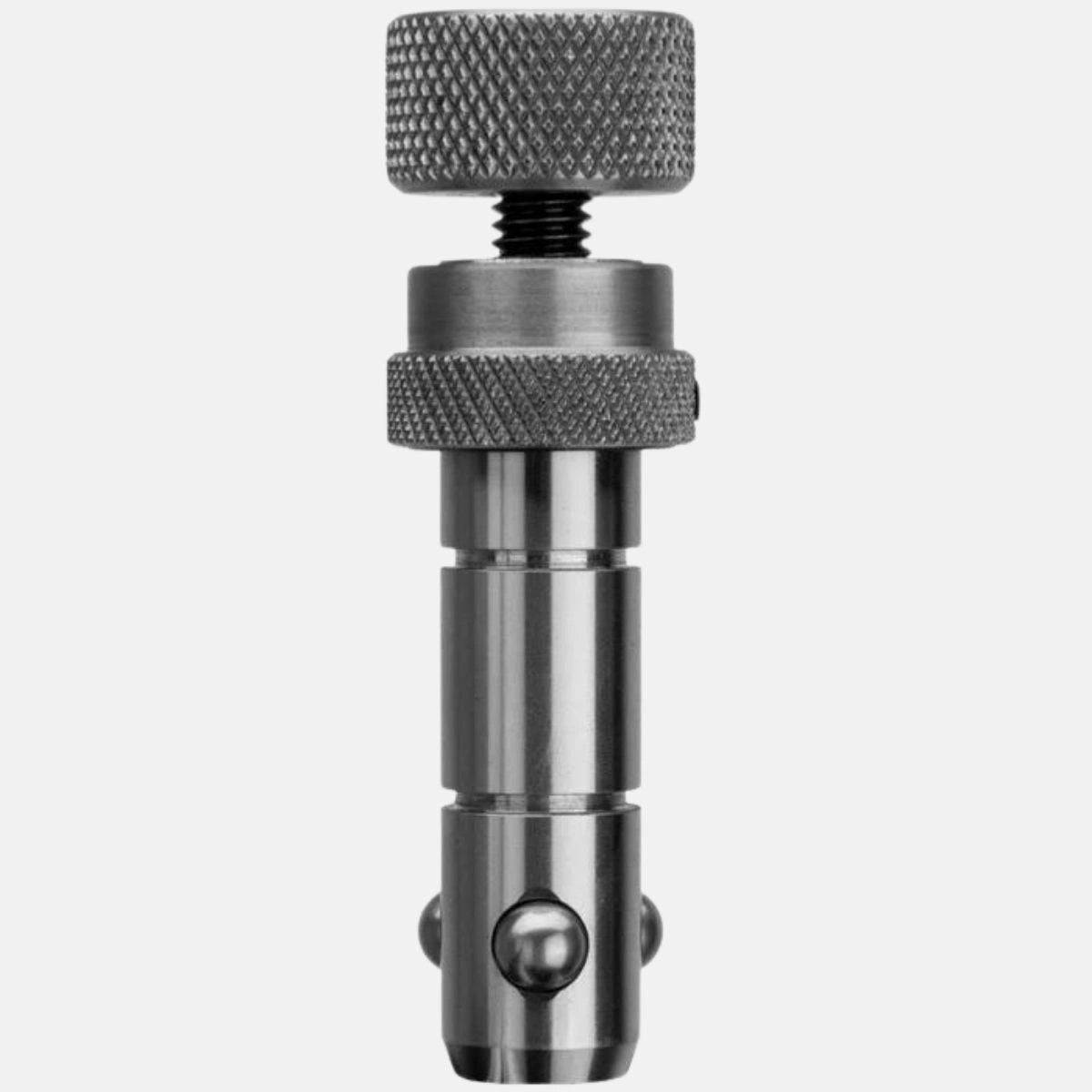

Knurled 25 mm diameter by 16 mm height knob offers easy hand adjustment, with the option to use 8 mm hex drive.
Specifications
| Fixture Thickness | 25 mm |
| Table Thickness | 25 mm |
| Clamping Range (A) | MAX 53 mm - MIN 44 mm |
| Diameter (B) | 19 mm |
| Drive Size (C) | 8 mm |
| Collar Diameter (D) | 27.94 mm |
| Knob Diameter (E) | 28.58 mm |
| Knob + Collar Height (F) | 31.75 mm |
| Knob Height (G) | 16 mm |
| Bottom Clearance (H) | 16.51 mm |
Add-Ons
These spacers are designed when you have table system with 19 mm diameter holes, but the thickness of the table is less than 25 mm. Tacking bolts are designed to clamp 25 mm thick fireball blocks + 25 mm thick tables. Thinner tables will require a spacer for the tacking bolts to work properly.
For Dragon Wagon series tables, the tables are 12 mm thick, so we recommended use of a 12 mm thick spacers on each tacking bolt.
If you have a table that is 16 mm thick recommend the 9.5 mm thick spacer.
If you have a table that is 19 mm thick recommend the 6.35 mm thick spacer.
Multiple spacers can be used together. Spacers contain an internal o-ring to keep them them in place when mounted on tacking bolts.
