Fireball Table System Overivew

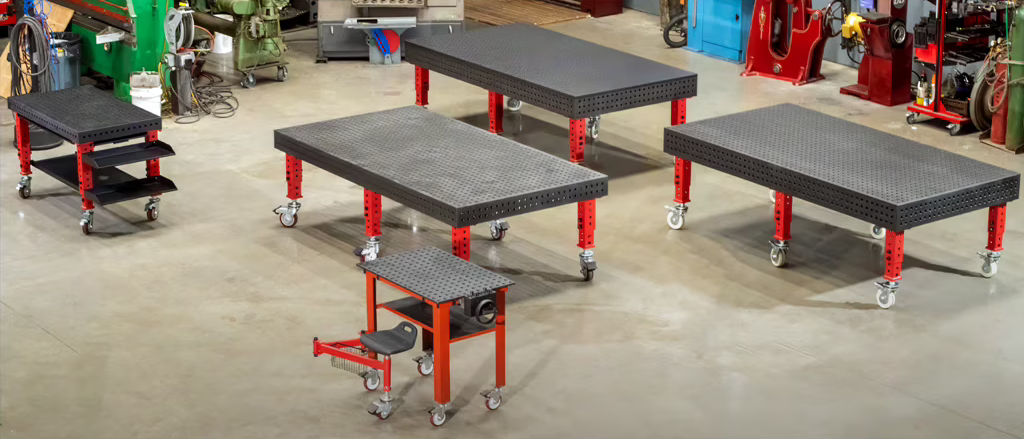

One fixture system. Three table series. Here's how to find the right one for you.
Every Fireball table shares the same 19 mm hole system on a 50 mm grid, so your fixtures, clamps, and tooling work on every table in the lineup - from a portable 20 kg plate to a 1,500 kg production table. The series differ in plate thickness, sidewall height, rigidity, and size. Pick the one that fits your shop, your budget, and your work.
Find your table
| Your Situation | Recommended Table | Why |
| Heavy structural work, frame straightening, large weldments | Heavy Duty | Single-piece cast iron, 25 mm thick top & sides, 200 mm side wall - most rigid series |
| Mobile workstation, robotic cell, compact shop, combinable layout | Dragon Wagon | Portable, 12 mm thick, 100 mm sidewall, caster options - starts at under €2,000 |
| Student, hobbyist, light repair, fram maintenance | Pro Table | Affordable 12 mm flat plate kit - add angle-iron legs, scale up later |
Leg options
| Fixed Height | Adjustable Height | |
| Best For | Maximum rigidity, stationary shop | Ergonomic height, sit/stand use |
| Price Impact | Standard (no upcharge) | Moderate upcharge |
Heavy Duty
From €6,700.00
Best For: Heavy structural fabrication, frame straightening, large weldments
Top Plate: 25 mm cast iron (single-piece)
Sidewall: 200 mm cast iron
Flatness: +/- 0.127 mm (entire table)
Sizes: 2600x1400 mm / 2000x1400 mm / 1400x1400 mm
Dragon Wagon
From €1,500.00
Best For: Mobile setup, compact shop, robotic cell, combinable layout
Top Plate: 12 mm cast iron (single-piece)
Sidewall: 100 mm cast iron
Flatness: +/- 0.127 mm (entire table)
Sizes: 1400x800 mm or 1000x600 mm
Pro Series Kits
From €960.00
Best For: Students, hobbyists, light repair, farm & ranch maintenance
Top Plate: 12 mm steel flat plate
Sidewall: None (flat plate kit)
Flatness: +/- 0.127 mm (w/ leveling)
Sizes: 1400x800 mm / 1400x1400 mm / 1000x600 mm
Start small, scale up later.
Every Fireball table uses identical 19 mm holes on a 50 mm grid, so fixtures you buy today work on every Fireball table you'll ever own. Start with a Pro Table plate and upgrade to a Heavy Duty table later; your entire tooling investment transfers immediately.
Table Series Comparison
| Heavy Duty Series | Dragon Wagon | Pro Series Kits | |
| Hole Size | 19 mm | 19 mm | 19 mm or 16 mm |
| Grid Pattern | 50x50 mm | 50x50 mm | 50x50 mm |
| Plate Thickness | 25 mm | 12 mm | 12 mm |
| Set Screw Leveling | - | - | |
| Flatness | (+/-) 0.127 mm Entire Table | (+/-) 0.127 mm Entire Table | (+/-) 0.127 mm with leveling Entire Plate |
| Sidewall Height | 200 mm | 100 mm | - |
| Material | Cast Iron | Cast Iron | Cast Iron |
| Finish | Dragon Scale | Dragon Scale | Dragon Scale |
| Grid Lines | | | |
| Coordinate System | | | |
| Legs | Heavy Duty | Standard Duty | Angle Iron |
| Tacking Bolt Spacer Size | - | 1/2" (12.7 mm) | 1/2" (12.7 mm) |
Available Sizes
| Dimensions (mm) | Heavy Duty | Dragon Wagon | Pro Series |
| 2600x1400 | | - | - |
| 2000x1400 | | - | - |
| 1400x1400 | | - | |
| 1400x800 | - | | |
| 1000x600 | - | | |
Features
| Heavy Duty Series | Dragon Wagon | Pro Series Kits | |
| Plate Thickness | 25 mm | 12 mm | 12 mm |
| Sidewall Height | 200 mm | 100 mm | None |
Choosing the table that's right for you
Heavy Duty
Heavy Duty Series Tables feature a single piece, cast iron construction for best rigidity and flatness with 25 mm thick top and sides.
- Machined from single piece casting, 25 mm Top & Sides
- Our most rigid table series
Dragon Wagon
Same construction method as heavy duty series, but with 12 mm thick top and sides.
- Machined from single piece casting. Holes machined to 12 mm thickness, with extra material and thickness on the underside.
- Railroad track style ribbing for extra rigidity.
Pro Series
Ultimate work station solution that keeps everything organized.
- Machined from single piece casting. Holes machined to 12 mm thickness, with extra material and thickness on the underside.
- Reinforced railroad track style ribbing on perimeter for extra rigidity.
What is Dragon Scale Coating?
Superior Anti-Spatter Properties
Improved Corrosion Resistance
Enhanced Wear Resistance
Steel vs Dragon Scale Coating
Nitride vs Dragon Scale Coating
Full Video (Dragon Scale Demo)
Why We Chose Gray Cast Iron?
It's a Dimensionally Stable Material
Naturally Spatter Resistant
Allows Single Piece Pouring for Ultimate Rigidity & Flatness
Explaining FM19 Fixture System
- The entire Fireball Table system is based on 19 mm diameter hole sizes on a 50 mm grid pattern.
- All fixtures are also based on a 19 mm diameter hole size and use 25 mm thick by 50 mm wide fixtures.
- Tables and plates come in different thicknesses for different applications and price points, but ALL Fireball 19 mm fixtures are compatible with ALL Fireball 19 mm tables whether it’s a 1,500 kg heavy duty table or a portable 20 kg plate.
Why 19 mm Hole System
- 45% larger cross section compared to 16 mm holes means stronger bolts, stronger clamps.
- Largest hole size while still having a 50 mm grid pattern on the table and 25 mm hole pattern on fixtures.
Why 50 mm Grid Pattern
- The 50 mm grid pattern is the ideal hole density to get clamps and fixtures where you need them.
- Many fixtures require 2 bolts to properly align them. Having a 50 mm grid pattern allows shorter, more compact fixtures compared to a 100 mm hole spacing. This is even more important when fixtures have slots to bridge the gap to the next hole, and is the difference between a 100 mm on a 50 mm grid, vs a 200 mm slot on a 100 mm grid.
Table Sizes
- Typical tables are 1200x2400 mm long to work with sheet material, but this means the entire table surface is covered. Our unique sizes such as the 2600x1400 mm table allow you to fixture and clamp down on full 1200x2400 mm sheets. It may not sound like much, but by expanding our tables by 100 mm on each side, you get a lot more surface area to use.
- Our tables and plates are often designed with common widths to make it easy to join and expand tables in the future.
What Makes the 19 mm Hole System Superior to 16 mm
- 45% larger hole cross section while still allowing 50 mm spacing on table and 25 mm spacing on accessories.
19 mm System
16 mm System
What Makes the 19 mm Hole System Superior to 28 mm
- 50 mm hole spacing on tables vs 100 mm spacing.
- 92% more holes
19 mm System
25 Holes Per 300x300 mm Section
28 mm System
13 Holes Per 300x300 mm Section
What Sets Every Fireball Table Apart
- Oversized Surface Area — Fireball tables are larger than the industry-standard 1200x2400 mm format, providing approximately 20% more working surface. That extra space matters when positioning fixtures around a full-sized weldment.
- Higher Hole Resolution — The 19 mm hole system at tighter hole centers gives you the strength advantages of a 28mm style system combined with the finer positional resolution of a 16mm-style system — in one table.
- Machined Grid Lines and Perimeter Labeling — Every hole on a Fireball table has a unique label. Record exactly where every fixture was placed, come back weeks later, and set everything back up in minutes.
- 100% Cross-Compatibility — Every Fireball table uses the exact same hole centers and spacing. Your tooling works on every table, and any two tables can be combined seamlessly.
- The 19 mm Hole — A Century-Old Standard — The 19 mm hole has been shared between woodworkers and blacksmiths for over 100 years. Standard off-the-shelf 19 mm bolts work directly in the table — no specialized fasteners required.
- Rigidity That Doesn't Depend on Your Floor — Fireball tables are engineered so rigid that they do not need to be leveled to be flat. The table is isolated from the floor — whether your shop floor is perfectly flat or not, your table surface will be.
