Heavy Duty Welding Table, 2600x1400 mm

Risparmi 2%
Fireball Tool EuropeSKU: FM19-TCG2614-A1
1 recensione
Gambe: Altezza fissa standard
Prezzo:
€10,700.00 €10,950.00
Stock:
Ne rimane solo 1

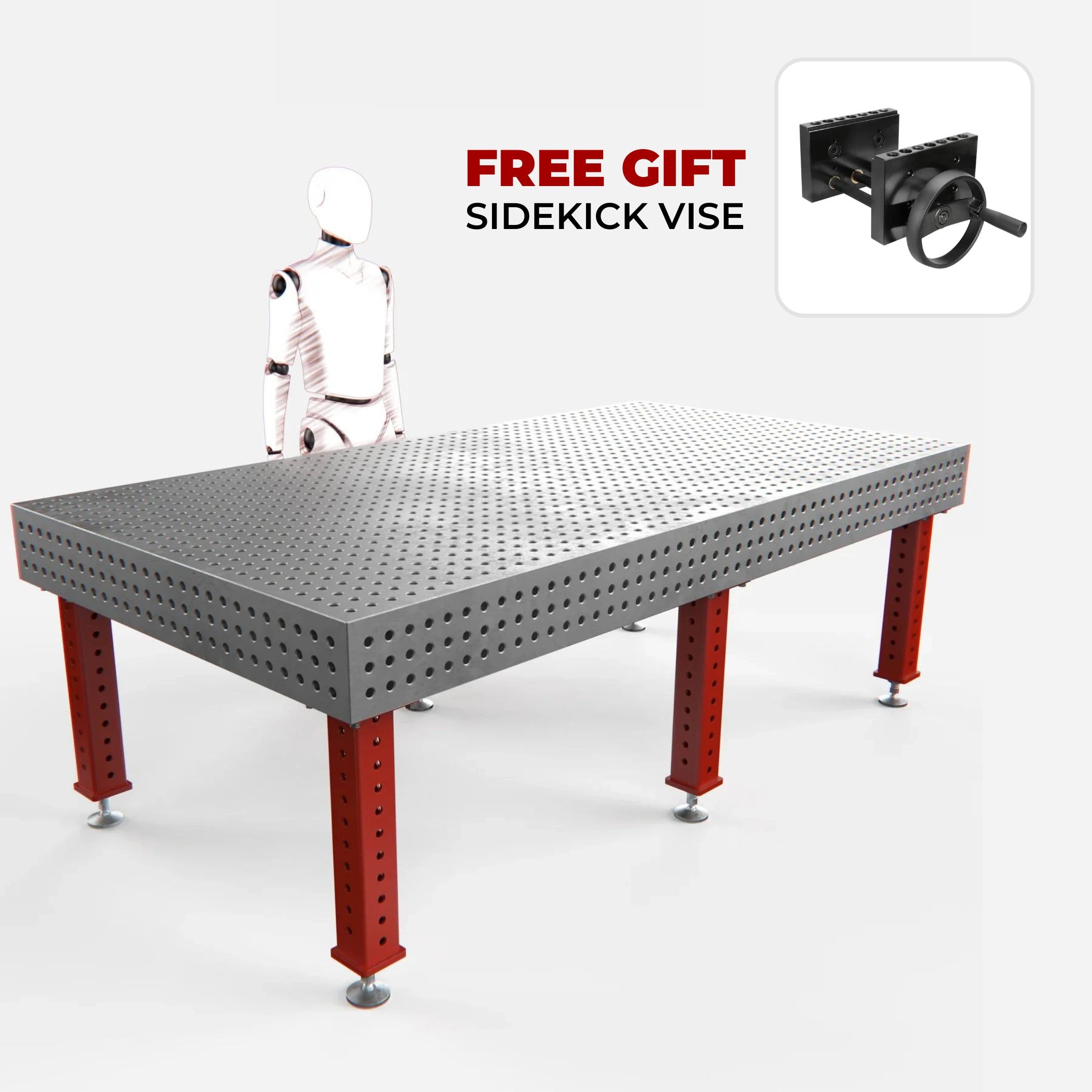

Heavy Duty Welding Table, 2600 x 1400 mm

The Fireball Cast Iron Tables are the best all around welding tables on the market. They combine the strength of 25 mm thick top and sides used for heavy duty tables with the more finely spaced 50 mm grid pattern you find on light to medium duty tables. Gray cast iron naturally resists weld spatter, does not form burrs on the surface, resists deformation, and once machined flat, it stays flat.

Combined with the patent pending Fireball 19 mm Fixture System, Fireball tables and fixtures are the fastest, simplest, and most secure fixture system.

Tabletop Dimensions 2600x1400 mm

Table Thickness

25 mm

Full Weight Capacity

2,950 kg

Weight Capacity / Leg

680 kg

Hole Diameter

19 mm

Grid Pattern

50 mm

Base Material

Cast Iron (FE)

Tabletop Weight

1,260 kg

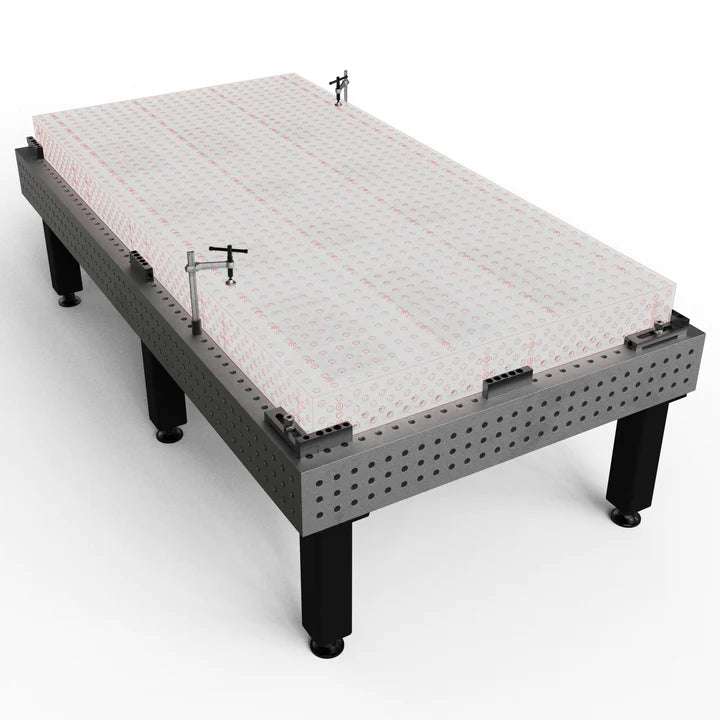

Fireball 2600x1400 mm vs. Regular 2400x1200 mm

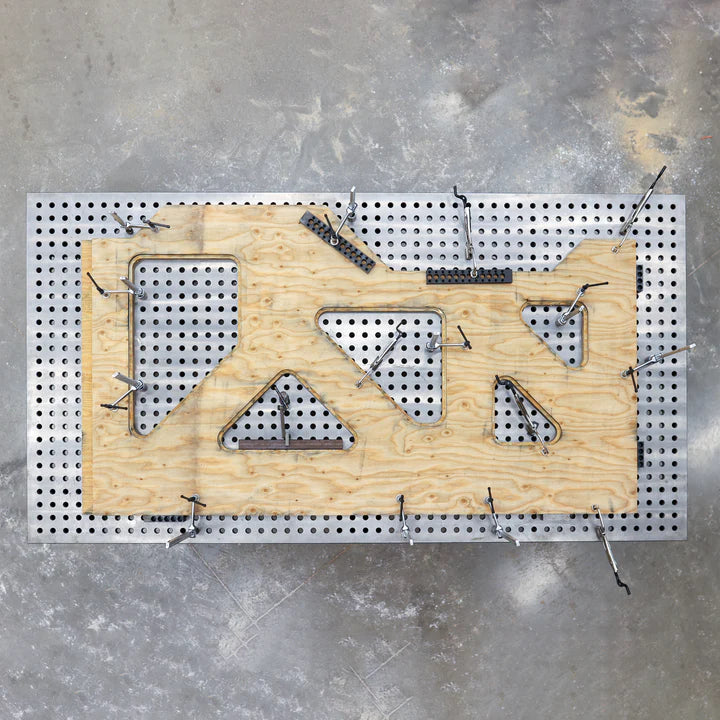

Clamping a Full 1200x2400 mm Table with Room to Spare

The Fireball 2600x1400 mm is our take on a 2400x1200 mm table. We believe that you need a table that can accommodate 2400x1200 mm parts, so we made it a little larger. At 2600 mm long and 1400 mm wide, the extra 200 mm along the length and width of the table makes it closer to a 3000x1500 mm, giving you more space to work with.

The Fireball 2600 1400 mm table has 20% more top surface area than an actual 2400x1200 table. The spacing of the holes means you can fixture a 2400x1200 workpiece from all four sides without even bringing the table’s side apron into play.

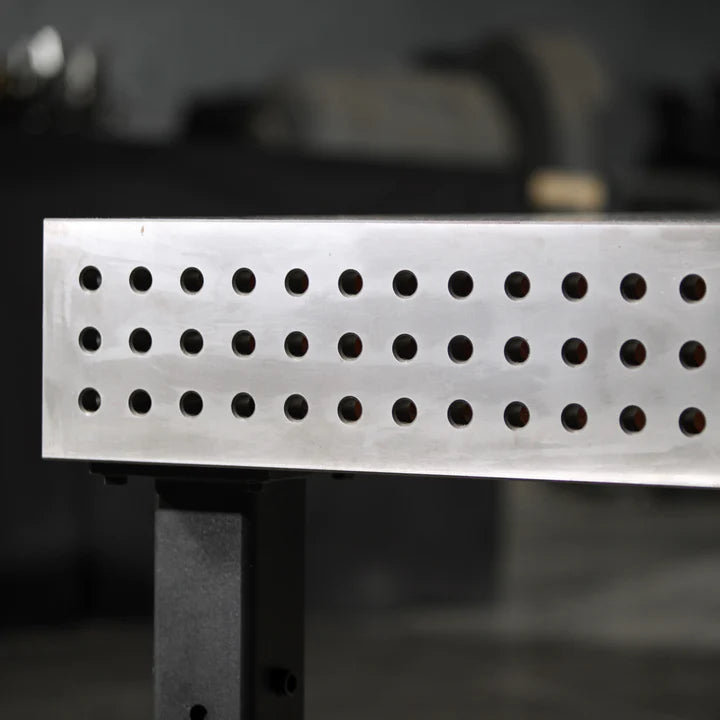

The table’s side is 200 mm tall and provides rigidity. It has three rows of holes machined in a 50 mm grid pattern for adding extensions or joining tables together.

Fixturing System

  • 50 mm Grid
  • 19 mm Hole
  • Compared to 28 mm, double the number of holes on table top
  • Compared to 16 mm, 45% Larger Cross Section, double the material thickness

FM19 - Ø19 mm x 50 mm

The Fireball Tool fixture system is superior to others on the market. It features blocks that can be used in many different ways to maximize their usage. It also can be incrementally adjusted to ensure maximum coverage as efficiently as possible while others fail to reach certain distances without a complicated fixture.

Versatility & Strength

No other system on the market combines both the strength of 50x25 mm fixture profiles with the versatility of 25 mm hole centers. This let's you place fixtures with the agility of a thinner table using 16 mm holes, but with the strength of a big table using 28 mm holes.

Always Stay Square To the Table

Other systems use a two hole slot as standard, which doesn't allow both adjustability and keeping things square. Fireball's tooth block, which forms the basis of most accessories spans 3 holes, which allows adjustment while always keeping your fixtures square with the table.

Tabletop Construction

25 mm thick Gray Cast Iron on top and 25 mm thick sides, additional reinforcement ribs underneath. Machined flat on all 5 sides to within +/- 0.0635 per 600 x 600 mm. Side apron on the tables are 200 mm tall with 3 rows of holes.

Leg Options

Legs mount onto plates at the bottom of the table. Leveling feet with spindles at the bottom of the legs offer fine adjustment and leveling.

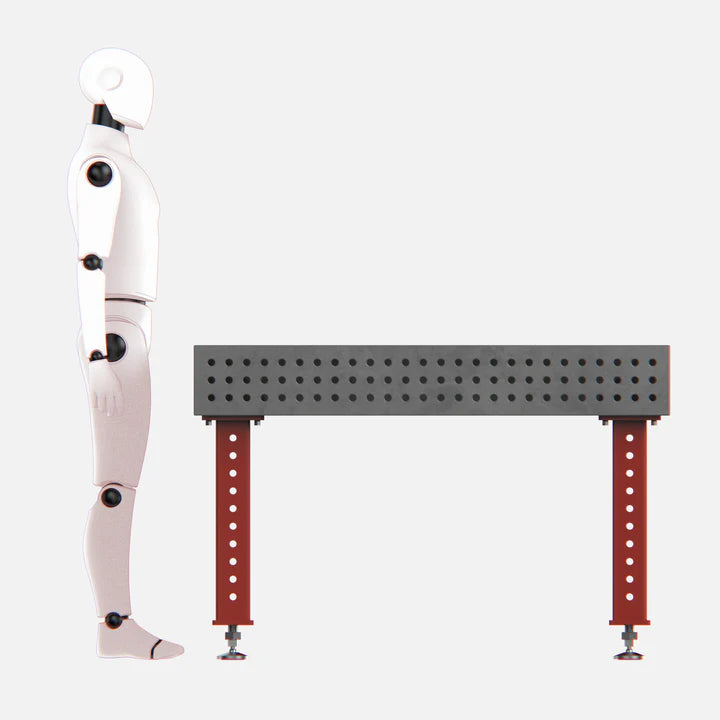

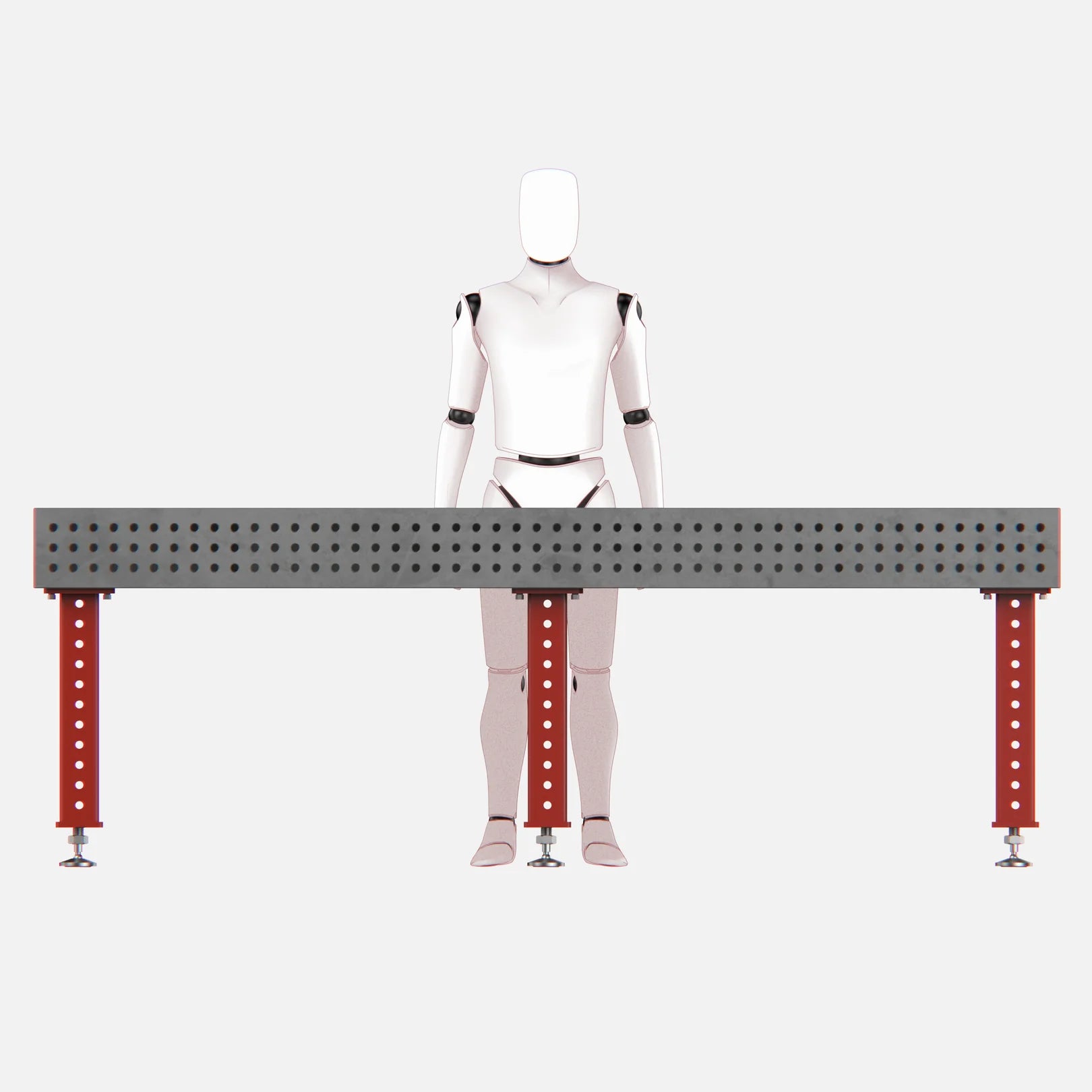

Fixed Height

Leg Height: 660 mm

Table Surface Height: 860 mm

Leveling Pad: +/- 25 mm

Static Load Capacity: 900 kg

Weight: 16.5 kg

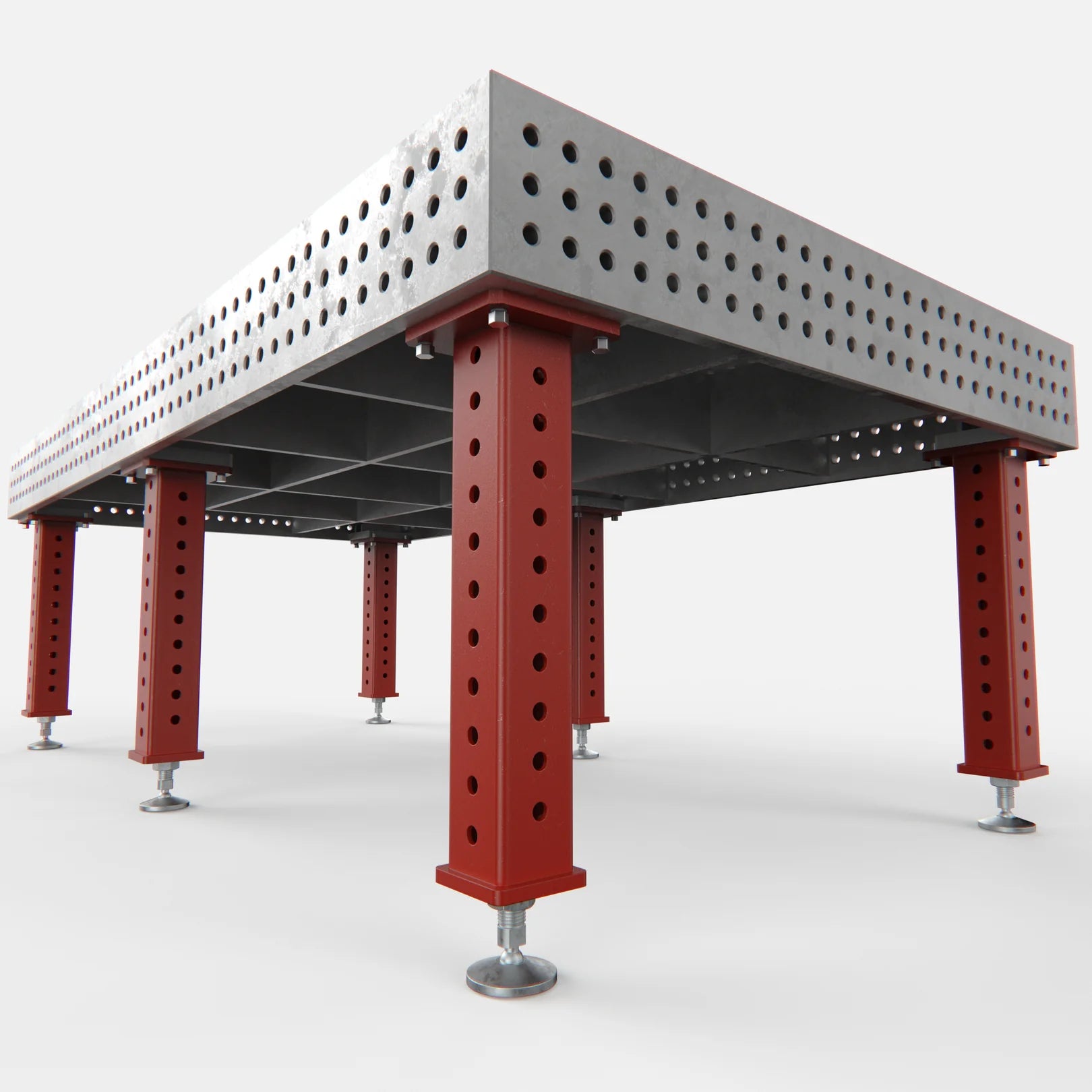

Adjustable Height

Leg Height: 600 - 960 mm

Table Surface Height: 810 - 1,160 mm

Leveling Pad: +/- 25 mm

Static Load Capacity: 900 kg

Weight: 20.4 kg

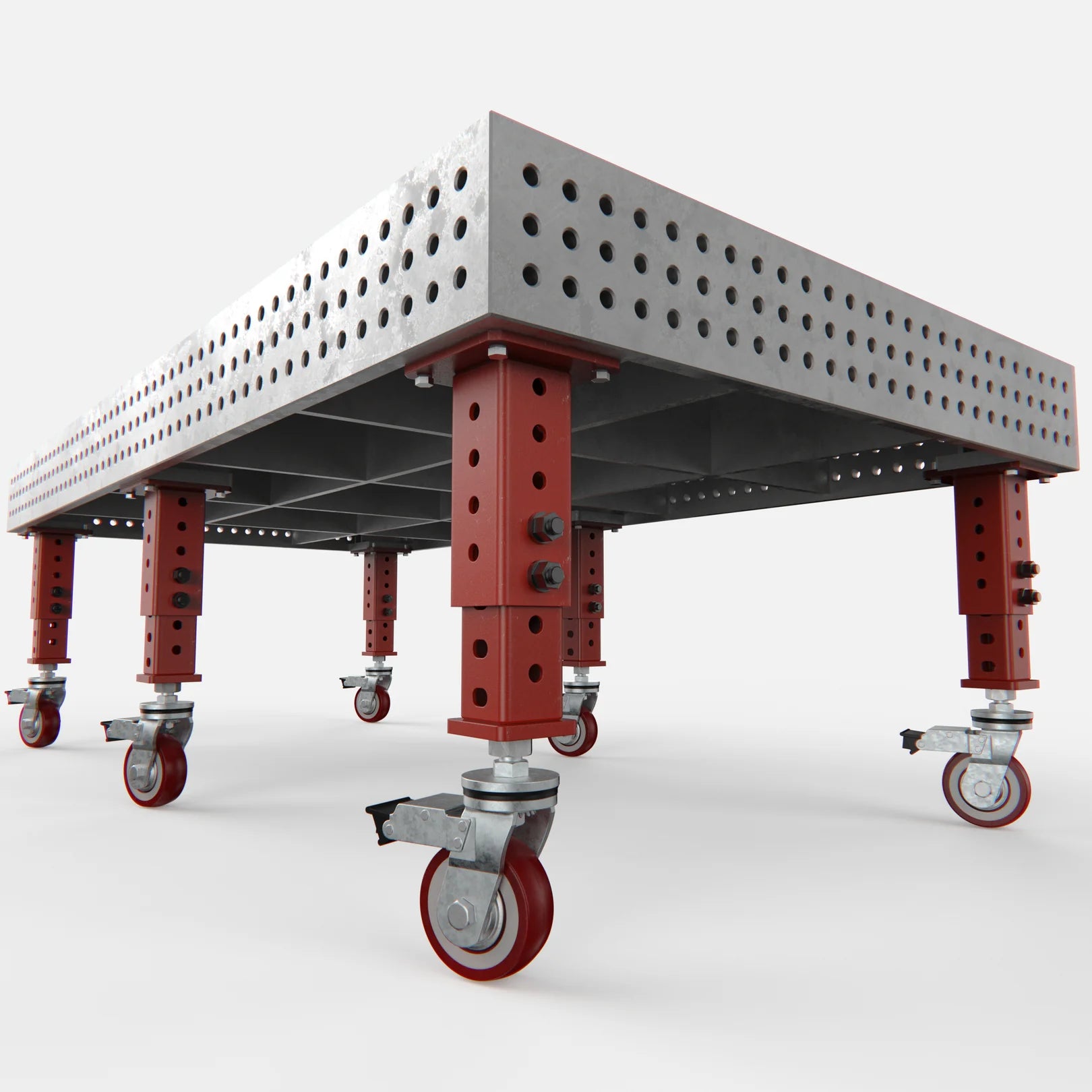

Adjustable Height + Caster

Leg Height: 550 - 685 mm

Table Surface Height: 760 - 890 mm

Leveling Pad: +/- 25 mm

Static Load Capacity: 770 kg

Weight: 17.4 kg

Cast Tower Leg Block

Leg Height: 685 mm

Table Surface Height: 890 mm

Leveling Pad: +/- 25 mm

Grid Pattern: 50 mm

Static Load Capacity: 900 kg

Weight: 59 kg

Table Sizes

Size More Info

1400 x 1400 mm

2000 x 1400 mm

2600 x 1400 mm

Videos

Why Does the New Fireball Table Have This Hole Size?

This is the Best Welding Table. Solid cast iron. 1756 holes

This Tool Will Help You Weld

Why is the Fireball Tool Table This Size?

How to Join 2 Fixture Tables Together

5 Tips to Help Clean & Maintain Your Welding Table
