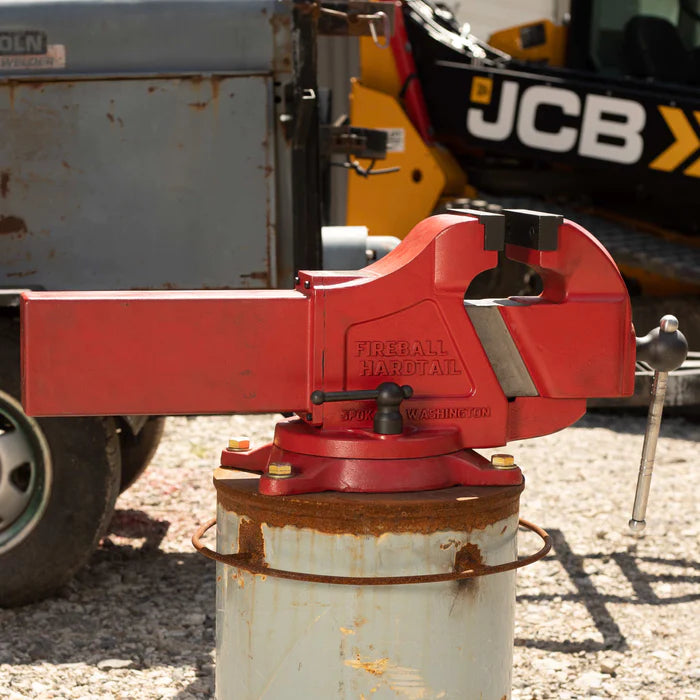

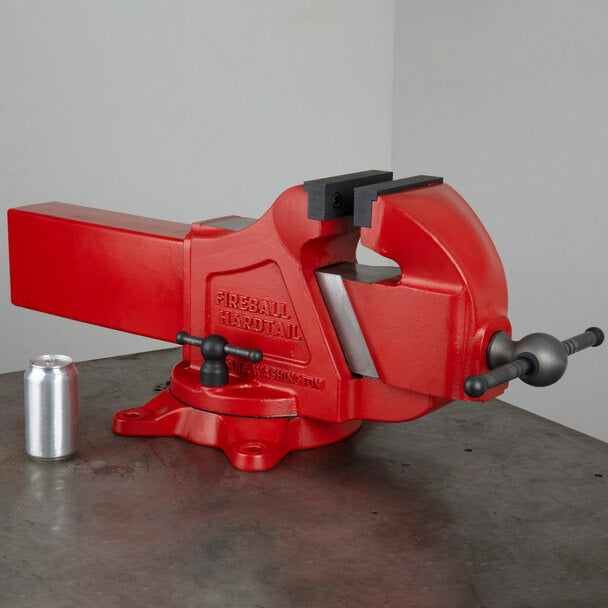

Standard Hardtail Vise
- 838 from nose to tail
- 349 height from base to top of jaw
- 300 x 200 mm mounting pattern in the base with 19 mm bolt holes. Base should be mounted with 300 mm side parallel to jaws.
- 30 mm diameter lead screw
- 6,800 kg - 11,300 kg clamping force (6,800 kg is beyond the mechanical limit of most vises)
- 355 mm opening with slide fully engaged within body of vise.
- 150 mm wide serrated jaw included.
- Weight: 122 kg / 133 kg In Crate

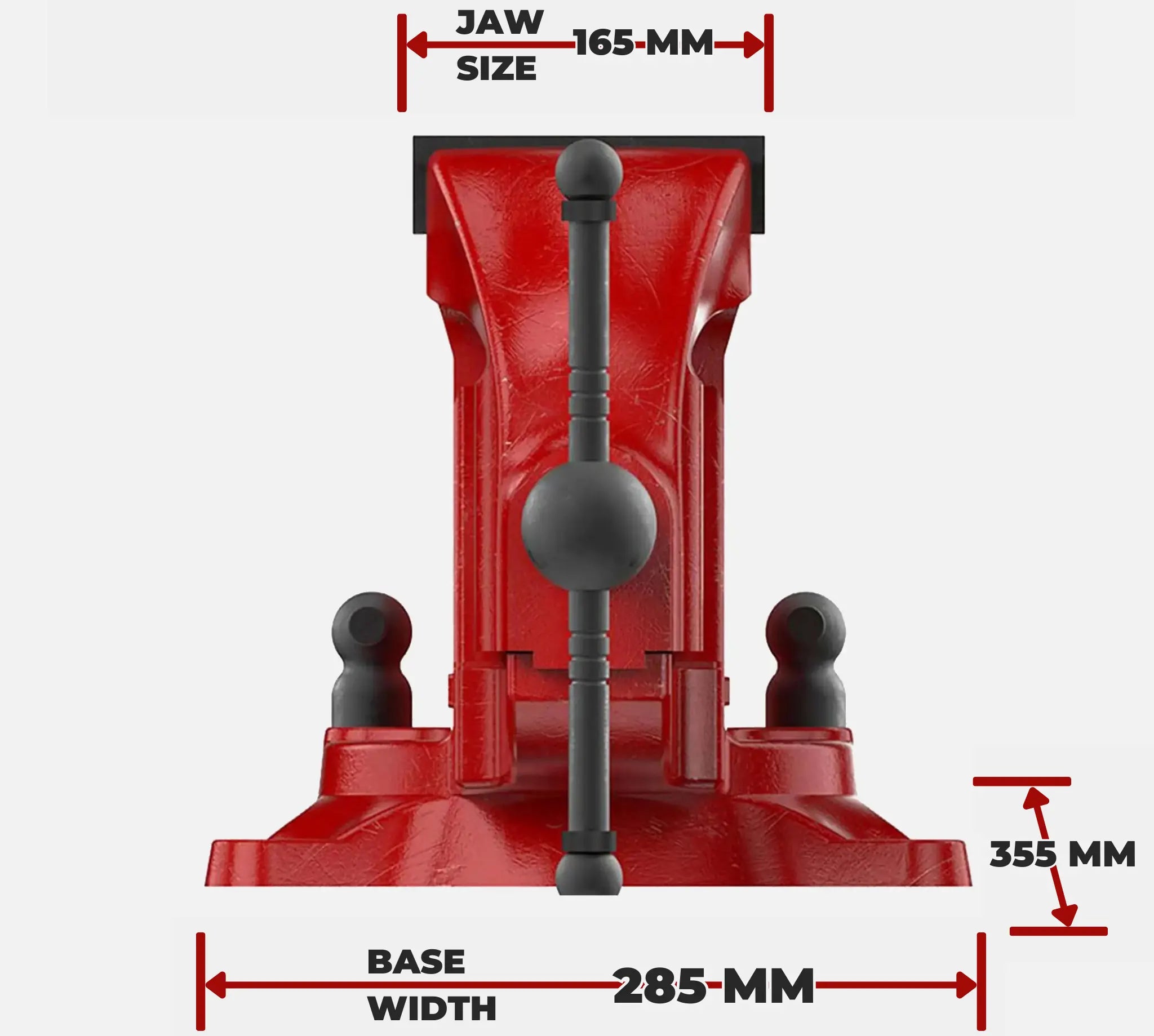

| Nose To Tail | Front of Base to Tail | Height | Base Width | Jaw |
| 838 mm | 584 mm | 349 mm | 285 x 355 mm | 165 mm |
Mini Hardtail Vise
- 736 mm from nose to tail
- 285 mm height from base to top of jaw
- 146 x 254 mm mounting pattern in the base with 19 mm bolt holes.
- 254 mm opening with slide fully engaged within body of vise.
- 127 mm wide serrated jaw included.
- 4,500 kg - 6,800 kg clamping force by hand
- 25 mm diameter lead screw
- Weight: 65 kg / 77 kg In Crate
| Nose To Tail | Front of Base to Tail | Height | Base Width | Jaw |
| 736 mm | 533 mm | 285 mm | 300 x 200 mm | 127 mm |

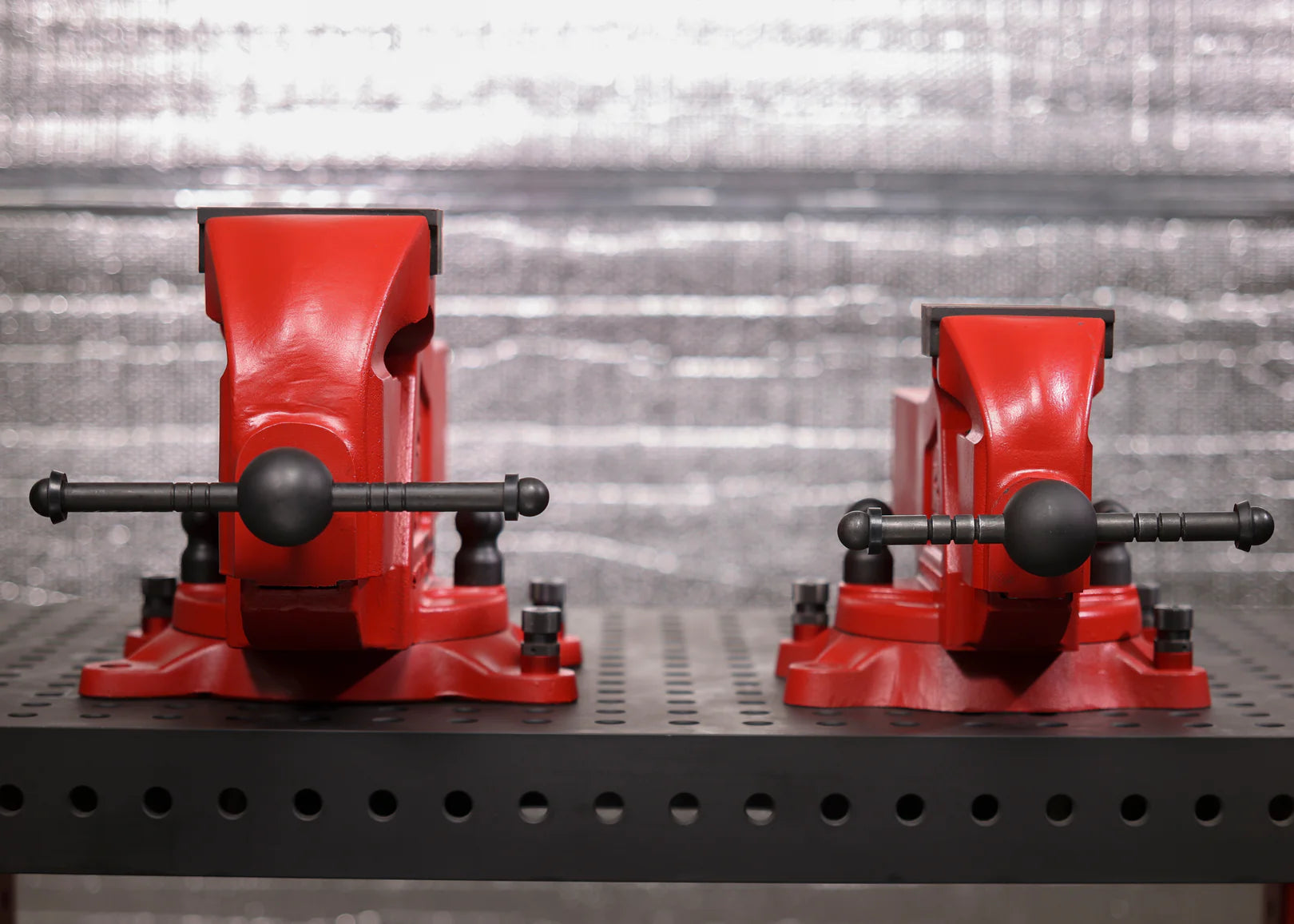

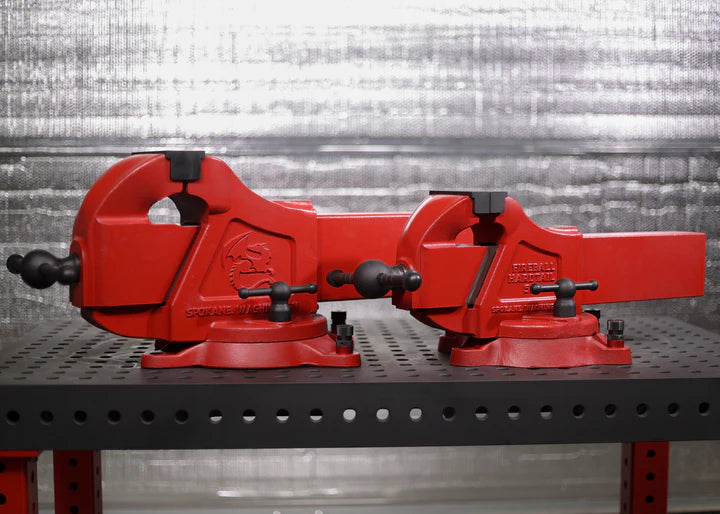

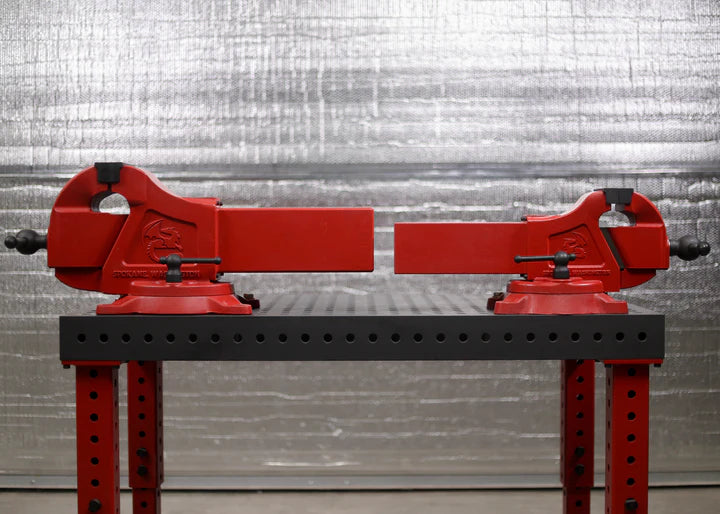

How Do They Compare?

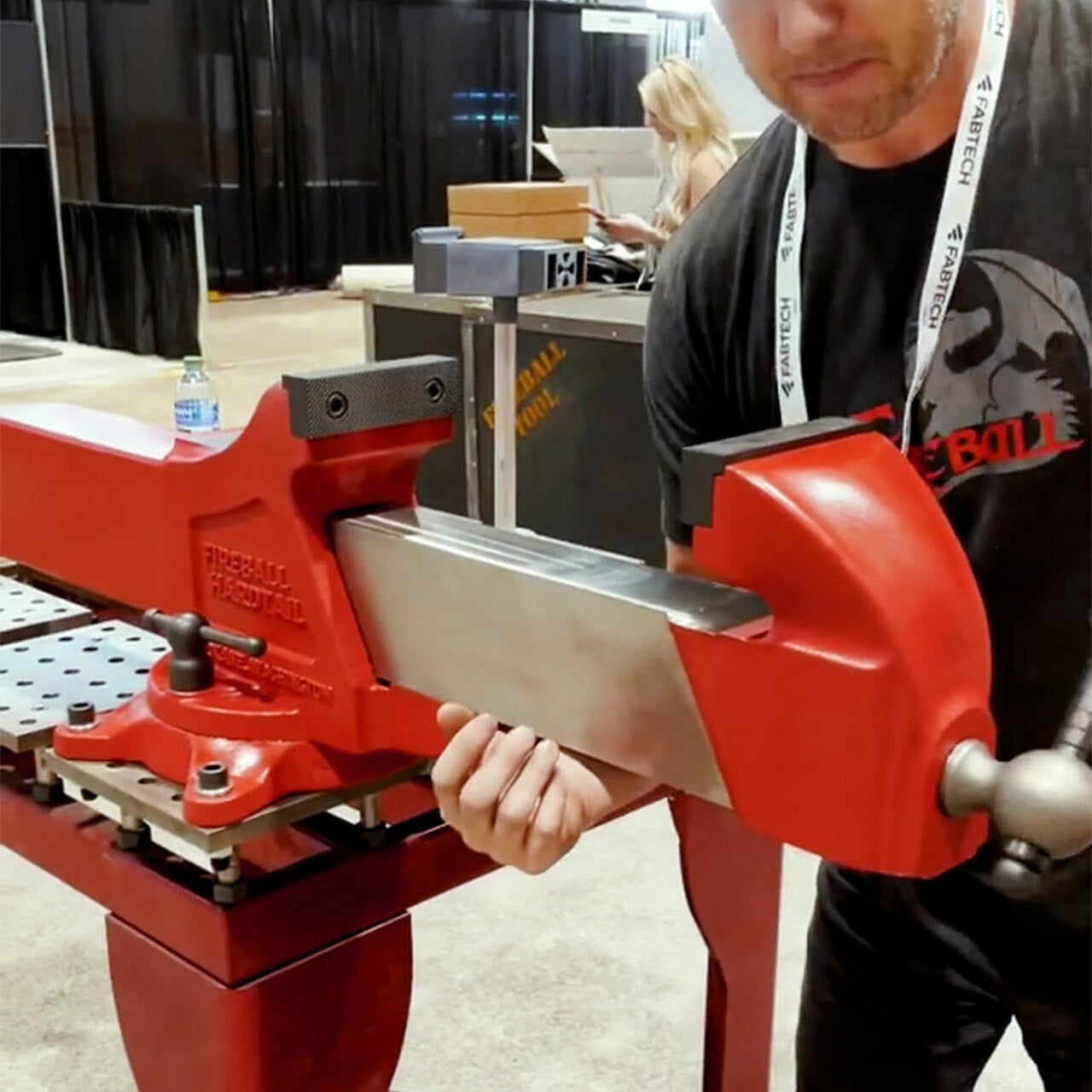

Way grooves underneath the front jaw slide keep vise steady and stable even when fully extended.
Vintage meatball style handle on nose of the vise.

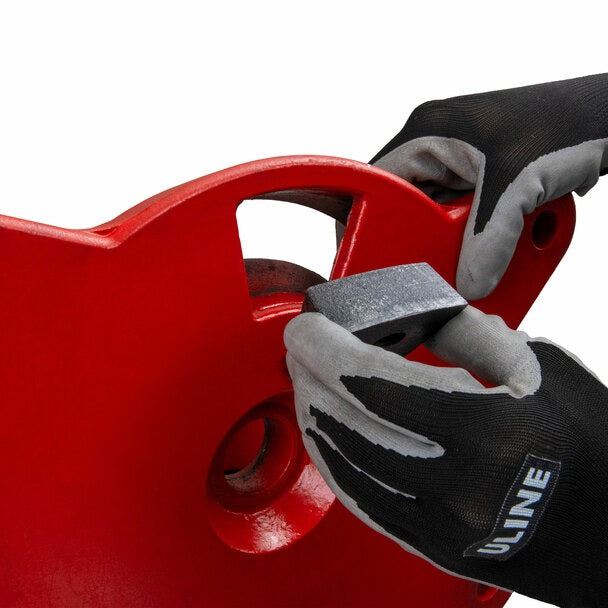

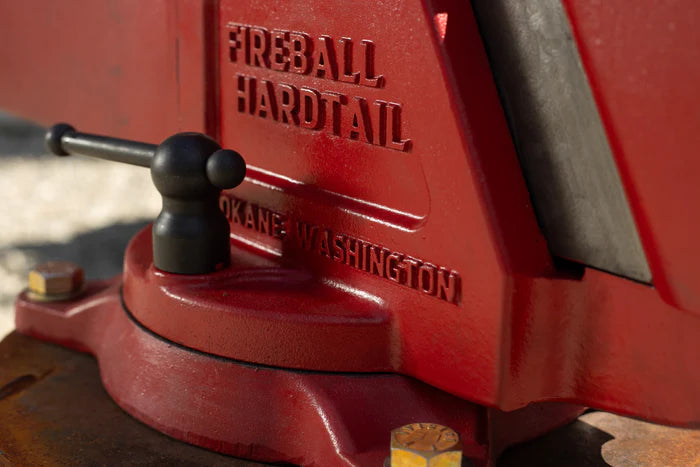

Swivel base locks down with two wedge nuts captured in a cast iron raceway.

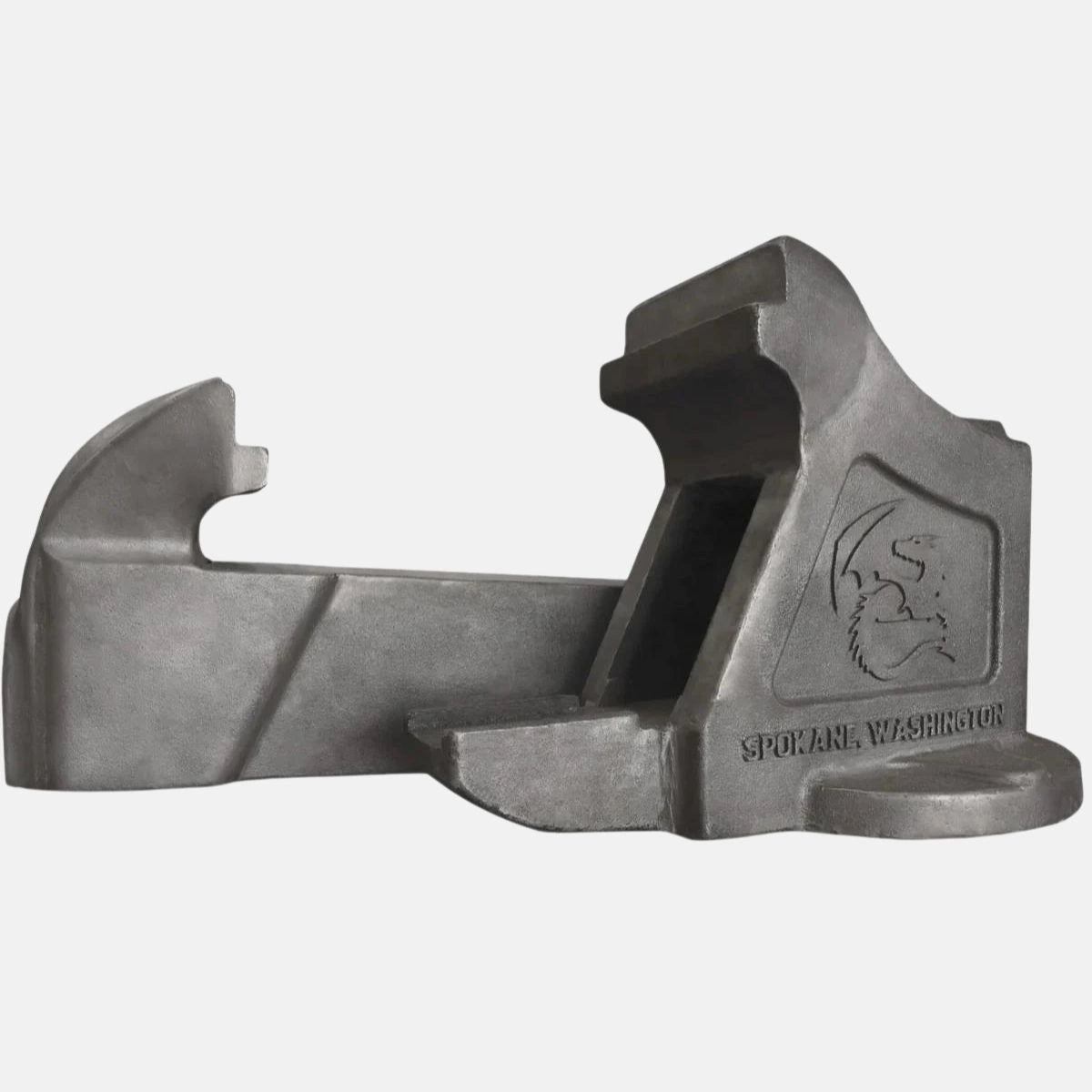

Base and body cast from high tensile strength ductile iron.
The vise spindle and nut are in a straight pull configuration where the nut is able to distribute the compressive load in all directions through the hardtail.
This is in contrast to most wedge nut designs where load is transferred as a shear force to a single point in the vise through a spindle nut that is wedged into the body.
Thrust bearings for smooth power transmission using large diameter lead screw.

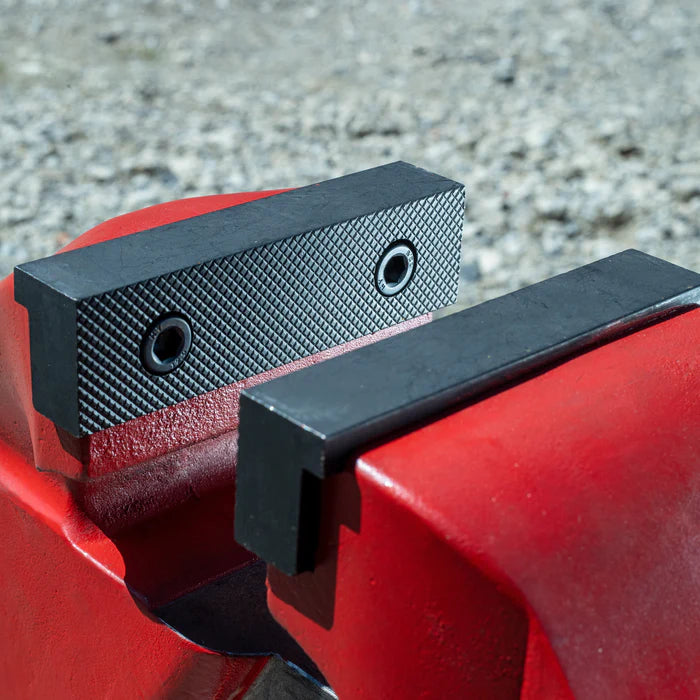

Included serrated Jaws
Optional Accessories - COMING SOON
For Standard Hardtail Vise (165 mm Jaw)
165 mm Jaws
Hardened V Jaws
Mounting Plate
For Mini Hardtail Vise (127 mm Jaw)
Aluminum Hardtail Vise Jaws
Mounting Plate
How Is It Shipped?
Ships inside a crate.
Standard Hardtail Vise
Crate Dimensions:
Shipment Weight: 133 kg
Mini Hardtail Vise
Crate Dimensions:
Shipment Weight: 77 kg
